Industrial Electrical Powder Coating Curing Oven for Metal
Hangzhou Feifu Import and Export Co., Ltd.- After-sales Service：Yes
- Warranty：12 Months
- Type：Powder Coating Oven
- Coating：Powder Coating
- Substrate：Steel
- Certification：CE, ISO
Base Info
- Model NO.：COLO-3518
- Condition：New
- Model Number：Colo-3518
- Dimension(L*W*H)：L3.5m*W1.8m*H2.2m
- Name：Industrial Electrical Powder Coating Curing Oven
- Power(W)：40kw
- Heating：by Electricity
- Product：Industrial Electrical Powder Coating Curing Oven
- Heating Temperature：180-250′c
- Delivery：15-20 Working Days
- Item：Industrial Electrical Powder Coating Curing Oven
- Transport Package：Carton
- Specification：CE
- Trademark：COLO
- Origin：China
- HS Code：8424899990
- Production Capacity：50sets,Month
Description
Basic Info.
Model NO. COLO-3518 Condition New Model Number Colo-3518 Dimension(L*W*H) L3.5m*W1.8m*H2.2m Name Industrial Electrical Powder Coating Curing Oven Power(W) 40kw Heating by Electricity Product Industrial Electrical Powder Coating Curing Oven Heating Temperature 180-250′c Delivery 15-20 Working Days Item Industrial Electrical Powder Coating Curing Oven Transport Package Carton Specification CE Trademark COLO Origin China HS Code 8424899990 Production Capacity 50sets/MonthProduct Description

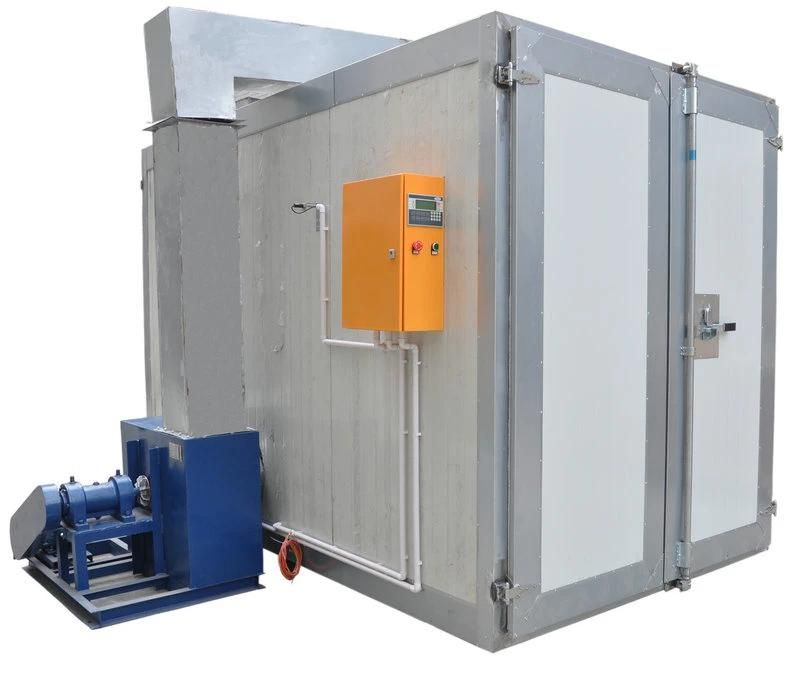

Industrial Electrical Powder Coating Curing Oven for Metal
Model: COLO-3518
Electrical powder coating oven,
PLC control system,
Working size: L3500mm*W1800mm*H2200mm

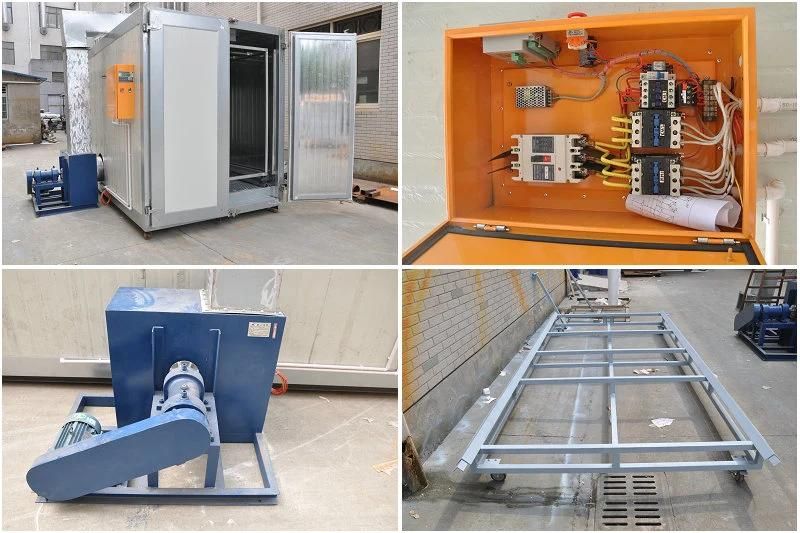

Detail of the powder coating curing oven
1,Fan motor:1.5kw

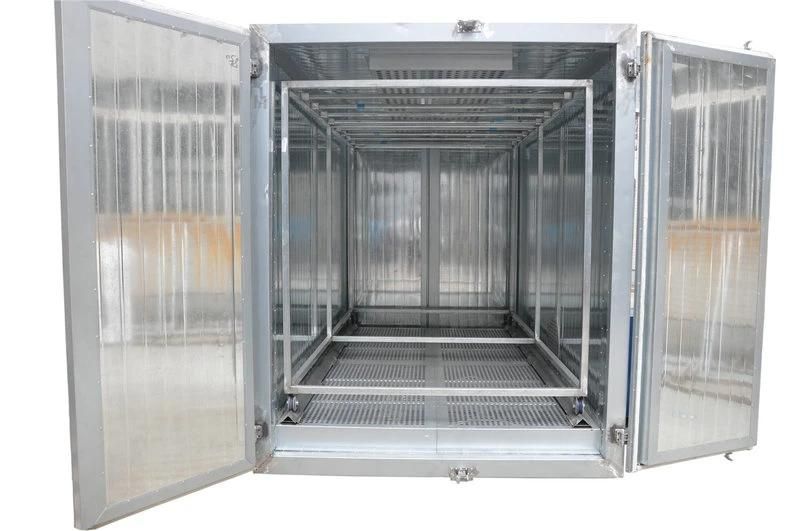

2,trolley: to Load the objects in and out
3, Control Panel: PLC system With temperature alarm, could set curing time and temperature, when curing time arrive, it will stop heat automaticly
4. inner wall: Galvanized Steel(thickness=1~1.5mm),
interlayer: rock wool board(thickness=100~120mm), insulated, maintain the inside temperature
outer wall: Color Steel(thickness=1-1.5mm), anti-rust
Technical Data of powder coating curing oven
| Inner Size | L3500mm*W1800mm*H2200mm |
| Outter Size: | L3900mm*W2200mm*H2500mm |
| Inner Material: | t1.0mm galvanized plate |
| Outter material: | t0.5mm galvanized plate |
| Thickness Insulation: | 120mm |
| Power supply: | Electric |
| Voltage: | 380V |
| Frequency: | 50Hz |
| Door type: | double |
| Warm-up time: | 15 min. (180-220° C) |
| Homogeneity: | < ± 3°C if 185°C |
| Temperature stability: | < ± 1°C |
| Temperature max. | 250° C |
| Transport: | Top |
| Power | 42KW |
| Warranty: | 12 Months |
Contact us for more information
