Slot Die Coatingpainting Machine

Hangzhou Zhongneng Photoelectricity Technology Co., Ltd.
  • Warranty：1 Year
  • Coating：Coil Coating
  • Substrate：Steel
  • Certification：ISO
  • Condition：New
  • Coating Head Liquid Tank：0.5-5 Ml

Base Info

  • Model NO.：SDC18V2
  • Coating Head Precision：+-2um,M
  • Coating Width：50, 100, 150, 200mm
  • Coating Speed：0.1-10mm,S
  • Coating Thickness：50-3000nm
  • Equipment Power：500W(Without Heating)
  • Weight：150kg
  • Transport Package：Wooden Box Shockproof
  • Specification：850*300*850
  • Trademark：PEROVS
  • Origin：Hangzhou
  • Production Capacity：60 Sets,Year

Description

ModelSDC18V2Working platformFlatness ±5μmCoating head liquid tank0.5-5 mlCoating head precision±2um/mCoating width50,100,150,200mmCoating speed0.1-10mm/sCoating thickness50-3000nmMechanical precision20μm horizontal, 0.5μm verticalExternal dimensions850*300*850Equipment power500W, without heating

Functional parameters:

1.High precision vertical axis positioning system.
2. Custom designed low reservoir coating head, saving a lot of solvent waste.
3. High precision vacuum adsorption platform for more uniform coating.
4. Multifunctional pump body, can be installed with multiple types and capacities of syringes.
5. Fully automatic cleaning function.
6. Fine-adjustable platform and coating head, significantly reduce the requirements of the substrate itself.

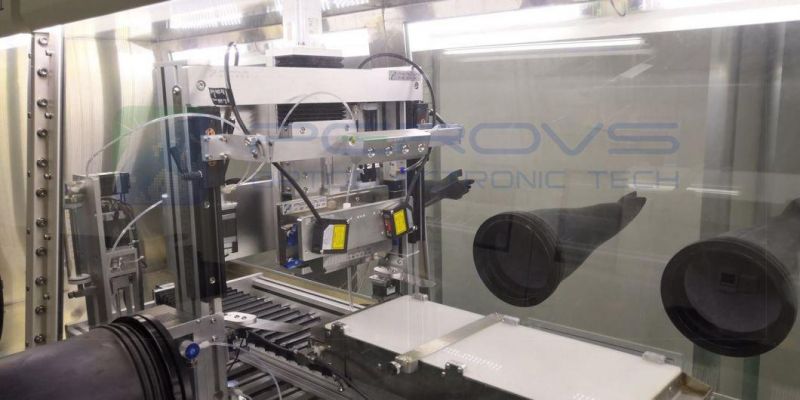

Slot Die Coatingpainting Machine

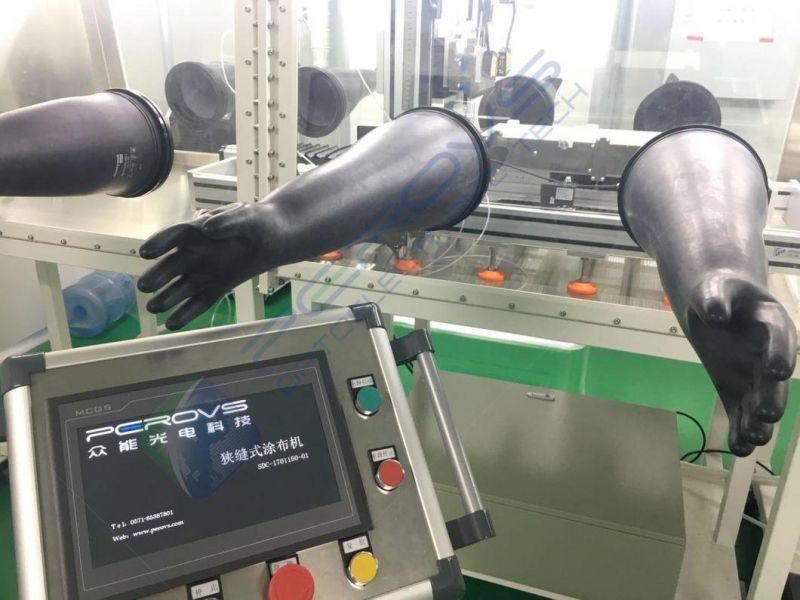

Slot Die Coatingpainting Machine

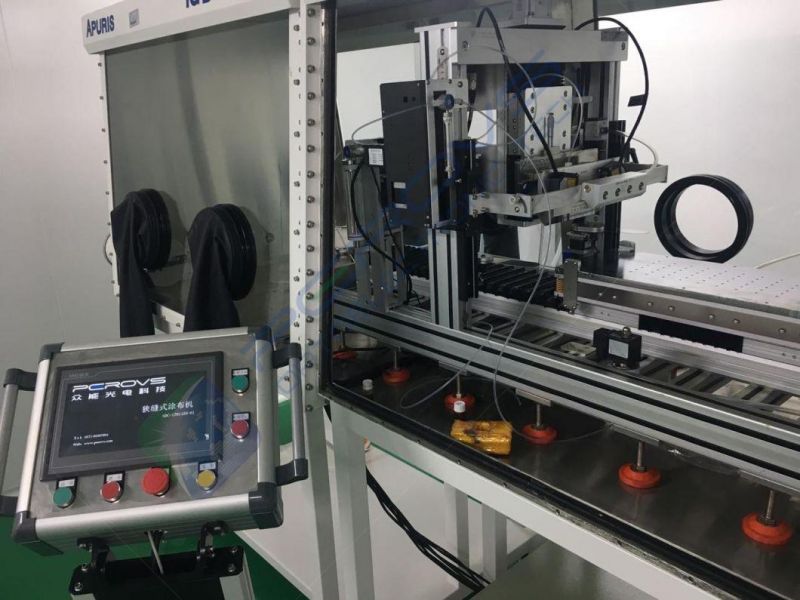

Slot Die Coatingpainting Machine
