• Model NO.：S28 series
• Certification：CE, RoHS, GS, ISO9001
• Type：Sand Casting
• Transport Package：Container
• Trademark：DL
• Origin：China
• HS Code：4200
• Production Capacity：600

Basic Info.

Model NO. S28 series Certification CE, RoHS, GS, ISO9001 Type Sand Casting Transport Package Container Trademark DL Origin China HS Code 4200 Production Capacity 600

Product Description

Qingdao Dingli machinery Co., Ltd. is located in the beautiful seaside - Qingdao Pingdu, the company set scientific research, manufacturing, installation and commissioning, after-sales service in one. Mainly produces resin sand production line, clay sand production line, coated sand production line equipment, all kinds of sand processing single equipment. The company has advanced casting machinery manufacturing and development technology, the production of products can fully meet the international and domestic market demand. The company has excellent design and development team, skilled construction team, domestic leading casting equipment design concept, perfect after-sales service system, willing to cooperate with the majority of casting enterprises, create a better tomorrow.

In line with the "down-to-earth, integrity-based, pay attention to service, continuous innovation" business philosophy, through continuous efforts. With our own efforts and focus on the development of a series of perfect processing equipment, to meet the different needs of the majority of users.
USES:

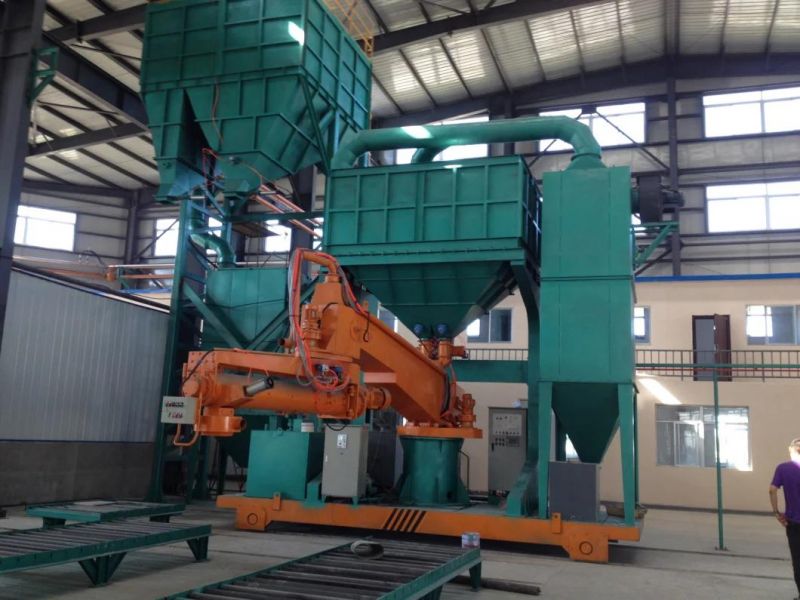

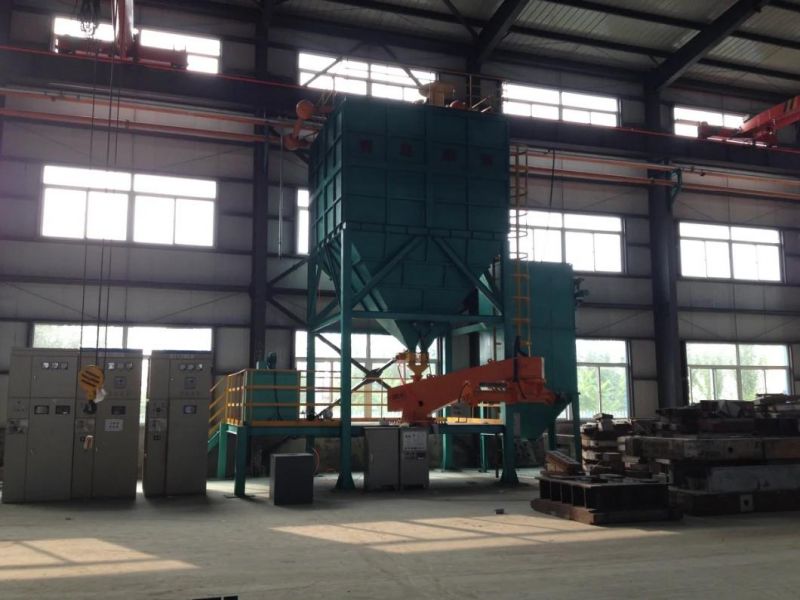

Widely used in mixing large cast iron, cast steel and other castings of self-hardening sand, the machine is mobile adjustable lifting sand mixer, easy to operate, the function of gold, can be adjusted and selected according to different material resin sand process characteristics. The machine is mainly composed of sand mixing machine, walking mechanism, sand bucket, electric control system, air control system, dust removal system and so on.

Features:

The big arm of the sand mixer adopts the rotary mode and the forearm is automatic/manual.

A variety of liquid material adding functions are preset to meet the needs of different proportions of surface sand, back sand, new sand and reclaimed sand. Open sand mixing tank body, stainless steel lining, easy to clean and maintain; Mixed sand blade inlaid hard alloy cutter head, long service life.

The head of the machine is provided with a tailing control device, deodorant dust removal device.

Hydraulic or electric push rod lifting, lifting range can be set according to user requirements.

The upper four-link mechanism ensures that the lifting of the big arm is always in the horizontal position, with compact structure and beautiful appearance.

Mobile car frequency conversion control start and stop, can realize fast and slow action; The safety system is equipped with statistical balance weight, track cleaning and sound and light alarm devices.
Main technicalparameters


Model Parameters	S2810	S2815	S2820	S2825	S2830	S2840
t/h Productivity(t/h)	10	15	20	25	30	40
mm Turning radius(mm)	5500	5500	5500	5500	5500	7000
mm Height of sand outlet(mm)	1200- 2200	1200- 2200	1100- 3000	1100- 3000	1100- 3000	700- 2400
