Ridge Cap Roll Forming Machine (Zyyx80-300)

Hangzhou Zhongyuan Machinery Factory
  • Type：Rolling Machine
  • Forging Forming Method：Cold Roll Forming
  • Power Source：Electric
  • Feature：Automation
  • Certification：ISO9001, CE
  • Warranty：12 Months

Base Info

  • Model NO.：Zyyx80-300
  • Customized：Customized
  • Advantage：Use Widely
  • Condition：New
  • Thickness of Raw Material：0.5-0.6mm
  • Working Speed：About 1500-2000mm,Min
  • Operation Language：English or as Per Client`S Required
  • Rollers Material：No.45 Forged Steel with Hard Chrome
  • Cutter Material：Cr12 Mould Steel with Quench Treatment
  • Cutting Style：Automatic Hydraulic Cut to Length
  • Shafts for Rollers：Grand Twice, ID72mm Solid Steel
  • Guarantee Time：First Year Free, Lifetime Services
  • Cotrol System：Mitsubishi PLC & Converter
  • Main Power：7.5kw
  • Transport Package：One 20 Gp for Shipping One Machine.
  • Specification：CE SGS BV
  • Trademark：Zhongyuan
  • Origin：Zhejiang, China
  • HS Code：84552210
  • Production Capacity：20sets,Month

Description



Technical parameterItemSpecification
Raw MaterialTypePre-painted steel coilThickness(mm)0.4-0.6Yield strength(mpa)235-345Roller material45# steel , coated with ChromeShaft for rollers Solid shaft with55mm,processed with cylindrical grinderForming speed(m/min)About 15-20Output speed(m/min)3-4Speed adjusting modeMitsubishi frequency transformerRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mould steelLength measurementNemicon EncoderControl modeMitsubishi PLCOperating modeButton + Mitsubishi Touch screenMain motor power(kw)77.5KWTotal power(kw)13KW

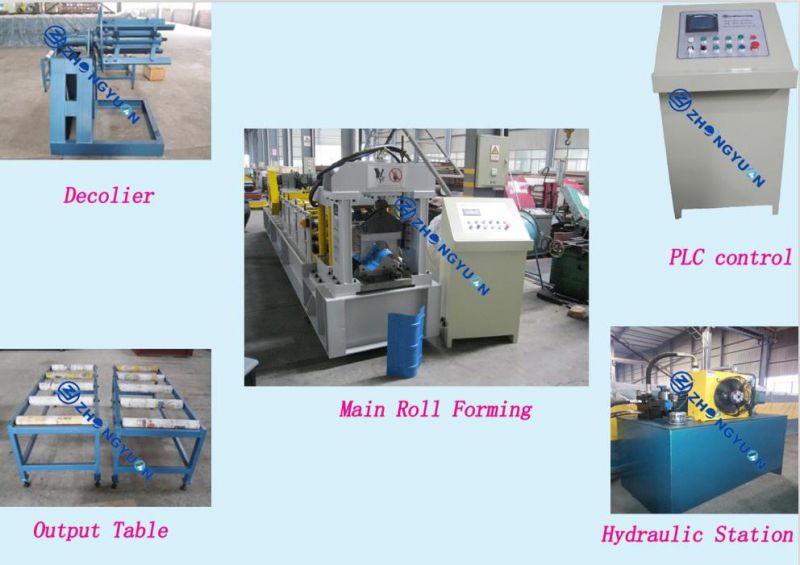

Feeding & guiding device1setMain roll forming machine1setHydraulic pressing system1setHydraulic cutting system1setControlling system1setRun out table 1set
Process Flow
Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic pressing ---Hydraulic Cutting - product to run out table


Ridge Cap Roll Forming Machine (Zyyx80-300)


Packing:1. One 20feet container for loading one set machine with mechanical decoiler. 2. Main machine body and decoiler is load naked (tighten to container with steel wire rope). 3. Spare parts and operating tools are loading in tooling box. Delivery : about 40-50 days after received advaced payment
Ridge Cap Roll Forming Machine (Zyyx80-300)
Ridge Cap Roll Forming Machine (Zyyx80-300)
We care about your concern Delivery: in only 5-8 weeks Container was sealed Machine installing and training: engineer overseas sevices Inspecting and testing machine: before shiping We care about the "special"Can not find the machine you need? Why not customize it!We have: 12 years experience in making roll forming machine                    15 years experience engineers  About usWe are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops.1.  Capacity: 12-15 sets/month 2.  Delivery: in only 5-8 weeks for urgent order 3.  Have our own tool center. 12 sets CNC machines.4. Zhongyuan is a "All-in-house source"     --from raw material to the final high-precision forming machine. We have our precise tooling center.5.  You can rely on our team!       We have engineers with experience more than 15 years in metal forming industry.  Get Free:"Send" below get profile drawing & design technical support by our 15 year experience technicians FOR FREE!

 FAQ:1) Q: Are you manufacturer or trading company?A: We are manufacturer and trading company . 2) Q: Do you provide installing and training overseas?A: Overseas machine install and worker training services are optional. 3) Q: How is your after sales support? A: We provide technical support on line as well as overseas services by skillful technicians.  4) Q: How does your factory do regarding quality control? A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment. 5) How can I trust you that machines pasted testing running before shipping?A:  1) We record the testing video for your reference. Or,    2) We welcome your visit us and test machine by yourself in our factory. 6) Q: Do you sell only standard machines?A: No. Most machines are made to order. 7) Q: Will you deliver the right goods as ordered? How can I trust you?A: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).
