Cur80 380V/80A, DC Inverter, Mosfet Portable Plasma Cutting Tool/Equipment Cutter Machine-Cut80
Dongguan Haibao Welding and Cutting Equipment Co., Ltd.- Customized：Non-Customized
- Layout：Horizontal
- Cutting Material：Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
- Automatic Grade：Automatic, Manual, Semi-Automatic
- Power Source：Electric
- Cutting Mode：Waterjet Cutting
Base Info
- Transport Package：Wooden Box
- Trademark：WLS
- Origin：Shenzhen, China
- HS Code：8515900000
- Production Capacity：900pieces
Description

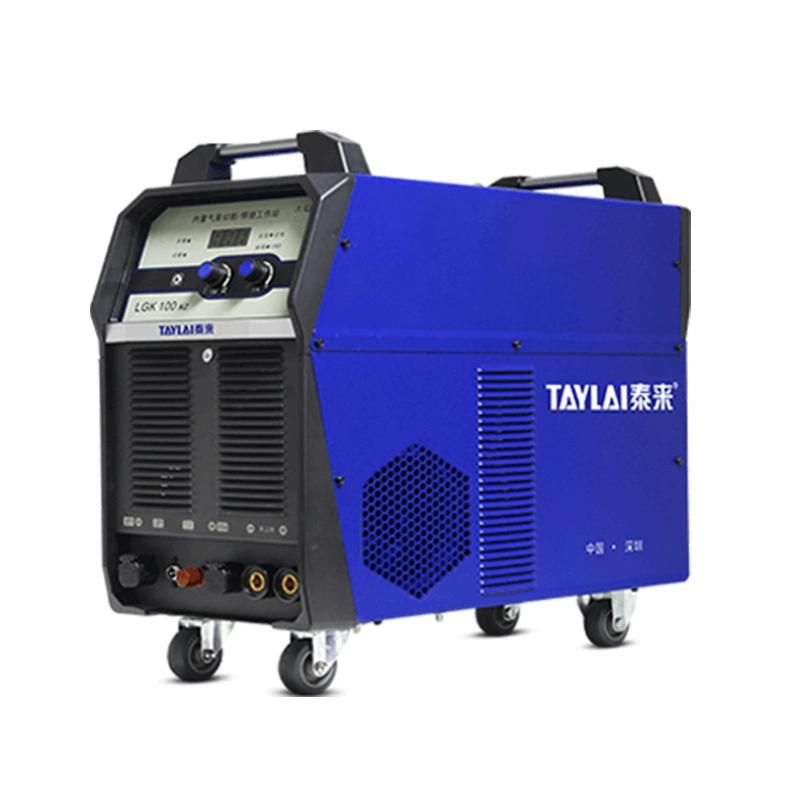

TypeLGK-100 control mode IGBT inverter Rated input voltage AC380V Rated input current(A) 22 Rated input capacity(KVA) 14.5 Rated output current(A) 100 Cable cross-sectional area mains input(mm2) 4 power output(mm2) 16 ground wire(mm2) 4 Rated output voltage(V) 120 Duty cycle(%) 100 Rated no-load voltage(V) 285 Current adjustment range(A) 30-100 Quality cutting thickness (carbon steel)(mm) 1~30 Maximum cutting thickness (carbon steel)(mm) 35 Using plasma gas Compressed air Gas pressure range(MPa) 0.4-0.5 Applicable air compressor capacity(m3) ≥0.3 Arc ignition mode High pressure non-contact Enclosure rating IP21S Insulation rating F Cooling method Air Power factor 0.93 Dimensions(mm) 510*265*500 Host weight(KG) 40
