• Model NO.：HT-1500
• Width (mm)：12"-48"
• Diameter of Wire (mm)：Dia.0.63-Dia.2 ( Bwg23-Bwg14)
• Max. Rolled Net Size (mm)：120 (400′)
• Welding Speed ( Mesh/Minute)：65 ( Radia)
• Power：50kwax4
• Outside Size(mm)：2600X1700X1350
• Transport Package：Plastic Bag, Also Can Made as Your Request
• Specification：wire diameter: 0.8-2.5mm
• Trademark：hengtai
• Origin：China
• HS Code：8463300000
• Production Capacity：20 Sets,Month

Size of mesh (mm)
12.7-101.6 (1/2"-4")
Width (mm)
914.4-1219.2 ( 12"-48")
Diameter of wire (mm)
Dia.0.63-Dia.2 ( BWG23-BWG14)
Max. rolled net size (mm)
120 (400')
Welding speed ( mesh/minute)
65 ( radia)
Power
380/220V
50-60HZ
50KWAx4
Outside size(mm)
2600x1700x1350

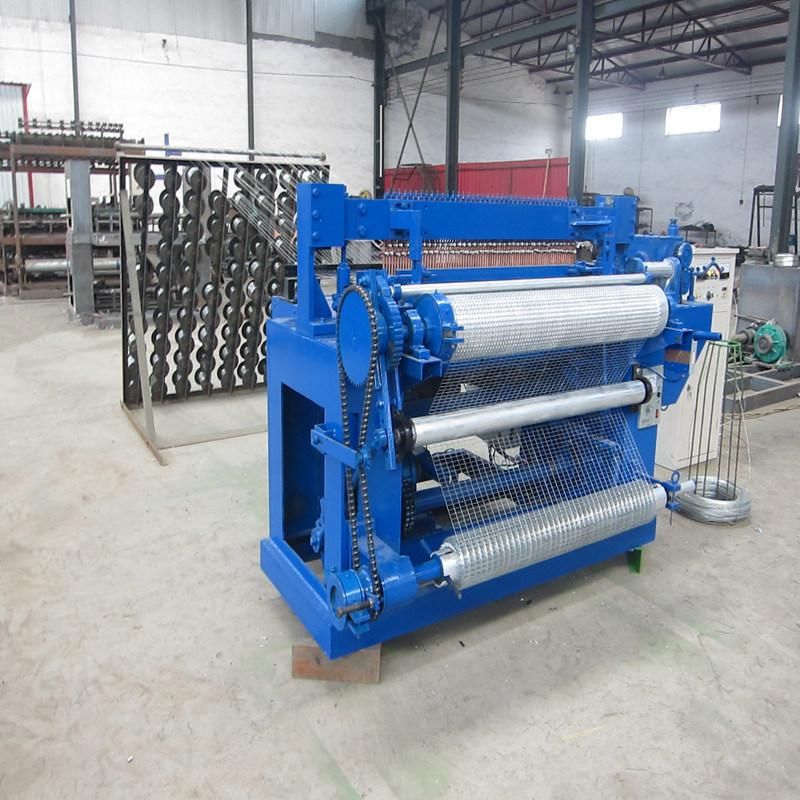

Peculiarity: Big box-style support, high stability, lower noise, E-Machine in one, straighten & send wire automatically. Used for welded wire mesh of big width & wire dia.
Size of mesh (mm)
25.4-152.4 (1"-6")
Width (mm)
1219.2,1524,1828.8 (48", 60", 72")
Diameter of wire (mm)
Dia.1.07-Dia.2 ( BWG19-BWG14)
Max. rolled net size (mm)
91.4m (300')
Welding speed ( mesh/minute)
45 ( radia)
Power
380/220V;50-60HZ;50KWAx6
Outside size(mm)
3350x1800x1400

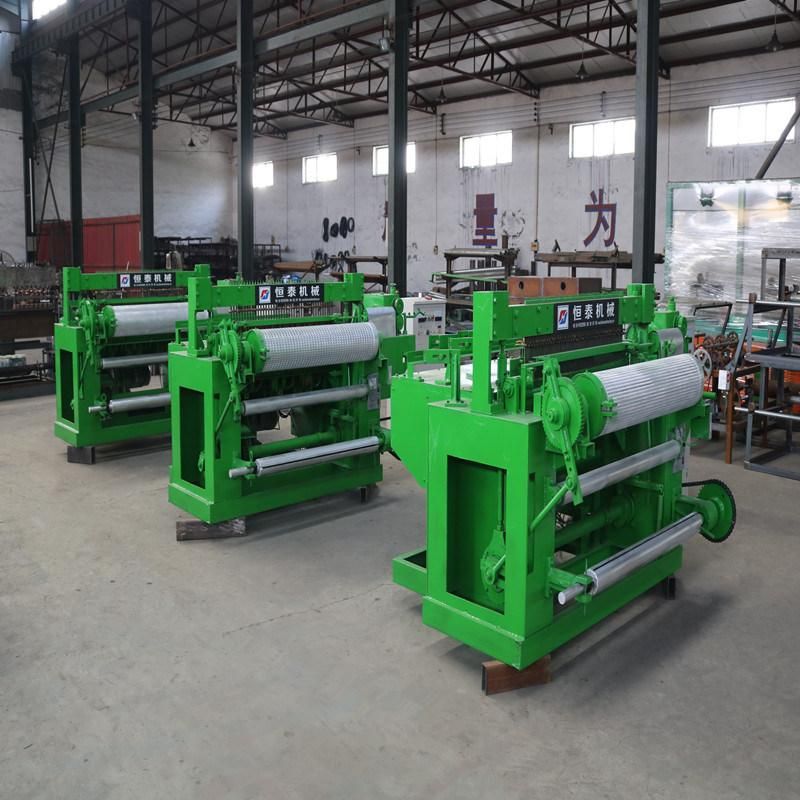

Peculiarity: Shuttle sending weft wire type, sending quicker, lower noise, more stable, save electricity. Used for welding net of big width diameter 0.7- diameter 1.07; mesh 1/4" - 1/2".
Size of mesh (mm)
6.35-12.7 (1/4"-1/2")
Width (mm)
1219.2-1828.8 (48"-60")
Diameter of wire (mm)
Dia.0.74-Dia.1.07 ( BWG22-BWG19)
Max. rolled net size (mm)
120m (400')
Welding speed ( mesh/minute)
48( radia)
Power
380/220V;50-60HZ;50KWAx6
Outside size(mm)
3050x1900x1750



Our Services

1.Reply you enquiry in 24 hours working hours
2.Experienced staffs answer all your questions about the machine
3.Exclusive and unique solution can be provided to our customer by your well-trained and professional engineer.
4.Special discount and protection of sale area provided to your distributor.
5.Engineer can install,test and adjust the machine for you when the machine arrived your factory 7days.
6.Engineer can repair machine to your factory
7.Guarantee: one year, some accessories free for you.

Payment Terms
1. 30% T/T in advance, 70% payable against the copy of the B/L
2. L/C is also acceptable
3. As per your special requirement, we can discuss it
Company Information
1. More than 120 workers.
2. With the occupying area of 6800 square meters.
3. More than 15 years experiences in the industry of wire mesh machine.
4. Competitive price and high quality.
5. Near to Tianjin port.
6. ISO certification
