• Model NO.：YGTQ series
• Customized：Non-Customized
• Condition：New
• Function：Straightening and Cutting
• Application：Manufacturing Plant, Construction Works
• Color：Optional
• Cutting Error：Around 10mm
• Transport Package：Plywood
• Specification：size is different for different model
• Trademark：Hengyisheng
• Origin：Henan
• HS Code：8462219000
• Production Capacity：8000sets,Year

Basic Info.

Model NO. YGTQ series Customized Non-Customized Condition New Function Straightening and Cutting Application Manufacturing Plant, Construction Works Color Optional Cutting Error Around 10mm Transport Package Plywood Specification size is different for different model Trademark Hengyisheng Origin Henan HS Code 8462219000 Production Capacity 8000sets/Year

Product Description

4mm-18mm reabr wire straightening and cutting machine

Steel Bar Straightening Cutting is a kind of highly effective equipment, it has the following features:

1)  Speed can be adjusted

2)  Adapt to different workers

3)  High efficiency, quick modulation speed, smaller error and material loss to a minimum

 This machine is efficient for cutting steel bars on project. It can cut different kinds of round steel bar and deformed steel bar. It's made of high steel knife seat and connecting shaft, international standard high speed motor and firm reinforcing covering. The machine is very small, solid, self-lubrication, little power loss; easy operation and easy moving with four wheels and the knife can be manually controlled.


Steel Bar Straightening Cutting Machine Technical Parameters:

Model No.	YGTQ4-10	YGTQ4-12(1)	YGTQ 4-12(2)	YGTQ5-14	YGTQ6-16
Round bar	φ 4-φ 10mm	φ 4-φ 12mm	φ 4-φ 12mm	φ 5-φ 14mm	φ 6-φ 18mm
Deformed bar	φ 4-φ 8mm	φ 4-φ 10mm	φ 4-φ 10mm	φ 5-φ 12mm	φ 6-φ 16mm
Cutting length(mm)	700-8000	300-8400	300-8400	300-8400	500-9500
Cutting error	±10mm	±10mm	±10mm	±10mm	±10mm
Straighten speed	35-45m/min	40-45m/min	40-45m/min	50-55m/min	60-80m/min
Straighten and pulling motor	5.5kw	7.5kw	7.5kw	11kw	15kw
Cutting motor	/	5.5kw	/	5.5kw	5.5kw
L*W*H	1.3×0.75×0.5m	2.0×0.64×1.3m	1.9×0.84×0.9m	2.9×0.64×1.3m	4.0×0.65×1.2m
Weight	260kg	900kg	650kg	1200kg	1500kg

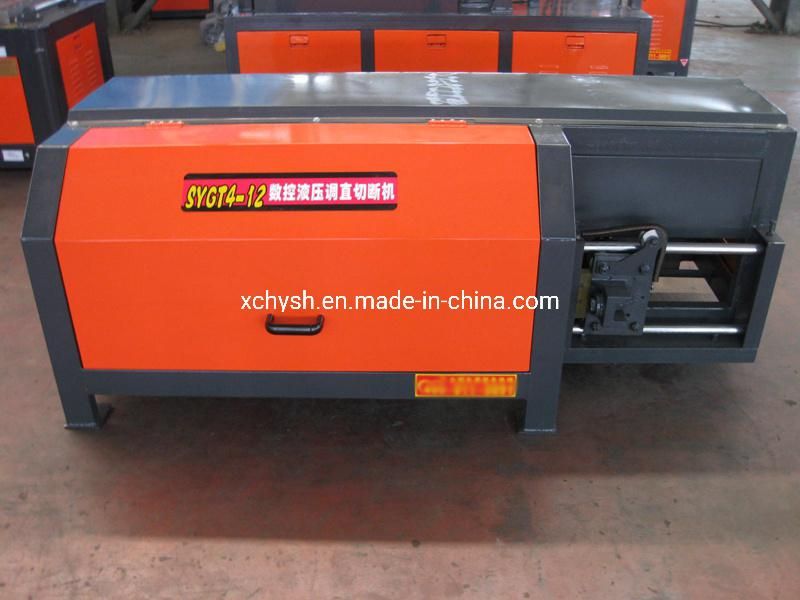

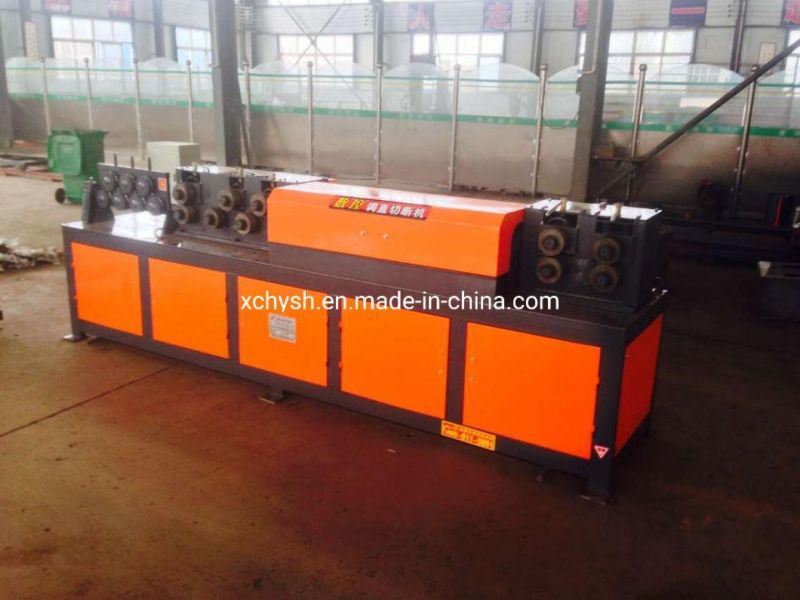

Steel Bar Straightening Cutting Machine Pictures:






Our services

OEM orders are accepted: We can manufacture machines according to your requirement with your design, logo, color, material and brand information.

Constantly service before and after sales: our sales and engineers could provide constantly service for you.

Training service: free training is offered if you send for your workers to our factory.

Engineers available to provide overseas service: We could send for engineer to construction site to install machine and train workers.

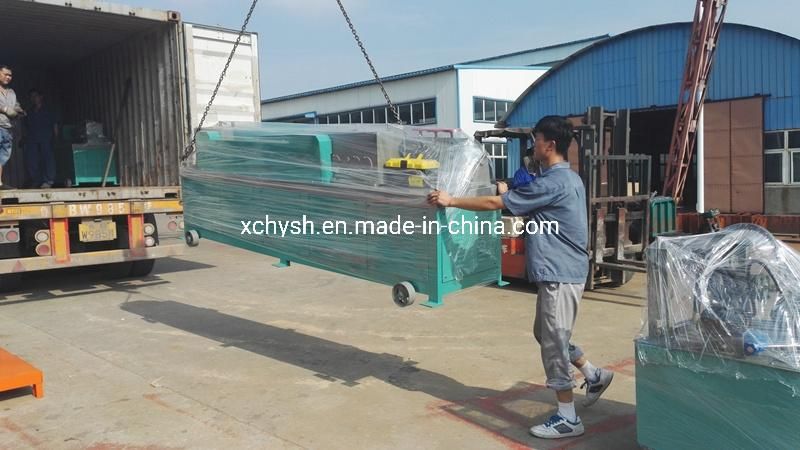

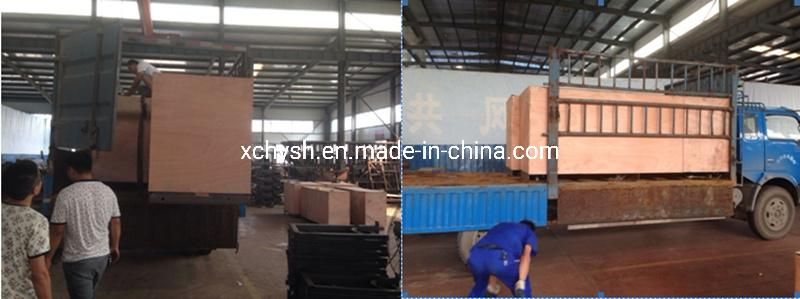

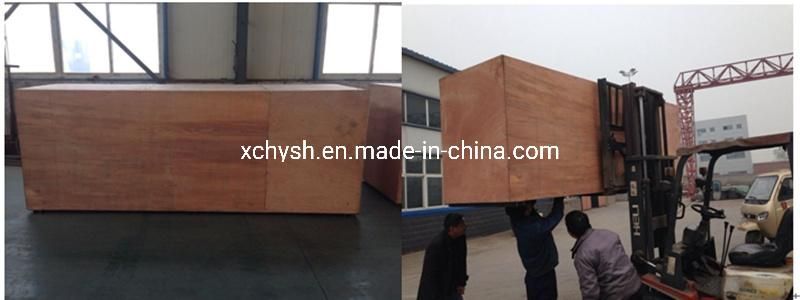

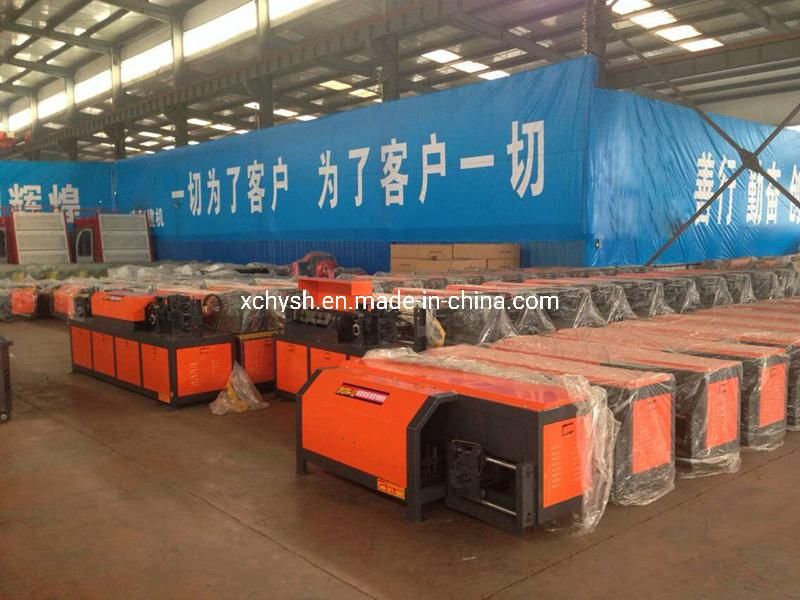

Steel Bar Straightening Cutting Machine Packing and Delivery Pictures:
