• Model NO.：CutMaster4080
• Automatic Grade：Automatic
• Power Source：Electric
• Cutting Mode：Plasma Cutting
• Name：Gantry CNC Cutting Machine
• Application：Industrial Metal Cutting
• Cutting Thickness：1-45mm,6-200mm
• Cutting Speed：0-12000mm,Min
• Cutting Accuracy：±0.5mm
• Motor：Stepper Motor
• Torch Lifting Distance：≤150mm
• Working Interface：Chinese and English (Other Languages Can Be Custo
• Transport Package：Wooden Box Package
• Specification：2200*4800*1650mm
• Trademark：seanior
• Origin：Dezhou, Shandong Province
• Production Capacity：20 One Month

Basic Info.

Model NO. CutMaster4080 Automatic Grade Automatic Power Source Electric Cutting Mode Plasma Cutting Name Gantry CNC Cutting Machine Application Industrial Metal Cutting Cutting Thickness 1-45mm/6-200mm Cutting Speed 0-12000mm/Min Cutting Accuracy ±0.5mm Motor Stepper Motor Torch Lifting Distance ≤150mm Working Interface Chinese and English (Other Languages Can Be Custo Transport Package Wooden Box Package Specification 2200*4800*1650mm Trademark seanior Origin Dezhou, Shandong Province Production Capacity 20 One Month

Product Description

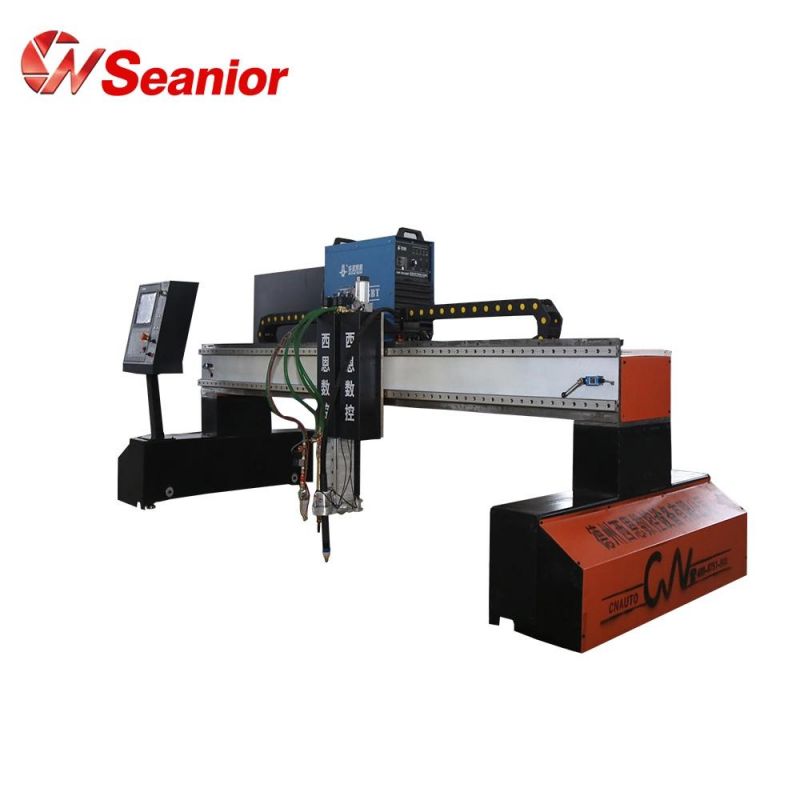

Heavy Duty Gantry CNC Flame and Plasma Cutting Equipment

(CNC Gantry Cutting Machine            CutMaster 4012)

Productivity workhorse, economical and high efficiency

 Fast, Accurate, Long work hours

Consistent, repeatable performance, Multiple processes, Easy to use


Do you want to cut something great and improve your efficiency with CNC Plasma and flame cutting machine?
Are you looking for the high quality plasma/flame metal cutting machine to cut your sheet metal or pipe and tube at best price?
Are you finding German or American suppliers' offer SO HIGH?
How about a person helps you to solve all the problems and leave you to sit back and relax?Product Description

Economical, high-precision and robust. CutMaster  owns sturdy construction. With Rugged floor-mounted  rails which are machined from 24kg/m crane rail and heavy-duty end truck,  You'll get high- precise cutting quality of long life cycle.

CutMaster can support two high performance plasma systems and up to 11 flame straight cutting systems, which can provide you different cutting requirements and improve your productivity to the largest extent.

Equipped with accurate transmission and guiding system, adopting STARCAM automatic nesting software and F2300B industrial level CNC system, CutMaster II is built to fulfill heavy tasks in your shop with multiple choices.

Are you looking for a machine that can outperform in cutting capability and is low in budget? Meet our robust CutMaster and get excellent cut part quality and benefit from cost-saving, worry-freeing and high-efficiency.

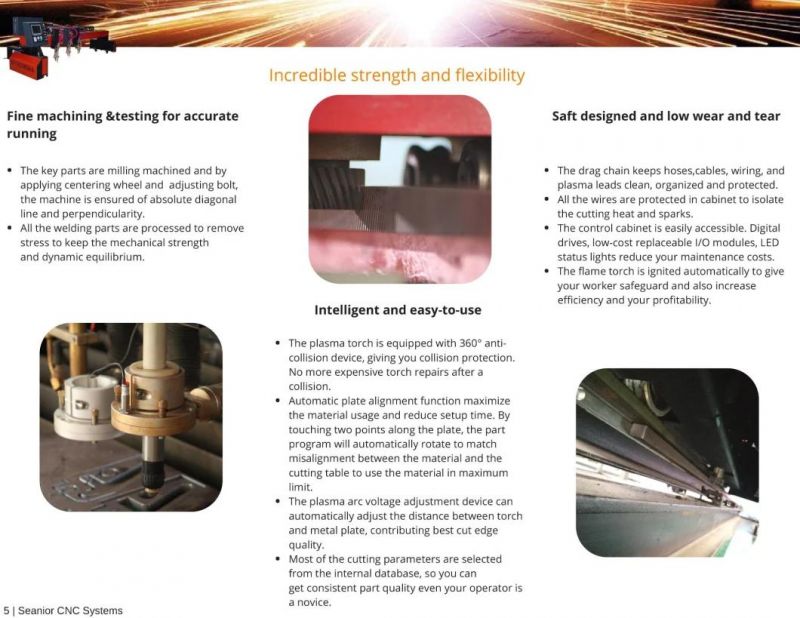

Main Features

1) Heavy-duty CNC gantry cutting machine with easy-to-use F2300B CNC control system.
2) High compliance digital drives provide a smooth cut edge with zero maintenance.
3) Large diameter drive wheels combined with high precision guiding systems offer you superior drive motion.
4) Rugged cross box beam with milled steel plate for high precision guiding system delivery lasting strength, durability and precision.
5) Fast flame cutting torch with height sensing lifer and auto-ignition device let you spend more time cutting and less time in setup.
6) Up to 800 amp plasma depending on your choice.
5) Apply to metal cutting in ship building, construction tower, mechanical engineering, steel service and other heavy industries.

Product Parameter


Technical item	Technical parameters
Effective cutting width	2000mm - 5500mm
Effective cutting length	4000mm - 20000mm
Tailor-made dimension	Accept tailor-made order
Flame piercing thickness	6mm -80mm
Edge cutting thickness	6mm -200mm for flame cutting
Torch lifter vertical traveling distance	≤150mm
Cutting precision	±0.5mm
Cutting speed	0-10000 mm/min
Number of lifter	Double (standard), accept tailor-made order
Cutting process	Plasma cutting and flame cutting
Torch lifting device	flame capacitance adjustment / plasma arc pressure adjustment
duty cycle	24h
processing material	Mild steel , stainless steel and aluminum

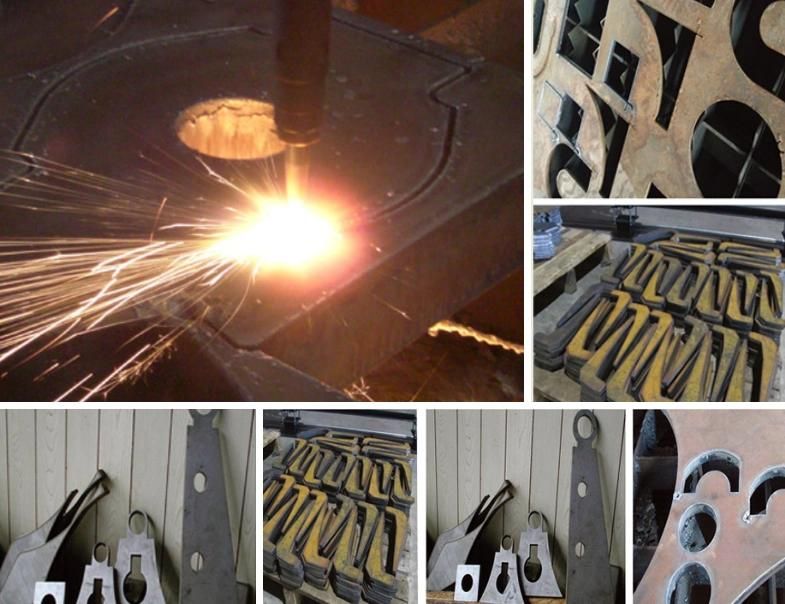

Cutting Samples

Seanior CNC Systems

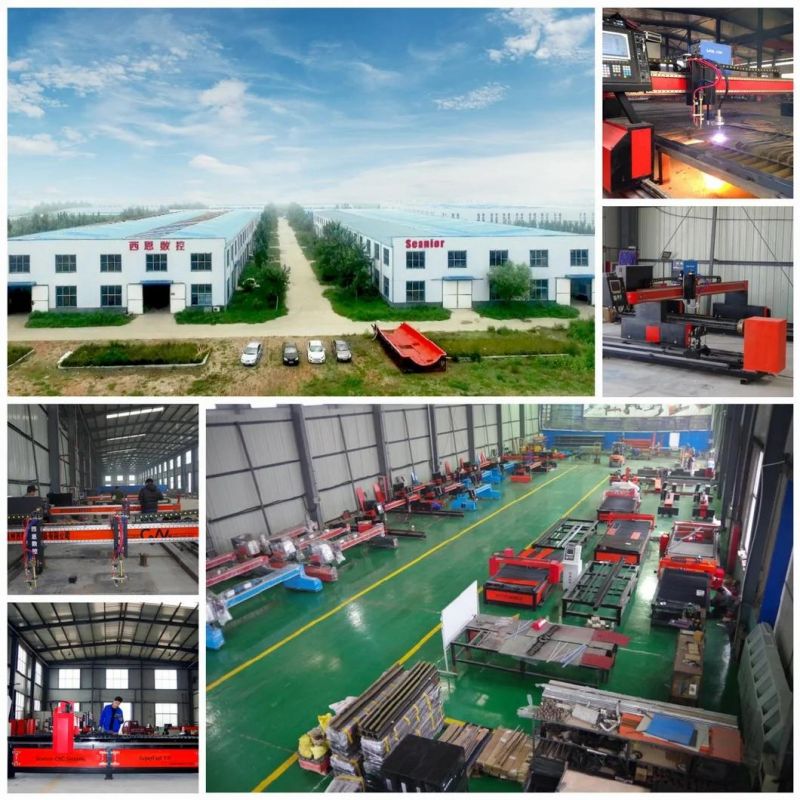

Seanior CNC Systems manufactures and sells cutting machines, provide services for the metal-working industry, offering complete solutions and focus on customer-driven innovation.
 Seanior Service

1.Custom solutions

We do MORE than what you think of.
You understand your products well and we understand how to realize your production well because we focus on customer driven innovation. You'll get professional advice from our engineers on the selection of optimized cutting solution based on your application situation.

2.Installation & Training

With our installation course or onsite services, you get your cutting machine to be installed properly, which guarantee stable operation and require less maintenance.

before shipping you the machine, we prepare and send you video course. it's easy to understand and it guarantees that your workers get the  skills and confidence to operate the machine in a productive and safe manner.

3.Maintenance & Retrofit

With rich experiences in thermal cutting, you can get from us all the technical supports with just a call or an email. We guarantee you all the convenient access to maintenance of your machine. Whenever you need query handling, repairs and spare parts, Sean is right here for your backup.

4.Software Support

We guarantee you a fast, consistent and high quality support for our software solutions.
Our software engineers are proficient in CAD, tekla/solidworks, FASTCAM, pipefree, MATLAB/simulink, and other softwares. With rich experiences and individual service for specific technical questions, you'll be ensured with concrete support from us constantly.
