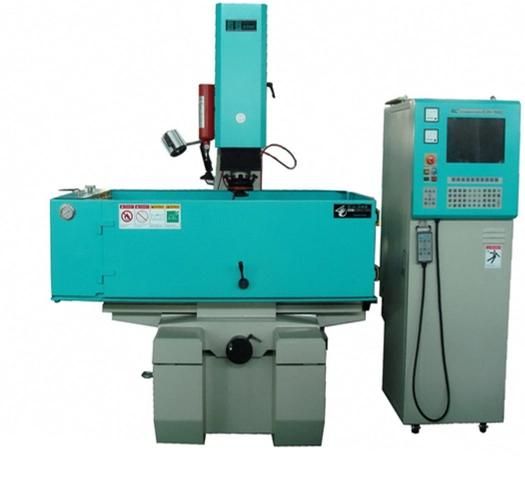

Creator Cj560 ISO9001 Precise CNC EDM Machine
Creator Industry (Suzhou) Co., Ltd.- X Axis Travel：600mm
- Y Axis Travel：500mm
- Z Axis Travel：280mm
- Workhead Travel：220mm
- Worktable Dimensions：900*500mm
- Worktank Inner Dimensions：1460*866*502mm
Base Info
- Model NO.：CJ560
- Max Electrode Weight：75kg
- Max Workpiece Weight：1500kg
- Machine Unit Dimensions：2650*1900*2300mm
- Machine Weight：1950kg
- Transport Package：Wooden Case
- Specification：CE,ISO9001,SGS
- Trademark：LEAD
- Origin：China
- Production Capacity：30 Set a Month
Description
3 V220.346 220.346 220.346 220.346 220.346 220.346 220.346 220.346 220.346 380.415 380.415 380.415 380.415 380.415 380.415 380.415 380.415 380.415 Input power KVA 3 5 8 10 7 10 15 20 30 Working voltage(No load) V 100 100 100 100 100 100 100 150 250 High voltage V 210 150 or 270 150 or 270 150 or 270 140 or 250 140 or 250 140 or 250 140 or 250 140 or 250 Min. ON time µ S 2 1 1 1 1 1 1 1 1 Min. OFF time µ S 2 1 1 1 1 1 1 1 1 Max. Cutting speed mm3/min 220 480 720 1050 480 720 1050 1500 2500 Best surface finish µ mRa. 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 Min. Electrode wear rate % 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 Weight kg 170 200 230 350 210 248 360 490 700
Parameters of Machine unit:
Parameters of Machine unit:
| Model | CJ560 | |
| Table travel(X axis) | mm | 600 |
| Table travel(Y axis) | mm | 500 |
| Quill travel(Z1 axis) | mm | 280 |
| Work head travel(Z2 axis) | mm | 220 |
| Work table dimensions(LxW) | mm | 900x500 |
| Work tank inner dimensions(WxDxH) | mm | 1460x866x502 |
| Max. capacity of dielectric fluid | Liter | 865 |
| Max. electrode weight | kg | 75 |
| Max. workpiece weight | kg | 1500 |
| Machine unit dimensions(WxDxH) | mm | 2650x1900x2300 |
| Machine unit weight | kg | 1950 |
