• Model NO.：HT-1500
• Trademark：Hengtai
• Origin：Anping, Hebei
• HS Code：8463300000
• Production Capacity：18sets,Month

ModelHT-AHT-BHT-CHT-D Mesh width1427mm1880mm2000mm2400mm Motor5.5kw7.5kw7.5kw11kw Twine diameter1.9-2.5mm1.9-2.5mm1.9-2.5mm1.9-2.5mm Side wire diameter2.0-3.5mm2.0-3.5mm2.0-3.5mm2.0-3.5mm Voltage3 phase,380v,50Hz or according to client's voltage Efficiency≤45 rows/min≤45 rows/min≤45 rows/min≤45 rows/min Weight3.5T3.8T4.0T4.5T Wrap number11131823 Weft number10121722

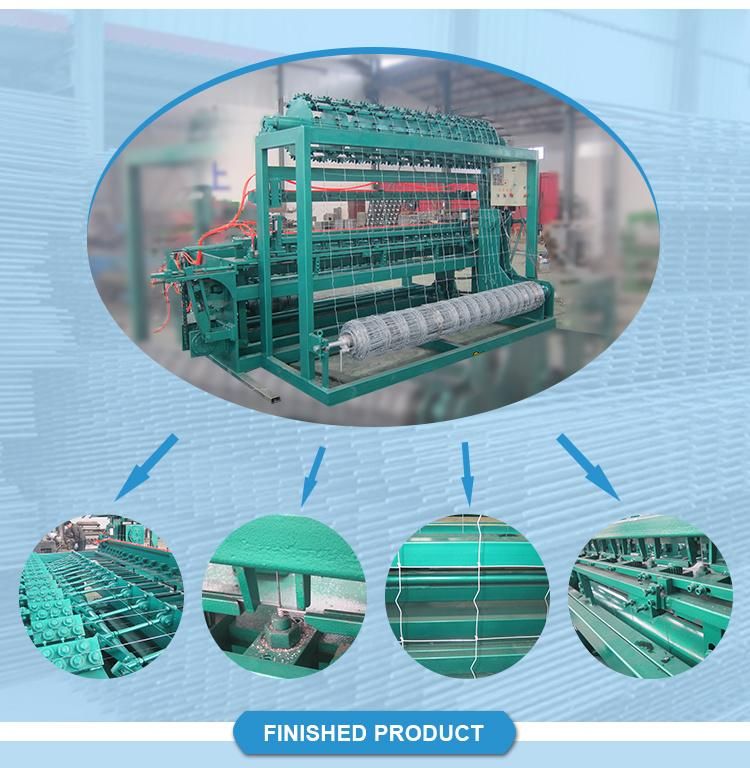

Grassland Fence Machine Features

1. Special hole for line wire feeding, more flexible and tidy.

2. Straightening rollers for weft wires, finished weft wire more straightened,

3. Instead of groove rail, we adopt linear rail to push cross wire, less resistance, moving fast.

4. Cutter is made of hardened mold steel, HRC60-65, life is at least one year.

5. Pneumatic turning weft wire, more swift and flexible, to ensure high working speed.

6. Twisted head is made of hardened mold steel, HRC28, life is at least one year.

7. Weft wire distance can be adjustable 50-500mm with the special device.

8. Grid counter to record weaving roll length.

9. Mesh roller is easy to discharge and install.

10. Instead of electro-magnetic motor, we adopt frequency-variable motor controlled by inverter, adjustable working speed, saving 30%energy.

11. We adopt China top brand reducer, no oil leaking, life is at least 5 years.

12. Special sensor to detect cross wire feeding, if wire used up, the machine stops automatically.
