• Model NO.：DK7725H , DK7732H , DK7740H , DK7750H , DK7763H
• Worktable Size：340*560mm
• Machine Size：1500*1100*2140mm
• Transport Package：Wood Case
• Specification：CE ISO9001
• Trademark：WELLON
• Origin：China
• HS Code：8462109000
• Production Capacity：200PCS,Month

Basic Info.

Model NO. DK7725H / DK7732H / DK7740H / DK7750H / DK7763H Worktable Size 340*560mm Machine Size 1500*1100*2140mm Transport Package Wood Case Specification CE ISO9001 Trademark WELLON Origin China HS Code 8462109000 Production Capacity 200PCS/Month

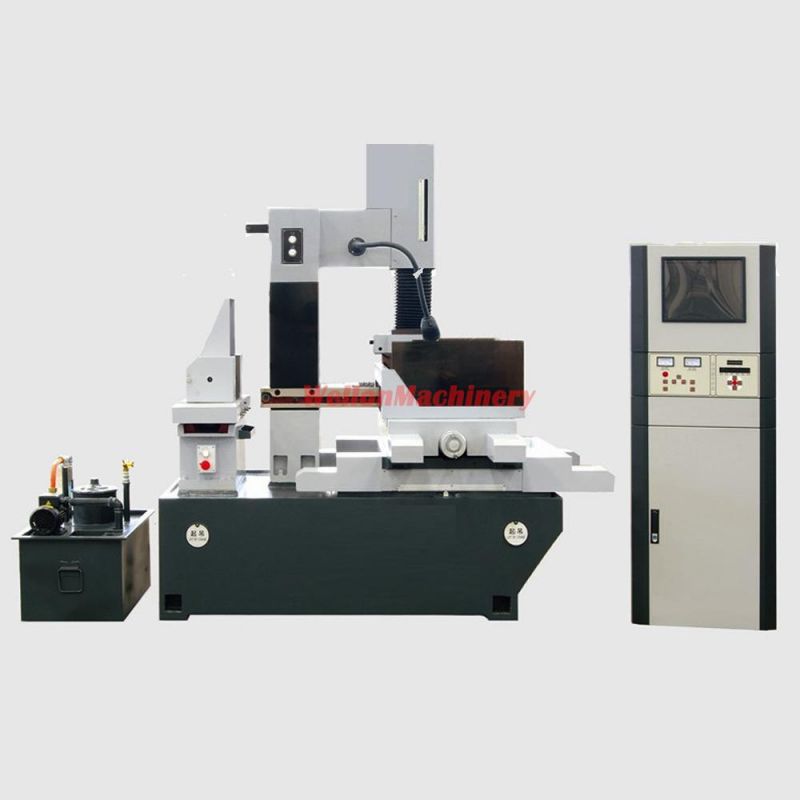

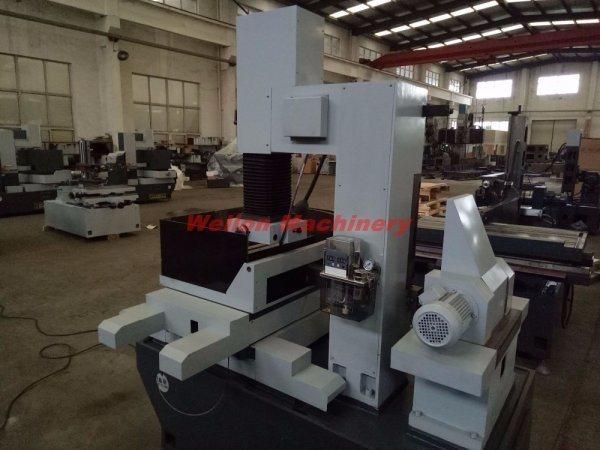

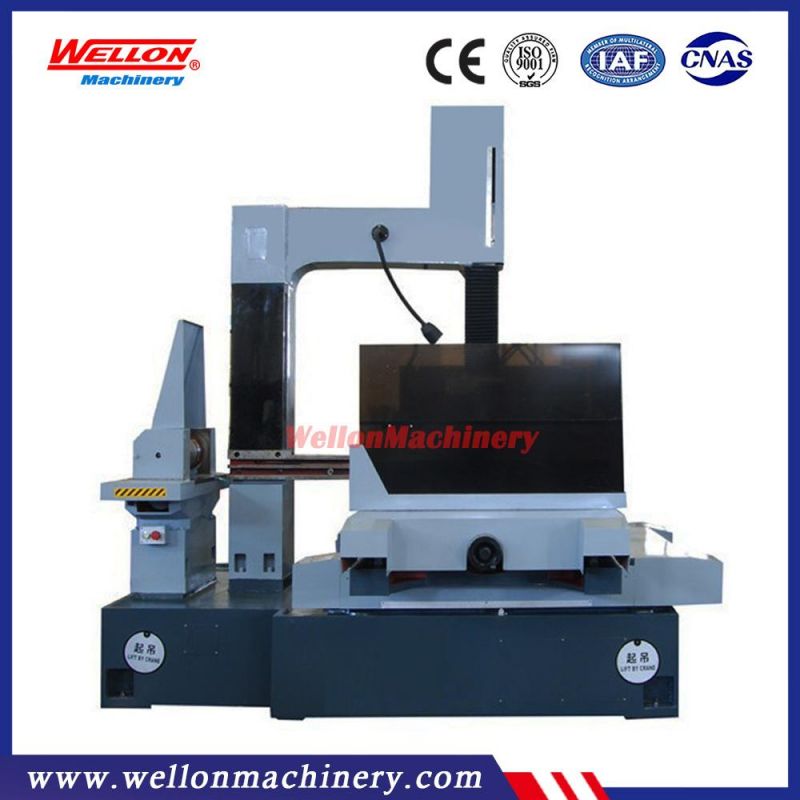

Product Description

Performence Features:
1.High rigidity of mechanical structure and humanized design makes the products reliable, convenient and practical,
has good cost performance
2.High precision ball screw and Taiwan PMI brand linear guide
3.Wire frame height electric lift auto
4.X, Y, U, V axis linear guide structure
5.Excellent stability of linear guide wire agencies and High wear resistant storage wire drum
6.High quality precision roller holder and gem water jet
7.Level 3 adjustable wire structure
8.Good conductivity of conductive electrode
9.Efficient cutting speed
10.Induction commutation switch
11.The large capacity filter water tank
12.Waterproof box sealed performance is good
13.Sheet metal electrostatic spraying to improve wear resistance

Technical parameter:

Item	DK7725H	DK7732H	DK7740H	DK7750H	DK7763H
Worktable Size(mm)	340x560	380x650	410x710	596x880	720x1260
Worktable travel(mm)	250x320	320x400	400x500	500x630	630x800
Max.worktable height	300mm	300mm	300mm	400mm	500/400mm
Taper (optional)	6°/80mm	6°/80mm	6°~60°/80mm	6°~60°/80mm	6°~60°/80mm
Max.workpiece weight	200kg	300kg	450kg	800kg	1000kg
Machine weight	1400(kg)	1600(kg)	1800(kg)	2700(kg)	3800(kg)
Machine dimenson	1500x1100x2140	1600x1250x2180	1850x1500x2100	2100x1800x2400	2360x2250x2550

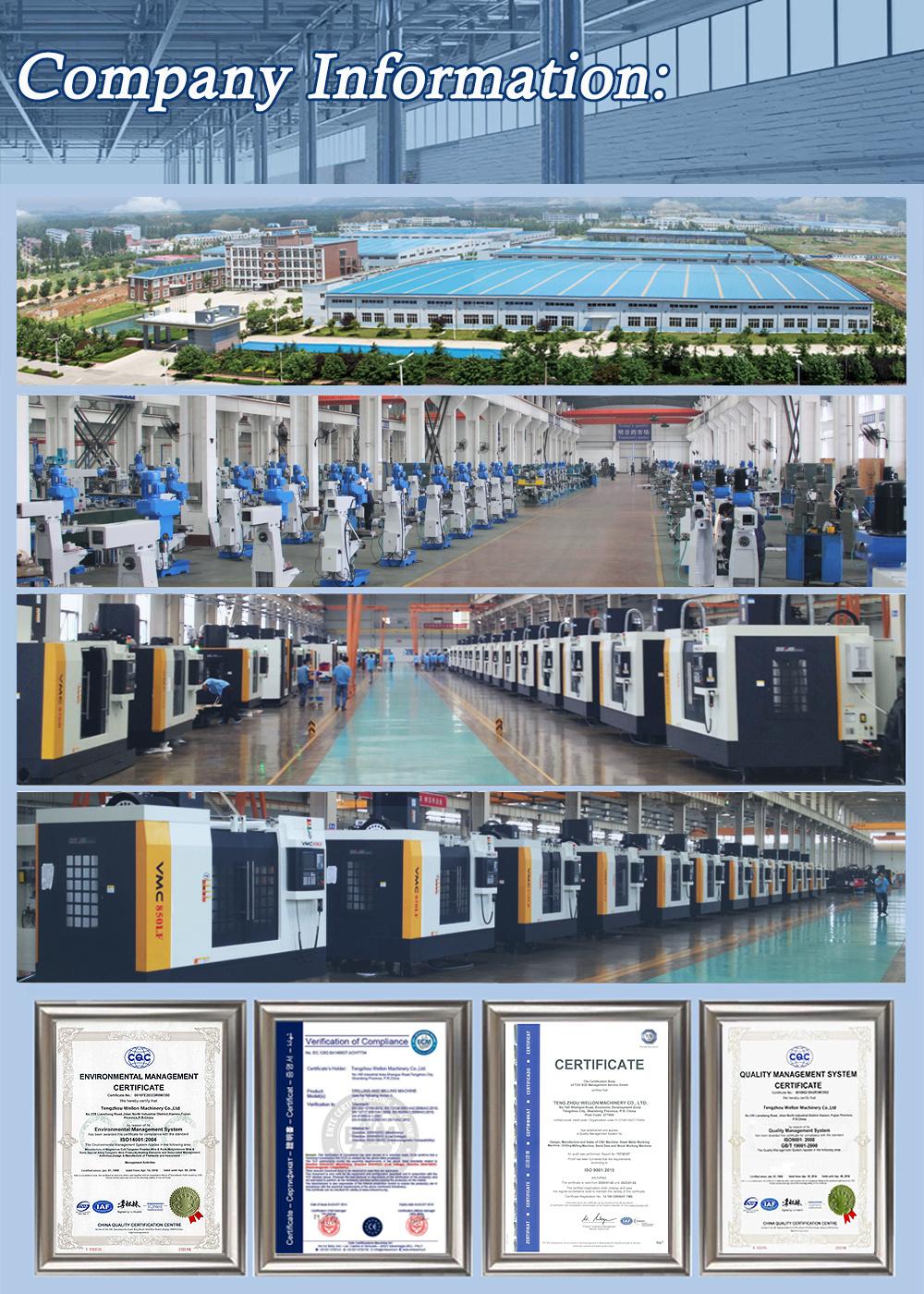

Company Information:
