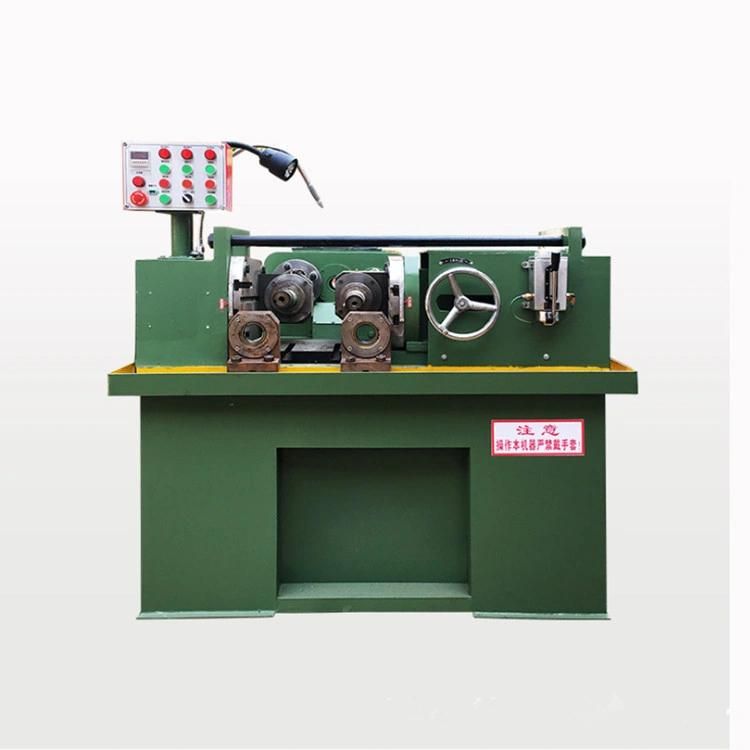

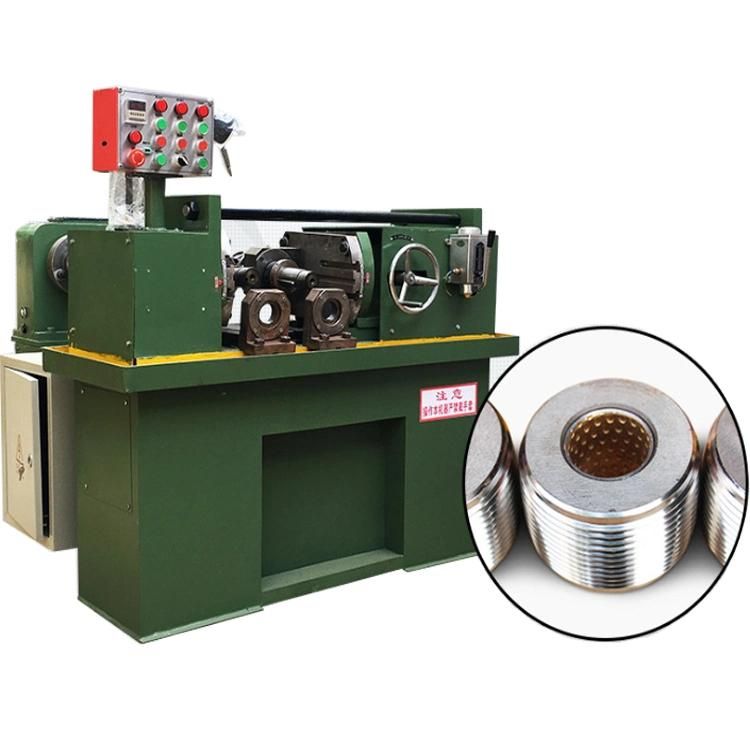

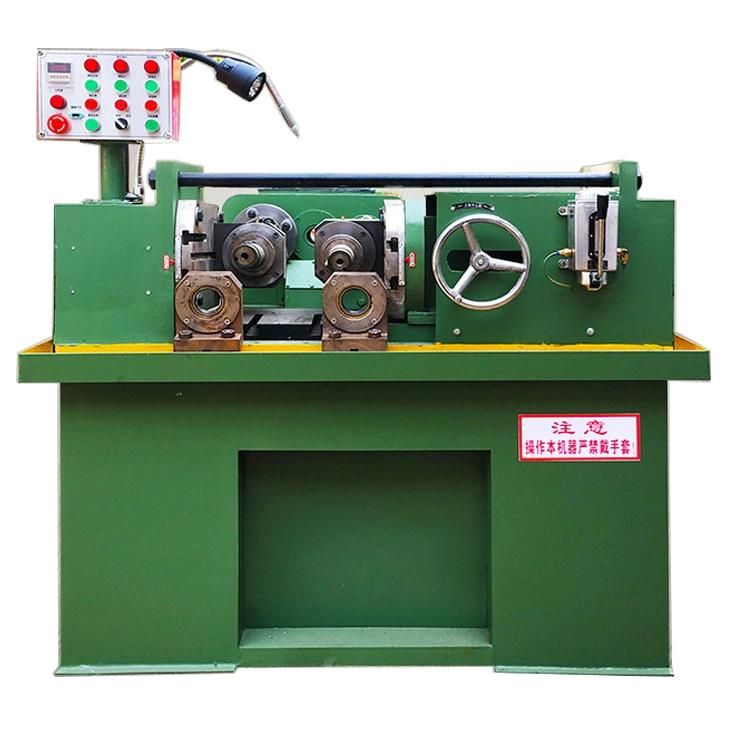

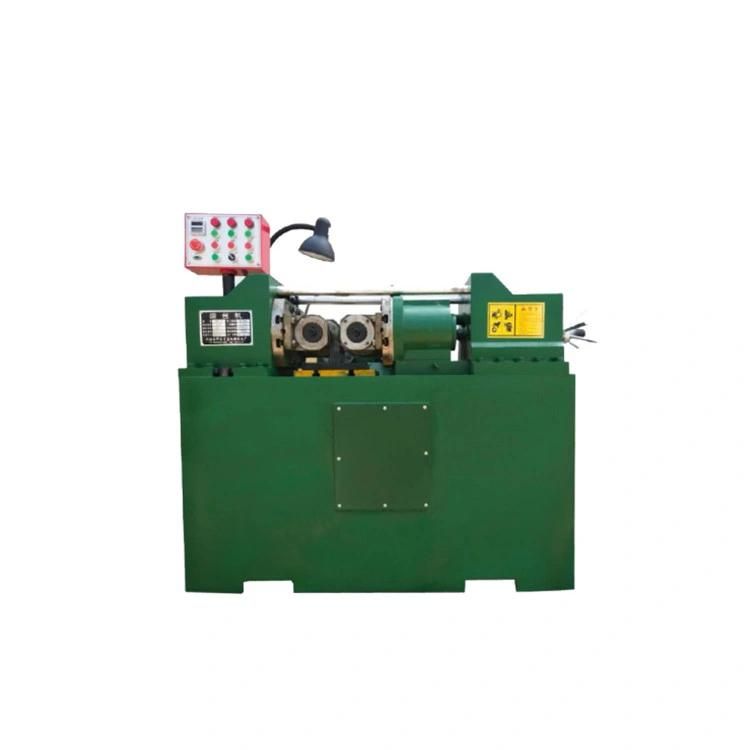

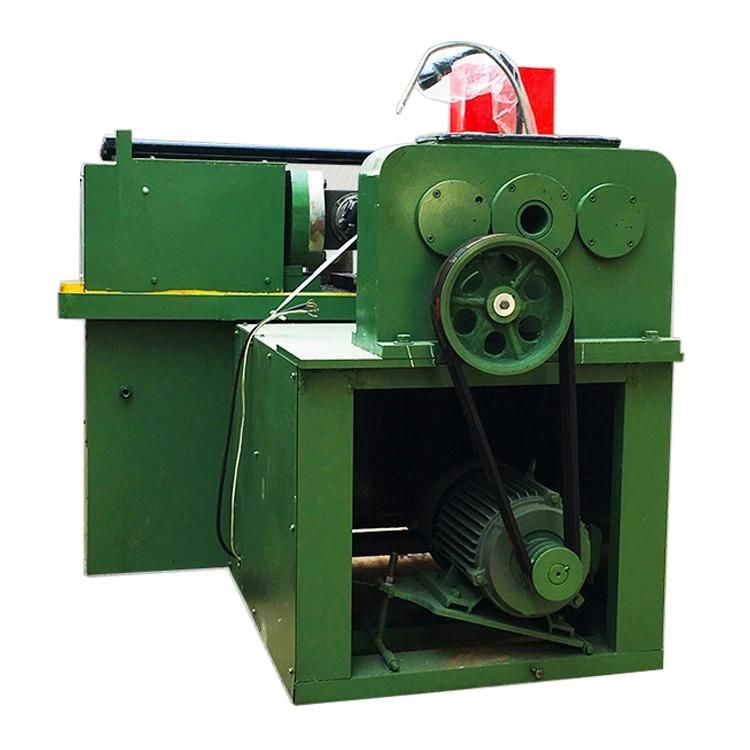

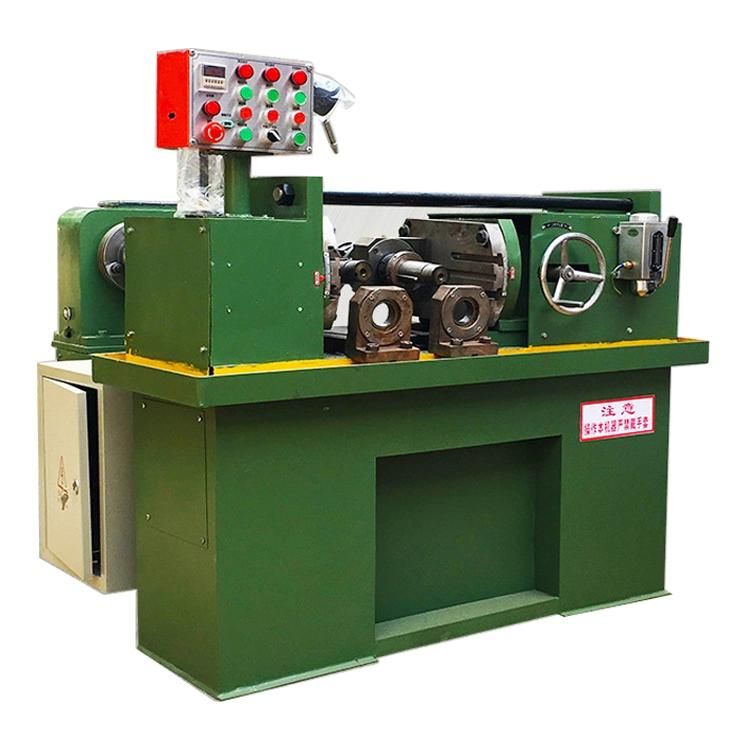

New Type High Precision Straight Thread Steel Rolling Machine
Jining Bafang Mining Machinery Group Co., Ltd.- Type：Thread Rolling Machine
- Usage：Prestressed Steel Wire
- Metal Material：Steel
- Outlet Diameter：6.5-24mm
- Max.Inlet Wire Dia.：16mm
- Block Dia.：160mm
Base Info
- Max. Number of Block：10
- Certification：ISO
- Condition：New
- Max Rolling Force：150kn
- Cylindrical Die Roll out Diameter：120-170mm
- Bore Diameter：54mm
- Max Width：100mm
- Spindle Center Distance：120-240mm
- Spindle Speed：36,47,60,78r,Min
- Rolling Power：5.5kw
- Weight：1700kg
- Dimension：1480*1330*1440
- Transport Package：Wooden Box
- Specification：1480*1330*1440
- Trademark：bafang
- Origin：Shandong, China (Mainland)
- Production Capacity：50,Month
Description
Max rolling force
150KN
Cylindrical die roll diameter
Out diameter:120-170mm
Bore diameter:54mm
Max width:100mm
Spindle center distance
120-240mm
Rolling time
0.1-99.9s
Down time
0.1-99.9s
Spindle inclination angle
±10°
Spindle speed
36/47/60/78r/min
Rolling power
5.5KW
Hydraulic power
3KW
Weight
1700kg
Dimension
1480*1330*1440
