• Model NO.：Z94
• Application：Metal forging Machinery
• Transport Package：Suitble for Shipping
• Specification：all size
• Trademark：Shenyida
• Origin：Wuxi China
• HS Code：8463300000
• Production Capacity：100PCS,Month

Basic Info.

Model NO. Z94 Application Metal forging Machinery Transport Package Suitble for Shipping Specification all size Trademark Shenyida Origin Wuxi China HS Code 8463300000 Production Capacity 100PCS/Month

Product Description

Steel Wire Nail Making Mold/Die/Grip Die/Diamond head nail Mould/nail mould on nail making machine


Place of Origin: Jiangsu, China (Mainland)

Brand Name: SHENYIDA, shenyida

Model Number: Z94

Shaping Mode: Forging Mould

Product Material: Dimond

Product: Other

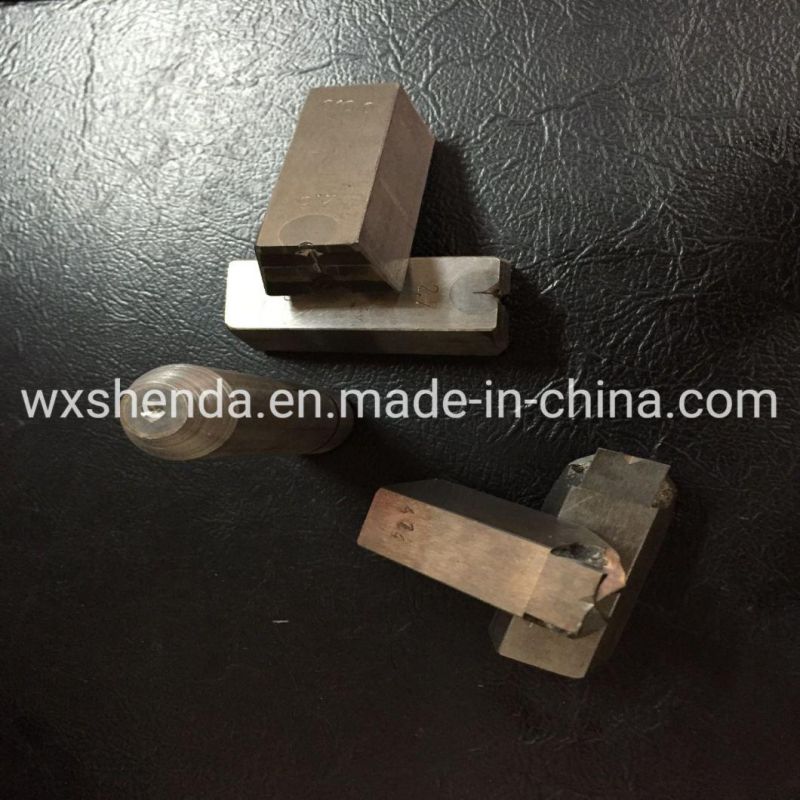

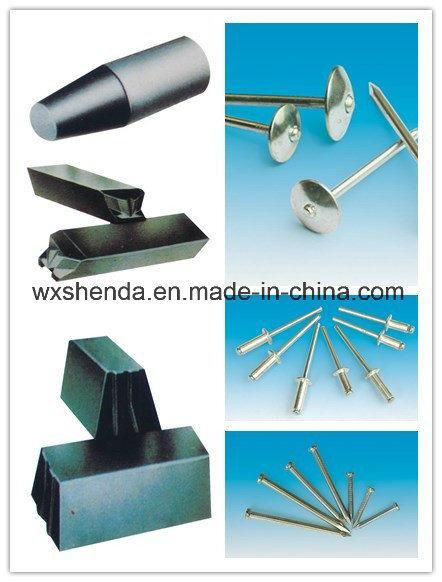

the main spare parts is nail mould,nail knife and punch pin for nail making machine

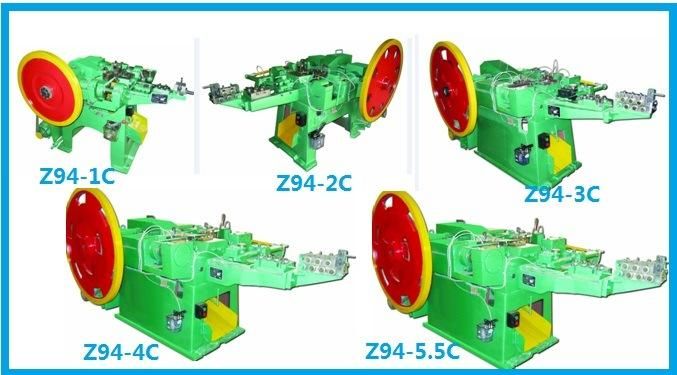

parameter	unit	Z94-6.5C	Z94-5.5C	Z94-4C	Z94-3C	Z94-2C	Z94-1C
Dia of nail max	mm	6.5	5.5	4.5	3.4	2.8	1.6
Dia of nail min	mm	4.5	3.7	2.8	1.8	1.2	0.9
Length of nail max	mm	200	150	100	80	50	25
Length of nail min	mm	100	80	50	30	16	9
Dsigned out put	pcs/min	160	200	260	320	350	450
Moter power	kw	11	5.5	4	3	2.2	1.5
Weight(approx)	kg	5000	2500	2000	1400	1200	560
Overall dimensions	mm	3200x2200x2200	2800x1800x1800	2200x1600x1650	2000x1400x1400	1700x1300x1400	1500x1300x1200

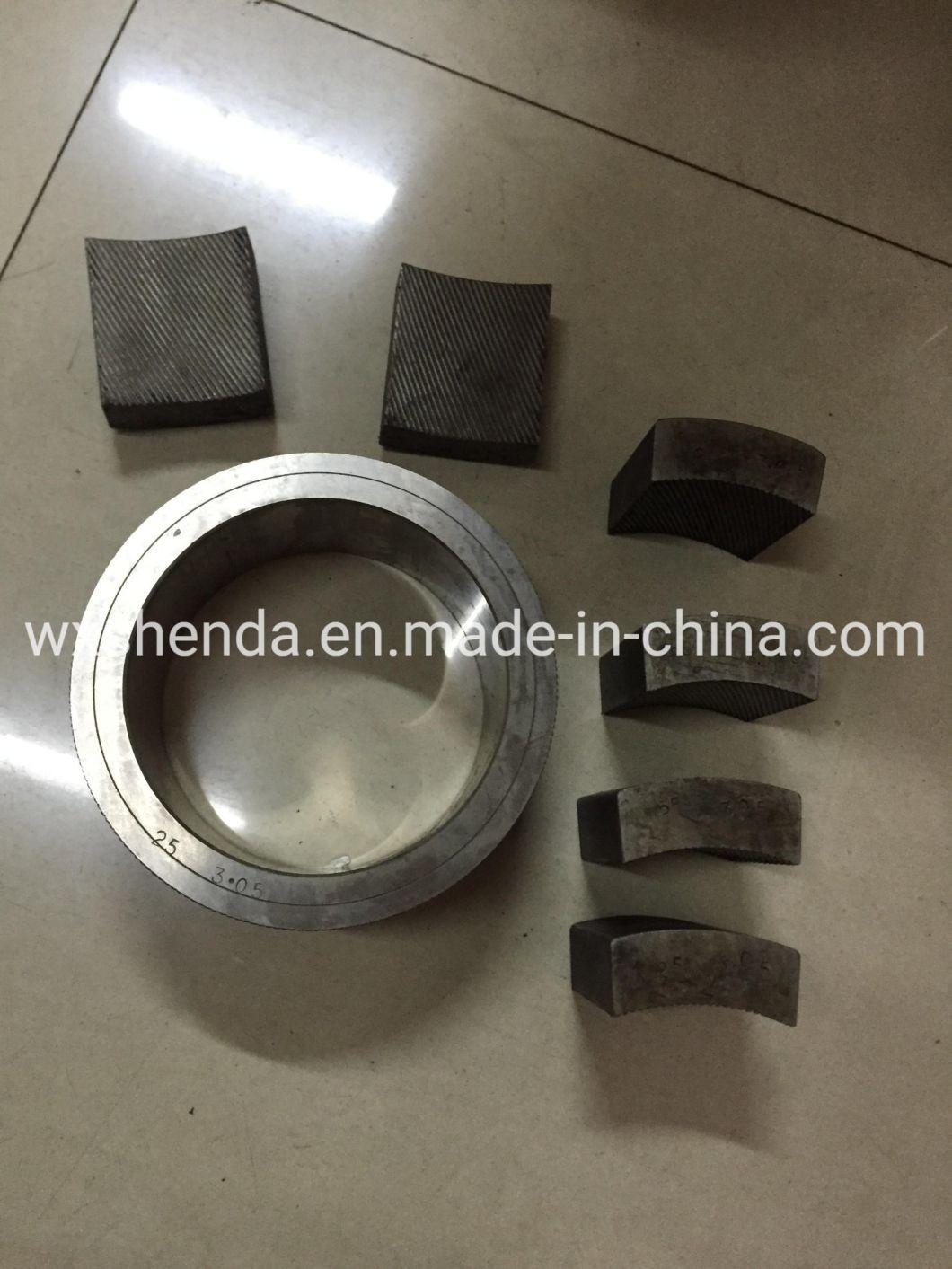

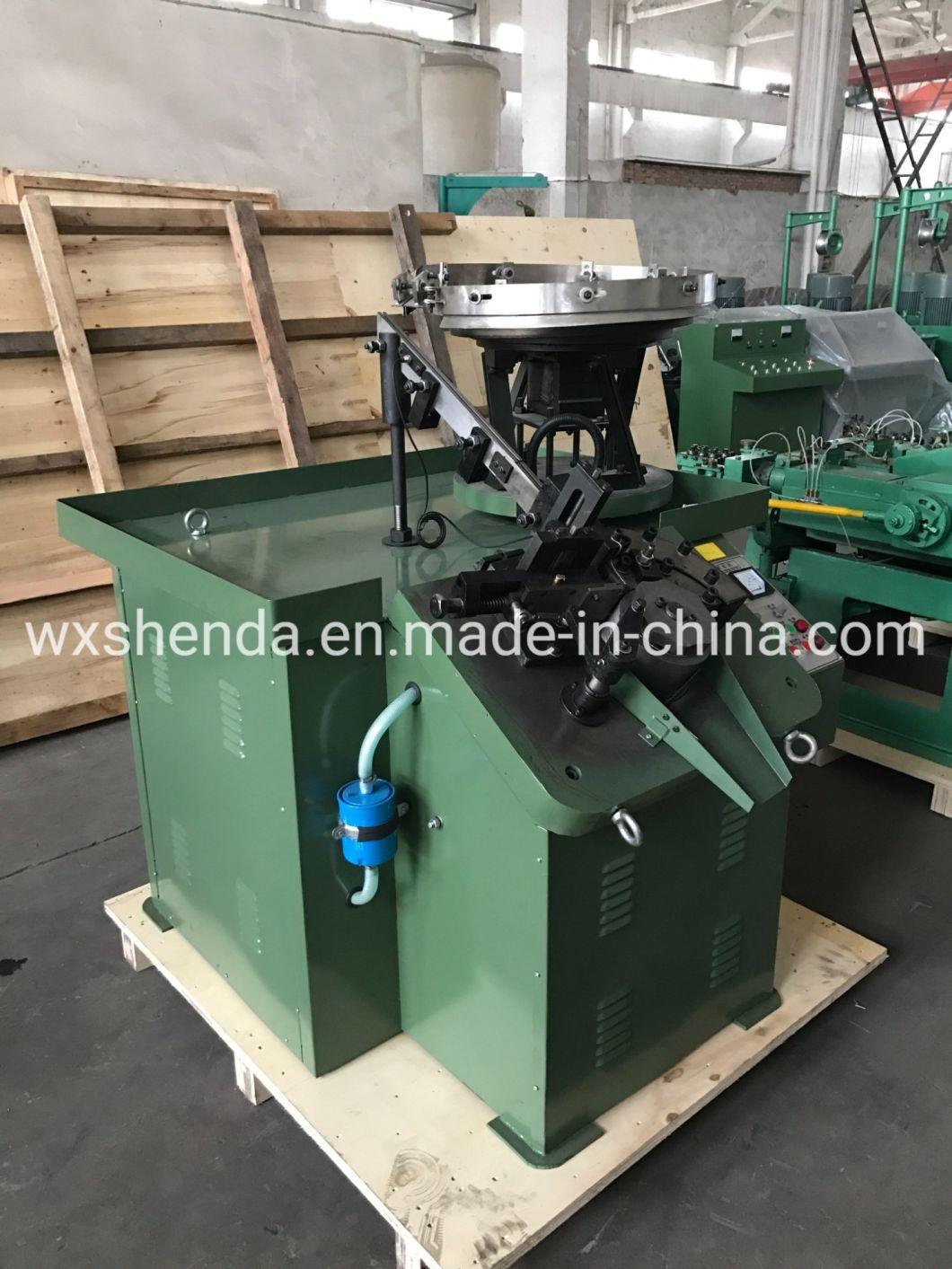

High speed thread rolling machine



Thread rolling dia	2.0-4.1mm
Nail length	30-90mm
Production rate	500-1000 poa/min
Main motor power	3.0kw
Vibrate hopper capacity	5.0kg
Total weight	1300kg
Overall(LxWxH)	1300x1300x1500mm

Packaging & Delivery

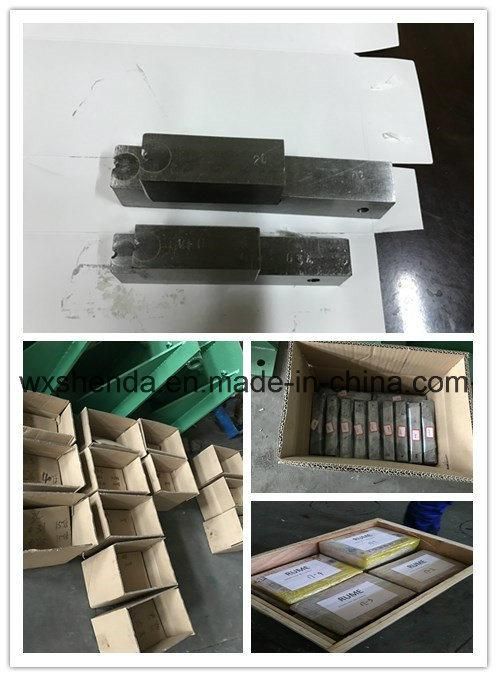

Packaging Details: Plywood case

Delivery Detail: 15 days after prepaid

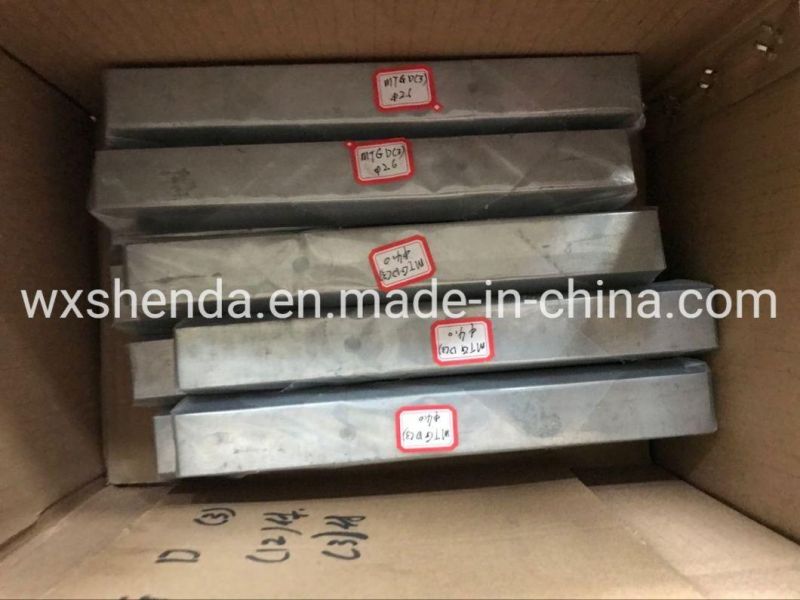

Nail Mold

The necessary auxiliary for nail making machine.

Diiferent model of nail machine will with different size of nail mould
