• Model NO.：QC12K
• Dimension(L*W*H)：3840*1610*1620
• Weight：5000kg
• Warranty：12 Momthes
• Main Motor( Kw)：7.5
• Place of Origin：Anhui, China (Mainland)
• Voltage：380V,220V,415V
• Rated Power(Kw)：15
• After Sale Service Provided：Overseas Third-Party Support Available
• Product Name：Hydraulic Metal Sheet Cutter Machine
• Color：Optional
• Transport Package：with Plasic Bag or According to The Customers′ Req
• Specification：3840*1610*1620
• Trademark：Hydraulic Metal Sheet Cutter Machine , Hydraulic G
• Origin：China
• HS Code：8462399000
• Production Capacity：3000 Sets,Year

Basic Info.

Model NO. QC12K Dimension(L*W*H) 3840*1610*1620 Weight 5000kg Warranty 12 Momthes Main Motor( Kw) 7.5 Place of Origin Anhui, China (Mainland) Voltage 380V/220V/415V Rated Power(Kw) 15 After Sale Service Provided Overseas Third-Party Support Available Product Name Hydraulic Metal Sheet Cutter Machine Color Optional Transport Package with Plasic Bag or According to The Customers′ Req Specification 3840*1610*1620 Trademark Hydraulic Metal Sheet Cutter Machine / Hydraulic G Origin China HS Code 8462399000 Production Capacity 3000 Sets/Year

Product Description

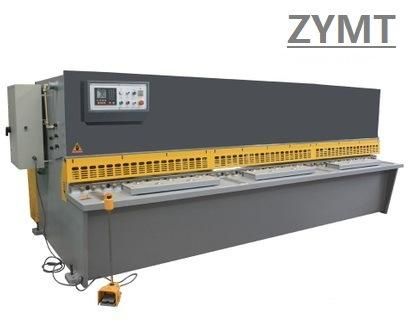

QC12Y Hydraulic Shearing Machine , NC Steel Cutting Machine , Plate Cutting Machine

1. Digital Display
2. 1 year warranty

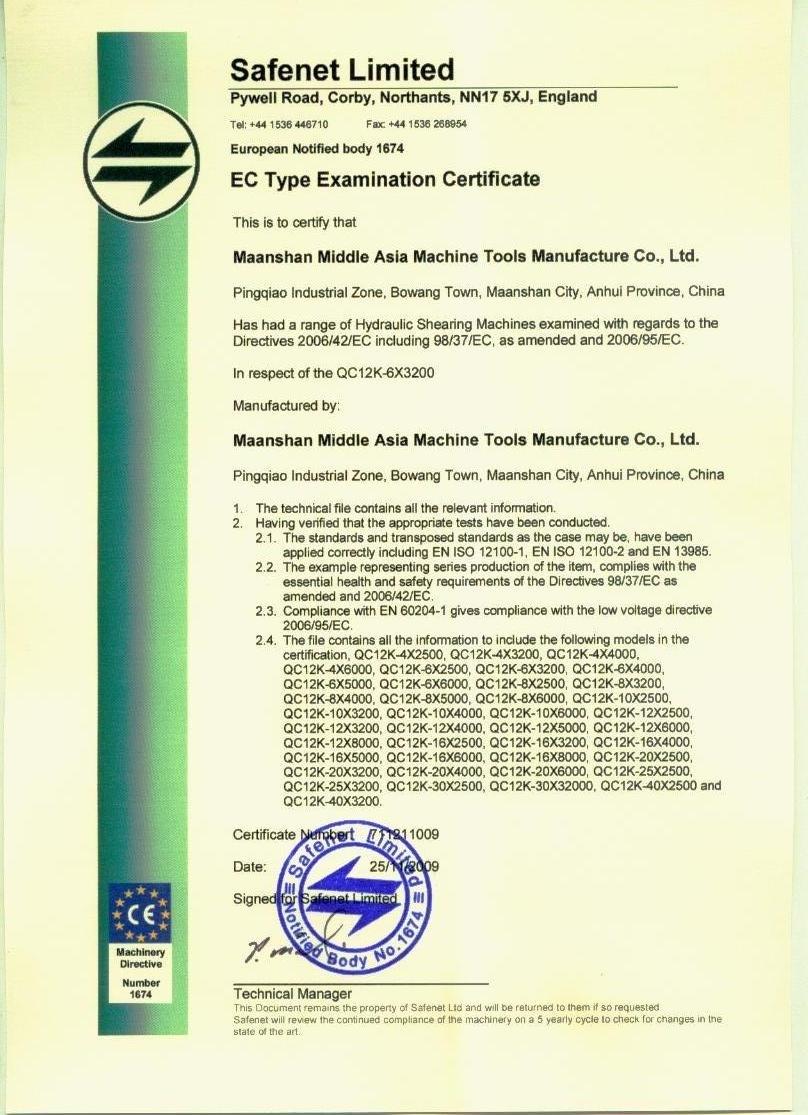

3. CE/ISO
4. Ball Lead Screw and Liner Guide for Opt

QC12Y Features
The machine is metal plate welded structure, with hydraulic transmission and accumulator return, typical of an easy operation, reliable performance, and nice appearance, fitted with digital controller.
Indication by indicator is provided for adjustment of blades clearance, for a handy and prompt adjustment.
Alignment device with lighting and control device for shearing stroke are set.
Worktable with balls for material feeding convenient, to minimize fish tail with sheet bar and to reduce frictional resistance.


QC 12K Features
The machine is fitted with CNC controller special for shearing machines.
The position of rear stopper is displayed in real-time manner.
Multi-step programming function is available and the rear stopper is able for automatic operation and continuous positioning, to achieve an automatic adjustment for position of rear stopper.
It is provided with counting function for shearing, to display the shearing numbers in a real-time manner, able for power-failure memory of position of rear stopper, procedures, and parameters.
Backgauge with precision ball screw and linear guide, to ensure the positioning precision, so that bring the higher precision prcsessing.

Performance characteristic:
1.Steel plate welded structure,hydraulic transmission,accumulator return,convenient operation,reliable performance,beautiful appearance
2.Edge adjustment signs,adjust light and quickly,continuously variable transmit
3.Lighting device on the line,and continuously variable adjustment of upper tool carrier itinerary
4.Fence type safety protection device
5.Back gauge adopt E10 NC,low noise,high precision




 Parameters:

Model	Cutting thickness (mm)	Cutting width (mm)	Cutting angle (°)	Backgauge range(mm)	Stroke number (times/min)	Main motor (kw)	Weight (kg)	Overall dimensions (L*W*H)(mm)
4*2500	4	2500	1.5	20-400	10	5.5	3800	3000*1550*1600
4*3200	4	3200	1.5	20-600	10	7.5	5700	3850*1550*1600
4*4000	4	4000	1.5	20-600	8	7.5	7600	4500*1700*1700
4*6000	4	6000	1.5	20-600	5	11	17800	6500*2100*2300
6*2500	6	2500	1.5	20-600	10	7.5	5500	3000*1700*1650
6*3200	6	3200	1.5	20-600	9	7.5	6500	3850*1700*1650
6*4000	6	4000	1.5	20-600	8	7.5	8200	4600*1850*1700
8*2500	8	2500	1.5	20-600	10	7.5	5800	3050*1700*1700
8*3200	8	3200	1.5	20-600	8	7.5	6800	3860*1700*1700
8*4000	8	4000	1.5	20-600	8	15	8800	4650*1700*1700
10*2500	10	2500	1.5	20-600	9	15	7200	3050*1800*1700
10*3200	10	3200	1.5	20-600	9	15	8500	3900*2000*1700
10*4000	10	4000	1.5	20-600	8	18.5	12500	4650*2100*2000
12*2500	12	2500	1.5	20-800	9	18.5	9800	3150*2050*2000
12*3200	12	3200	1.5	20-800	9	18.5	11600	3900*2150*2000
12*4000	12	4000	2	20-800	8	18.5	13800	4700*2150*2100
16*2500	16	2500	2	20-800	9	18.5	11000	3150*2250*2000
16*3200	16	3200	2	20-800	8	18.5	12600	3900*2250*2000
16*4000	16	4000	2.5	20-800	8	22	17300	4650*2250*2200
20*2500	20	2500	2.5	20-800	8	30	14800	3450*2300*2500
20*3200	20	3200	2.5	20-800	8	30	17000	4510*2350*2700
20*4000	20	4000	2.5	20-800	5	30	23000	4850*2600*2800
25*2500	25	2500	3	20-800	5	37	19000	3200*2700*2900
25*3200	25	3200	3	20-800	5	37	23000	4200*2700*3000
30*2500	30	2500	3.5	20-1000	5	37	28000	3300*2900*3000
30*3200	30	3200	3.5	20-1000	5	37	33000	4200*2900*3200

 Packaging & Shipping

(1)before packing,the machine tool will be testing for 48 hours to ensure all the equipment is 100% qualitied.
(2)before loading,stable package,professional and skilled loader reduce damage of product during transport.(3)after loading,our professional documentary staff will follow the order till the product departs from port.


Our Services

1.Shearing blades and accessories-Customized to your specifications
In our shearing blades, our focus is on first-class, practical, well-thought-out upper and lower tools. Our tools offer solutions to your application cases - even for complex technical ones.

2.Service package

Basic:we offer you rapid troubleshooting through telephone support and costs for on-site missions are reduced.

Special:Engineers available to service machinery overseas for the necessary maintenance.

Partner:Our located dealers or customers who sell or use our machines are fully behind you,they are our friendly partner and supply good advice to you.

3.Technical Service(After-sale service)

Installation and start-up(Available for complex and big machines or if you have demand)






FAQ
