Gmw2-6*250-1050 Automatic Inverted Grating Welding Production Line

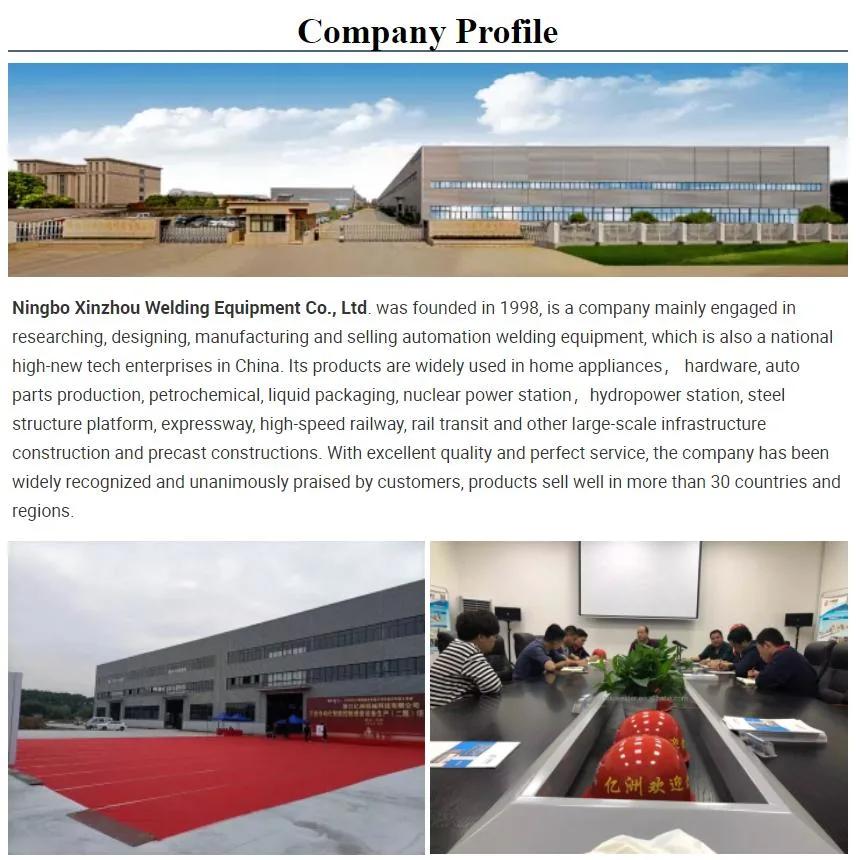

Ningbo Xinzhou Welding Equipment Co., Ltd.- After-sales Service：24 Hours Remote Service Available
- Certification：ISO9001
- Transport Package：Standard Export Packing
- Specification：GMW2-6*250-1050
- Trademark：XINZHOU
- Origin：Ningbo China
Base Info
- Model NO.：GMW2-6*250-1050
- Production Capacity：15 Sets Per Month
Description
Basic Info.
Model NO. GMW2-6*250-1050 Production Capacity 15 Sets Per MonthProduct Description
GMW2-6*250-1050 Automatic Inverted Grating Welding Production LineProduction Efficiency: 20 gratings/min
Component:
Pre-feeding mechanism
Automatic clamping feeding mechanism
Automatic twist steel blanking mechanism
The welding host
Automatic trimming mechanism
Welding material pulling mechanism
Finished product stacking trolley
Finished product stacking and conveying mechanism
Parameters:
Rated power: 630-800 KVA
Welding speed: 20-30 gratings/min
Input power: three phase 80V ±10% 50Hz
Load rate: 50%
The number and power of rectifier transformer: 250KW × 6
Secondary short-circuit current: 500KA
Secondary unloaded voltage: 8.3V
Size of steel grating: 7200×1050mm
Height of flat steel: 25-100mm
Interval of flat steel: 20-100mm
Size of maximum twisted steel: 8×8mm
Thickness of flat steel: ≤8mm
Length of flat steel: ≤7200mm
Dimension: 22000×2940×2800mm (L*W*H)
