• Model NO.：GDYK-500
• Maximum Helix Angle of Workpiece：28
• Maximum Workpiece Weight：300kg
• Transport Package：Wooden Case
• Trademark：TIMAC, TIMEWAY
• Origin：China (Mainland)
• Production Capacity：500sets,Year

Basic Info.

Model NO. GDYK-500 Maximum Helix Angle of Workpiece 28 Maximum Workpiece Weight 300kg Transport Package Wooden Case Trademark TIMAC, TIMEWAY Origin China (Mainland) Production Capacity 500sets/Year

Product Description

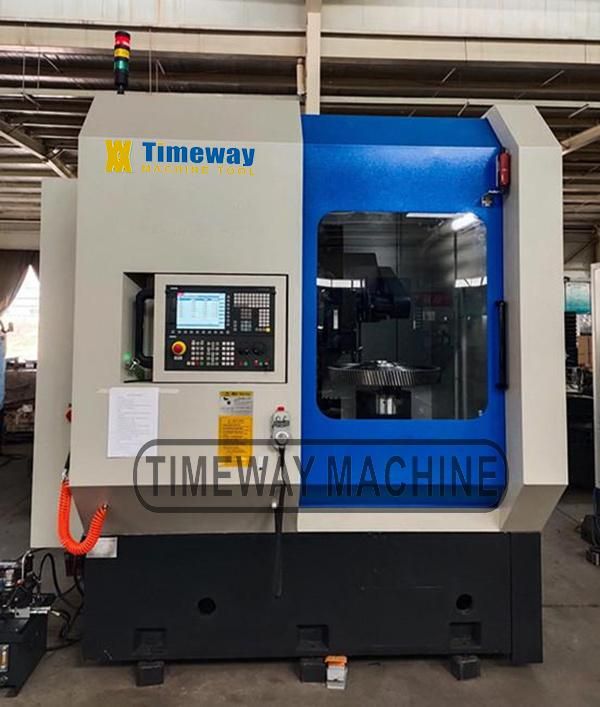

CNC Gear Deburring Machine Chamfering Machine
Introduction to the overall structure of the machine  * The machine adopts vertical, single-column and double-chamfering head design, fully enclosed cover, compact structure and easy operation;
* Siemens 808D CNC system control, CNC programming interpolation processing principle, can perform full tooth profile chamfering processing on the two end faces of various disk gears at the same time;

* When the involute gear product is processed for the first time, it is only necessary to input the gear profile parameters on the CNC system interface to automatically generate the processing program, and the human-machine interface of the CNC system can perform processing fine-tuning; in the second processing, in addition to changing the tooling, just call out the program. the machine tool will no longer be adjusted; if the tooling is universal, it can realize quick production change in one minute, especially suitable for multi-variety small batch and large batch production.

*  The machine has a total of 7 axes, 5 servo axes and 2 frequency modulation control tool chamfering spindles. Such as:

1. Chamfering electric spindle (frequency modulation control): 2
2. Chamfering Spindle Column Horizontal Drive Axis: X1, X2 Axis (Servo Drive): 2
3. Two chamfered columns Up and down drive axes: Y1, Y2 axes (servo drive): 2
4. Table rotation axis: B axis (servo drive): 1

Technical parameter

Model	GDYK-500
Workpiece diameter: root circle of cylindrical external gear	Ф30~Ф500mm (diameter less than Ф50, single-sided processing)
Maximum helix angle of workpiece (β):	28º
Processing gear module	1.5~16mm
Maximum workpiece weight	300kg
Maximum axial height of workpiece	300mm
Maximum speed of worktable	10rpm
Tool speed	2000~12000rpm
Chamfer width	0.2~2mm
Machine tool shape length × width × height	1860×2100×2150mm
Machine net weight	about 7000kg
total machine power	≤15Kw
Working temperature	-5~40°C
Air source requirements	Air pressure 0.4~0.6MPa
CNC system	Siemens 808D
