• Model NO.：45DS
• Output Allowable Redial Load (Kgf)：78
• Output Allowable Axial Load (Kgf)：70.5
• Input Allowable Redial Load (Kgf)：83
• Input Allowable Bending Moment (Kgf)：73
• Indexing Accuracy (Sec.)：+30 or -30
• Net Weight：5.25 Kgs
• Gross Weight：7.6 Kgs
• Packing Size：230mm*230mm*200mm
• Transport Package：Box (Plywood Case)
• Specification：45DS
• Trademark：HONE PAN
• Origin：China
• HS Code：84834090
• Production Capacity：20000 Sets , Year

Basic Info.

Model NO. 45DS Output Allowable Redial Load (Kgf) 78 Output Allowable Axial Load (Kgf) 70.5 Input Allowable Redial Load (Kgf) 83 Input Allowable Bending Moment (Kgf) 73 Indexing Accuracy (Sec.) +30 or -30 Net Weight 5.25 Kgs Gross Weight 7.6 Kgs Packing Size 230mm*230mm*200mm Transport Package Box (Plywood Case) Specification 45DS Trademark HONE PAN Origin China HS Code 84834090 Production Capacity 20000 Sets / Year

Product Description

1. DS Series Cam Indexer / Cam Indexing Drive Features:
1) high precision.
2) good performance of high speed.
3) smooth running.
4) large transmission torque.
5) self-locking during positioning.
6) compact structure.
7) long service life.

2. Product Details:
As the increasing demand of modern industry for automation, high-speed, high precision of products, cam indexer has been widely used in many kinds of automation equipment. Cam indexer is an ideal intermittent transmission mechanism which could turn continuous running of automation equipment into stepping action.

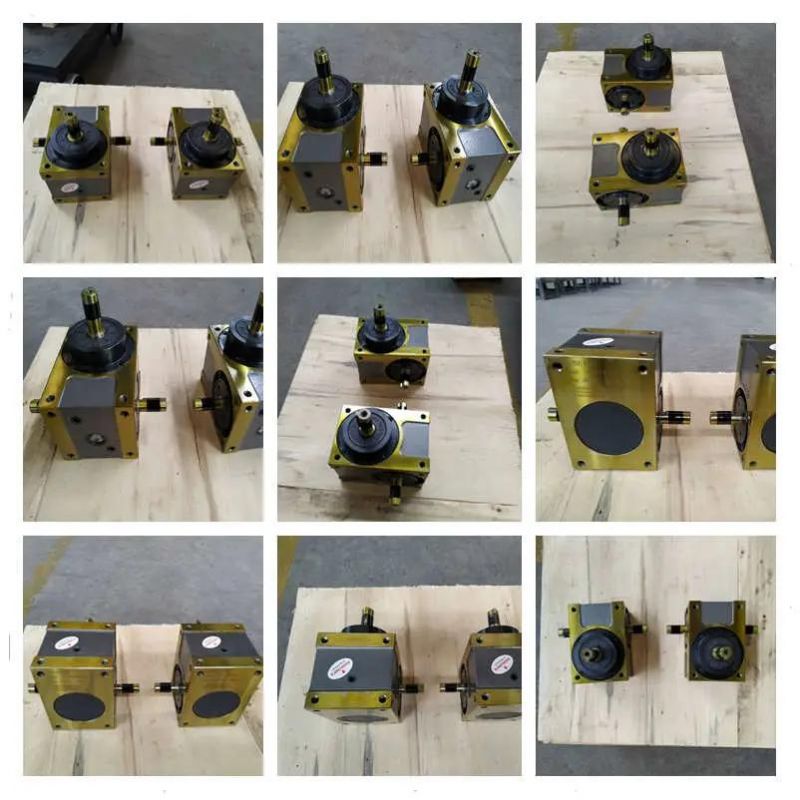

Shaft Model Cam Indexer / Cam Indexing Drive (DS) introduction:
The end of output is the shaft output, which is suitable for conveying modes such as conveyor belt and gear meshing for intermittent transmission. It is widely used in automation equipment such as filling equipment and eye drops filling machine.

Shaft Model Cam Indexer / Cam Indexing Drive includes: 32DS, 38DS, 45DS, 60DS, 63DS, 70DS, 80DS, 83DS, 100DS, 110DS, 125DS, 140DS, 150DS, 180DS, 200DS, 250DS.

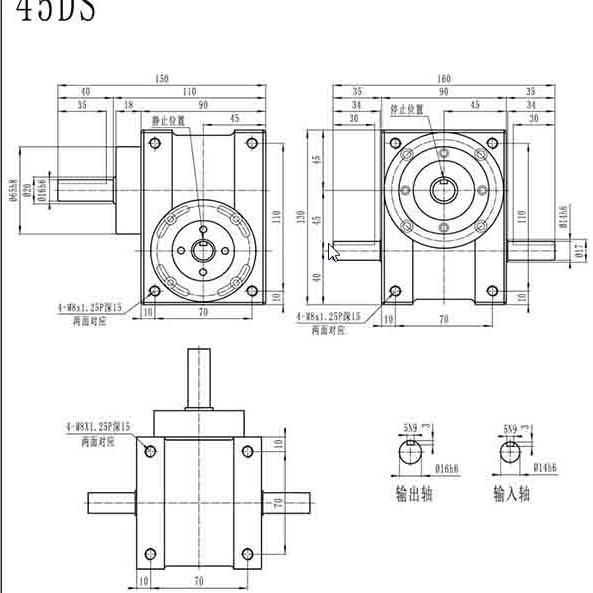

3.Specification of 45DS Shaft Type Cam Indexer / Cam Indexing Drive:

Item	Symbol	Unit	Value
Output allowable radial load	C1	Kgf	78
Output allowable axial load	C2	kgf	70.5
Output allowable torque	Ts	Kgf-m	Refer to Torque Capacity Table
Input allowable radial load	C3	Kgf	83
Input maximum bending moment	C4	Kgf	73
Input maximum torque	C5	Kgf-m	3.8
GD2 of input shaft (note 1)	C6	Kgf-m2	3.2×10-4
Indexing accuracy		Sec.	±30
Weight		Kg	9

Note 1: GD2 of input shaft is a value in dwell range.
Note 2: Value of C1 to C5 are those obtained for safety factor=2.
