Chuck Type 5-Axis Flame & Plasma Cutting and Profiling Station
Nanjing Auto Electric Co., Ltd.- Customized：Customized
- Layout：Horizontal
- Cutting Material：Carbon Steel, Metal Alloy, Stainless Steel
- Automatic Grade：Automatic
- Power Source：Hydraulic Pressure
- Cutting Mode：Plasma Cutting
Base Info
- Transport Package：Container
- Trademark：NAEC
- Origin：China
Description
Basic Info.
Transport Package Container Trademark NAEC Origin ChinaProduct Description

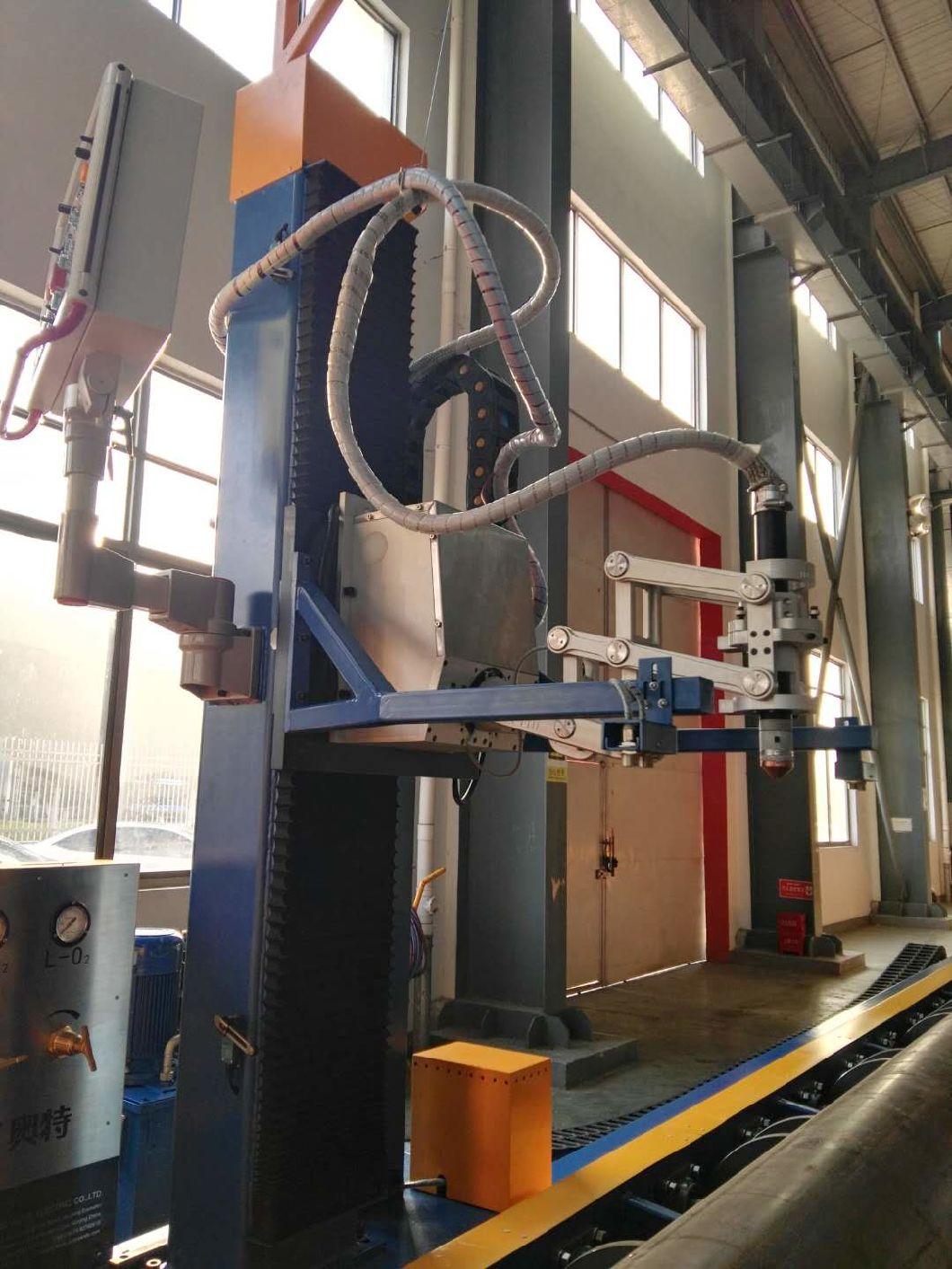

5-axis CNC plasma and flame cutting machine is designed by Nanjing Auto Electric Co., Ltd. with many years of rich experience in the pipe spool factory prefabrication production, combined with the customer's actual usage. CNC plasma and flame cutting machine is mainly used for automatic length-measuring pipe cutting, pipe end beveling, it is a high efficient equipment to solve straight pipe cutting accuracy problem and improve the quality of pipe beveling.
5-axis CNC plasma and flame cutting machine is designed by Nanjing Auto Electric Co., Ltd. with many years of rich experience in the pipe spool factory prefabrication production, combined with the customer's actual usage. CNC plasma and flame cutting machine is mainly used for automatic length-measuring pipe cutting, pipe end beveling, it is a high efficient equipment to solve straight pipe cutting accuracy problem and improve the quality of pipe beveling.
| Suitable raw material | C.S, S.S, ALS |
| Suitable pipe diameter | 8"-48" |
| Suitable raw pipe length | 2000-12000mm |
| Cutting method | Flame/Plasma cutting |
| Cutting power source | US Hypertherm MAXPro200 |
| Flame cutting suitable pipe wall thickness | 3mm-80mm |
| Plasma cutting suitable pipe wall thickness | 3mm-50mm |
| Plasma profiling | C.S: 3mm-32mm, S.S: 3mm-25mm |
| Flame cutting gas | Oxygen, acetylene or propane |
| Plasma cutting gas | C.S: air, oxygen, S.S: air, nitrogen |
| Cutting speed | 150-1500mm/min |
| Longitudinal cutting torch beveling angle | -60°~+60° |
| Cutting torch lifting stroke | 1000mm |
| Cutting torch head traveling speed | 0-4500mm/min, servo driving |
| Chuck type pipe driving machine driving torque | 11500N.m(Suitable for pipe diameter 48", wall thickness 80mm rotation) |
| Chuck type pipe driving machine lifting stroke | 580mm, motorized |
| Max. pipe supporter load capacity each | 10000kg |
| Pipe supporter rotation method | Driven |
| Pipe supporter travelling method | Total 4 supporter, 2 motorized travel, 2 driven travel |
