• Model NO.：COLO-1864
• Item：Powder Coating Curing Oven
• Working Size：Width1600*Height1800mm*Depth1400mm
• Power Supply：Electric
• Warm-up Time：15-30 Minutes
• Temperature：180-250′c
• Voltage：220,380V Customized as Local
• Frequency：50 , 60 Hz
• Motor Power：0.75kw
• Ventilation Performance：805-1677m3,H
• Delivery：10 Working Days
• Transport Package：Wooden Cases
• Specification：CE
• Trademark：COLO
• Origin：China
• HS Code：8424899990
• Production Capacity：50sest,Month

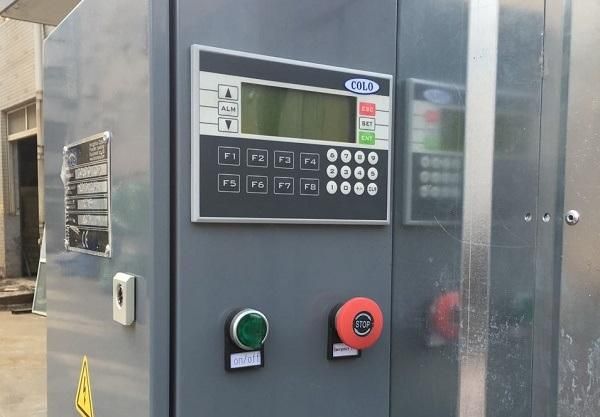

PLC Controller

A simple PLC controllor provides high precision heating process, it offers all the features you need.
The display allows you to set the desired temperature and heating time accurately, and turn on / off the fan. Once the curing time arrive, the oven will stop heating automatically.
The control panel also includes a variety of safety devices, including alarm light and emergency stop buttons, etc.Circulation Fan

Bottom of this electric powder coating oven is installed with electric heating tubes with great thermal conductivity to created hot air and rapidly raise temperature to the required curing, then circulation fan cycles the hot air and ensures parts to be heated evenly.Oven Wall Materials

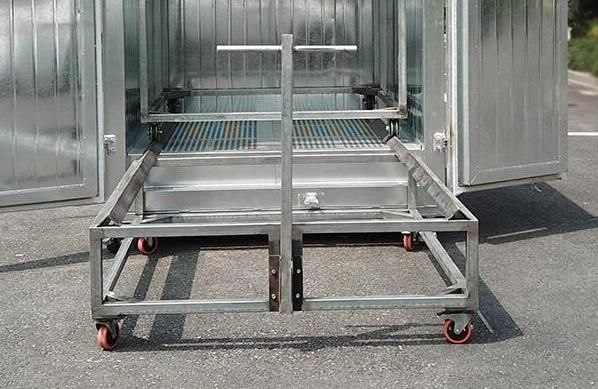

Insulation material is 100mm thick rockwool board, density 120kgs/cbm, with heat-resistent galvanized innerwall and durable color steel outwall. It is an optimal design for minimum temperature dropping.Transporting System

Supply with trolley and frames for easy carrying and  loading even heavy elements. The transporting system will not pollute the inner chamber and ensure the purity of parts.

Specifications of COLO-1864 Electric Powder Coat Oven


Model	COLO-1864
Worksize dimensions	Width1600 * Height1800 * Depth1400 mm
Overall dimensions	Width1900 * Height 2200 * Depth 1700 mm
Power supply	Electric/ 12kw
Voltage/Frequency	380V/220v(50-60hz)
Warm-up time	15-30 min. (180° C)
Temperature stability	< ± 3-5°C
Temperature max.	250° C
Ventilation performance	805-1677m3/h
Motor power	0.75kw
Circulation/ Air flow	Vertical, Variable through holes on the walls
Transportation	Trolley
Warranty	12 months

Different standard size of Powder Coating Oven for chioce

size1: 1000width x 1000 depth x 1800 height
size2: 845width x 845depth x 1600 height
size3: 1500width x 1500 depth x 1500 height
size4: 1800width x 1800 depth x 1800 height
size5: 1650width x 3200 depth x 1700 height


Application of Powder Coating Oven



Why choose us ?
1.More than 10 years manufacturing experience in electrostatic powder coating equipment

2.Provide one-stop service: reseach & development, design, production, worldwide marketing, engineer oversea installation, after-sale service.

3.Customed as you want.

4.Competitive price: we are factory. Design, production ,installation all by ourself-saving cost.

5.One year of warranty period and life long technical support.

6.Market share in Global: about 90%, is a leading factory in this filed.


More details weclome to contact us !
