• Model NO.：PEQD-100
• Gross Weight：60kg
• Volume：0.2 Cubic Meter
• with Rotary System：Yes
• Standard Working Area：150*100mm
• Optional Working Area：200*100mm, 300*200mm, 400*300mm
• Lifting Range：0-300mm
• Maximum Fixture Diameter：0-100mm, 0-200mm
• Marking Depth：0.1-2mm
• Pin Hardness：HRC92
• Repeated Accuracy：0.01mm
• Transport Package：Wooden Case
• Specification：ISO9000 & CE
• Trademark：Perfect Laser
• Origin：China
• HS Code：84572000
• Production Capacity：500 units, month

Basic Info.

Model NO. PEQD-100 Gross Weight 60kg Volume 0.2 Cubic Meter with Rotary System Yes Standard Working Area 150*100mm Optional Working Area 200*100mm, 300*200mm, 400*300mm Lifting Range 0-300mm Maximum Fixture Diameter 0-100mm, 0-200mm Marking Depth 0.1-2mm Pin Hardness HRC92 Repeated Accuracy 0.01mm Transport Package Wooden Case Specification ISO9000 & CE Trademark Perfect Laser Origin China HS Code 84572000 Production Capacity 500 units/ month

Product Description

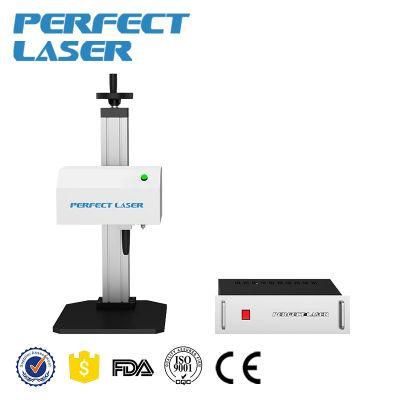

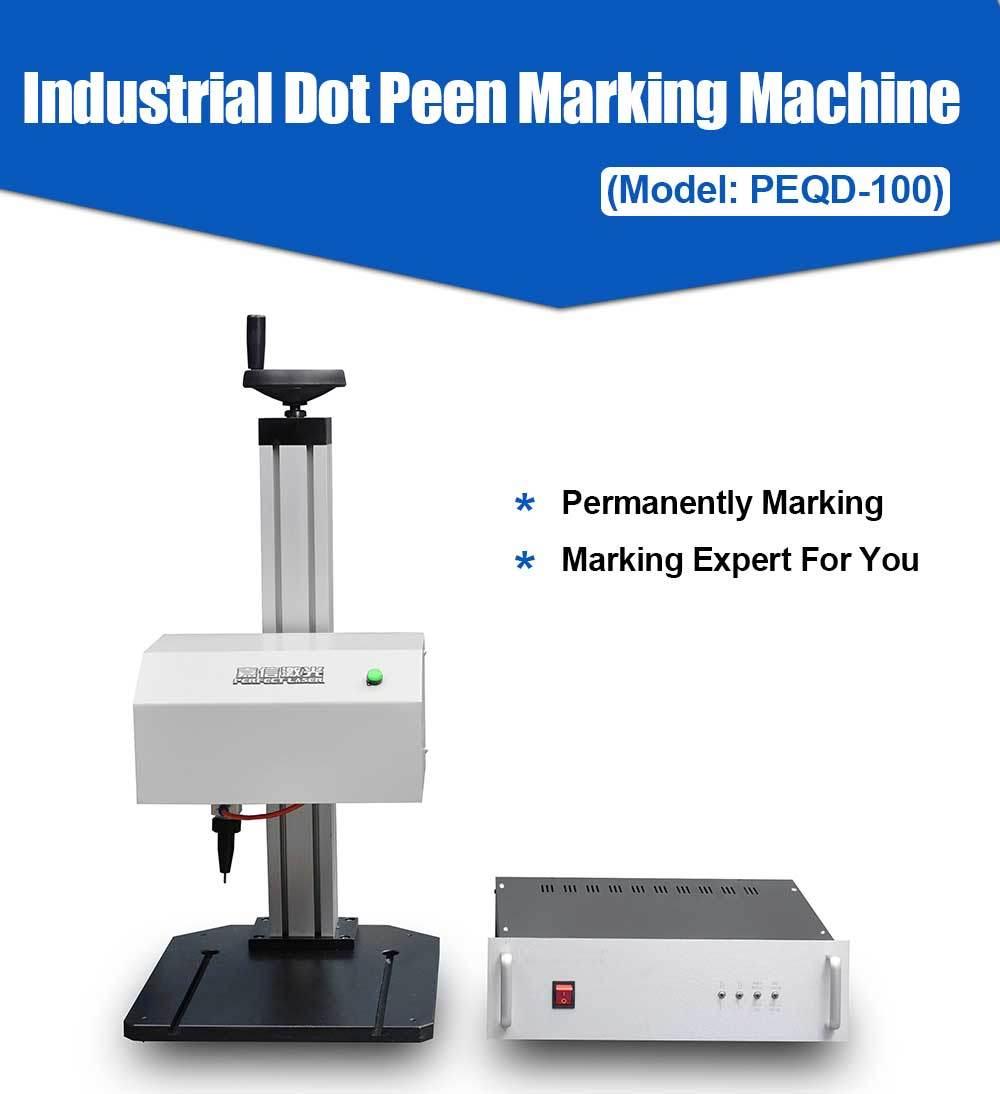

Pneumatic Dot Peen Marking Machine For Aluminum
(Model:PEQD-100)
Contact:Candy



1. DOT Peen Marking Machine Description:
Perfect Laser PEQD-series pin marking machinery are high technology products from Perfect Laser Company, which integrate computer, automatic control and precise machinery. It is an industrial marking equipment which can make logo (characters, letters, VIN code, serial numbers, date and graph) on work piece (metal or no-metal materials) permanently.


2. Applicable materials and Industry:

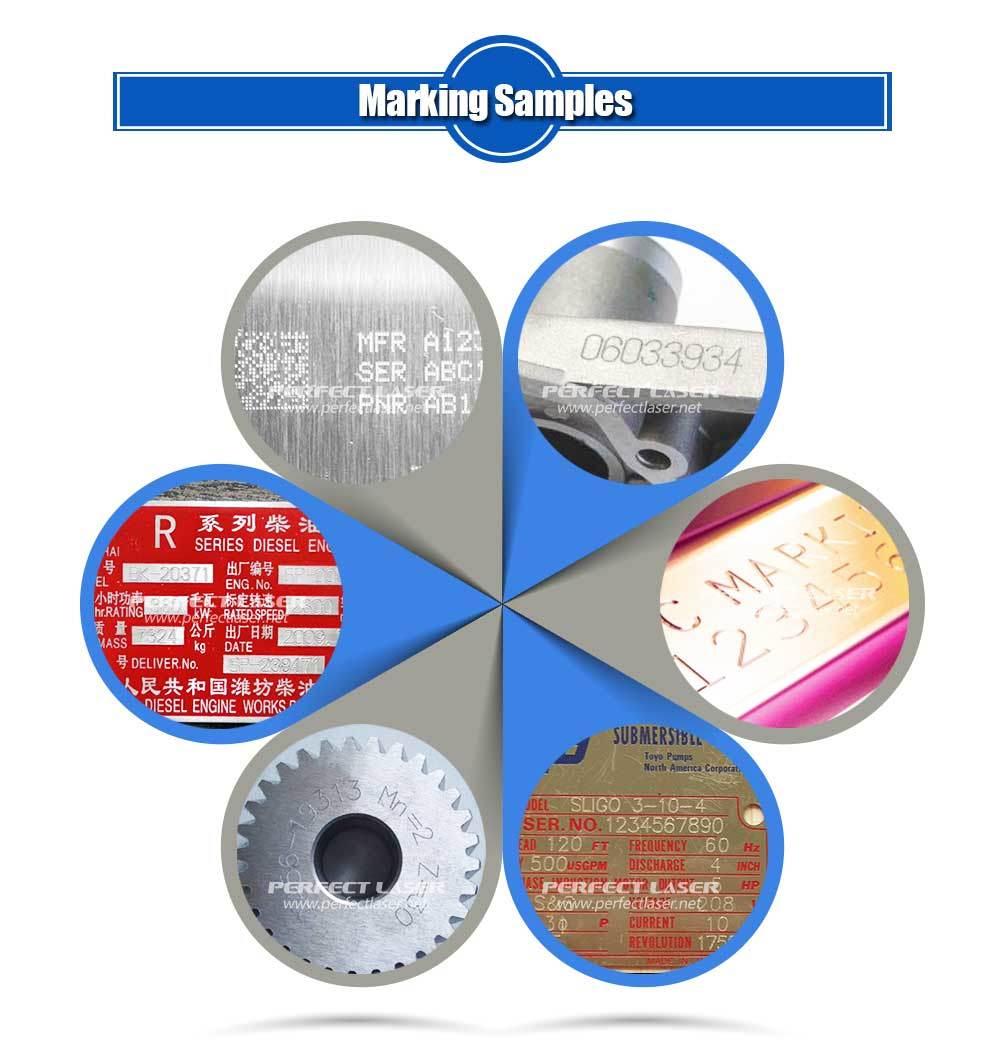

PEFECT dot peen marking machine is applicable for the fields of automobile, motorcycle, mechanism, aeronautical and space, electric apparatus and suitable for all kinds of metal and hard plastic marking on steel, such as stainless steel marking, mild steel plate marking, iron marking, aluminum marking, copper marking, brass marking, anodized and coated materials marking, hard plastic material marking, etc.



3. Dot Peen Marking Machine Features:
1. The marking pin/ needle adopt imported hard alloy, and is made up by precision mould and molding for once. The rigidity of marking needle can reach-92HRA. Its' excellent processing ability during work ensures the accuracy of high-speed marking & can make perfect marks on the work-pieces.
2. Perfect Laser's dot peen marking machine adopts American MAC "High-Frequency Valve". The vibration lifespan can reach 0.1-0.2 billion times, so as to ensure the long and stable operation of the machine.
3. Adopt Japan OMRON "positioning switch", which can guarantee high accuracy& steadily performance.

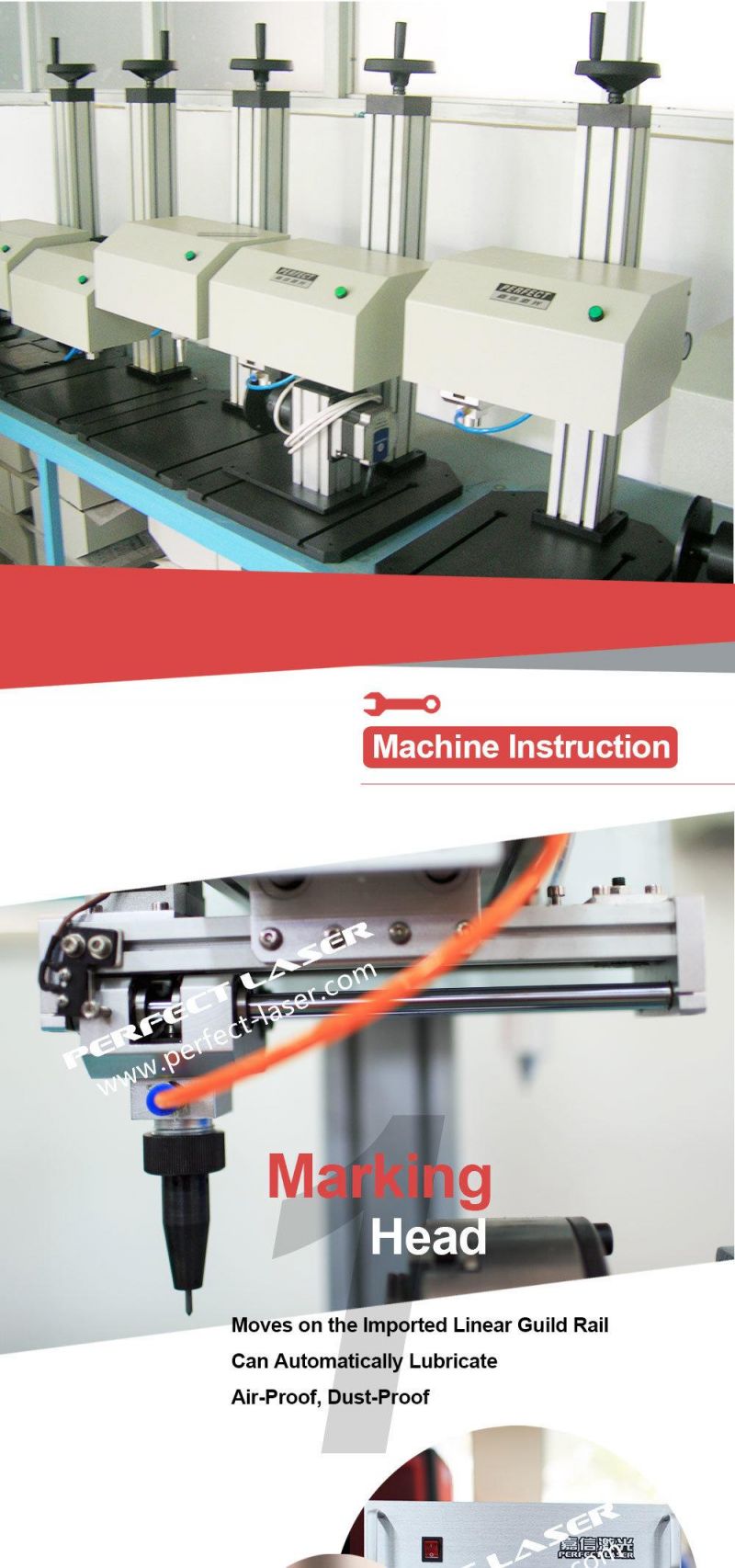

4. Adopt Germany import "linear-moving guide rail", can automatically lubricate & air-proof as well as dust-proof. Therefore, it guarantees the equipment with long-time stable performance & high accuracy.
5. This dot peen marking machine is operated by WINDOWS software. The interface is friendly and easy. With a particular "PathPpre-setting" function, the equipment will be much easy to use during processing of the work-pieces. The function "self-inspection for common malfunction" makes a convenient & quick maintenance for operators.
6. Adopt "marking steel-sheath system", which own-exploited by PERFECT LASER, had solved the problem of big-noise that frequently occurred in dot peen marking machine during marking processing. What's more, with the advantages of little abrasion rate & only require about 0.2Mpa air pressure, so our machines are economical to avoid unnecessary wasting in energy & cost.
7. The lifetime could exceed 10 years. The average MTTF could exceed 15000 hours. This machine is free of maintenance and low running cost.
8. Perfect Laser's dot peen marking machine can support logos and graphs designed in DXF format from AutoCAD, CorelDraw.
9. This dot peen marking machine can support multi-kinds font: MG Font, SHX Font in Auto CAD, CHR in Borland, TTF in Windows.

4.Technical Data:

Standard Marking Scope:	150mm×100mm / 200mm×100mm
Optional Marking Scope:	300mm×200mm / 400mm×300mm
Marking Depth:	0.01~2mm
Marking Speed:	≤50mm/s (for characters height of 3mm / 3-4 numbers /second)
Lifting Range:	0-300 mm
Marking Accuracy:	0.01 mm
Pin Hardness:	HRC 73
Power Supply:	220V±10%, 50HZ
Air Pressure:	0.2-0.6 Mpa
Machine Power:	≤400 W
Working Environment:	-5~40 ºC
Whole Machine Weight:	60 Kgs
Measurement:	0.3 m 2



After- Sale Service for Dot Peen Marking Machine:
1> All of our machine will be fullchecked by our quality control department before the shipment. We make sure that customers will be get good products from us. and all of our machine with a 12 months quality guarantee period.
2>We will enclose an"Instruction Book", "Operation Manual" and "Training Video" (in English version) to you, which is easily understood and handle by the customer.
3> We will offer plenty of online supports,  by email, video, telephone and fax.
4> Our engineer can make a door-to-door instruction training service.

Need more information please feel free to contact us-Perfect Laser!---Right Now!!
