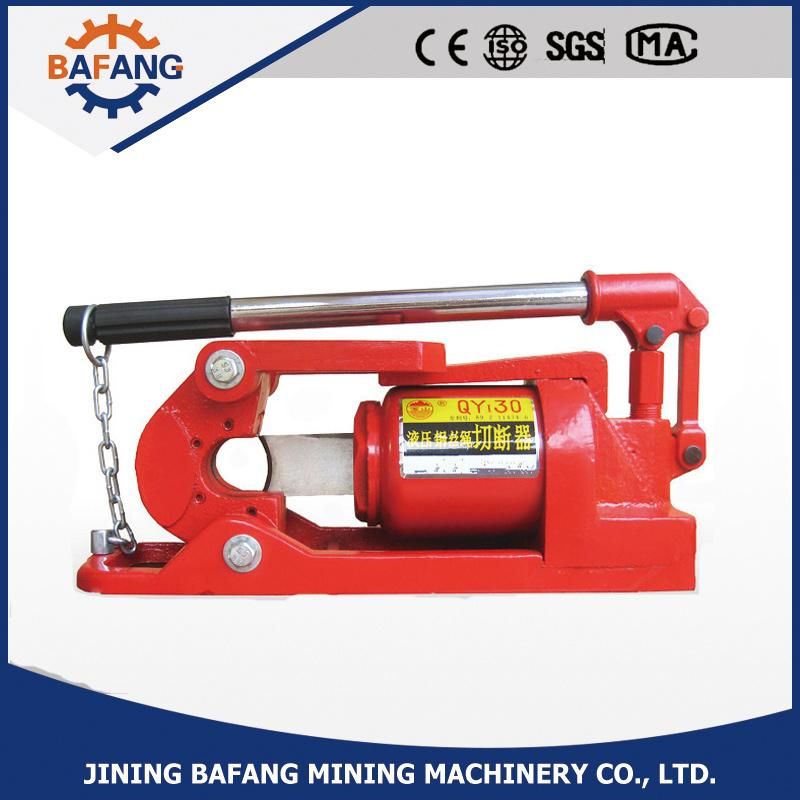

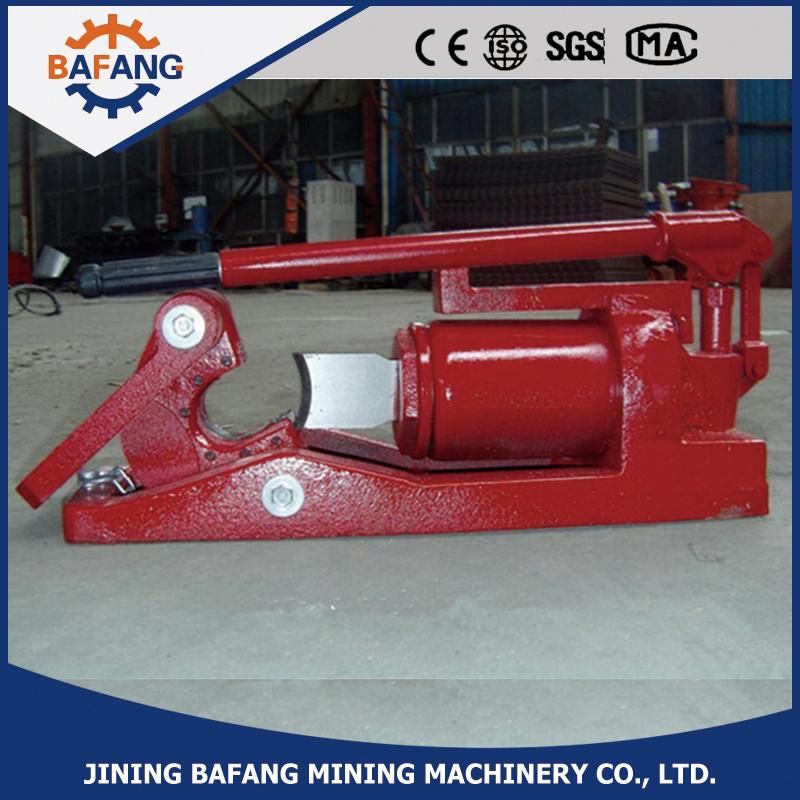

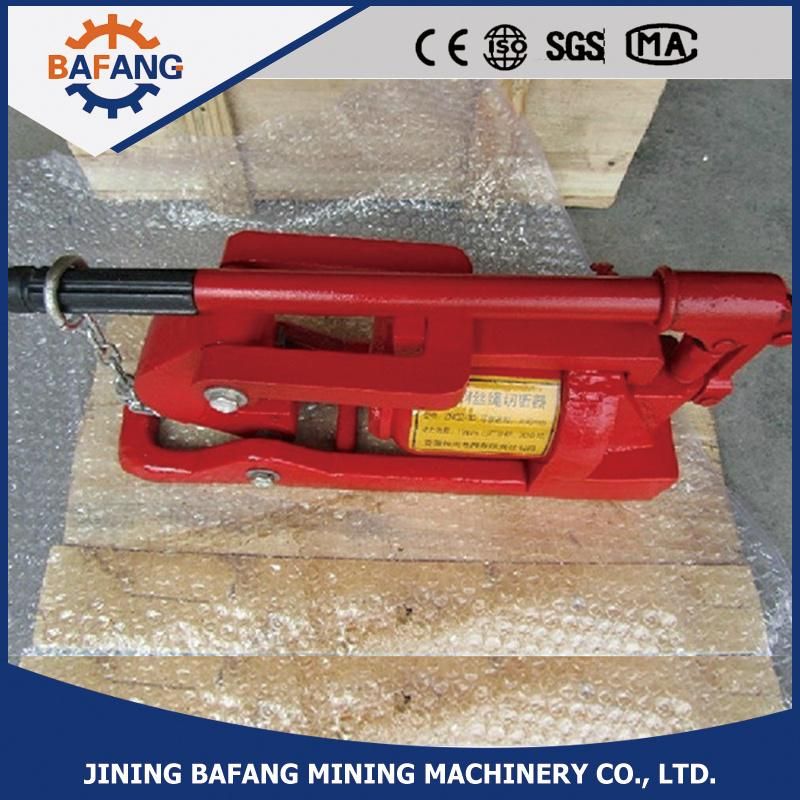

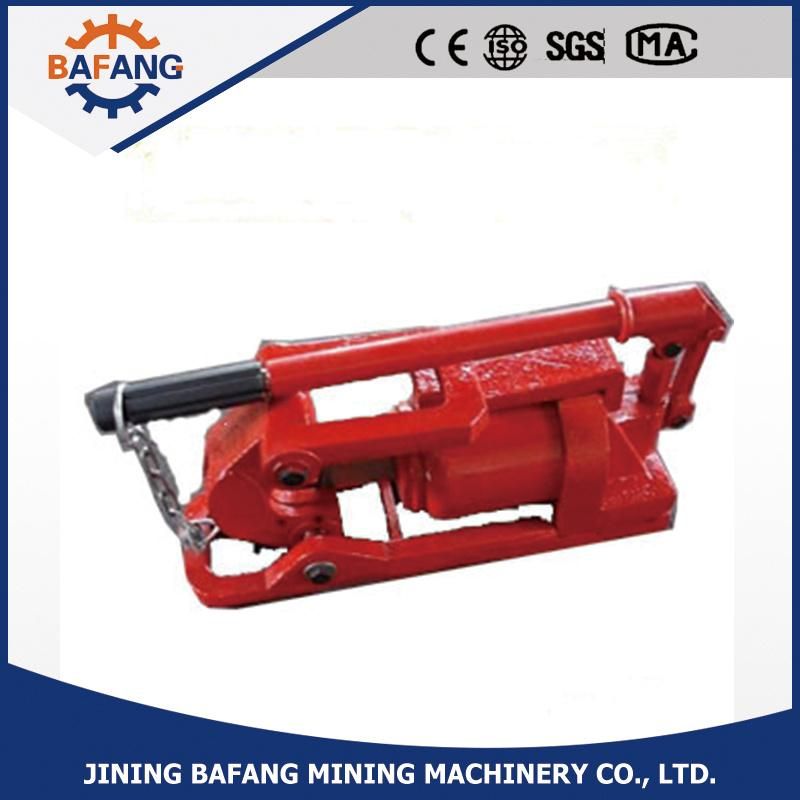

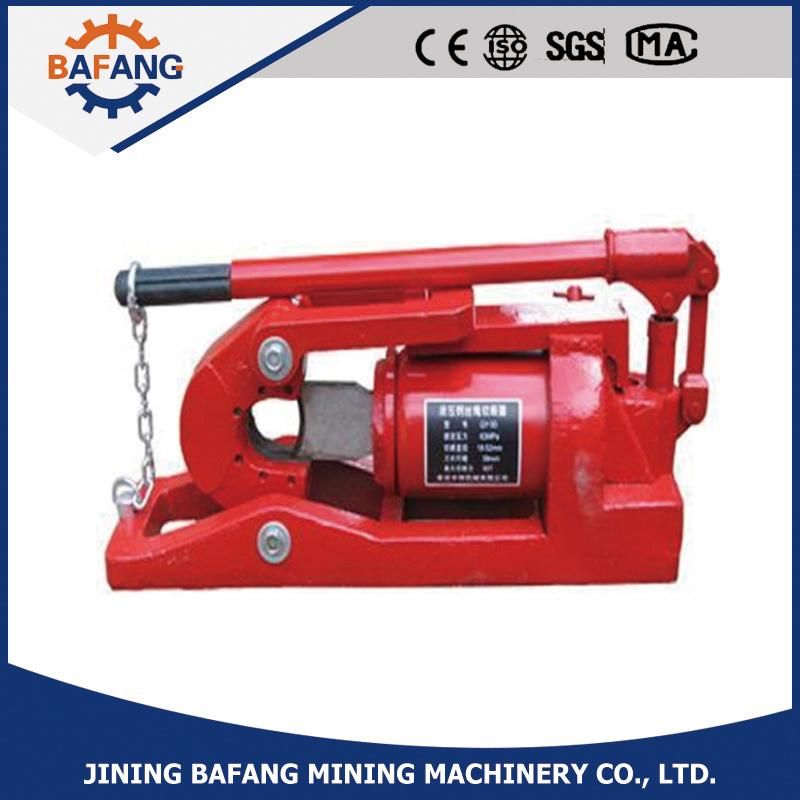

Hydraulic Wire Rope Cutter
Jining Bafang Mining Machinery Group Co., Ltd.- Type：Hydraulic Machine
- Forging Forming Method：Mold Forging
- Power Source：Hydraulic Pressure
- Feature：Precision
- Certification：ISO9001
- Warranty：12 Months
Base Info
- Model NO.：qy-48
- Customized：Non-Customized
- Advantage：Easy to Maintenance
- Condition：New
- Transport Package：Wooden Box
- Specification：48mm
- Trademark：BF
- Origin：China
- Production Capacity：10000set,Month
Description
Basic Info.
Model NO. qy-48 Customized Non-Customized Advantage Easy to Maintenance Condition New Transport Package Wooden Box Specification 48mm Trademark BF Origin China Production Capacity 10000set/MonthProduct Description
Using the principle of hydraulic transmission, the pick-up lever is moved up and down, and the piston of the oil pump is moved. The movable knife protrudes with the piston to cut out.Main specifications
| Model | QY30 | QY48 |
| Cutting diameter | 8- 30mm | 8-48mm |
| Max. cutting capacity | 7.5ton | 20ton |
| Oil content | 0.19L | 3.0L |
| Handle force | ≤25kgf | ≤39kgf |
| Weight | 16kg | 20kg |
