Metallic Processing Machinery

Metal Plate Sheet Edge Milling Machine CNC Fully Control for Carbon Steel, Stainless Steel

Shanghai Taole Machine Co., Ltd.
  • After-sales Service:Yes
  • Warranty:1 Year
  • Type:CNC Edge Milling Machine
  • Style:Desktop
  • Layout:Vertical
  • Automatic Grade:Automatic

Base Info

  • Model NO.:GMM-V,X
  • Power Source:Electric
  • Certification:CE, ISO
  • Machine Stroke:2,3,4,6,8,12 Meter
  • Bevel Angel:0-85 Degree and 90 Degree
  • Plate Thickness:6-80mm
  • Touch Screen:15 Inch
  • Bottom Bevle:Optional for Single Head or Double Head
  • Bevel Type:V,Y,K,X,L,U,O Degree
  • Cutting Type:Cold Cutting by Milling Inserts
  • Transport Package:Pallet
  • Specification:1800*6000mm
  • Trademark:TAOLE
  • Origin:Shanghai, China
  • HS Code:846090
  • Production Capacity:50 Sets Per Year

Description

Model No.GMM-V2000GMM-X2000Max Stroke2000mm2000mmBevel TypeV/Y/L/U/J/0 degreeV/Y/K/X/L/U/J/O degreeSpinle Power5.5 KW * 15.5 KW * 2Processing Speed800-1500mm/min800-1500mm/minTop Bevel Angel0-85 degree and 90 degree0-85 degree and 90 degreeBottom Bevel AngelNo function0~ -60degreePlate Thickness6-80mm6-80mmTouch Screen15 inch15 inchHydraulic Pressure QTY10 pcs10 pcsSafety SystemOptionalOptionalScrap Collection SystemOptionalOptionalHydraulic Power7 MPa7 MPaTotal Power18 KW26 KW

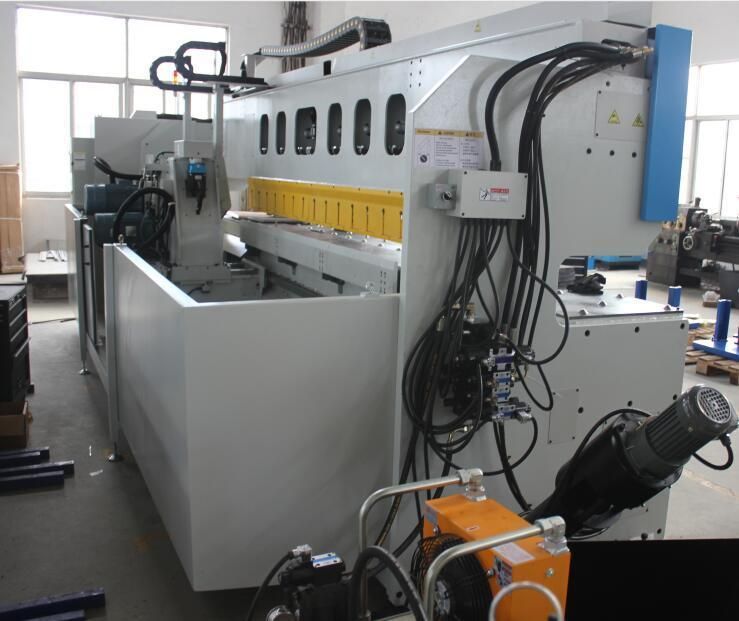

Machine Picture for GMM-V/X2000 Metal Plate Sheet Edge Milling Machine CNC Fully Control for Carbon Steel, Stainless steel
