• Model NO.：ZDYJ-3500
• Customized：Customized
• Advantage：Work Flexible
• Condition：New
• Weight of Press：480 Ton
• Total Power：2860 Kw
• Working Oil Pressure：4000 MPa
• Stroke：2500 mm
• Daylight：4000 mm
• Transport Package：as Required
• Trademark：JUNENG
• Origin：China
• HS Code：8462919000
• Production Capacity：5 Sets Per Year

Basic Info.

Model NO. ZDYJ-3500 Customized Customized Advantage Work Flexible Condition New Weight of Press 480 Ton Total Power 2860 Kw Working Oil Pressure 4000 MPa Stroke 2500 mm Daylight 4000 mm Transport Package as Required Trademark JUNENG Origin China HS Code 8462919000 Production Capacity 5 Sets Per Year

Product Description

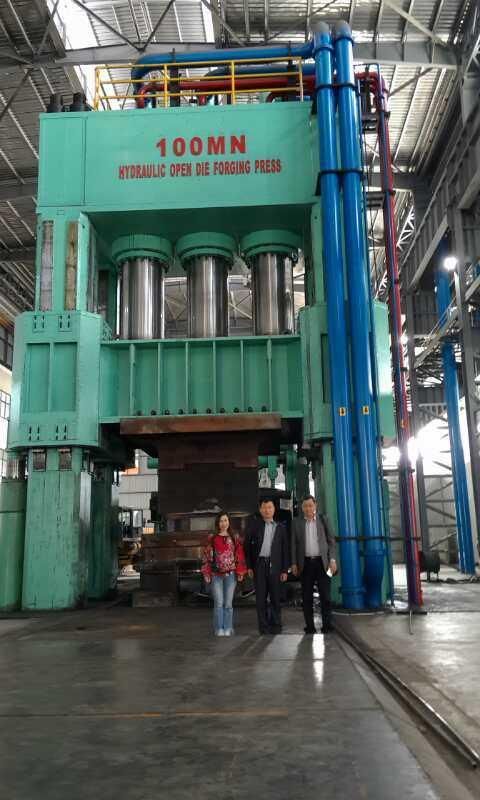

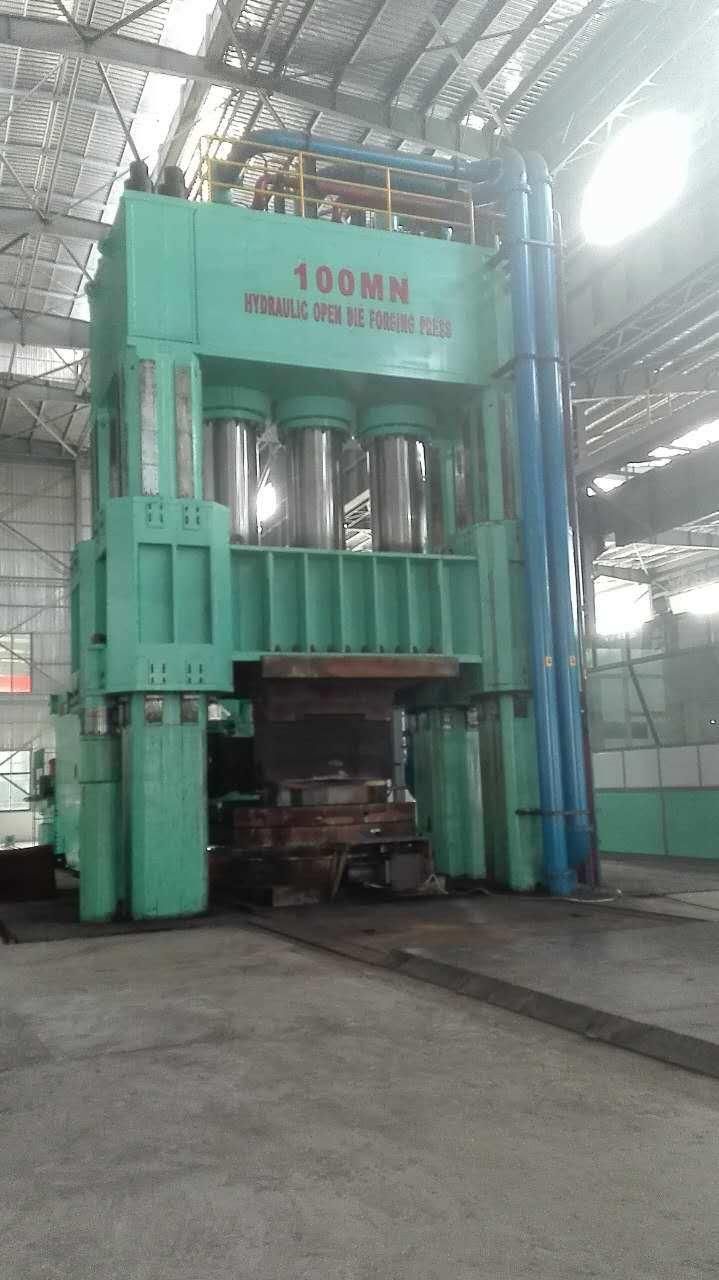

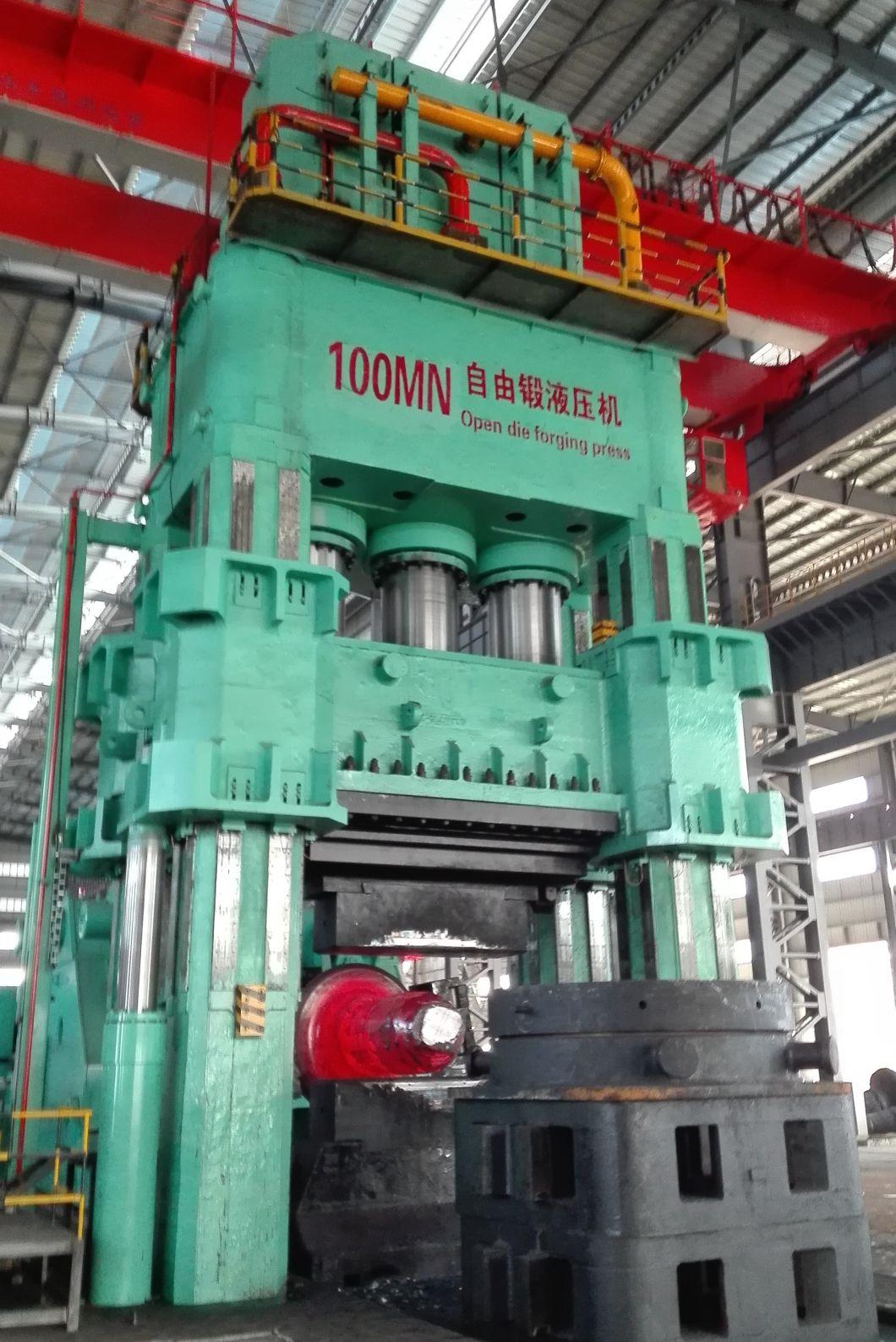

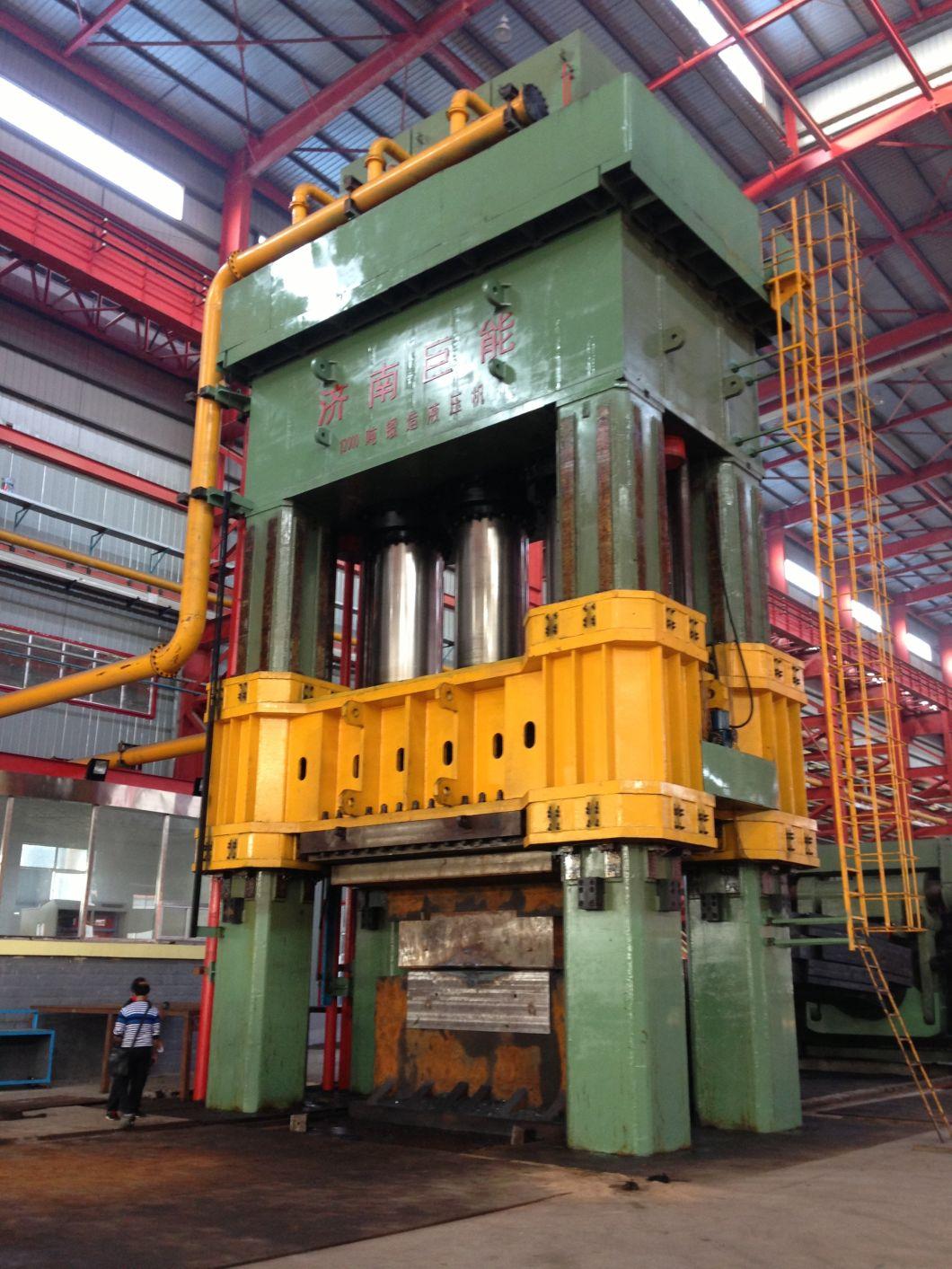

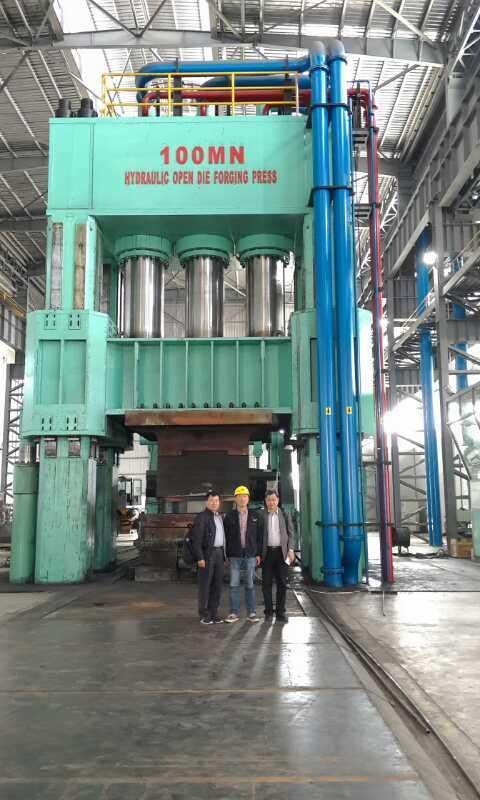

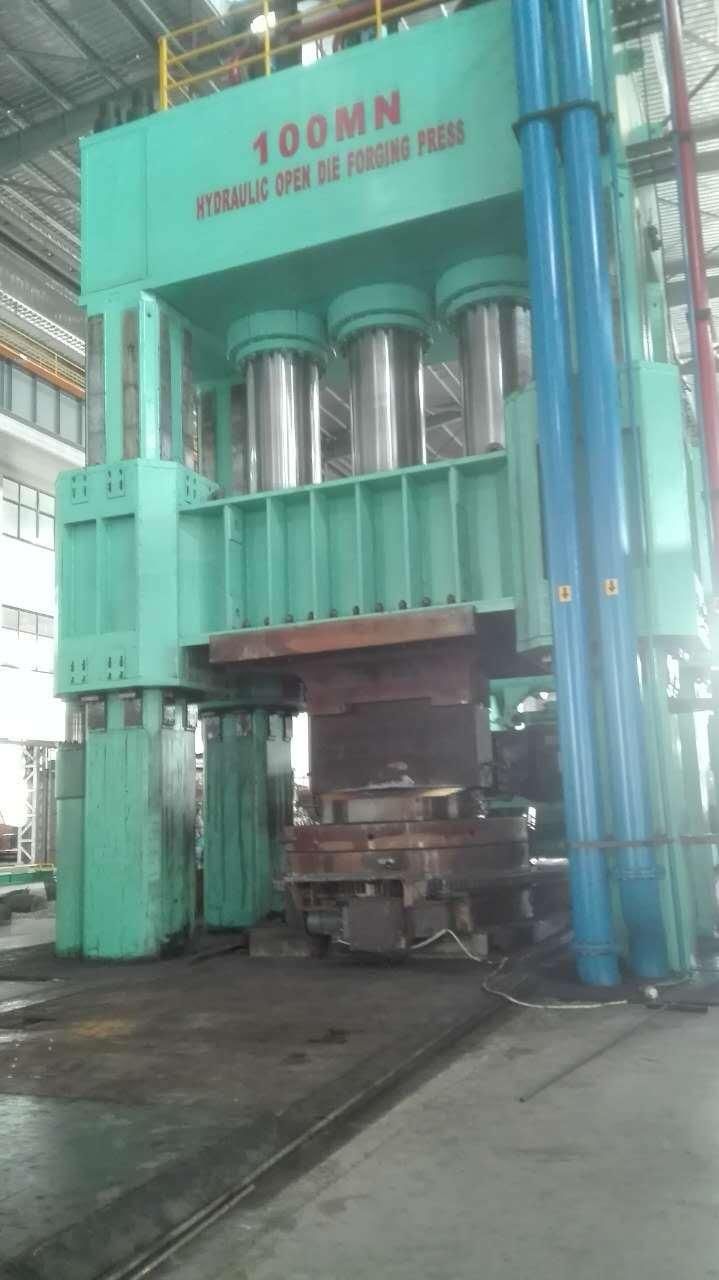

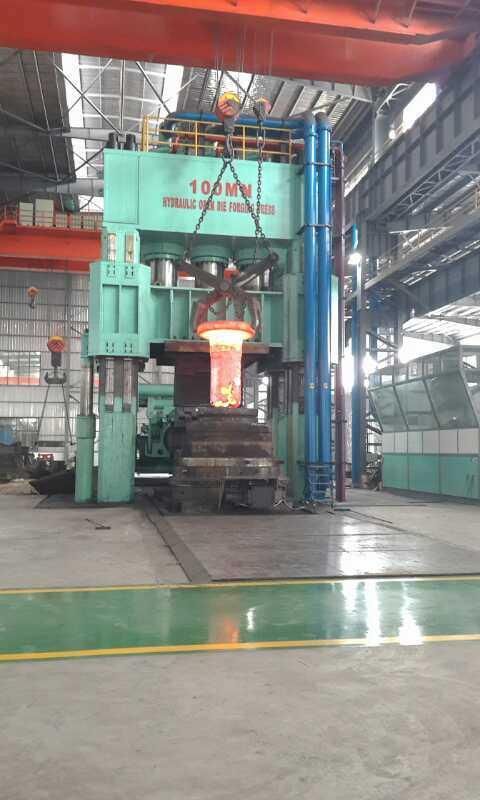

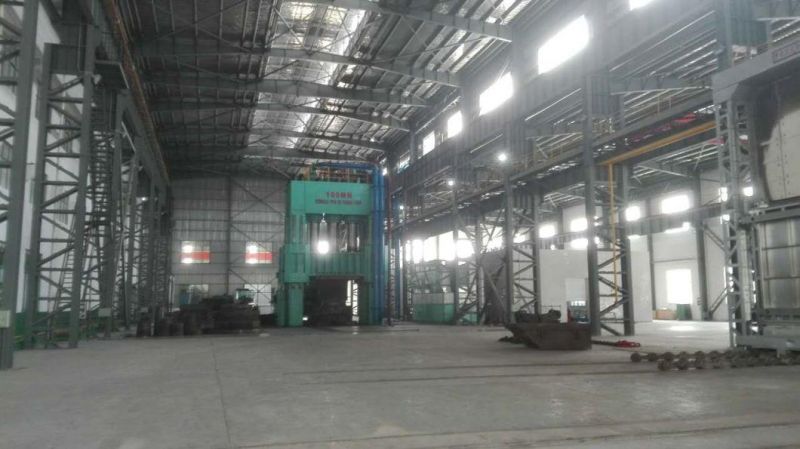

Open die forging press
800t-15000t
Oil hydraulic
Working pressure 25MPa, 31.5MPa, 63MPa, 100MPa
2-columns / 4-columns
Prestressing frame
Welding beam / casting beam
Moveable working table
Rotary forging table

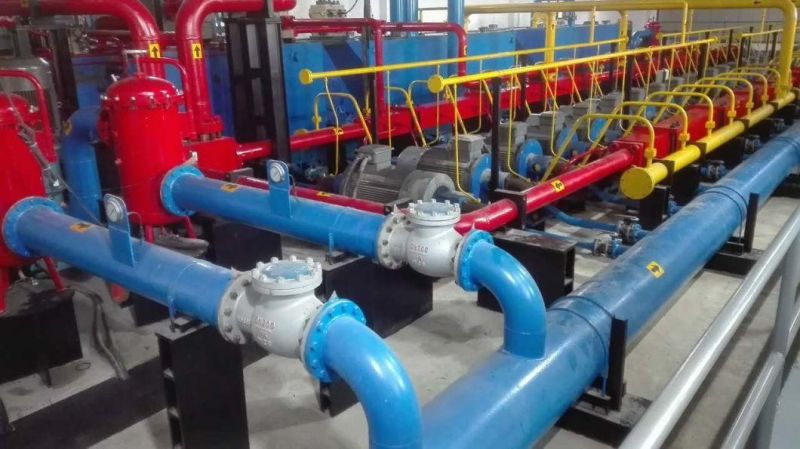

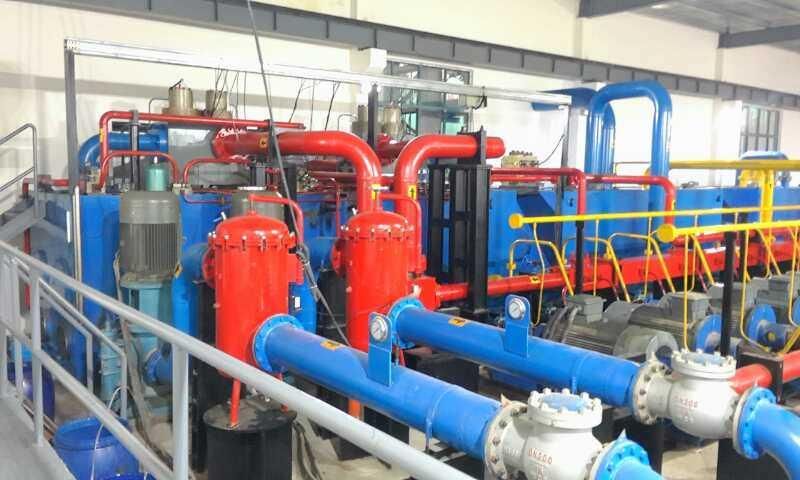

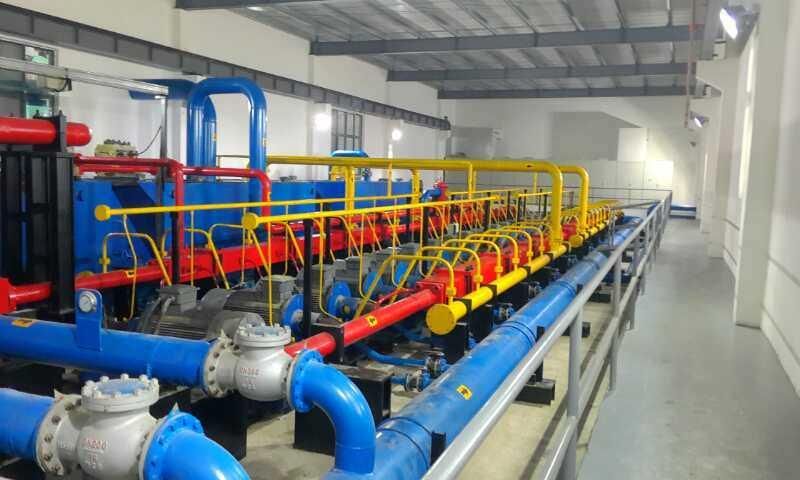

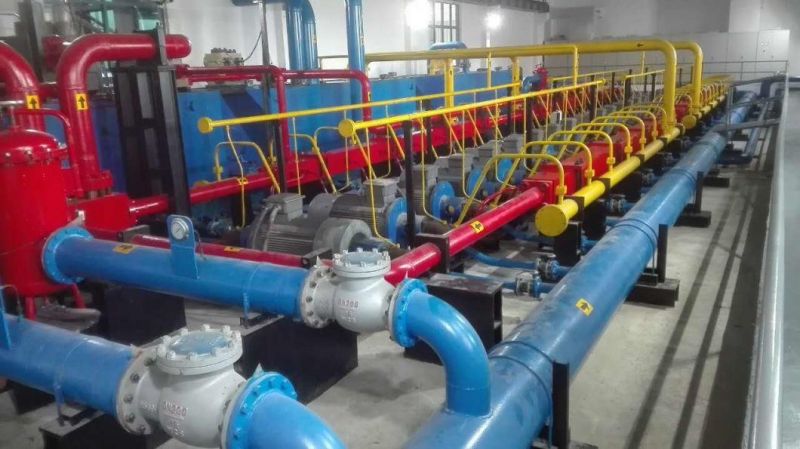

Rexroth pump
Special designed cartridge valves
Siemens PLC

ITEM	UNIT	ZDYJ-8MN	ZDYJ-10MN	ZDYJ-12.5MN	ZDYJ-16MN	ZDYJ-20MN	ZDYJ-25MN	ZDYJ-31.5MN	ZDYJ-3500	ZDYJ-4000	ZDYJ-4500	ZDYJ-5000	ZDYJ-6000	ZDYJ-8000	ZDYJ-12000
CAPACITY	KN	8000	10000	12500	16000	20000	25000	31500	35000	40000	45000	50000	60000	80000	120000
WORKING OIL PRESSURE	MPa	25	25	25	25	25	25	25	25	28.5	25	25	25	25	25
DAYLIGHT	mm	2500	2500	2500	3000	3000	3900	4000	4000	4000	4500	4500	6000	6500	7000
STROKE	mm	1300	1300	1300	1400	1600	1800	2000	2500	2500	2500	2500	2600	3000	3000
DISTANCE BETWEEN COLUMNS CENTER	mm	2200×1260	2200×1260	2200×1260	2900×1550	2950×1500	3400×1600	3500×1900	4500×2000	4500×2000	4350×2150	3800	4200	4500	5000
DIAMETER OF COLUMN	mm	280	280	320	330	400	470	500	520	520	580	Prestressing frame	Prestressing frame	Prestressing frame	Prestressing frame
DIMENSION OF SHIFTING TABLE	mm	3600×1300×300	3600×1300×300	3600×1300×300	4000×2000×300	4200×1600×300	5000×2000×350	6000×2000×350	6000×2200×400	6000×2200×400	7000×2400×400	8000×3000×400	9000×3400×400	9500×3600×400	10000×4000×400
STROKE OF SHIFTING TABLE	mm	2200	2200	2200	2500	2500	3000	4000	4400	4400	4500	4500	6000	6500	7000
CAPACITY OF RETURN	KN	1000	1500	1500	1700	1500	2000	2000	2500	2500	4000	3800	6500	8000	10800
WORKING POSITIONS OF SHIFTING TABLE		3	3	3	3	3	3	3	3	3	3	3	3	3	3
ECCENTRICITY DIMENSION OF FORGING	mm	120×80	120×80	150×75	150×75	150×100	150×100	150×120	200×150	200×150	200×150	200×150	200×150	200×150	250×200
GRADE NUMBERS OF CAPACITY		1	1	1	2	3	2	2	3	3	2	3	3	2	3
FIRST CAPACITY	KN	8000	10000	12500	10000	7000	15000	15000	15000	17000	25000	20000	20000	40000	40000
SECONDLY CAPACITY	KN				16000	14000	25000	31500	20000	23000	45000	30000	40000	80000	80000
THIRDLY CAPACITY	KN					21000			35000	40000		50000	60000		120000
PRESSING SPEED AT APPROACH	mm/s	300	300	300	300	300	300	300	300	300	300	300	250	250	250
PRESSING SPEED AT FIRST CAPACITY	mm/s	74	66	60	67	195	114	137	170	170	126	155	190	120	120
PRESSING SPEED AT SECONDLY CAPACITY	mm/s				42	97	68	55	126	126	69	100	106	80	80
PRESSING SPEED AT THIRDLY CAPACITY	mm/s					65			72	72		60	53		40
RETURN SPEED	mm/s	300	300	300	300	300	300	300	300	300	300	300	250	250	250
SPEED OF SHIFTING TABLE	mm/s	200	200	200	200	200	200	200	200	200	180	200	150	150	150
ACCURACY OF SHIFTING TABLE MOVING	mm	±0.5	±0.5	±0.5	±0.5	±0.5	±0.5	±0.5	±0.5	±0.5	±0.5	±0.5	±0.5	±0.5	±0.5
DEGREE OF FORGING	times/min	60	60	60	60	45	45	45	45	45	30	40	40	35	30
CARRYING CAPACITY OF SHIFTING TABLE	T	20	20	20	25	35	40	50	160	160	180	160	200	250	300
SHIFTING TABLE HEIGHT ABOVE FLOORLEVEL	mm	0	0	0	0	0	0	0	0	0	0	0	0	0	0
TOTAL POWER	KW	660	880	880	1320	1540	1760	2200	2860	2860	3300	3560	3960	5280	5280
WEIGHT OF PRESS(TOTAL)	T	160	180	200	230	290	320	440	480	480	760	910	1100	1700	2100
OVERALL HEIGHT ABOVE FLOOR LEVEL	mm	7800	8000	8100	8500	9000	10000	11000	12500	12500	13500	12500	15700	17500	18300
