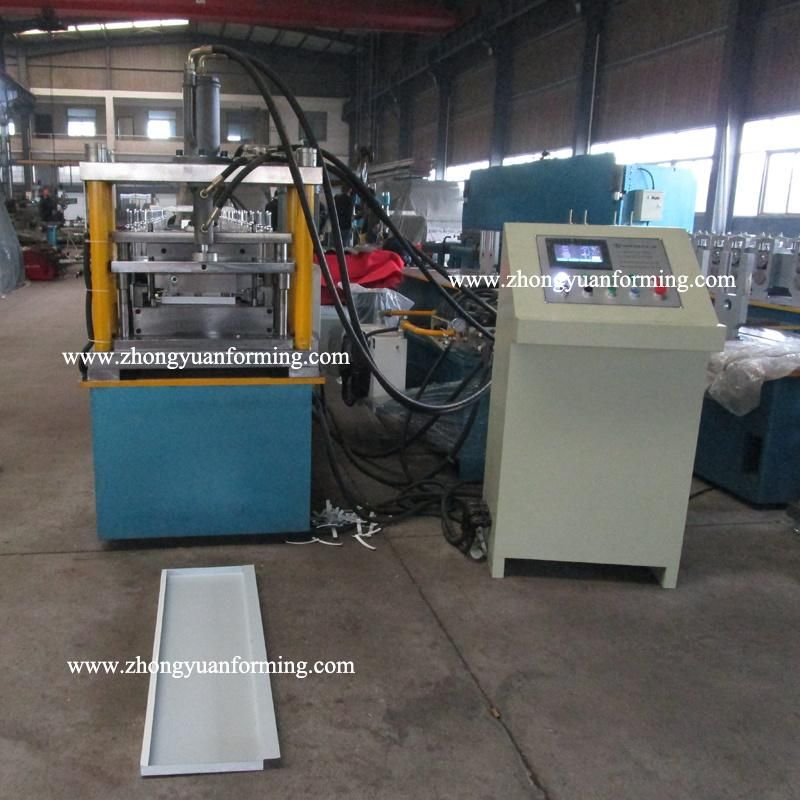

Drywall Galvanized Sheet Ceiling Channel Making Roll Forming Machine
Hangzhou Zhongyuan Machinery Factory- Main Power：5.5kw
- Roller Material：No.45 Steel, Plated with Chrome
- Cutter Material：Cr12 Mould Steel, Quenched Treatment
- Guarantee Time：First Year Free, Lifetime Services
- Controller：Mitsubishi PLC & Converter
- After-Sales Service Provided：Engineers Available to Service Machinery Overseas
Base Info
- Model NO.：ceiling channel making machine
- Transport Package：Suitable for Sea Transport
- Specification：1*40GP Container
- Trademark：Zhongyuan
- Origin：Zhejiang, China
- HS Code：84552210
- Production Capacity：10sets,Month
Description
Basic Info.
Model NO. ceiling channel making machine Transport Package Suitable for Sea Transport Specification 1*40GP Container Trademark Zhongyuan Origin Zhejiang, China HS Code 84552210 Production Capacity 10sets/MonthProduct Description
Drywall Galvanized Sheet Ceiling Channel Making Roll Forming MachineMachine's Overvew
Technical Data
| Suitable material | PPGI,PPGL Steel Coils, with 0.7mm thickness |
| Yield Strength | Q235Mpa |
| Working speed | About 25m/min |
| Main motor power | 5.5 Kw(Depend on final design) |
| Hydraulic station power | 5.5Kw(Depend on final design) |
| Cutter material | Cr12 mould steel with quench treatment |
| Roller Material | No. 45 forged steel with 0.05mm thickness chrome |
| Material of shaft | High quality 45# steel, Dia. is 72mm |
| Controlling system | Mitsubishi PLC & Converter |
| Length measurement | Encoder(Nemico) |
| Operation mode | Botton+Mitsubishi Touch Screen |
| Total weight | About 6000KGS(Depends on final design) |
| Machine Size | About 6*1.2*1.4m (Depends on final design) |
| 1 | Manual decoiler | 1 pc (Capacity:3 tons) |
| 2 | Guiding Equipment | 1 set |
| 3 | Punching device | 1 set |
| 4 | Roll Forming Equipment | 1 set |
| 5 | Post-Cutting&Folding Equipment | 1 set |
| 6 | Hydraulic Station | 1 pc |
| 7 | PLC Control Panel | 1 pc |
| 8 | Supporter Table | 1 set (Two pieces, 1.5m/piece) |
| 9 | Tool Box | 1 pc |
