Manual Horizontal Kammprofile Gasket Machine (PX1300)
Cixi Flyseal Co., Ltd.- Control：Manual
- Transport Package：Sea Worthy Plywood Case
- Specification：800*1000*1360mm
- Trademark：flyseal
- Origin：China
Base Info
- Model NO.：PX1300
- Production Capacity：50sets
Description
Basic Info.
Model NO. PX1300 Production Capacity 50setsProduct Description

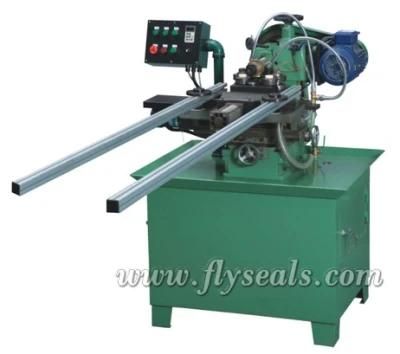

PX1300Kammprofile gasket machine
Kammprofile pitch both 1.0 and 1.5mm available.
HSS saw blades and Alloy blade in set for option.
| Specification as following: | |
| STYLE | PX1300 Kammprofile gasket machine |
| Gasket thickness | 3 -- 4mm |
| Gasket width | 10--50mm |
| Maximum gasket OD | 4000mm |
| Minimum gasket ID | 280mm |
| type of tooth | 1.5mm or 1.0mm pitch tooth, or wave tooth |
| Total power | 4kw |
| Spindle motor power | 1.5kw |
| Spindle speed | 0--1200 rpm |
| Feed motor power | 0.4kw |
| Feed linear speed | 0--20mm/s |
| Frequency Converter | 2.2G 0.4G |
| Power supply voltage | 380V/220V, 3phases, for option |
| Air compressor | 0.6_0.8 MPA |
| Machine measurement | 800*1000*1360mm |
| Machine net weight | 500kg |
