Single Lock Flexible Metal Hose Machine
BOBO Machine Co., Ltd.- Type:Rolling Machine
- Forging Forming Method:Mold Forging
- Power Source:Electric
- Feature:Automation
- Certification:ISO9001, CE
- Warranty:12 Months
Base Info
- Model NO.:FH series
- Customized:Customized
- Advantage:Use Widely
- Condition:New
- Raw Material:Stainless Steel , Galvanized Steel
- Lock Profile:Single Lock
- Forming Method:Spiral Forming
- Cutting Method:Manual Cutting
- Control System:Inveter Controller
- Hose Diameter:up to 4 Inch
- Hose Length:Endless
- Wire Sealing:Optional
- Paint Colour:Customized
- Name:Single Lock Flexible Metal Hose Machine
- Transport Package:Woode Package
- Specification:ISO
- Trademark:BOBO
- Origin:China
- HS Code:8455229090
- Production Capacity:8sets,Month
Description
Basic Info.
Model NO. FH series Customized Customized Advantage Use Widely Condition New Raw Material Stainless Steel , Galvanized Steel Lock Profile Single Lock Forming Method Spiral Forming Cutting Method Manual Cutting Control System Inveter Controller Hose Diameter up to 4 Inch Hose Length Endless Wire Sealing Optional Paint Colour Customized Name Single Lock Flexible Metal Hose Machine Transport Package Woode Package Specification ISO Trademark BOBO Origin China HS Code 8455229090 Production Capacity 8sets/MonthProduct Description

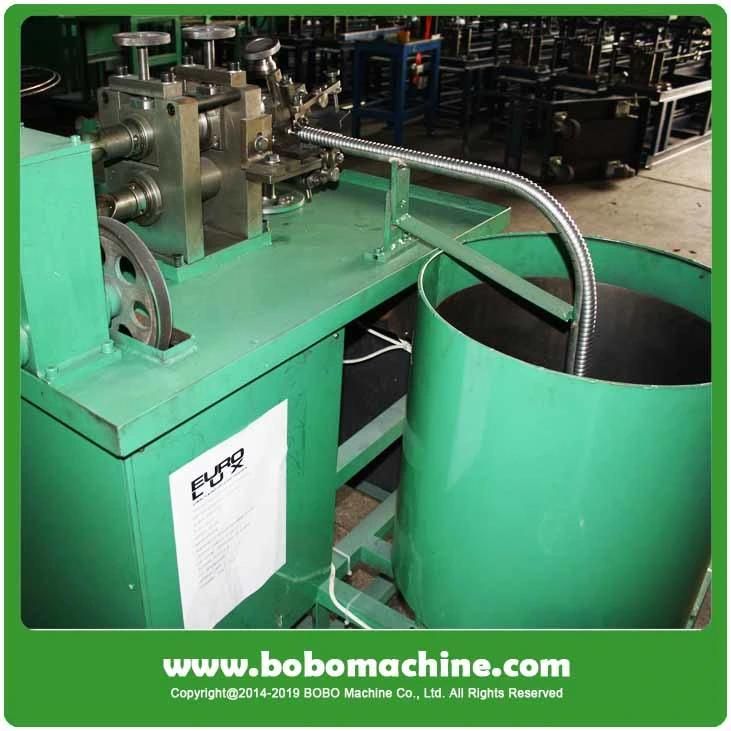

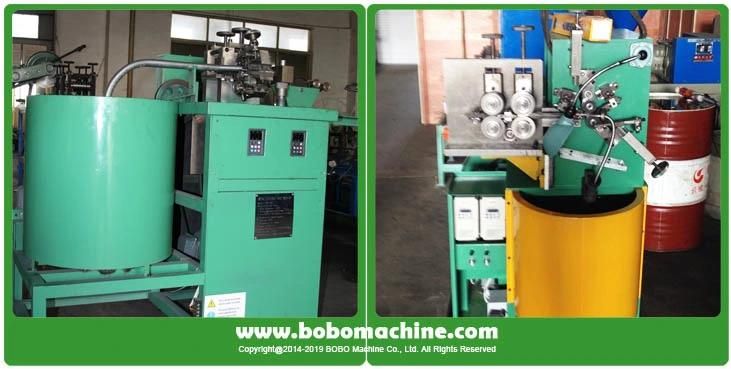

Single lock flexible metal hose machineSingle lock flexible metal hose machine is used to produce flexible hose from metal strip by spiral lock forming, and the finished flexible hose is mainly used for cable casing, electric hose and shower hose, etc. The metal strip can be stainless steel, galvanized steel and aluminum, etc.Feature of Single lock flexible metal hose machine
1.The flexibility is adjustable by change lock seaming
2.Automatic lubrication and cooling water recycling system

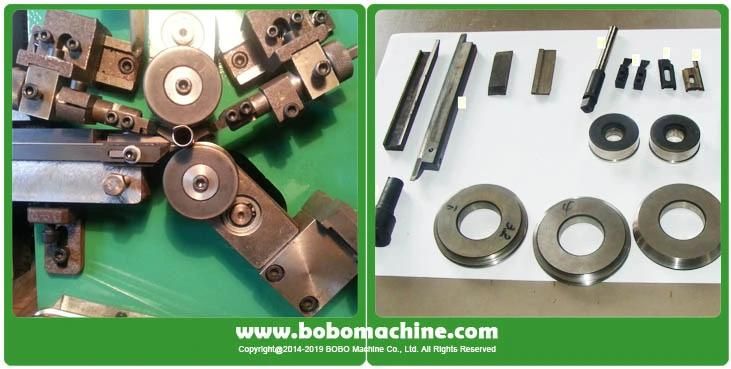

3.Adjustable lock forming roller for different thickness
4.Speed control by inveter to match forming and collecting speed
Main technical data of Single lock flexible metal hose machine
1 | Diameter Range | 3/8" to 4" |
2 | Strip width | 9.5-25.5mm |
3 | Strip thickness | 0.2-0.5mm |
4 | Forming speed | about 2m/min |
5 | Motor power | 2.2-3.0 KW x 2 |
6 | Dimension | 900 x 900 x 1200mm |
7 | Weight | 800-1200KG |
