• Model NO.：CNC
• Power Source：Electric
• Cutting Mode：Plasma Cutting
• Model：CNC-1560
• Cutting Gas：Oxyacetylene Oxygen,Oxyfuel Propane Acetylene
• Plasma Cutter：Dual Drive Portable Plasma Cutter
• Optional Plasma：Hypertherm Power,China Plasma
• Nest Software：Fastcam Startcam
• Function：Metal Steel Plasma Cutting
• Plasma Model：Lgk 63A 80A 100A 120A 200A 300A 400A
• Control System：F2100b
• Effective Cutting：1500*6000 mm
• Type：DC Plasma Cutter
• Other Model：1630 1525 1215 2060 3060 2430
• Application：Industrial Metal Plasma Cut
• Weight：100 , 200 Kg
• Motor Type：Step Motor
• Torch Height Control：Optional
• Transport Package：Standard Package
• Specification：Flame Acetylene Gas or Liquefied CNC cutter
• Trademark：Lemar
• Origin：Wuxi, China
• HS Code：8456909000
• Production Capacity：1000 PCS,Year

Basic Info.

Model NO. CNC Power Source Electric Cutting Mode Plasma Cutting Model CNC-1560 Cutting Gas Oxyacetylene Oxygen/Oxyfuel Propane Acetylene Plasma Cutter Dual Drive Portable Plasma Cutter Optional Plasma Hypertherm Power/China Plasma Nest Software Fastcam Startcam Function Metal Steel Plasma Cutting Plasma Model Lgk 63A 80A 100A 120A 200A 300A 400A Control System F2100b Effective Cutting 1500*6000 mm Type DC Plasma Cutter Other Model 1630 1525 1215 2060 3060 2430 Application Industrial Metal Plasma Cut Weight 100 / 200 Kg Motor Type Step Motor Torch Height Control Optional Transport Package Standard Package Specification Flame Acetylene Gas or Liquefied CNC cutter Trademark Lemar Origin Wuxi, China HS Code 8456909000 Production Capacity 1000 PCS/Year

Product Description

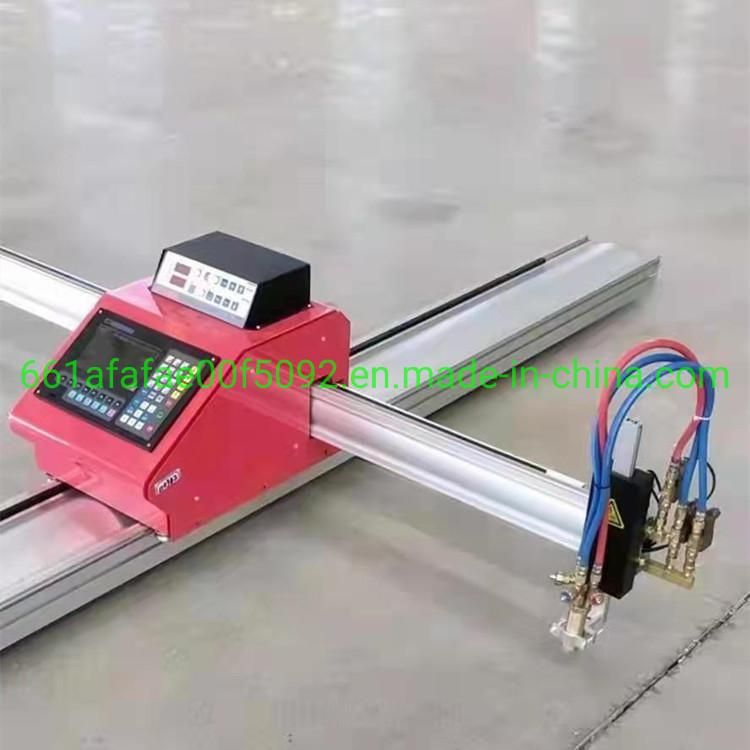

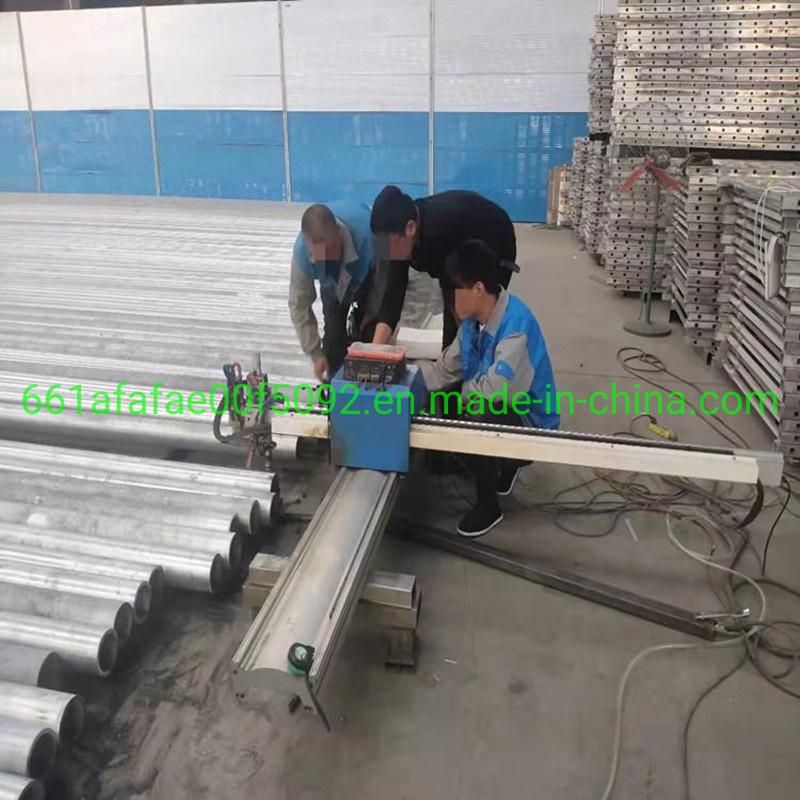

The portable CNC plasma flame cutting machine can program and cut steel parts of any flat shape composed of straight lines and arcs. It is a combined installation, which can be moved at will without occupying a fixed site.
Equipped with 1 flame cutting torch, the plasma cutting power source and the length of the guide rail can be additionally added according to customer requirements.

Specification:


No.	Item	Specification
1	Flame cutting thickness	6-160mm
2	Effective cutting width	1500mm/1600mm or Wider
3	Effective cutting length	3m/4m/6m or longer
4	Cutting torch lifting distance	≤100mm
5	The running speed of the whole machine	100-3000mm/min
6	Arc voltage height controller	optional
7	Torch lift	rack and pinion
8	Nesting software	ProNEST or StarCAM
9	Drive Type	Stepper Motor
10	Movement mode	stepper motor + rack and pinion + cylindrical guide
11	Plasma cutting power supply	optional
12	Cutting gas	oxygen + acetylene or propane
13	Plasma cutting thickness	according to the optional plasma
14	Cutting accuracy	±0.5mm
15	Repeat positioning accuracy	±0.2mm
16	Continuous working time	24H
17	Working environment temperature	0~45ºC
18	Cutting materials	carbon steel/stainless steel/aluminum/alloy/non-ferrous metals, etc.

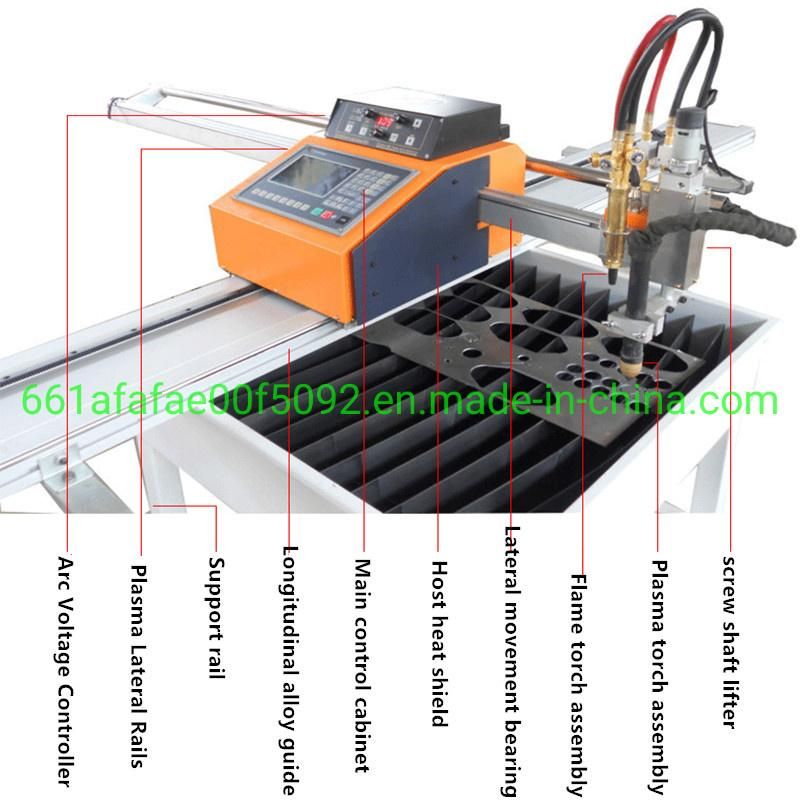

Structure introduction:

This machine includes CNC Metal sheet plasma flame cutting machine portable type host, base, beam and cutting torch.

1. The CNC portable plasma cutting machine adopts the frame with fully welded structure, which is sturdy and reasonable, easy to operate and durable.


2. Fast cutting speed and high precision. The cutting opening is small and neat, and there is no slag drop phenomenon.
On the basis of the traditional numerical control system, the control method for cutting has been improved to avoid secondary trimming.

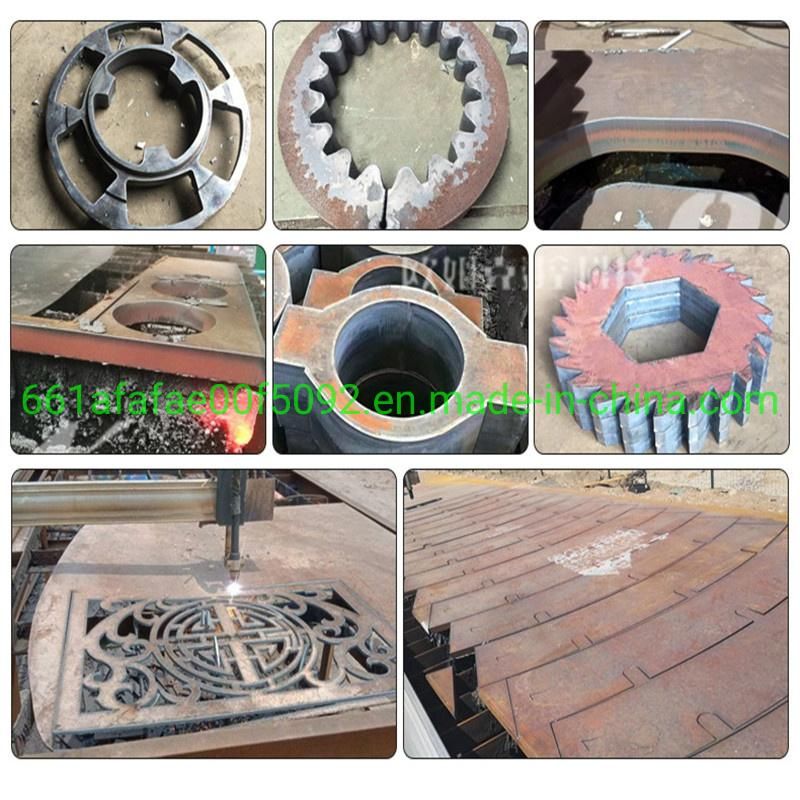

3. Suitable for low carbon steel plate, copper plate, iron plate, aluminum plate, galvanized plate, titanium plate and other metal plates

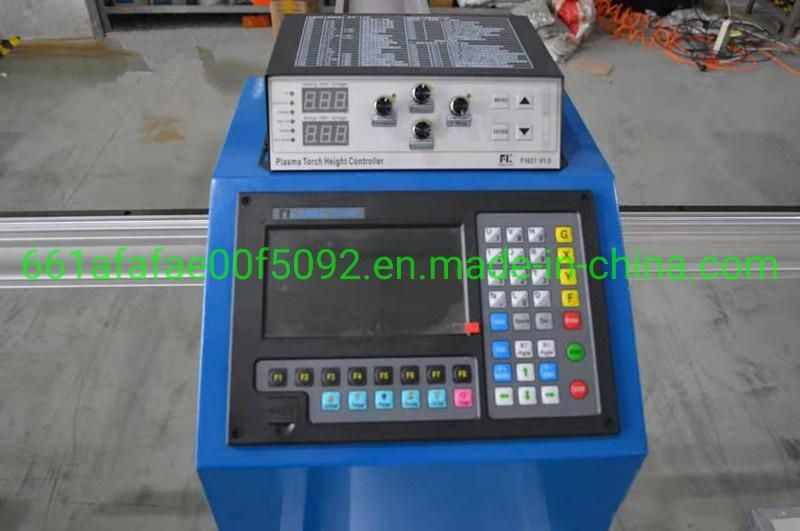

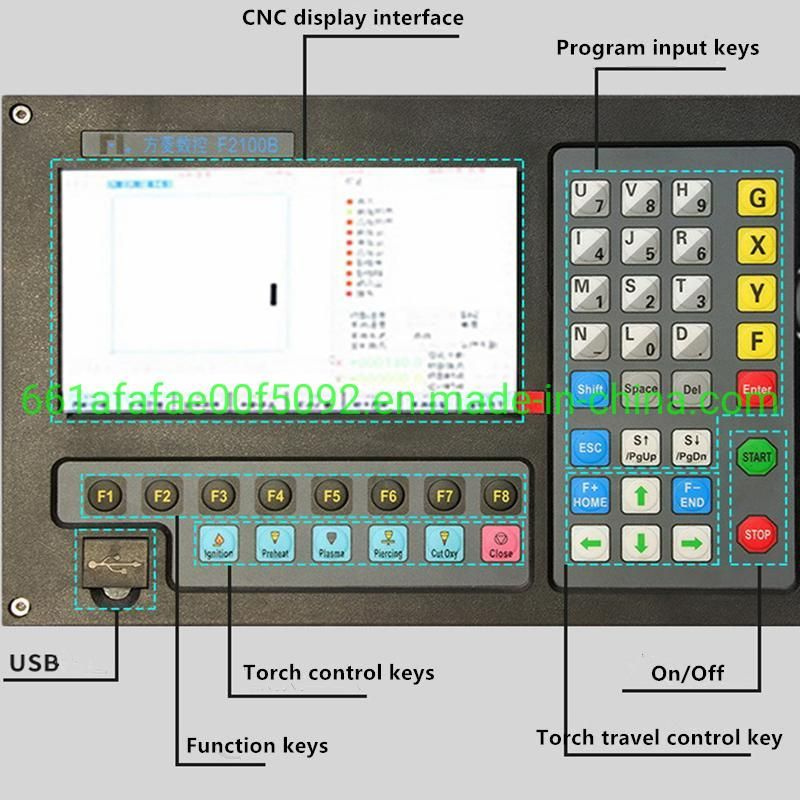

4. F2100B intelligent numerical control system, portable numerical control flame gas cutting machine adopts Chinese and English operation interface. 7" 800*480 high resolution, 16 million color high-brightness LCD screen, the system comes with 48 patterns, you can directly change the size you want for cutting. Automatic arc ignition, stable performance, arc ignition success rate of more than 99%


5.USB nesting direct transmission interface, easy and fast operation

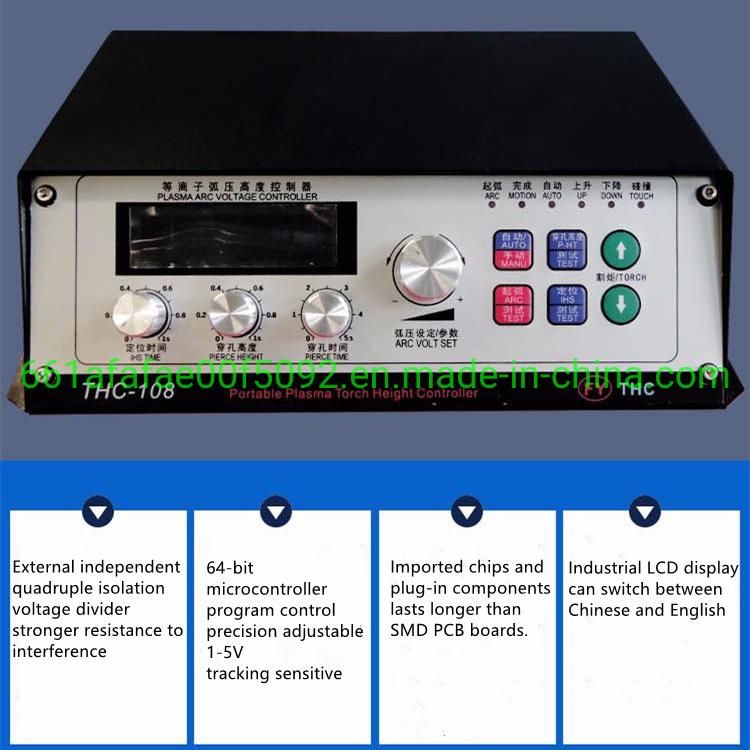

6. The arc voltage height adjuster (optional) of the portable metal sheet cutting machine automatically adjusts the height of the sheet, which can not only protect the plasma cutting gun from hitting the iron plate, but also ensure the stable output of the plasma arc, so that the cutting accuracy and Stability of cut quality


7. Various brands of plasma power supply are available to meet the different needs of customers
