Metallic Processing Machinery

Home > Product > Metal Engraving Machinery

220V Heavy Duty CNC Milling Machine

Jinan Remax Machinery Technology Co., Ltd.
  • Carving Material：Stainless Steel
  • Controlling Mode：CNC
  • Main Axle Rotational Speed：≤24000rpm
  • Certification：CE
  • Warranty：12 Months
  • Customized：Customized

Base Info

  • Model NO.：4050
  • Condition：New
  • Table Surface：Iron T-Slot and Table Moving
  • Frame：Cast by Iron
  • X, Y,Z Structure：Hiwin Rail Linear Guide and Tbi Ball Screw
  • Max. Rapid Travel Rate：20000mm,Min
  • Max. Working Speed：10000mm,Min
  • Spindle Power：4.5 Kw Water Cooling Spindle
  • Spindle Speed：0-24000rpm
  • Drive Motors：Delta Servo Driver and Motor
  • Transport Package：Standard Wooden Box
  • Specification：600x600x200mm
  • Trademark：Remax
  • Origin：China
  • HS Code：84659900
  • Production Capacity：50PCS,Month

Description

escriptionParameter

Model

Remax-4050 CNC Milling Machine

X,Y,Z Working Area

600*600*200mm

X,Y,Z Traveling Positioning Accuracy

±0.01/300mm

X,Y,Z Repositioning Accuracy

±0.01mm

Table Surface

Iron T-slot and table moving

Frame

cast by iron

X, Y,Z Structure

HIWIN Rail Linear Guide and TBI Ball Screw

Z Structure

HIWIN Rail Linear Guide and TBI Ball Screw

Max. Power Consumption

(Without Spindle)  4.5Kw

Max. Rapid Travel Rate

20000mm/min

Max. Working Speed

10000mm/min

Spindle Power

4.5 kw water cooling spindle

Spindle Speed

0-24000RPM

Drive Motors

Delta  servo driver and motor

Working Voltage

AC220/380V, 50/60Hz

Command Language

G Code

Operating System

NK280B

Computer Interface

USB

Flash Memory

128M(U Disk)

X,Y Resolution

<0.01mm

Software Compatibility

Type3/Ucancame V9 Software, (Option: Artcam Software)

Running Environment  Temperature

0 - 45 Centigrade

Relative Humidity

30% - 75%

Inverter

Fuling

Electrical components

Schneider

Limit switch

OMRON

Driver

YASKAWA

Warranty

2 year, expect consumable parts

ER clamp holder

ER 20

Feature
1.Iron T-slot and  moving table, ideal for machining metal or wooden molds
2. Axis X, Y, Z are equipped with photoelectric devices, which ensure a fast response and good anti-interference capacity
3. TBI ball screw transmission improves positioning accuracy and fast speed
4. Selection of high speed 4.5kw water cooled spindle, low noise, high torque, this CNC can be used to process high hardness materials.
5. With the NK280B operating system, it has the breakpoint memory function, which allows you to continue working in the event of a power failure or next day's workrements

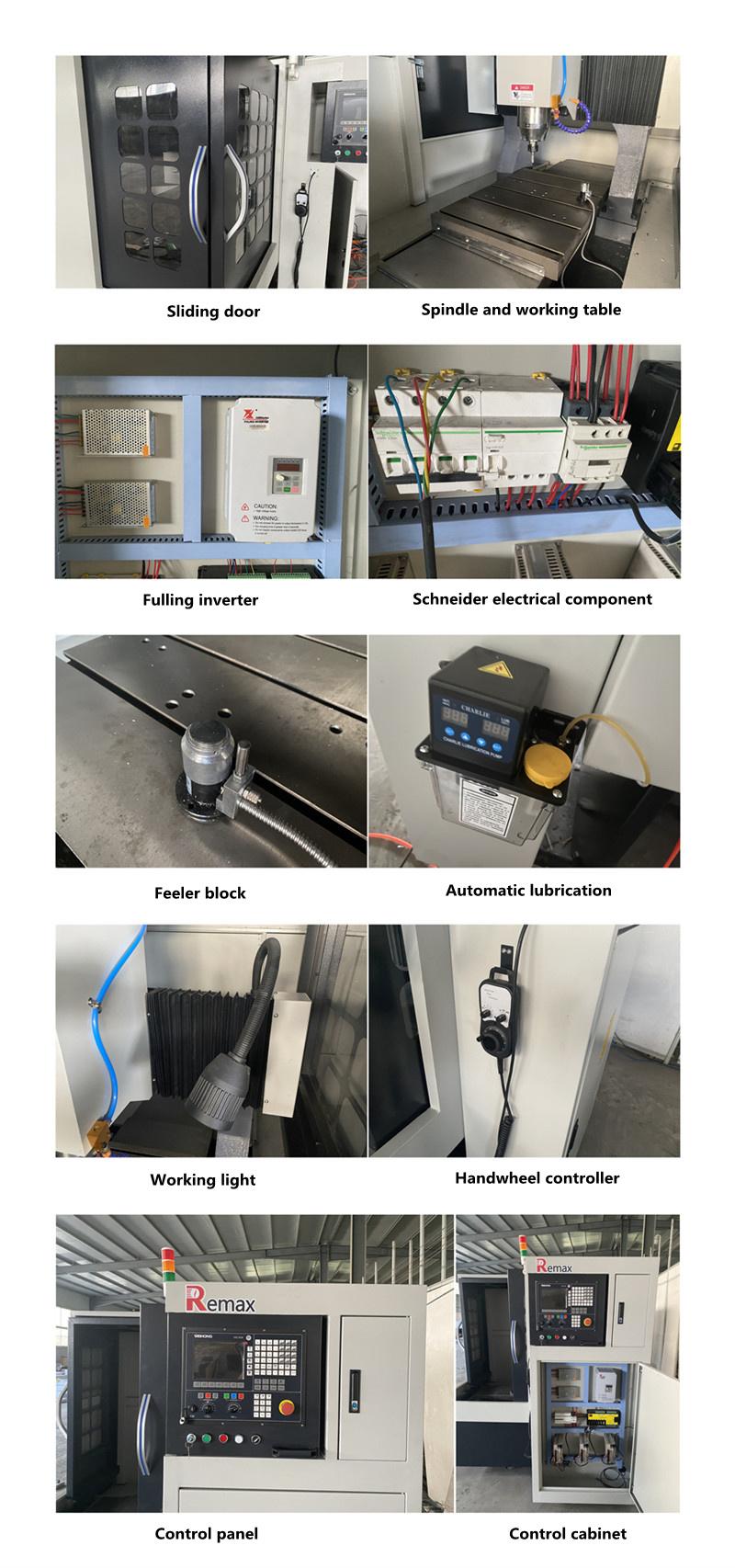

Part

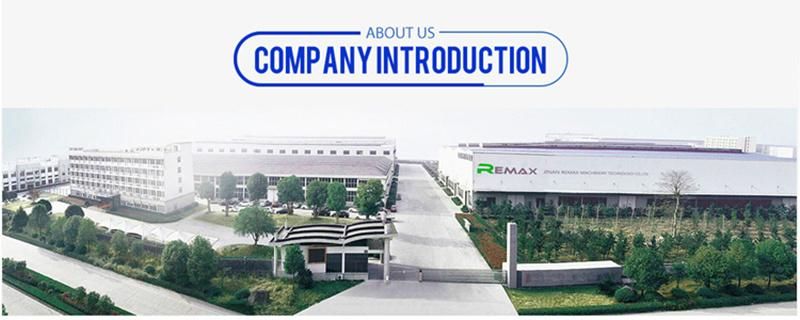

220V Heavy Duty CNC Milling MachineOur company
220V Heavy Duty CNC Milling MachineJINAN REMAX MACHINERY TECHNOLOGY CO.,LTD,is a professional cnc router, plasma cutting machine and laser cutting machine manufacturer, after ten years of efforts,our company has already owned independent R&D and manufacture capacity of molds engraving and milling machine, large CNC woodworking engraving machine, woodworking engraving and milling machine, CNC advertising engraving machine, CNC stone engraving machine, CNC linear and disk auto tool changer machines, CNC plasma cutter machines, laser cutting and engraving machine, laser cutting machine, metal laser cutting machine(YAG and Fiber), laser seal engraving machine, styrofoam machining centers etc machines, since the establishment of our company, with professional technology and advanced management concepts, the rapid rise in the field of Numerical Control, has developed into research and development, production and sales of high-tech enterprises, the products have been widely used in the advertising industry, woodworking industry, craft gifts, architectural models, electronics, CAD / CAM industry mold industry, decoration, clothing, packaging, printing, dyeing, logos, seals, etc industries; and because of its distinct cost-effective domestic and in various application fields has been completely replace imported similar products, and become the leading companies in the industry.

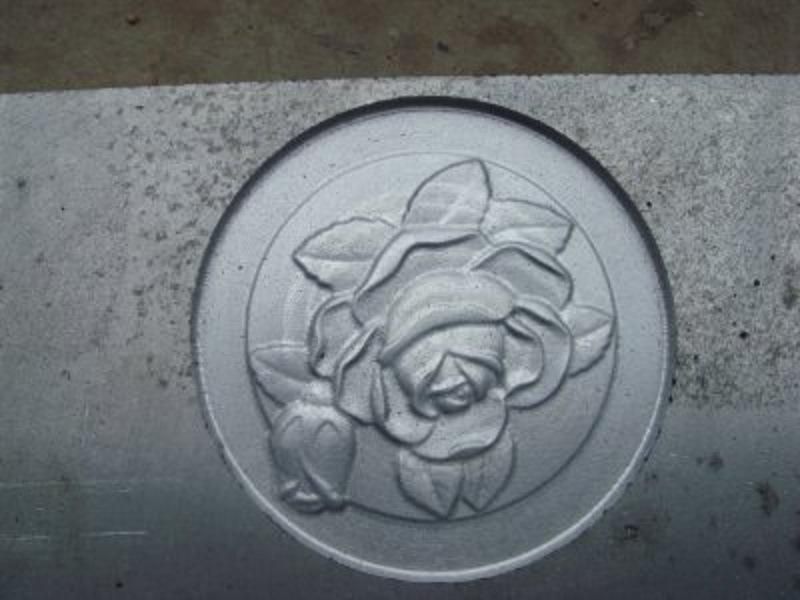

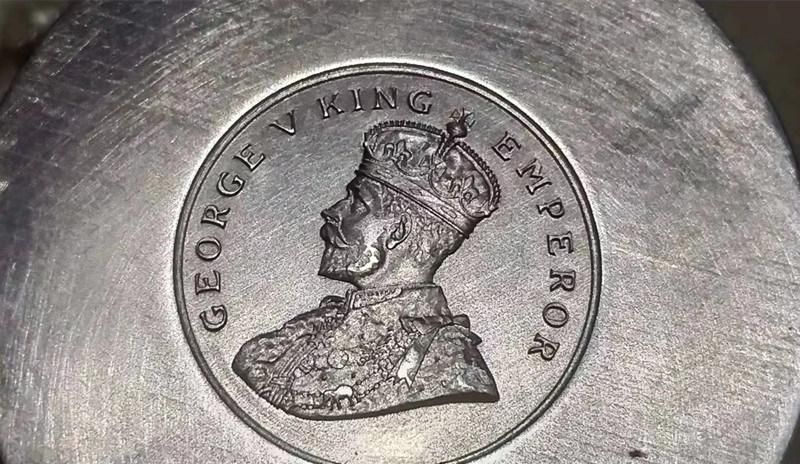

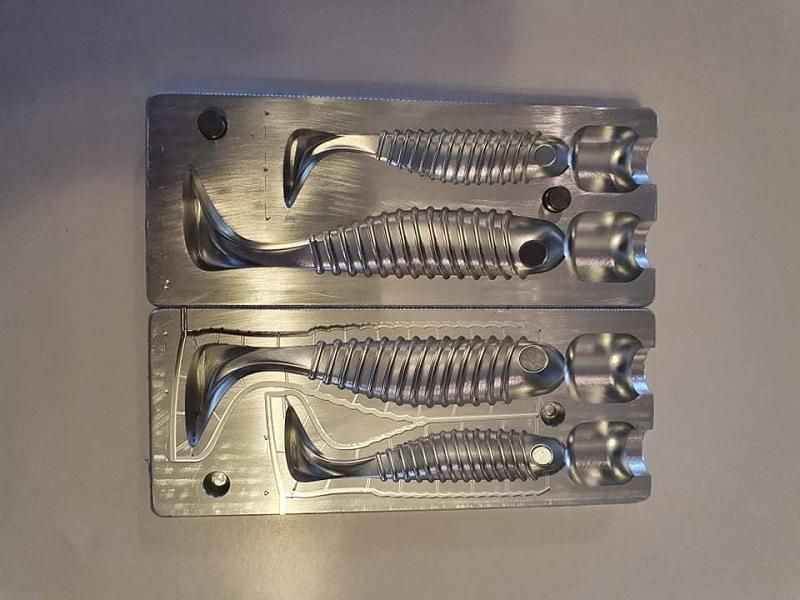

Samples
220V Heavy Duty CNC Milling Machine220V Heavy Duty CNC Milling Machine220V Heavy Duty CNC Milling MachineCE
220V Heavy Duty CNC Milling MachineOur service
220V Heavy Duty CNC Milling Machine
FAQ
Q1:This is the first time I use this kind of machine, is it easy to operate?A1:There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.Q2:MOQ ?A2:The minimum order is 1 set machine, if you order more one time, the price will be better.
