Desktop Gantry CNC Plasma Flame Cutting Machine
Wuxi Lemar Machinery Equipments Co., Ltd.- Customized：Customized
- Layout：Horizontal
- Cutting Material：Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
- Automatic Grade：Automatic
- Cutting Mode：Gas Cutting
- Model：Cnct-4080
Base Info
- Model NO.：CNCT-4080
- Cutting Source：Plasma Cutting
- Cutting Speed：0-6000mm,Min
- Cutting Width：4000mm
- Cutting Length：8000mm
- Input Voltage：3 Phase 220,380V
- Power Frequency：50,60Hz
- Plasma Cutting Thickness：According to The Plasma Source
- Files Transfer：USB Interface
- Working Material：Stainless Steel,Iron Sheets, Aluminum Sheets, Galv
- Arc：Torch Height Controller
- Delivery Time：20 Days
- Colour：Customized
- CNC Cutter Moving Speed：0-12000mm,Min
- Gross Weight：1500kg
- Transport Package：Standard Package
- Specification：Flame Acetylene Gas or Liquefied CNC cutter
- Trademark：Lemar
- Origin：Wuxi, China
- HS Code：8461909000
- Production Capacity：1000 PCS,Year
Description
What is the difference between a desktop plasma cutting machine and a gantry plasma cutting machine?

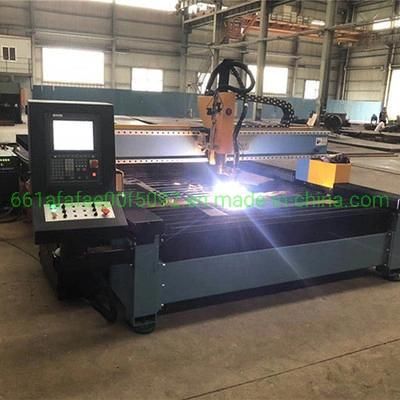

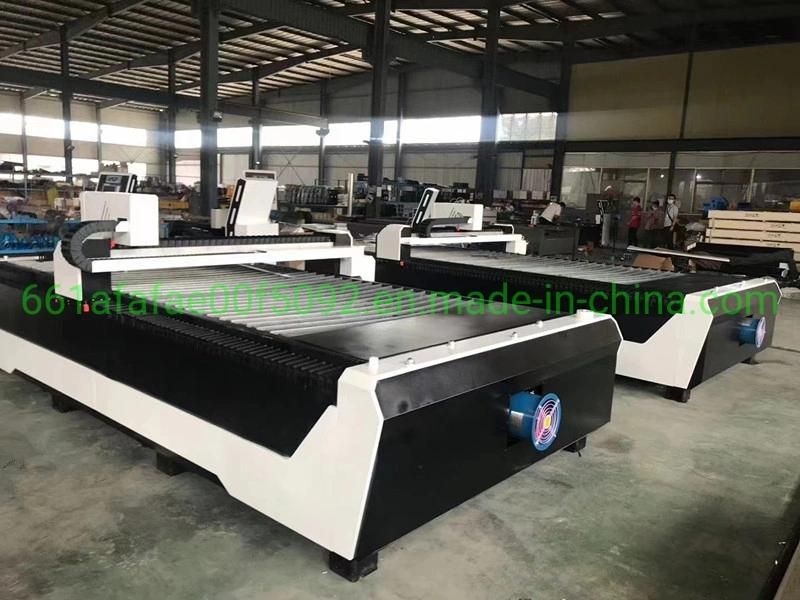

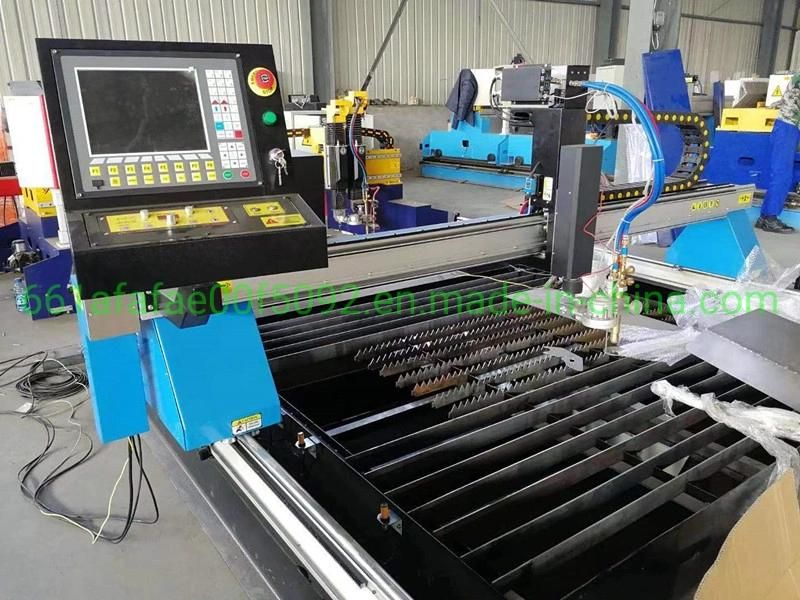

The desktop CNC plasma cutting machine has high cutting precision and moderate purchase cost, and its processing method is a plasma cutting mode similar to laser cutting.
The general desktop CNC plasma cutting machine is composed of a plasma cutting machine with a similar laser cutting principle + a high-precision machine tool; generally speaking, the layout of the machine tool is not too large, and it is difficult to expand the layout of the machine tool in the later stage, so you need to carefully consider the size before purchasing .

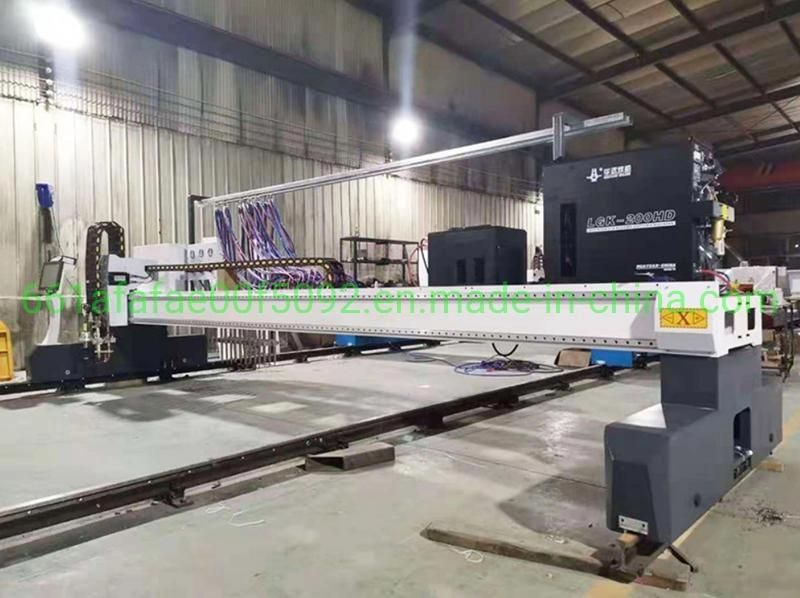

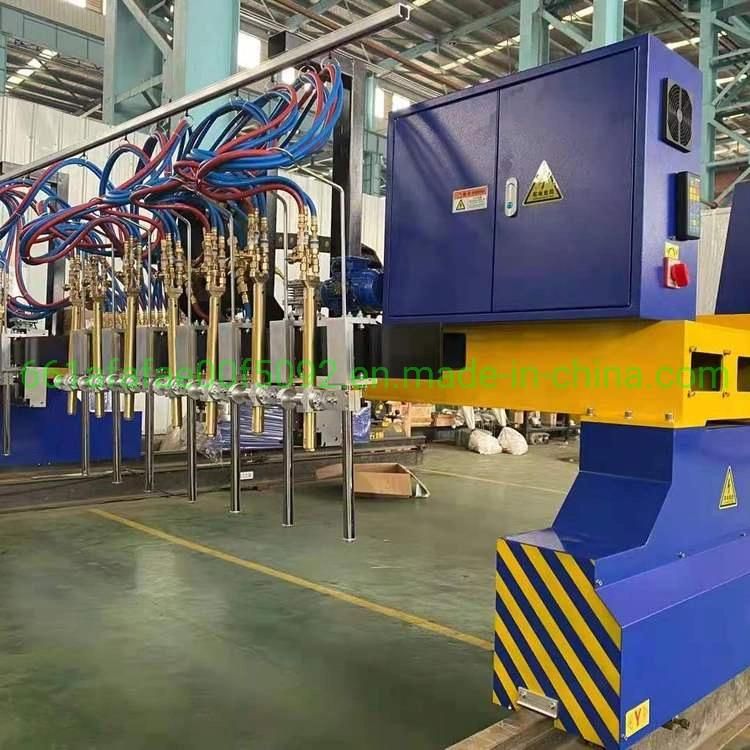

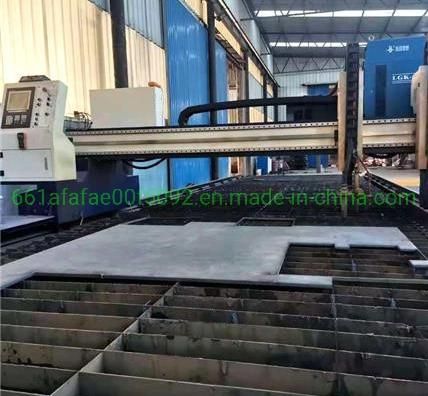

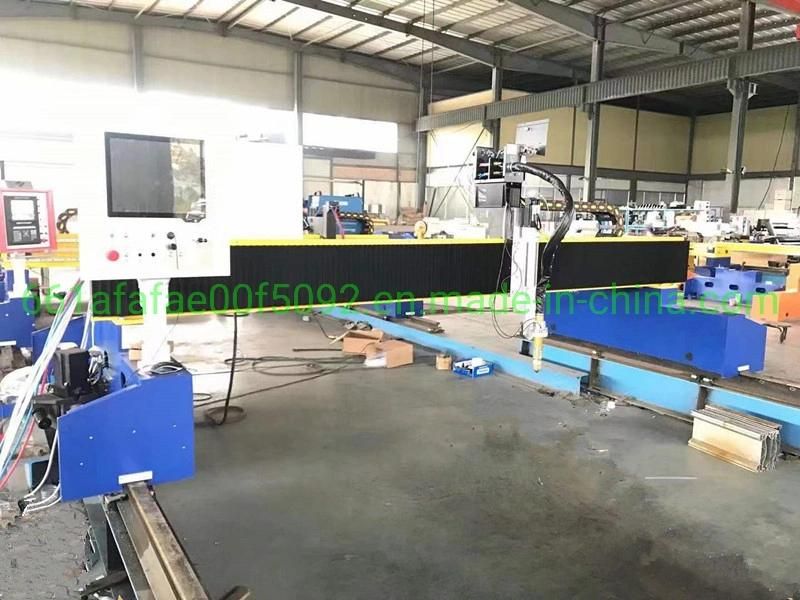

Gantry type CNC plasma cutting machine: It is the mainstream product for cutting large metal workpieces at present. Multiple sets of plasma cutting torches and flame cutting torches can also be configured according to user needs, with extremely high production efficiency.
It has a higher purchase cost, but the cutting quality is very good, and it is currently mainly used for medium and heavy plate metal processing.
Features:
1. The desktop CNC plasma cutting machine adopts a gantry-type frame, which eliminates the torsion moment well.
2. The beam of the CNC cutting machine is a steel structure, which is annealed after welding to keep the machine from deformation for a long time.
3. The cutting torch lifting hanger is used to realize the automatic lifting and lowering of the cutting torch

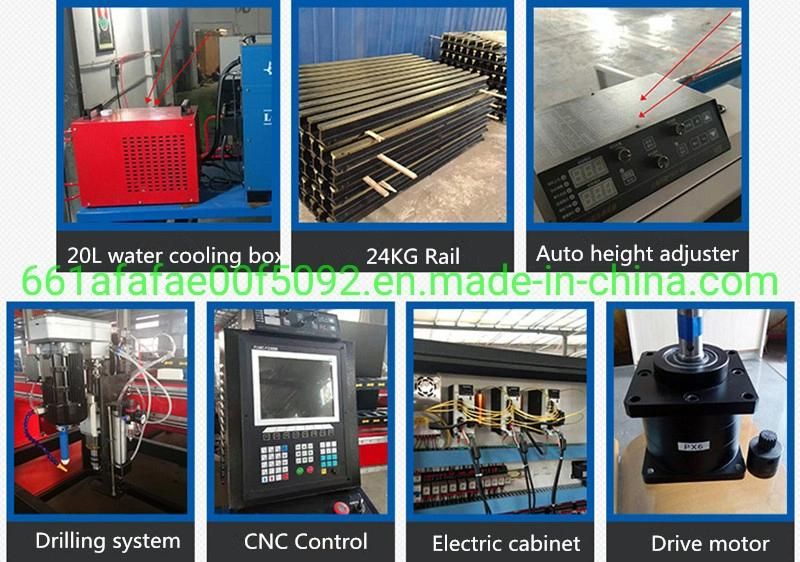

Shipping list
| No. | Name | Details | Unit | Qty |
| 1 | CNC cutting machine host | Bilateral drive, one-time track adjustment molding | set | 1 |
| 2 | CNC system | Shanghai Jiaotong University F2100B | set | 1 |
| 3 | Servo drive | Matsushita | set | 3 |
| 4 | rack | Class 7 accuracy | M | 3 |
| 5 | Engineering towline | High temperature resistance, low temperature resistance, UV protection, long life | set | 2 |
| 6 | Nesting software | startcam | set | 1 |
| 7 | USB stick | 8G | set | 1 |
| 8 | multifunctional toolbox | set | 1 | |
| 9 | Consumables | set | 10 |
Why choose us?
WUXI LEMAR MACHINERY EQUIPMENTS CO.,LTD is a high-tech enterprise specializing in automatic welding equipment and H-beam equipment. It has many years of production experience in the welding industry. , Practical and professional equipment that can meet the user's personalization.
Products are widely used in pressure vessels, petrochemicals, power plants, heavy machinery, ships, steel structures and other industries.

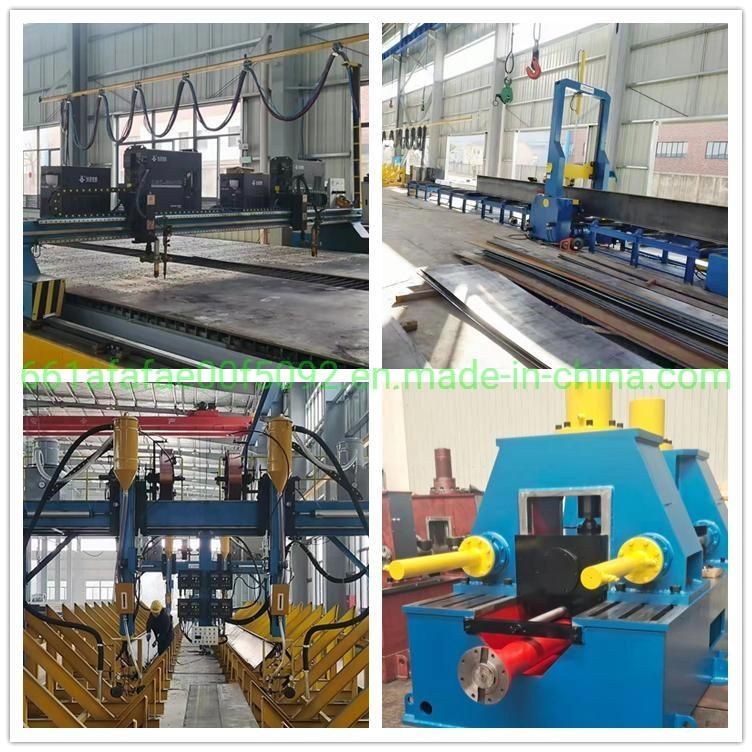

The main products are:
H-beam welding equipment (H-beam assembly machine-steel structure gantry submerged arc welding machine-H-beam T-beam hydraulic straightening machine-H-beam shot blasting machine)
CNC cutting equipment (CNC plasma cutting machine, CNC flame cutting machine, CNC portable cutting machine, CNC desktop cutting machine)
Welding Auxiliary Machines (Welding Manipulator, Welding Roller Frame, Welding Positioner)
