• Model NO.：CTNBHN050
• Transport Package：3-Ply Board Cartons
• Specification：50x50mm-200x200mm
• Trademark：CONIC TOOLS
• Origin：Fujian
• HS Code：84879000
• Production Capacity：100, 000PC

Basic Info.

Model NO. CTNBHN050 Transport Package 3-Ply Board Cartons Specification 50x50mm-200x200mm Trademark CONIC TOOLS Origin Fujian HS Code 84879000 Production Capacity 100, 000PC

Product Description

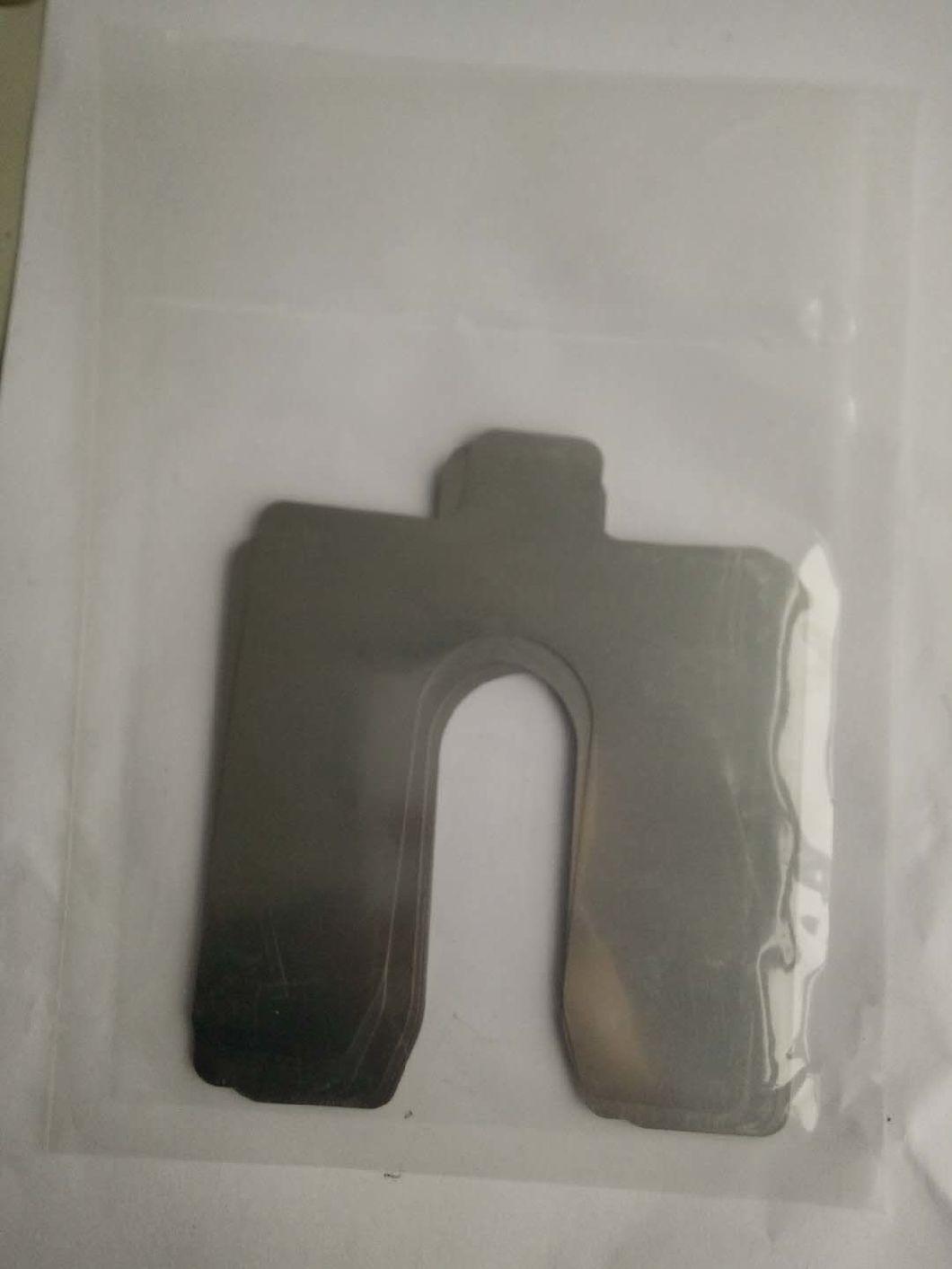

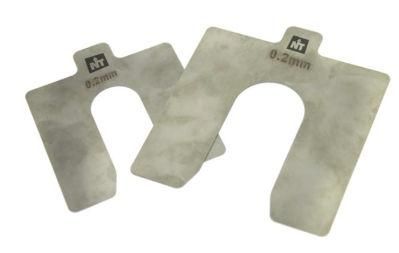

304 Stainless Steel Precut Slotted Shims

Are typically a small section of thin metal slotted in the middle of the shim to fit the hold down bolt. Although hard to improve on a concept as simple as a slotted shim, CONIC precut slotted shim holds some clever features over standard precut slotted shims:
•        The pre-cut slotted shim tab makes it easy to align stacked slotted CONIC - even with one hand. Removal of the slotted precut shim is a breeze, as the concave tab gives the operator something to grip with thumb and forefinger.
•        CONIC precut slotted shim thicknesses are clearly Laser marked in Metric thickness.
•        No burrs or sharp edges, unlike every other shim we have seen in the market place, CONIC precut slotted shims are fully finished off for a smooth silky edge.
•        Made of high quality European and American shimstock.  304 grade Stainless steel.
•       CONIC precut slotted shims have "   Wide Higher slots" which are less prone to damage from "bolt pull".  Allowing deeper insertion under the foot - handy for rectangular feet.

Style

Style A 50x50x0.05x16mm

Style A 50x50x0.1x16mm

Style A 50x50x0.2x16mm

Style A 50x50x0.25x16mm

Style A 50x50x0.4x16mm

Style A 50x50x0.5x16mm

Style A 50x50x0.7x16mm

Style A 50x50x1.0x16mm

Style A 50x50x2.0x16mm

Style A 50x50x3.0x16mm

Style B 75x75x0.05x22mm

Style B 75x75x0.1x22mm

Style B 75x75x0.2x22mm

Style B 75x75x0.25x22mm

Style B 75x75x0.4x22mm

Style B 75x75x0.5x22mm

Style B 75x75x0.7x22mm

Style B 75x75x1.0x22mm

Style B 75x75x3.0x22mm

Style B 75x75x2.0x22mm

Style C 100x100x0.05x32mm

Style C 100x100x0.1x32mm

Style C 100x100x0.2x32mm

Style C 100x100x0.25x32mm

Style C 100x100x0.4x32mm

Style C 100x100x0.5x32mm

Style C 100x100x3.0x32mm

Style C 100x100x0.7x32mm

Style C 100x100x1.0x32mm

Style C 100x100x2.0x32mm

Style D 125x125x0.05x45mm

Style D 125x125x2.0x45mm

Style D 125x125x0.1x45mm

Style D 125x125x1.0x45mm

Style D 125x125x0.2x45mm

Style D 125x125x0.5x45mm

Style D 125x125x0.25x45mm

Style D 125x125x0.4x45mm

Style D 125x125x0.7x45mm

Style F 200x200x0.05x55mm

Style F 200x200x0.1x55mm

Style F 200x200x0.7x55mm

Style F 200x200x0.2x55mm

Style F 200x200x0.5x55mm

Style F 200x200x0.25x55mm

Style F 200x200x0.4x55mm

Style F 200x200x1.0x55mm

Style F 200x200x2.0x55mm
