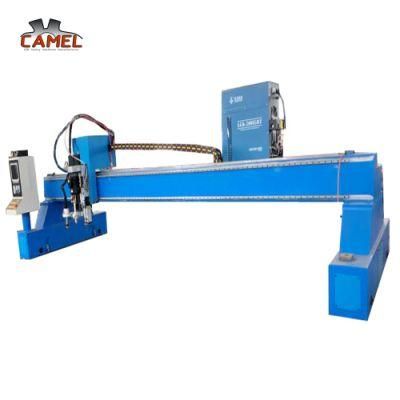

• Model NO.：CA-2060, CA-2560, CA-3060
• Layout：Horizontal
• Cutting Material：Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
• Automatic Grade：Automatic
• Power Source：Plasma
• Cutting Mode：Plasma Cutting
• Model：Ca-2060,2560,3060
• Cross Beam Width：2500mm
• Longitudinal Rail Length：8000mm
• Effective Cutting Width：2000mm
• Drive Mode：Dual-Side
• Drive Method：Rack and Pinion Drive for X and Y Axes
• Flame Cutting Thickness：6-200mm
• Plasma Cutting Thickness：0.3-25mm
• Power Source Supply：60A,100A,120A,200A
• Traveling Speed：20000mm,Min
• Cutting Speed：0-12000mm,Min
• Positioning Accuracy：0.01mm
• Repeatability：0.05mm
• Power Capacity：25-50kw According to Different Power Source
• Cutting Gas：Acetylene,Propane,Oxygen
• Transport Package：Plywood Case
• Specification：2500KG
• Trademark：CAMEL CNC
• Origin：China
• HS Code：84564010
• Production Capacity：500 Sets,Month
• Package size per unit product：3960.00cm * 1650.00cm * 1700.00cm
• Gross weight per unit product：2500.000kg

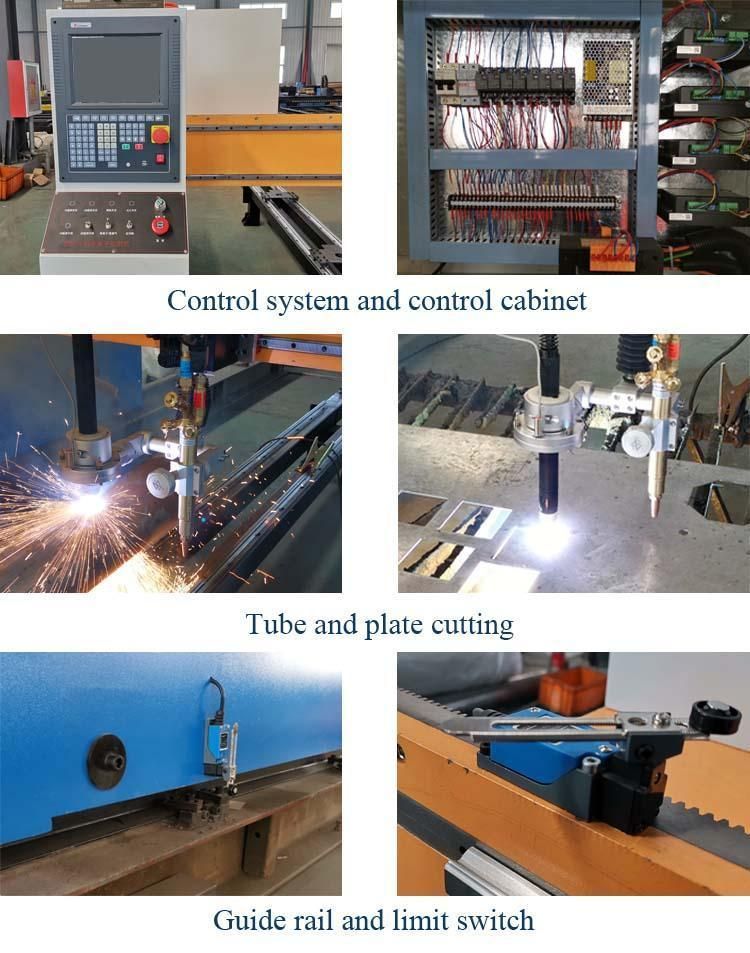

Detailed Photos

Packaging & Shipping
