• Model NO.：JD-100
• Power Source：Electric
• Feature：Automation
• Certification：CCC, ISO9001, CE
• Warranty：24 Months
• Customized：Customized
• Advantage：Simple Structure
• Condition：New
• Name：Coil Nails Making Machine
• Video Factory Inspection：Provided
• Mechanical Test Report：Provided
• Raw Materials：Mild Steel
• Color：Customer Requirement
• Transport Package：Wooden Case or Suitable for Sea Shipping
• Specification：To make coil nails
• Trademark：Hongshuo
• Origin：China
• HS Code：8463300000
• Production Capacity：300 Sets Per Month

Basic Info.

Model NO. JD-100 Power Source Electric Feature Automation Certification CCC, ISO9001, CE Warranty 24 Months Customized Customized Advantage Simple Structure Condition New Name Coil Nails Making Machine Video Factory Inspection Provided Mechanical Test Report Provided Raw Materials Mild Steel Color Customer Requirement Transport Package Wooden Case or Suitable for Sea Shipping Specification To make coil nails Trademark Hongshuo Origin China HS Code 8463300000 Production Capacity 300 Sets Per Month

Product Description

High Speed Screw Coil Nail Making Machine Automatic Coil Nail Collator Machine

I.GS-100 High Speed Thread Rolling Machine
1.Description:
This machine is equipped with professional molds, can produce various kinds of shaped nails. It is mainly used to produce screw nail, spiral nail and other new type of nails.

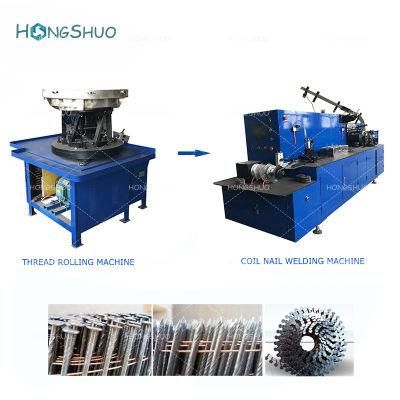

2.Technical Specification & Machine Photos

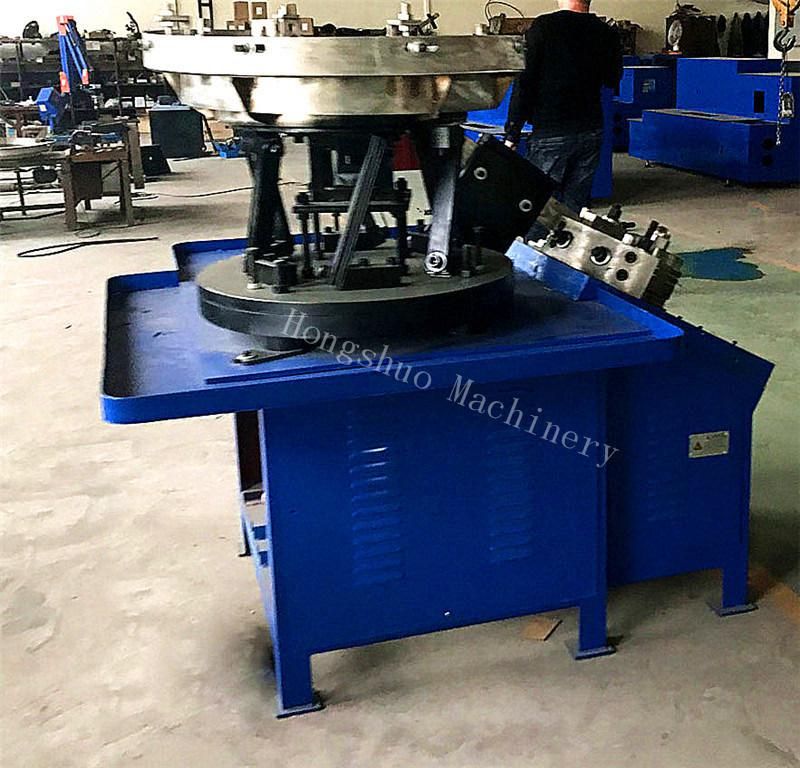

2.1 Thread rolling machine
This machine is equipped with professional molds, can produce various kinds of shaped nails. It is mainly used to produce screw nail, spiral nail and other new type of nails.
Technical Specification:

Model	GS-100 high speed thread rolling machine
Diameter range	1.8-4.2mm
Length range	25-100mm
Capacity	600-1000pcs/min
Weight	1500kg
L*W*H	1420*1400*1450mm
Power	7.5kw

2.2 Coil nail making machines

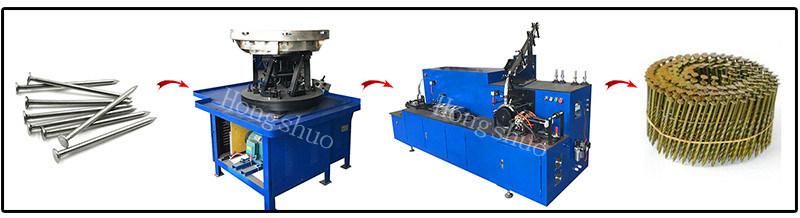

The coil nail welding machine is automatic welding equipment. Put the nails to vibrating disk, the nails will get in welding wheel by feeding tracks in order, weld by two coppered wire, and then through oiled to anti-rusting automatically, drying and counting device, roll it into a dish, cutting off according to the setting quantity of per dish, finally fixed the dish by rubber ring and packing.

Technical Specification:

No.	Model	Coil nail welding machine
1	Wire Dia.	Below 4.5mm
2	Nail Length	Below 130mm
3	vibration disk power	3kw, 380v
4	Rated Power	15kw
5	Coil nail specification	Angle:15°/16° Quantity per roll:120~1200pcs/roll Welding wire for coil nails: 0.6mm,0.7mm,0.8mm
6	Working area	2700*850
7	Production speed	1000-2800pcs/minute
8	Dimension	2900*1500*1800mm
9	Weight	1500kgs

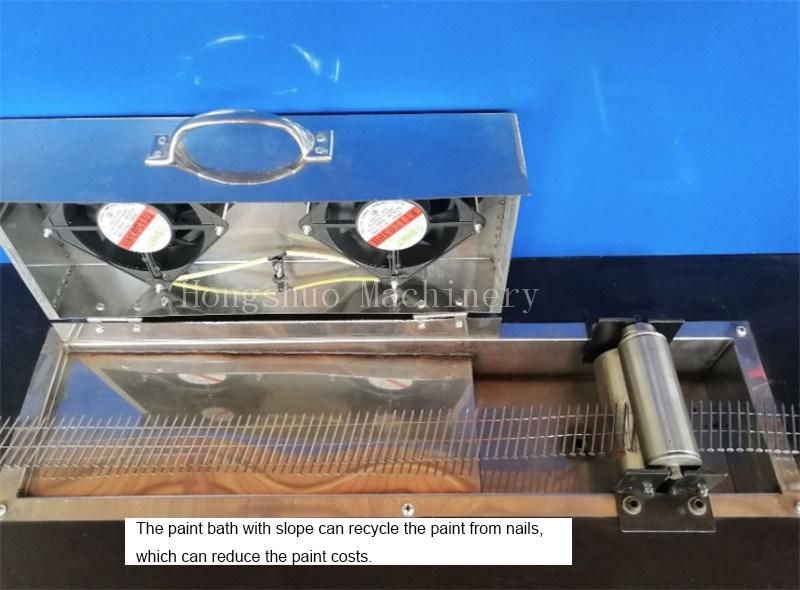

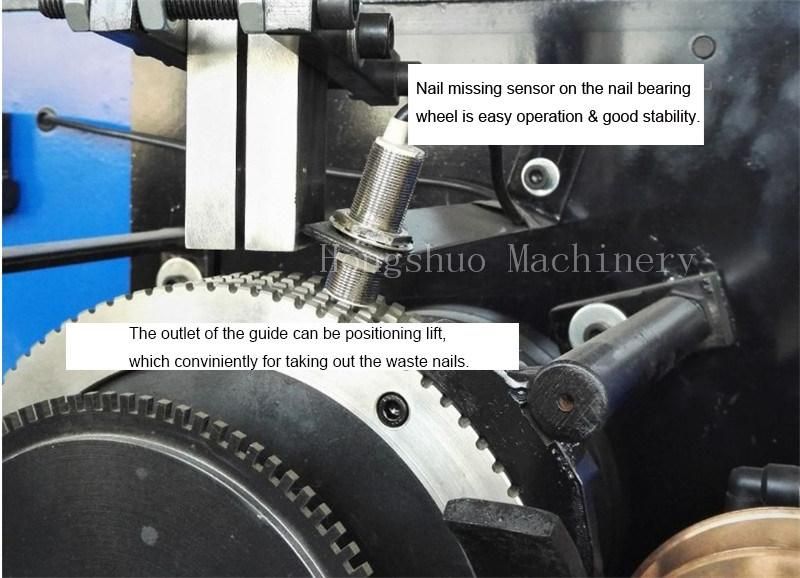

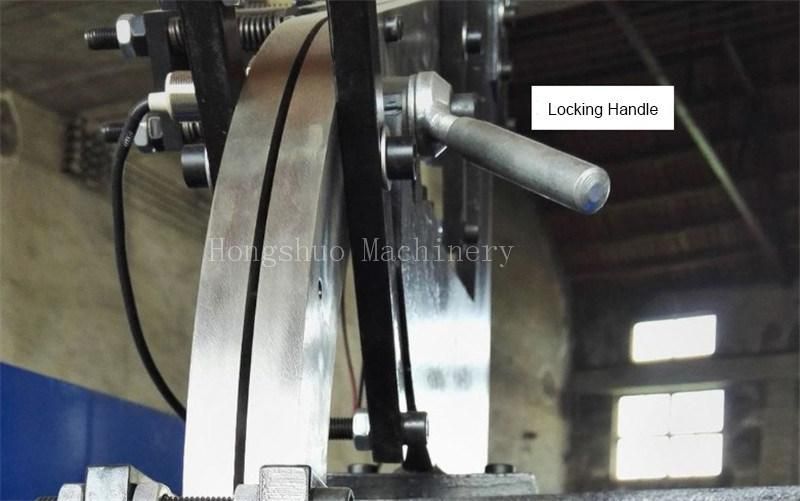

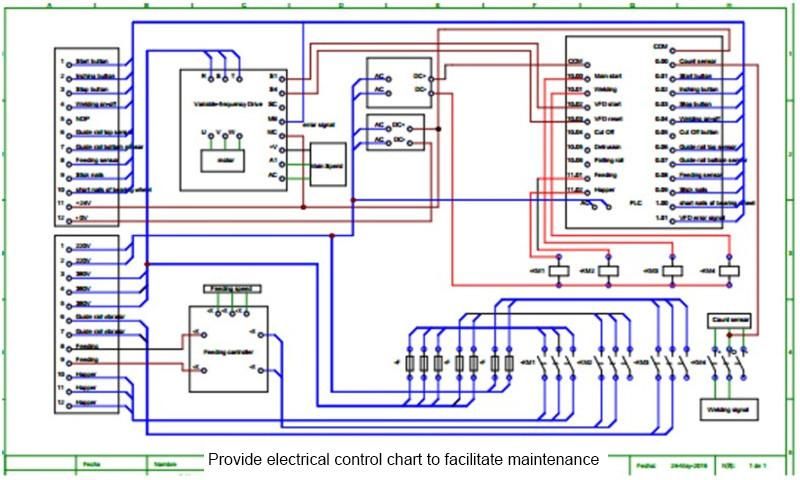

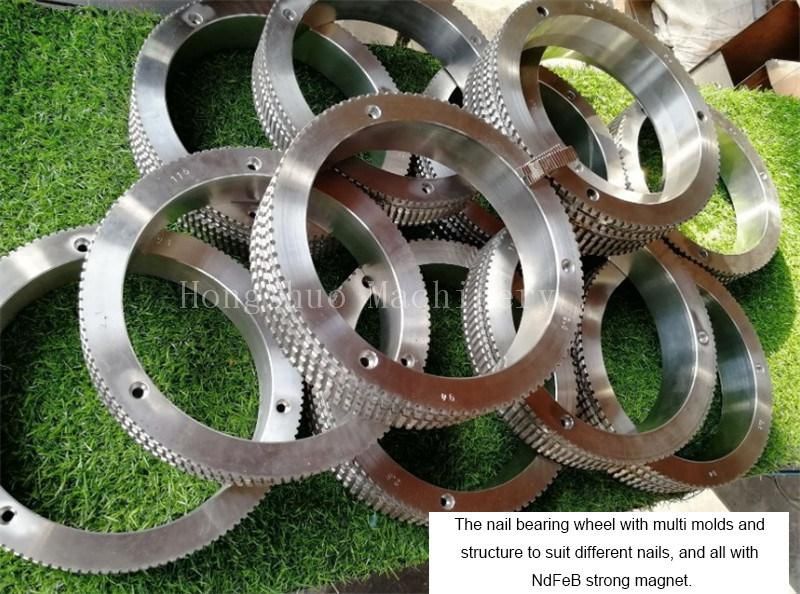

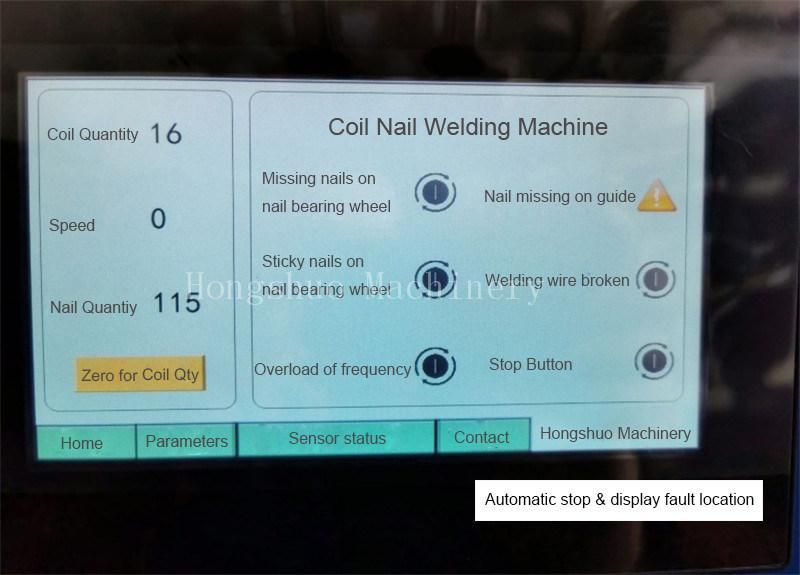

3.Detail Photos

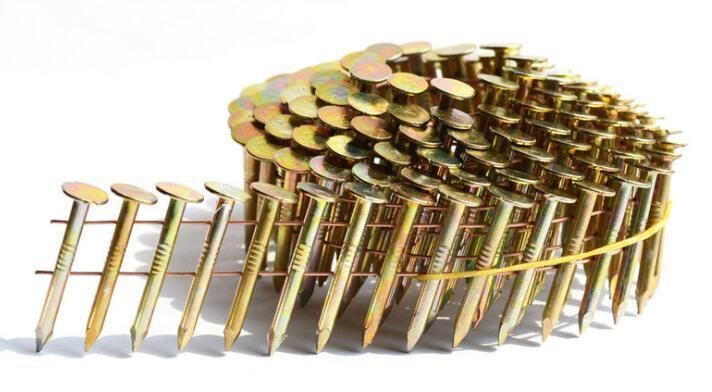

4. End Products



5. FAQ
--1--Q: Are you trading company or manufacturer ?
A: We are manufacturer since 1990.
--2--Q: Can i use one machine to make different size nails?
A: Yes, for different size, it just need to change the nail mould.
--3--Q: What's the material waste during the production for nails?
A: The wastage is less than 1%, one ton wire can make about 990kg nails.
--4--Q: What's the guarantee of the machine?
A: We will provide 2 years warranty. 100% responsible within 24hrs timely response.
--5--Q: How long is your delivery time?
A: Generally 10 days if in stock. Or 15days if out of stock.
--6--Q: How to pack the machines?
A: For the packaging, usually use the export standard wooden box or whole container.
