• Model NO.：PIC-CNC4500
• Machine Bed Structure：Welding,Casting
• Weight：5000~8000kg
• Tool Change Time：2 Sec
• Machine Size：4600-9000*2500mm
• Transport Package：40hq
• Specification：4600-9000*2500mm
• Trademark：Pratic
• Origin：China(Mainland)
• HS Code：8457101000
• Production Capacity：500sets ,Year

Basic Info.

Model NO. PIC-CNC4500 Machine Bed Structure Welding/Casting Weight 5000~8000kg Tool Change Time 2 Sec Machine Size 4600-9000*2500mm Transport Package 40hq Specification 4600-9000*2500mm Trademark Pratic Origin China(Mainland) HS Code 8457101000 Production Capacity 500sets /Year

Product Description

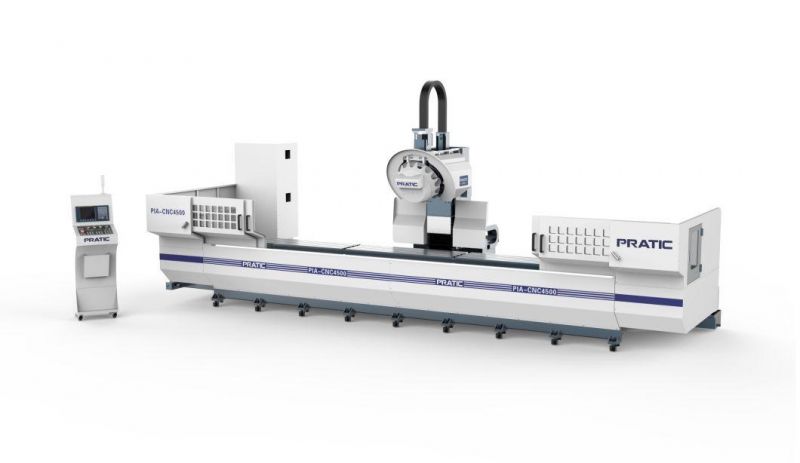

PIC-CNC4500

Description
This CNC machining center with the functions of milling, drilling, tapping, routing, chamfering...
Using the international CNC controller system, for machining for various length of steel frame, aluminum frame, copper frame and etc;
Adopt a high speed and high-precision design mode, with high processing efficiency and high-accuracy;
Equipped with a special chip collection device, widely used in electronic appliance, customized furniture and other aluminum frame processing


Technical Data

ITEM	SPECIFICATION
X/Y/Z Axis Travel	4500 / 450 /400 mm
Spindle Taper	BT40
Spindle Speed	12000 rpm (Mechanical Spindle )
Tool Magazine	16pcs Arm Type
Tool Change Time	2 sec
X/Y/Z Axis Moving Speed	60 /28 /28 m/min or 60 /40 /40 m/min
Position Precision of X/Y/Z Axis	0.05 /0.02 /0.02 mm
Repeating Position Precision of X Axis	±0.01/500mm
Repeating Position Precision of Y/Z Axis	±0.01/300mm
Power of Spindle Driven Motor	5.5 kW
Lubricating System	Automatic Lubricating
Cooling System	Water Cooling
Operation System	SIEMENS / FANUC

* Customized Lengths or Configuration Are Available

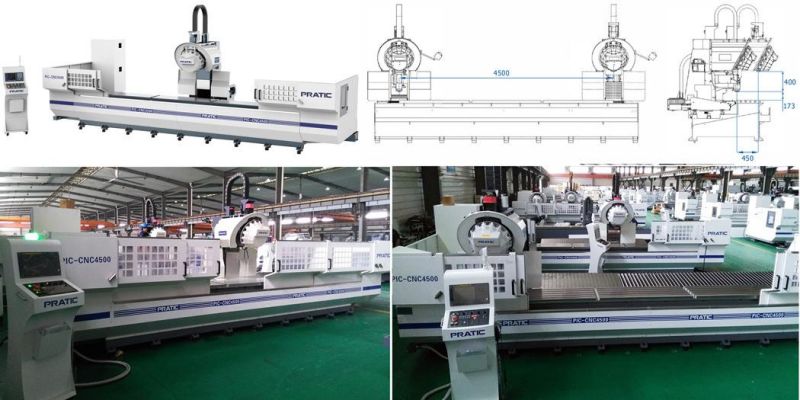

Product Detailed Images & Pictures

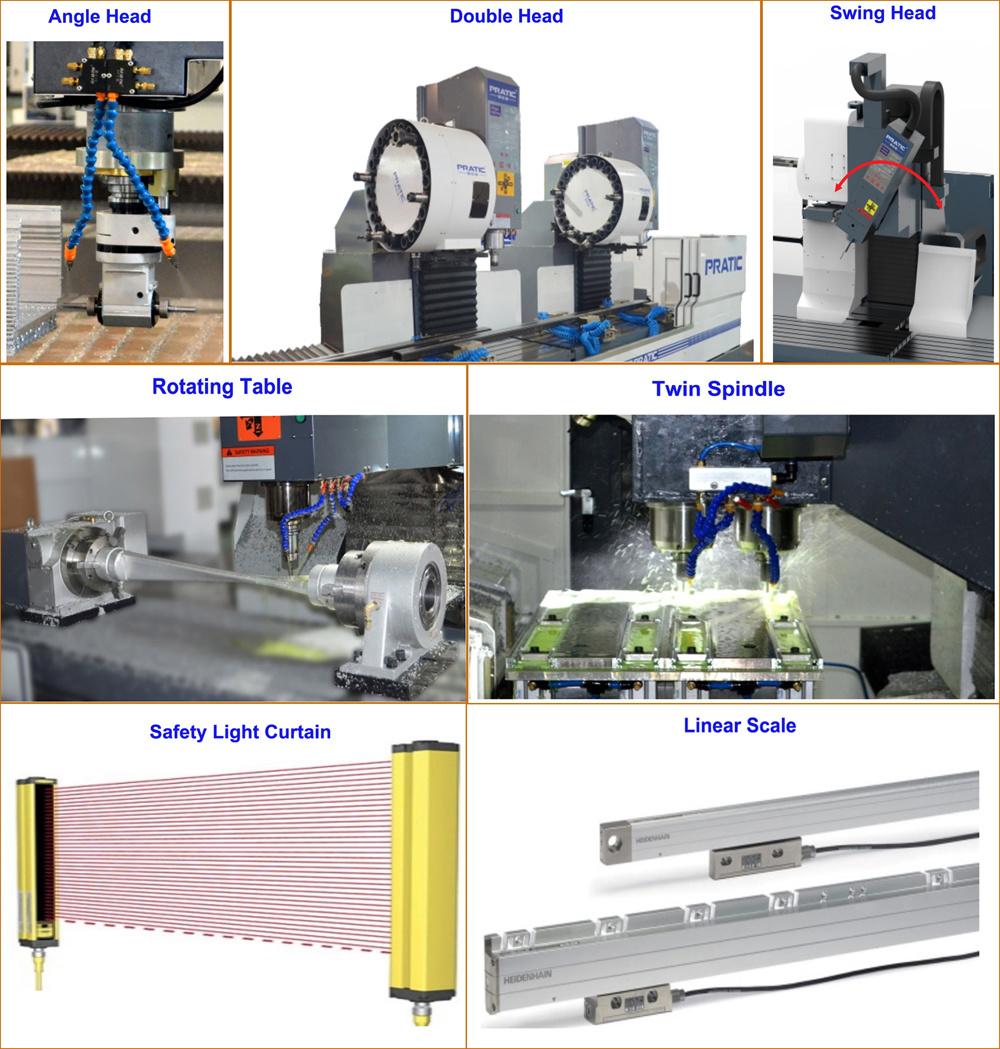

Optional Configuration

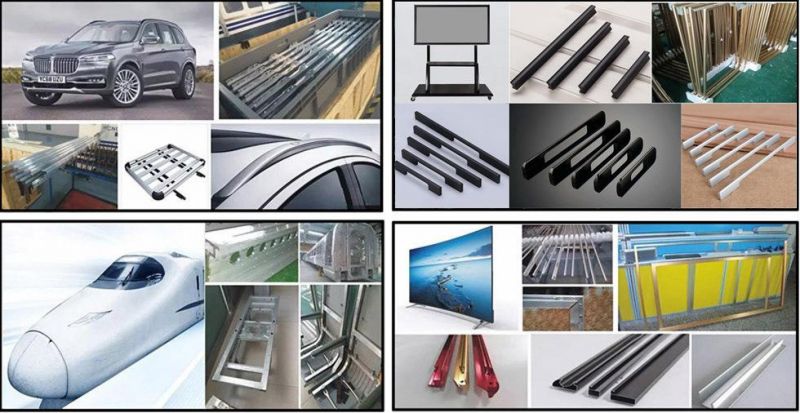

Applications
1) For making auto parts: such as the luggage rack, running board, sunroof rail guide, wheel hub, chassis, EV battery tray and so on.
2) For making rail-transit equipment: such as the train body, seats in the train, aluminum components and accessories in the train, steel parts of the rail
3) For making aluminum window frame, door frame, curtain wall frame, handles, marquee & tent frame, and so on
4) For making steel mold, linear module, machinery parts and so on



About PRATIC
PRATIC CNC Science & Technology Co., Ltd. is a reputable manufacturer from China that specializes in CNC machining center and automatic machinery. Our products cover a wide range of CNC machining centers for an effective metal machining. Diverse materials from aluminum,steel, composites to plastics can be machined precisely, productively and economically on the milling machines from PRATIC.



Company Strength

1) R&D Team & International Standards
PRATIC owns a design & research team of more than 30 people. PRATIC continuously challenges the technology difficulties, break the limitation of the industry, and carry out deep cooperation with the companies from Germany, Japan, South Korea and Singapore.
PRATIC operates according to a strict quality system and PRATIC has got the international ISO9001 qualification, and PRATIC machining centers are produced by the international standards, and all the moldes of PRATIC machining centers have got CE certificates.


2) Lean Management & After-sale Service
PRATIC carries out 5s management, visible management and demand-oriented management to ensure the effectiveness and efficiency in production and daily operation.
PRATIC offers Free Installing, Free Training, Timely Delivery and Reassuring After-sale Service. Your questions will be answered and your problem will be solved in quickest time! In some countries we have local agents who will offer you the best local after-sale service and maintenance!

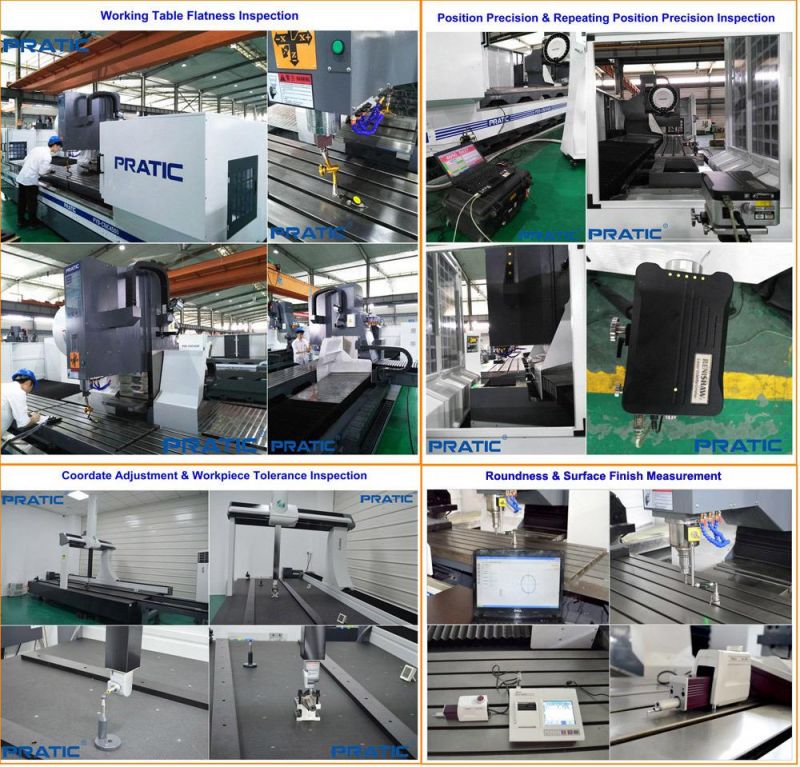

3) Quality Assurance: PRATIC enforces the strictest inspections and tests to its each machining center as well as components & workpieces.
Inspections & Tests: Flatness Inspection, Parallelism Inspection, Position Precision Inspection, Repeating Position Precision Inspection, Three-Coordinate Inspection, Long-Time Run Test...
All the inspections and tests are carried out to ensure each machining center is in 100% perfect condition when delivered to customers!



FAQ

Q1: I knew nothing about this machine, what kind of machine i should choose?
     Very easy to choose. Just tell us what you want to do by using CNC machining center, then let us give you perfect solutions and suggestions.
Q2: When I got this machine, but I don't know how to use it. What should I do?
     We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.
Q3: If some problems happen to this machine during warranty period, what should I do?
    We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
Q4: Before sending me an inquiry on our machine, it is better for you to provide me the following information
1)Your metal workpiece size. Because in our factory, we have different models according to working area.
2)Your workpiece materials.
Aluminum/Steel/Iron/Titanium Alloy?
3) You also can send us the drawing of your workpiece, so that we can have a moe careful check and give your more accurate suggestions.


Participation in International Exhibitions




PRATIC Agents Wanted

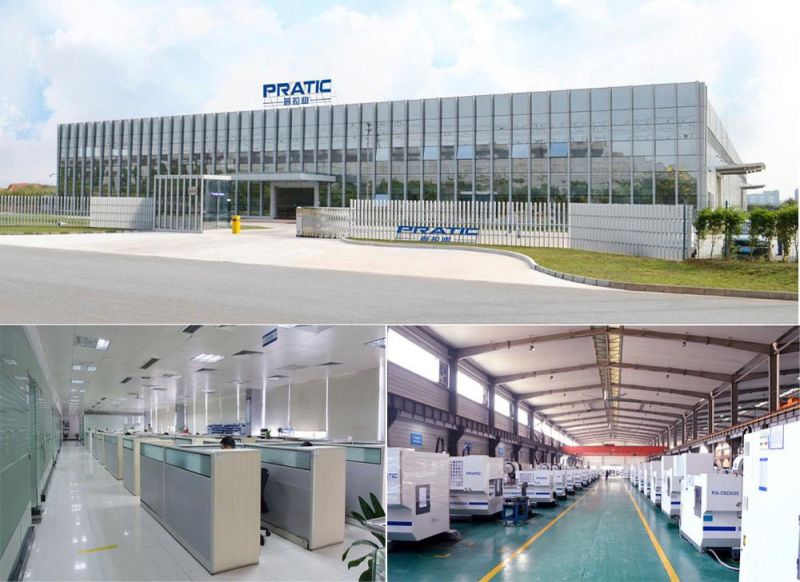

Factory Online 360° Views
