• Model NO.：COLO
• Oven Internal Size：W1600*H1800 *D1400
• Oven Power Supply：Electric,12kw
• Warranty：12month
• Customize：Size for Oven and Booth Could Be Ordered
• Transport Package：Carton or Wooden Box
• Specification：Manual Powder Coating Packages
• Trademark：COLO
• Origin：China
• Production Capacity：1000,Month

Basic Info.

Model NO. COLO Oven Internal Size W1600*H1800 *D1400 Oven Power Supply Electric/12kw Warranty 12month Customize Size for Oven and Booth Could Be Ordered Transport Package Carton or Wooden Box Specification Manual Powder Coating Packages Trademark COLO Origin China Production Capacity 1000/Month

Product Description

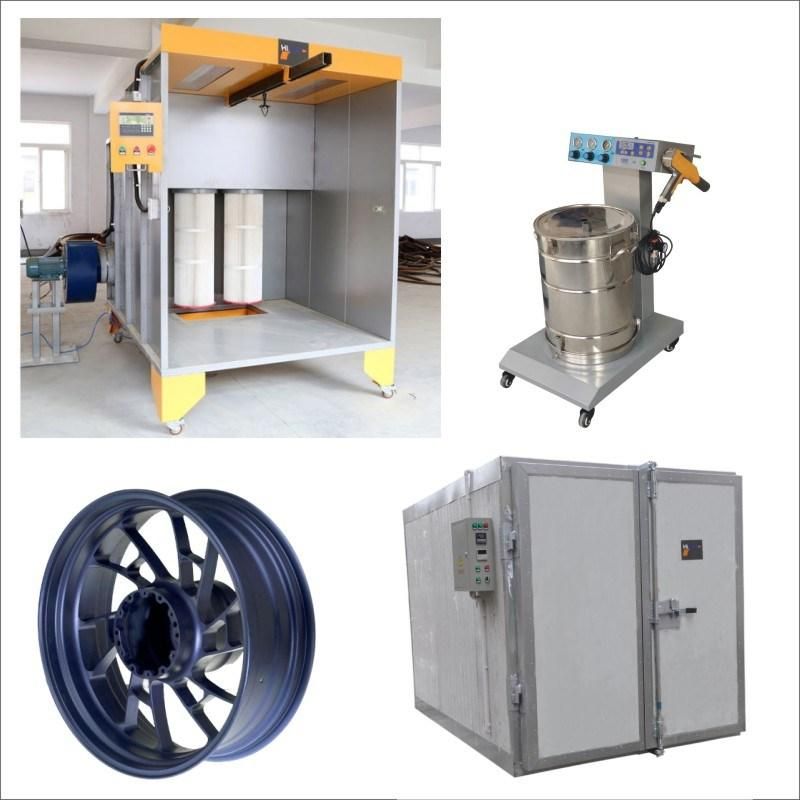

Powder Coating Application Equipment
- Electrostatic powder spray machine  (660 model)
- Powder coating booth   (1517 model)
- Powder curing oven  (1864 model)

Brief Introduction
1. This group is suitable for manual powder coating.
2. Pefectly for small or medium metal products ,simple and easy to do powder coating,esay to clean,
   moveable oven and booth,high efficiency for electric oven ,small consumption.
3.  Ideal for spraying coners or recesses.

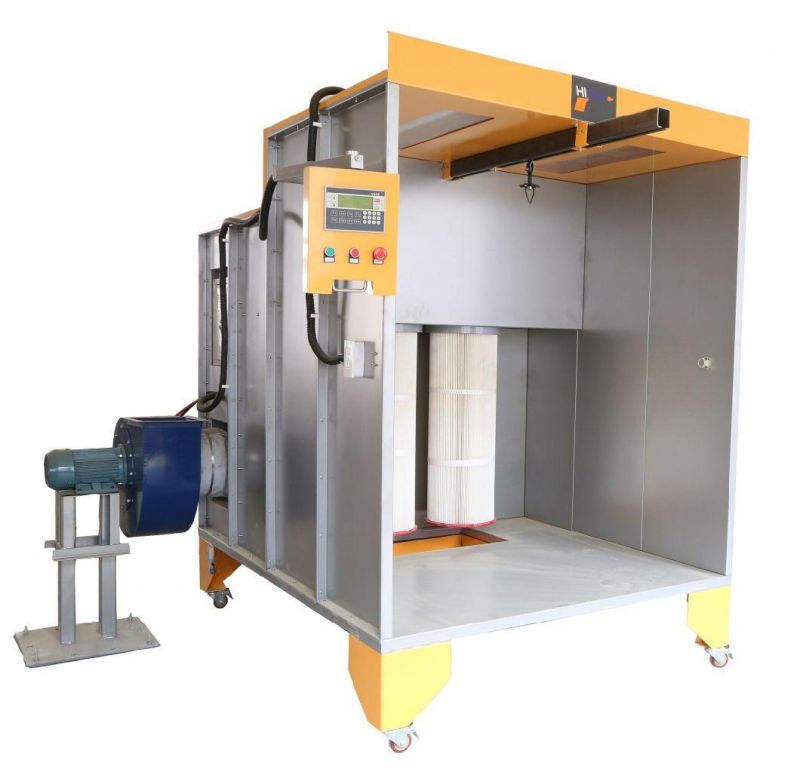

Powder Coating Booth
This new powder coating booth with PLC controller,could control the powder coating booth more accurate.we could provide you  the powder coating  booth that will fit your needs. the powder coating spray booth fans draw air through filters . as the cartridge filters load,air flow decreases and the negative pressure rises within the air handler. a timer activates a system of air purging valves that clear the cartridge filters of the accumulated powder to ensure max filter life.
Features:
-Durable, long-life powder-coated steel structure with high-quality galvanized canopy and floor
-Low-profile booth base eliminates operator platforms
-Requires only quick, easy connect electrical and pnematics to start production
-Smooth inner surface easy clean

Inner size:W1500*D1000*H1700mm
Overall dimensions:W1640*D2070*H2180mm
Filters count:2 (325*900)
Nominal power:2.2kw

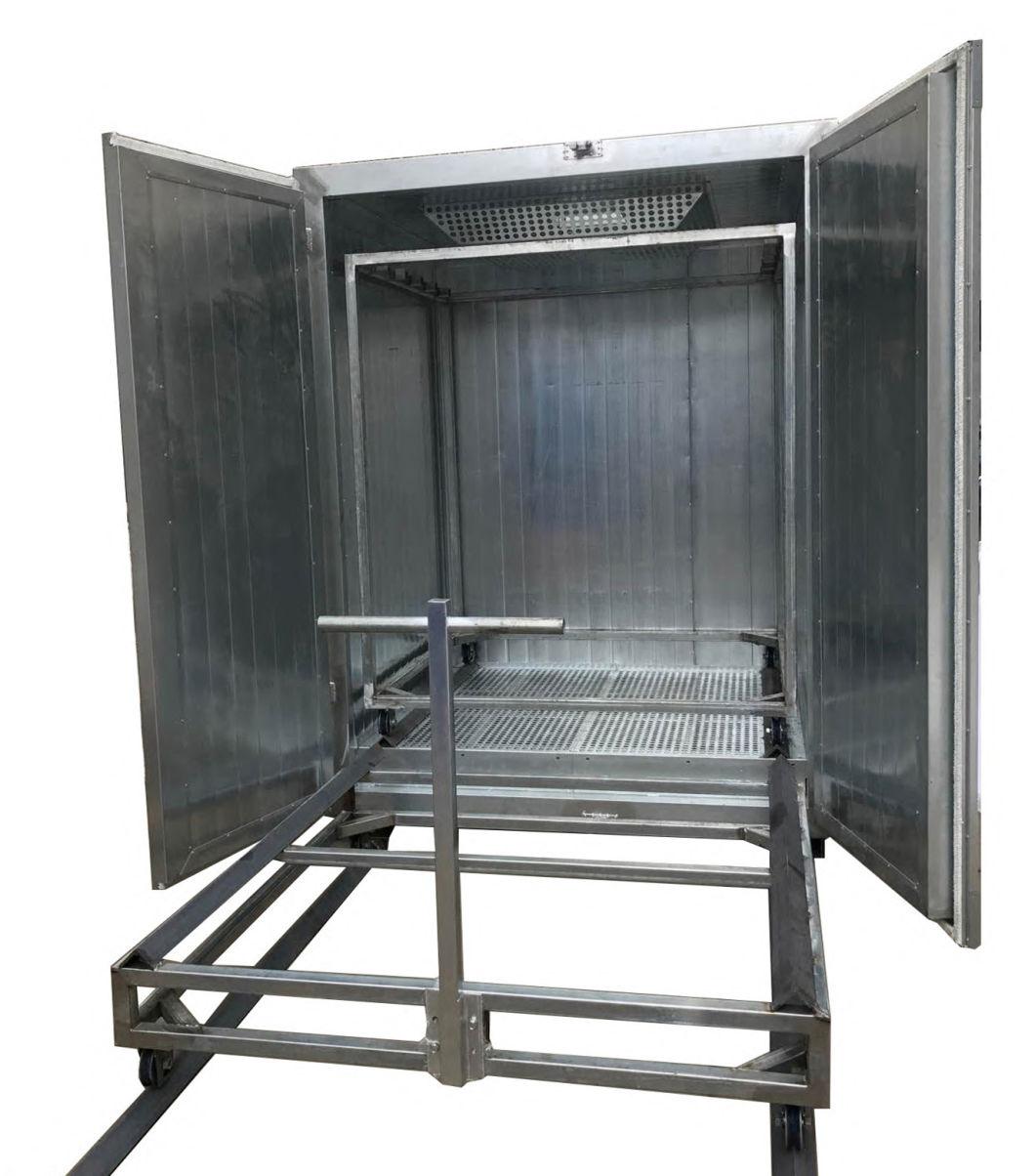

Powder Curing Oven
This Powder coating oven used for curing the workpiece which has been spraying during the powder coating. When a thermoset powder is exposed to elevated temperature, it begins to melt, flows out, and then chemically reacts to form a higher molecular weight polymer in the surface of the workpiece.
Features:
-COLO powder coating ovens are designed to safely and efficiently cure previously applied powder coating media.
- Our energy-efficient designs save fuel and get to temperature quickly.
-Standard and custom sizes range from small Lab units to large heavy equipment ovens and conveyorized curing systems.
- All our batch powder coating ovens feature premium 100mm thick insulated wall and roof panels.

Inner size:1600width x 1800 height x 1400 depth
Overall size:1900 width  x 2200 height x 1700 depth
Power supply:electric/12kw
Warn-up time:15~30 min(180 c)
Temperature max:250c

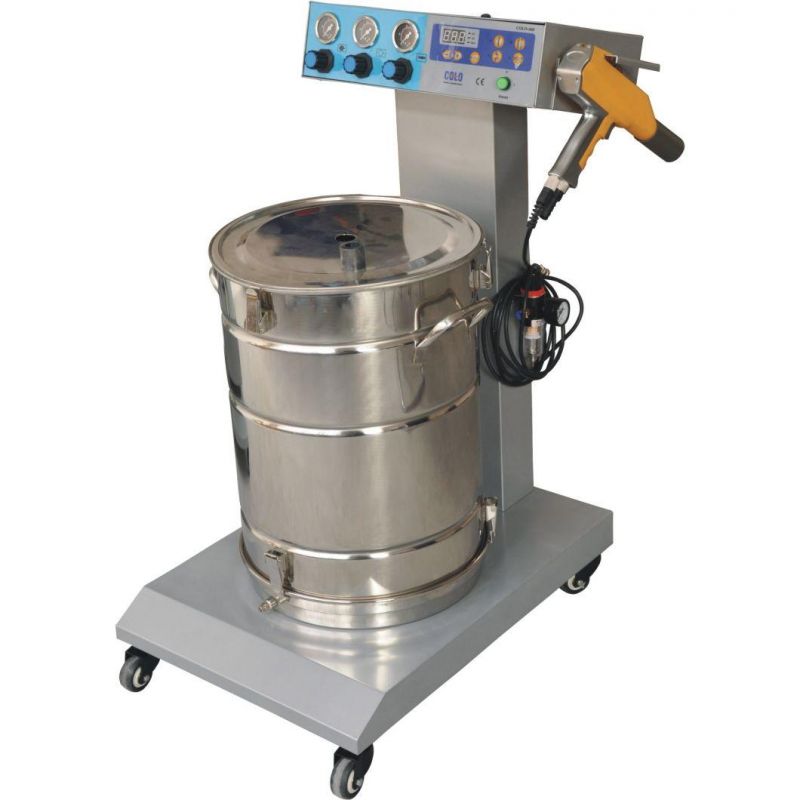

COLO-660 Spray Machine
Colo-660 is a new and innovative machine which has a Pulse design,a coating option that is said to penetrate tough faraday cage areas,reducing time and material consumption.
These model even good same in american ,european,or Asia etc.Our users give higly feedback for the 3 preset key mode,easy and quickly coating,especially like the pulse mode,very good to help overcome faraday cage effect.

 Packing & Delivery
-Packing: Carton and plastic bag
-Delivery: 20 work days after get the payment
If you are interested in our products,please send us enquiry.
