6-80mm H Beam Flange Hydraulic Straightening Machine Steel Structure Straightening Machine
Wuxi Zhouxiang Complete Set of Welding Equipment Co., Ltd.- Type：Balance Roller Straightening Machine
- Usage：H Beam Flange
- Voltage：220V
- Automatic Grade：Semiautomatic
- Principle：Small Deformation
- Certification：ISO9001, CE
Base Info
- Model NO.：YJZ
- Warranty：12 Months
- Customized：Customized
- Condition：New
- Flange Thickness：6-80mm
- Flange Width：200-1000mm
- Min Web Height：350mm
- Material：Q345
- Speed：6.56m,Min
- Transport Package：Wooden Case, Steel Frame
- Trademark：Zhouxiang
- Origin：China
- HS Code：8462291000
- Production Capacity：15sets,Month
Description

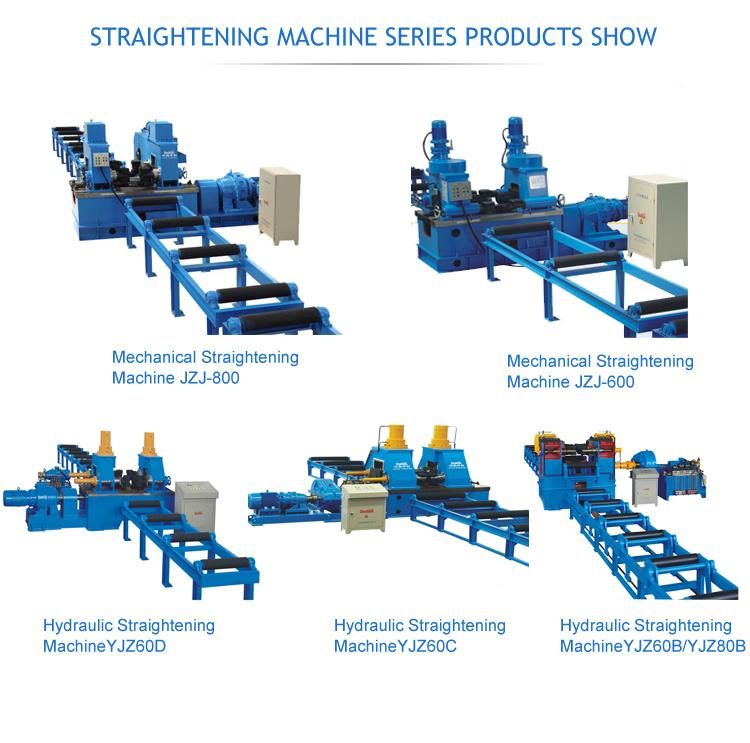

Above are our standard model, it can be designed and manufactured according to customer's request.

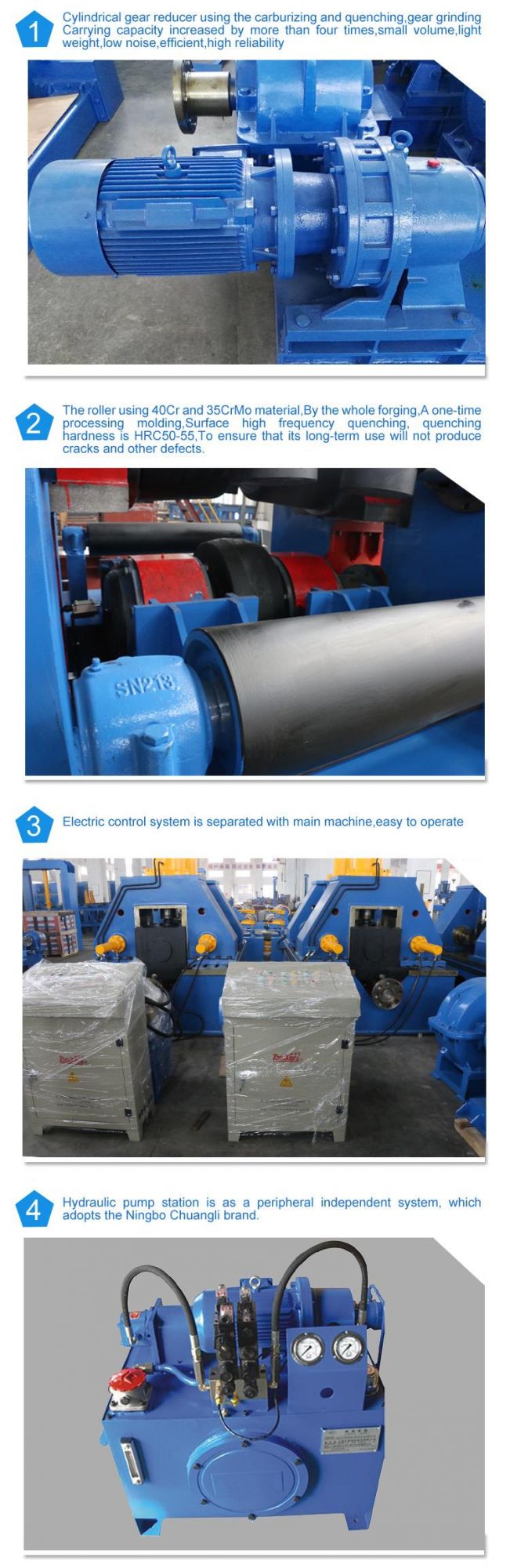

1.The mainframe is integral frame structure with stress relief, it is processed and shaped in one step by CNC floor type boring and milling machine, with the advantages of compact structure, strong strength and enough rigidity.
2.The main cylinder adopts high quality sealing ring with good sealing performance, which can ensure long service time. There's fine filter equipped on the pump station which can ensure electromagnetic valve is more reliable for long-term use
3.There's dial for all the adjusting motion which can ensure convenience and accuracy.
4.The straightening roller adopts shaft box structure, so it have big loading capacity. There have hydraulic cylinder in shaft box, it can adjust the distance of two upper straightening rollers, which is stable and reliable.

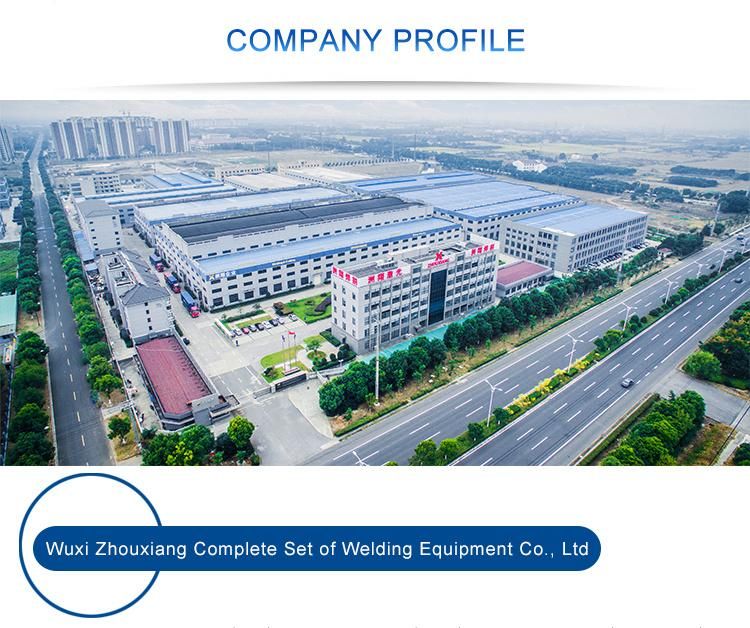

Wuxi Zhouxiang Complete Set of Welding Equipment Co.,Ltd,founded in 1991,located in Wuxi city, about 100km from Shanghai.We have fixed assets of 150 million yuan,cover an area of 160,000 m2, staff 500 people,including more than 100 engineering and technical personnel.Our company was certified to ISO9001 Quality System Certification firstly in the industry and many products were certified to China Compulsory Certification(CCC).Our products sell well at home and abroad,including Europe,America,Southeast Asia,Middle East and other countries.

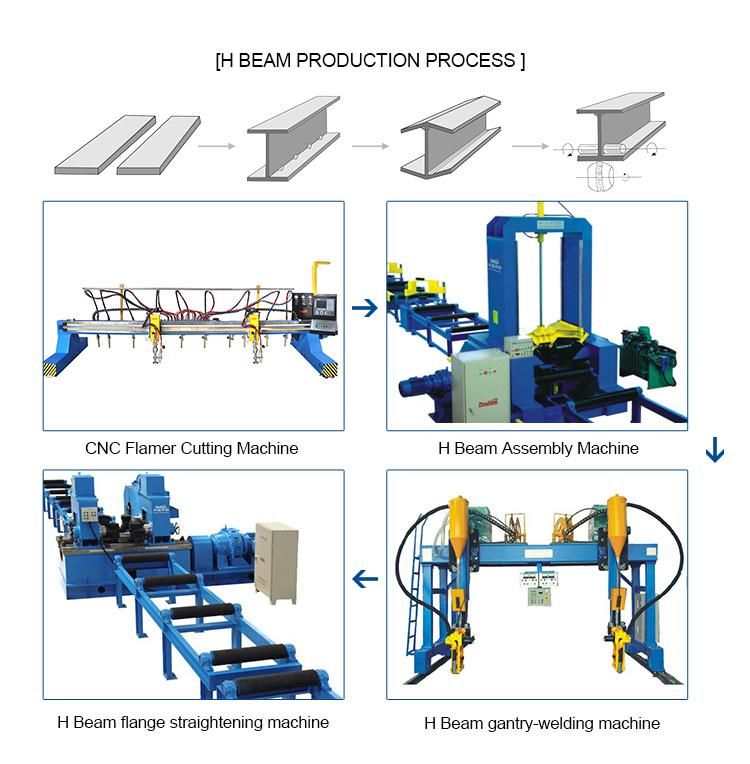

Zhouxiang products mainly include CNC flame/plasma cutting machine,H beam light duty production line,H beam heavy duty production line,Horizontal H beam production line,H beam assembly welding straightening integral machine,Corrugated web H beam production line,Box beam production line, Welding manipulator, Rotator, Positioner,Edge milling machine,End face milling machine,Shot blasting machine series,kinds of plate rolling machine,Profile bending machine and welders,fiber laser cutting machine,CO2 laser cutting machine,laser tube cutting machine,Fiber laser cutting robot and Fiber laser welding robot etc.
We have high sincerity to do business with customers all over the world and establish good friendships.
