Machine Instruction

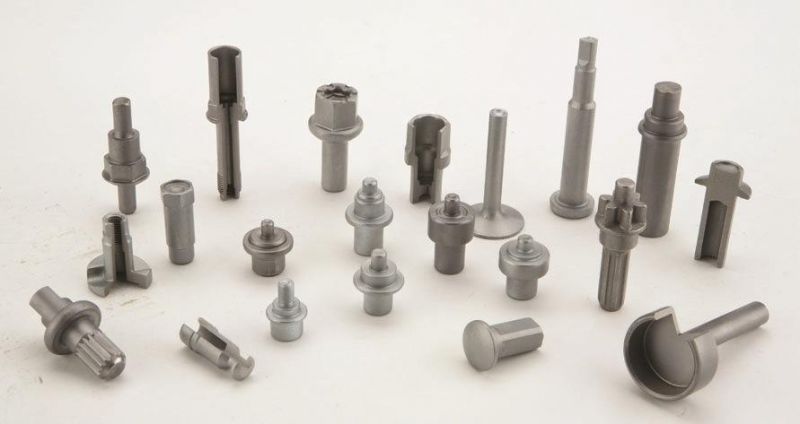

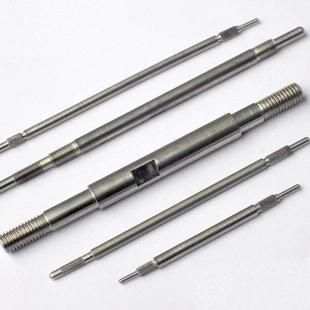

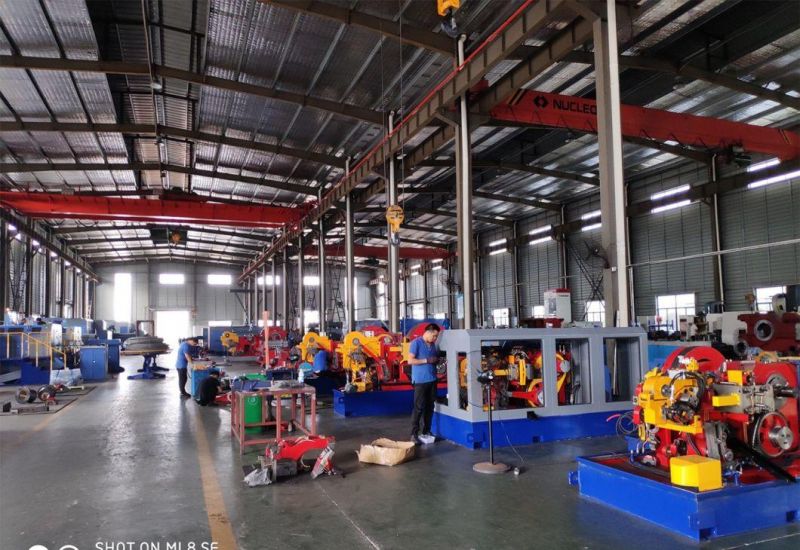

Automatic multi-station Cold Bolt Former is a specialized machine tool with high efficiency and automation among forging machinery. Cold forging technique and automatic cold forging formers are used as an important means for producing different kinds of bolts, screws, rivets and nuts in the field of fastener industry. Because of the advantage of the cold forging equipment itself and the superiority of cold forging technique, the formers also are widely used in different national economic territories for producing fasteners and abnormal non-standard parts such as aviation steamer, machinery, rail traffic, vehicle, motorcycle, bicycle, sewing machine, construction, furniture, light industry and daily necessities, etc.

Application Scope



Salient Features

1. Being equipped with air clutch with the advantage of low actuating current for operating the former in 3 modes such as inching, Single Stroke and Continuous Running, the main RAM can stop at its rear position automatically, when the former is operated under Single Stroke and Continuous Running modes for guaranteeing the safety of die and leaving biggest space for operation and adjustment.

2. Swing type pneumatic gripping mechanism, the gripping capacity is adjustable and clamping power is stable even at high working speed. If the first gripper meets the wire in short size, it can open the jaw for release automatically, however the machine will stop and give the alarm simultaneously.

3. Pressing and feeding wire is actuated by pawl via the control of air cylinder, the pawl is fixed an auto-raise device, when the pawl goes back, it can raise, so the friction and noise can be eliminated, further more this device can prevent the ratchet running in reverse direction. However, there are two overdrive clutches fixed in the feeding course, it can guarantee the feed being beyond retreat.

4. There is imported converter available in electrical system, so it is easy to run the former with stepless variable drive PLC also is used for automatically inspecting the working mode of the former with the functions of fault alarm and fault display.

5. Touch screen and man-machine dialogue numerical control system are optional for meeting customer's requirement, they are used for setting the length of thread pipe of rear knock out, the length of barrier and the feeding length, it is convenient for quick die change. This system has a memory capacity of 99 mnemonic modules for meeting the requirement of quick die change.

Specification


Model	Unit	DBF-85S	DBF-105S	DBF-135L	DBF-165S	DBF-205L	DBF-255L	DBF-305L
Forging Station	NO.	5	5	5	5	5	5	5
Forging force	Kgs	80.000	90.000	130.000	220.000	350.000	440.000	550.000
Max.cut-off dia.	mm	φ10	φ12	φ16	φ23	φ23	φ30	φ36
Max.cut-off length	mm	115	135	190	190	240	253	420
Output rate	pcs/min	90-145	85-130	60-100	55-95	45-75	35-55	25-45
P. K. O. stroke	mm	25	35	45	45	46	40	60
K.O stroke	mm	92	118	175	178	220	205	380
Main ram stroke	mm	160	190	270	274	346	330	580
Main motor power	Kw	22	30	37	55	75	110	132
Overall dims. Of cut off die	mm	φ50*50L	φ45*59L	φ63*69L	φ64*100L	φ75*120L	φ80*130L	φ118*150L
Overall dims. Of punch die	mm	φ45*125L	φ53*115L	φ60*130L	φ75*185L	φ90*215L	φ120*170L	φ140*300L
Overall dims. Of main die	mm	φ60*130L	φ75*135L	φ86*190L	φ108*200L	φ125*240L	φ140*250L	φ168*420L
Die pitch	mm	80	90	110	129	140	160	180
Approx. weight	T	17	20	31	52	75	115	200
Applicable bolt size	mm	5-8	8-10	8-12.7	10-16	12-20	14-27	24-30
Shank length of blank	mm	15-90	15-110	20-160	20-160	25-200	35-1800	100-350
