• Model NO.：Handyman1530
• Cutting Material：Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
• Automatic Grade：Automatic
• Power Source：Electric
• Cutting Mode：Plasma Cutting and Flame Cutting
• Machine Name：CNC Portable Cutting Machine
• Cutting Speed：20-3500 mm,Min
• Cutting Thickness：1-40mm
• Cutting Precision：±0.5mm
• Height Regulating Distance：≤100 mm
• Height Regulating Device：Arc Voltage Height
• General Nesting Software：Starcam
• Drive：Stepper Motor
• Cutting Surface Roughness：12.5μm≤ra≤25μm
• Control System：F2100b
• Transport Package：Wooden Box Package
• Specification：1500*3000mm
• Trademark：Seanior
• Origin：China (Mainland)
• HS Code：84564010
• Production Capacity：200 Sets,Month
• Package size per unit product：360.00cm * 30.00cm * 30.00cm
• Gross weight per unit product：130.000kg

Basic Info.

Model NO. Handyman1530 Cutting Material Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel Automatic Grade Automatic Power Source Electric Cutting Mode Plasma Cutting and Flame Cutting Machine Name CNC Portable Cutting Machine Cutting Speed 20-3500 mm/Min Cutting Thickness 1-40mm Cutting Precision ±0.5mm Height Regulating Distance ≤100 mm Height Regulating Device Arc Voltage Height General Nesting Software Starcam Drive Stepper Motor Cutting Surface Roughness 12.5μm≤ra≤25μm Control System F2100b Transport Package Wooden Box Package Specification 1500*3000mm Trademark Seanior Origin China (Mainland) HS Code 84564010 Production Capacity 200 Sets/Month

Packaging & Delivery

Package size per unit product 360.00cm * 30.00cm * 30.00cm Gross weight per unit product 130.000kg

Product Description

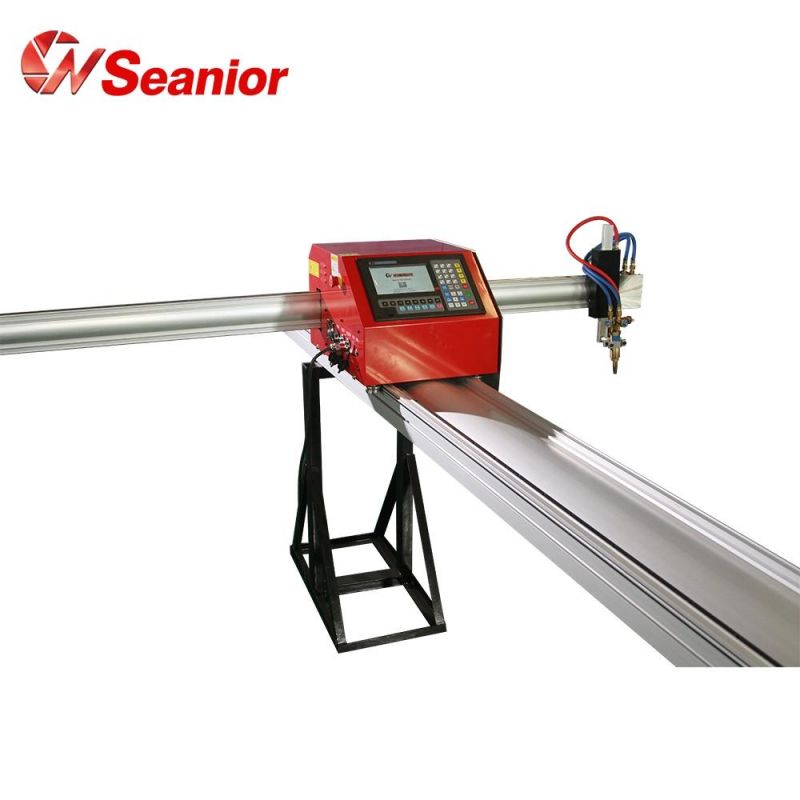

Low Cost Portable CNC Plasma and Flame Steel Plate Cutting Machines

High PRECISION,

LOW COST Portable Mini CNC Cutting Machine

Simple and Easy to Use.

Brief instruction

This kind of portable cnc plasma and flame cutting machine is specially developed for steel plate cutting, 2 kinds of cutting modes are provided: plasma cutting and flame cutting,working size can be customized upon requirements, this portable cnc plasma and flame cutting machine is characterized of easy operation, compact structure and low cost. It is suitable for large, medium and small mines, widely used in automobile, shipbuilding, engineering machinery, agricultural machinery, suitable for carbon steel (flame cutting), and stainless steel.

Machine Feature

The plasma cutting speed is high, especially during common carbon steel sheet cutting, the plasma cutting speed is 5-6 times that of flame cutting.
Low price,you still need to expect best service,Cut mild steel with flame process.Cut high carbon steel, stainless steel, and other non-ferrous metal with Plasma process
Small size, great capability.High precision, low price.
You buy not because it's cheap, you buy because it fits.




Product Parameter

Seanior-Handyman1530	Parameter
Power source	machine:AC220V/50hz / palasma cutter:AC380V/50hz
Effective cutting width	1500mm
Effective cutting length	3000mm ( accept tailor-made length)
Cutting process	plasma/ flame
Cutting thickness(flame)	6.0-150mm (oxygen+acetylene or propane)
Cutting thickness(plasma)	0.5-20mm Depending on the customer's plasma power supply
Cutting speed	20-3500mm/min (max.4000mm/min)
Cutting accuracy	±0.5m
Torch lifting distance	≤80mm
Applicable gas type	Oxygen and propane or acetylene
Working interface	Chinese and English (other languages can be customized)
CAD drawing	nesting cut code
Processing Materials	carbon steel, stainless steel, aluminum sheets, galvanized sheets, Titanium plates

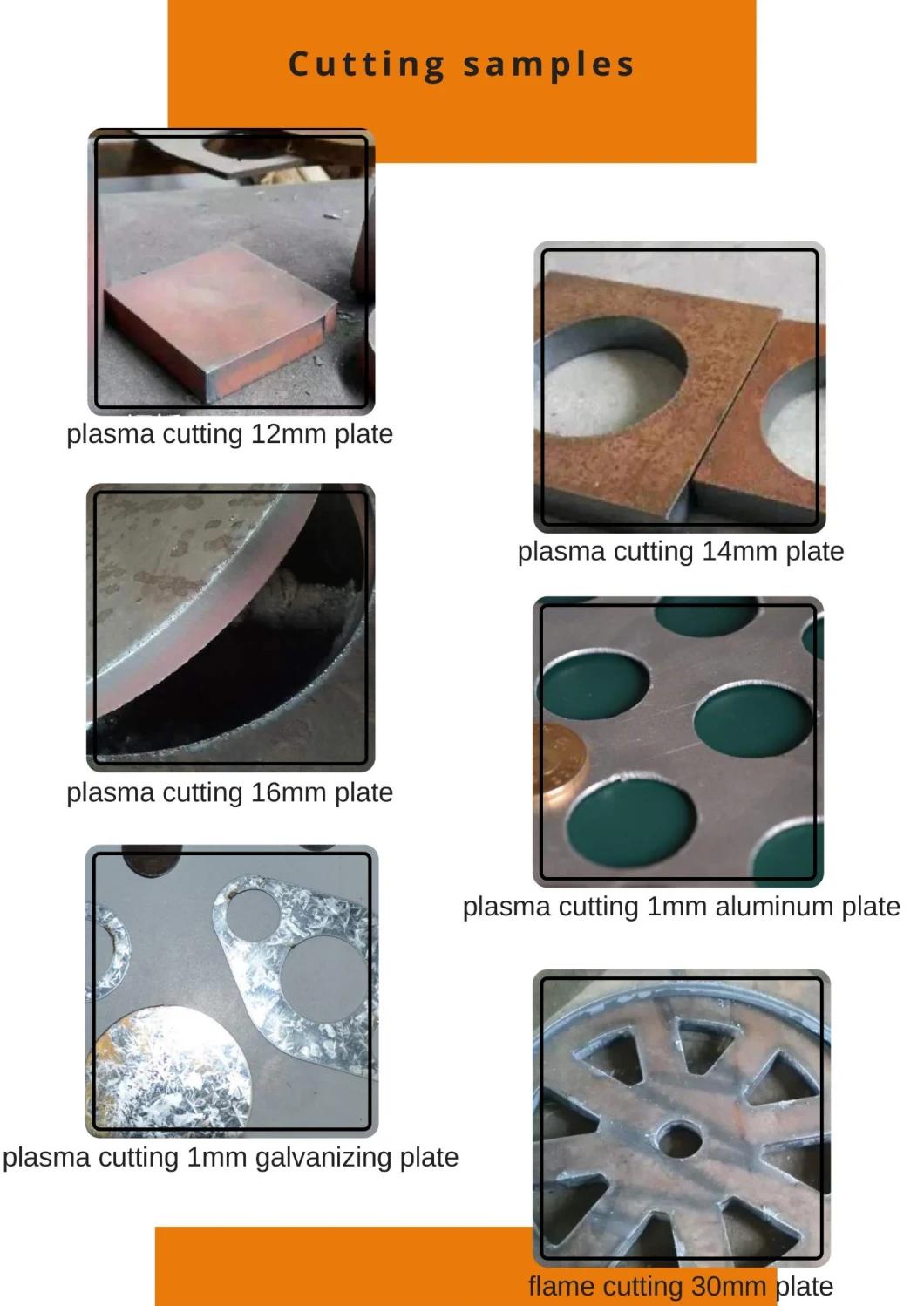

Cutting Samples




Seanior CNC Systems

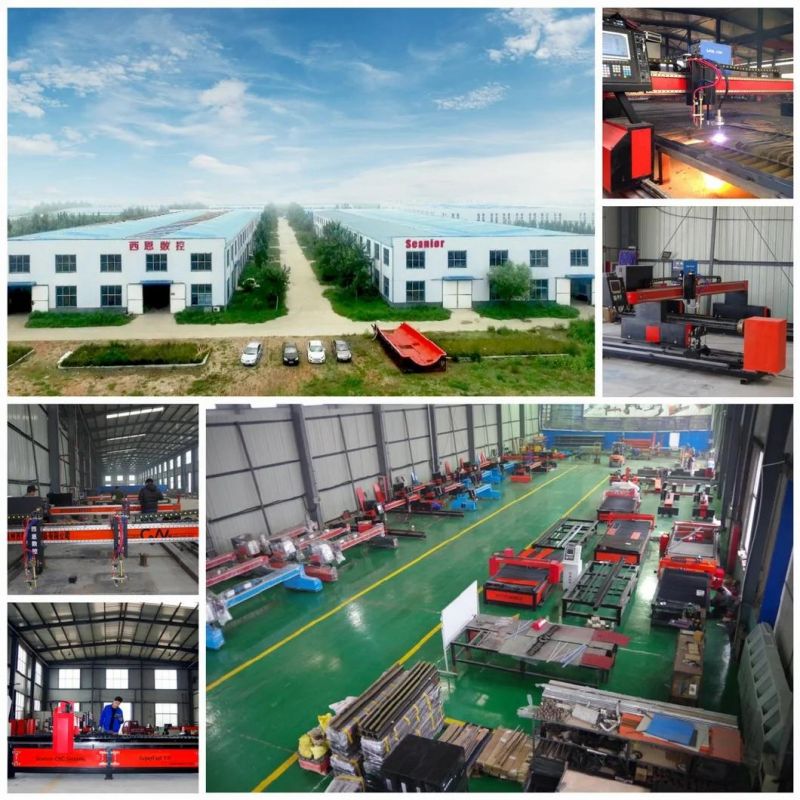

Seanior CNC Systems manufactures and sells cutting machines, provide services for the metal-working industry, offering complete solutions and focus on customer-driven innovation.

Seanior Services

Our technical team is your excellent cutting performance guarantee and our perfect service plan solve all your problems.
1. 12 months warranty for the whole machine.
2. Technical support by phone, email 24/7.
3. English version manual and operation tutorial video.
4. Engineer available to service machinery overseas.

Packing & Delivery

Standard exporting packing:
1.Outside package:Standard marine export plywood cases .
2.Inner package:Stretch film and plastic film for humidity.
3.We can package according to your requests.





CERTIFFICATE
