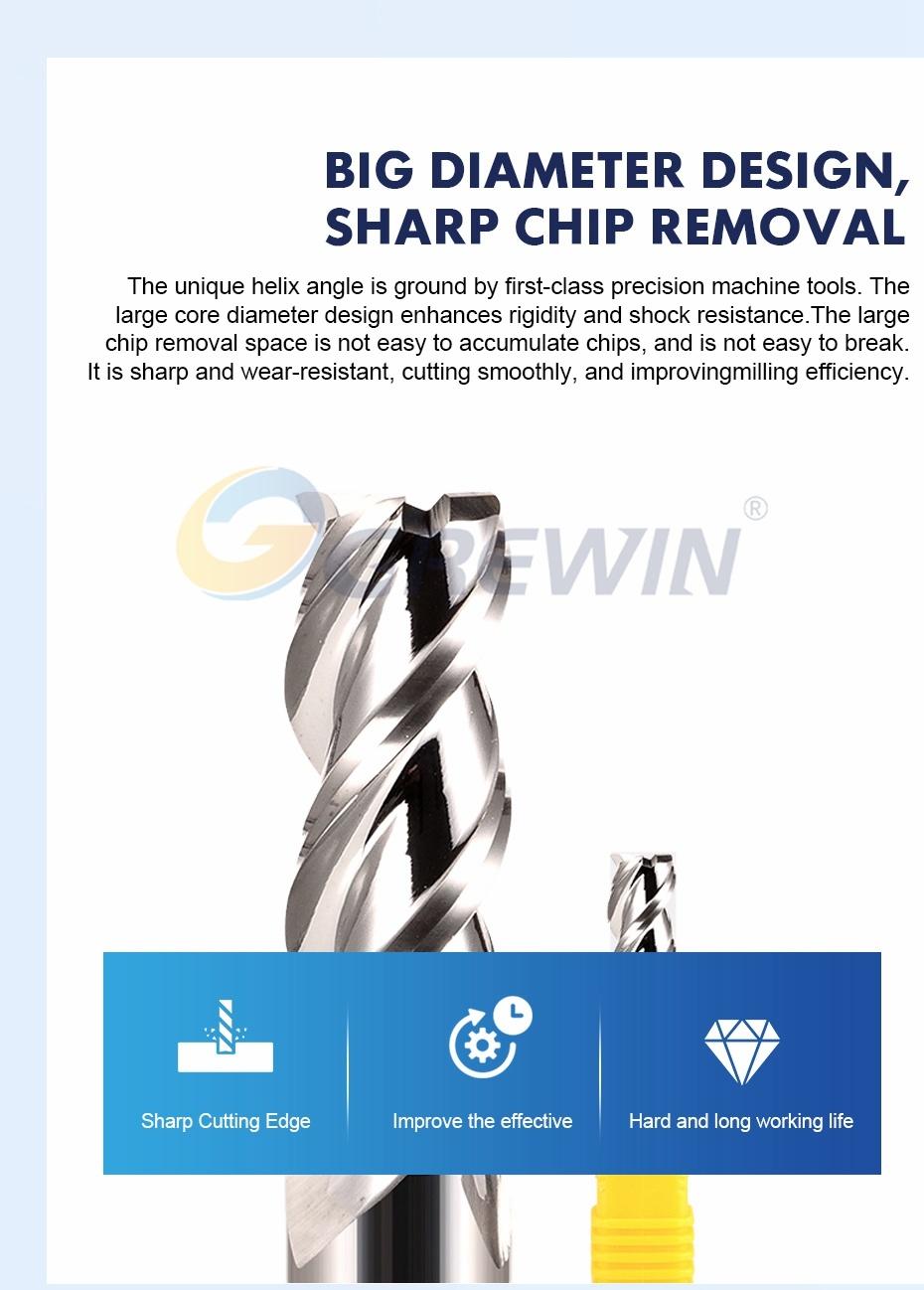

Gw Carbide -Solid Carbide Aluminum End Mill in 3 Flutes
Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd.- Warranty：3 Months
- Certification：GS, ISO9001
- Customized：Customized
- Material：Tungsten Carbide
- Application：Metal Cutting Machine, Metal Processing Machinery Parts
- Type：Cutting Tool
Base Info
- Model NO.：GW4 Series of Aluminum End Mill
- Size：D1-25mm, L38-150mm
- Coating：Coating
- Tooth Form：Spiral Tooth
- Structure：Indexable Type
- Work Piece：Aluminum
- Coating Type：None
- Cutting Form：Flat, Ball Nose, Corner Radius, Roughing
- Flutes Number：3
- Flute Diameter：0.5mm-25mm, Customized
- Length：50mm-150mm, Customized
- Package：1 PCS in a Plastic Tube, 10 PCS Per Group
- Shipment：FedEx, DHL, TNT, UPS, EMS, etc.
- Delivery Time：10-15 Days
- Transport Package：Standard Export Carton
- Specification：all sizes
- Trademark：GW
- Origin：Zhuzhou
- HS Code：8208101900
- Production Capacity：50000 PCS,Month
Description
Basic Info.
Model NO. GW4 Series of Aluminum End Mill Size D1-25mm, L38-150mm Coating Coating Tooth Form Spiral Tooth Structure Indexable Type Work Piece Aluminum Coating Type None Cutting Form Flat, Ball Nose, Corner Radius, Roughing Flutes Number 3 Flute Diameter 0.5mm-25mm, Customized Length 50mm-150mm, Customized Package 1 PCS in a Plastic Tube, 10 PCS Per Group Shipment FedEx, DHL, TNT, UPS, EMS, etc. Delivery Time 10-15 Days Transport Package Standard Export Carton Specification all sizes Trademark GW Origin Zhuzhou HS Code 8208101900 Production Capacity 50000 PCS/MonthProduct Description
Tungsten Carbide Aluminum End MillsIntroduction of the carbide materials of the End mill
| Carbide Grade | Technical Details of tungsten carbide rod |
| 10U | Co:10% WC 89% rare element: 1% HRA: 90.5°Grain Size: 0.75um |
| 12U | Co:12% WC 85% rare element: 3% HRA: 92.5°Grain Size: 0.4um |
| K40 | Co:12% WC 84% rare element: 4% HRA: 93°Grain Size: 0.4um |
| K44 | Co:12% WC 84% rare element: 4% HRA: 93.5°Grain Size: 0.4um |

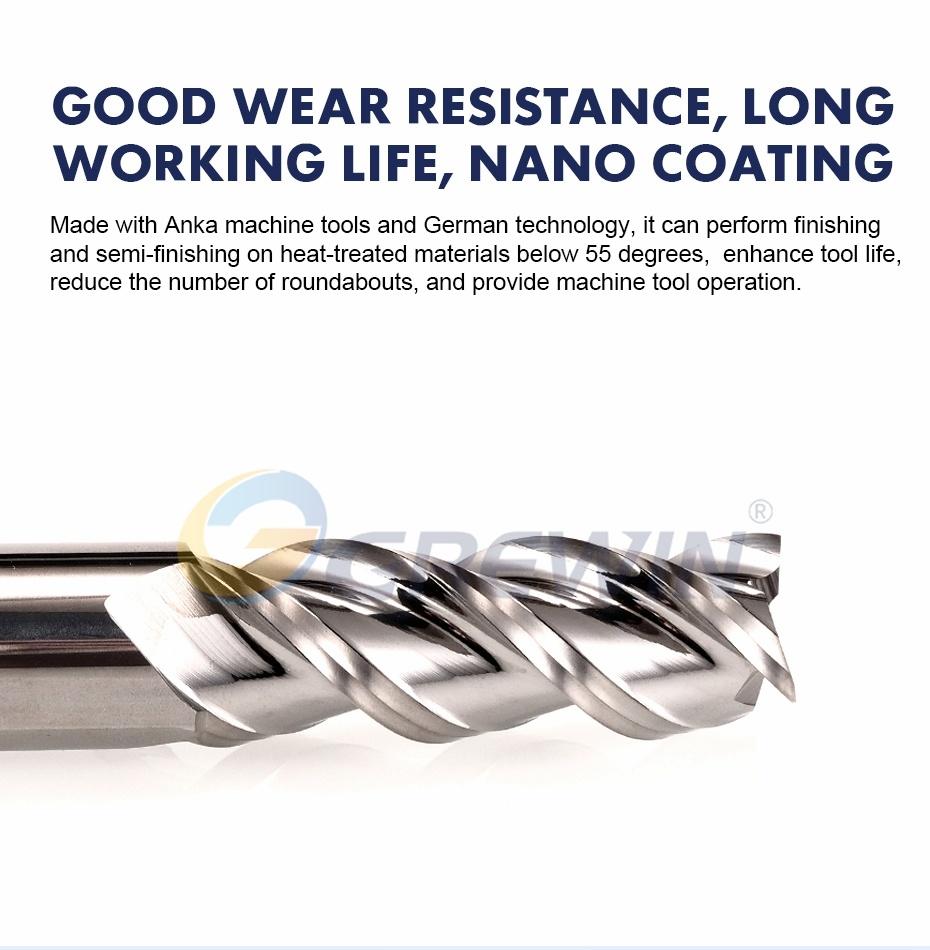

Introduction of carbide materials of the End mill
| AlTiN | TiAlN | TiSlN | Nano | |
| Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
| Oxidation Temp(°) | 900 | 800 | 1000 | 1200 |
| Friction Coefficient | 0.3 | 0.3 | 0.45 | 0.4 |
| Color | Black | Violet | Copper | Blue |

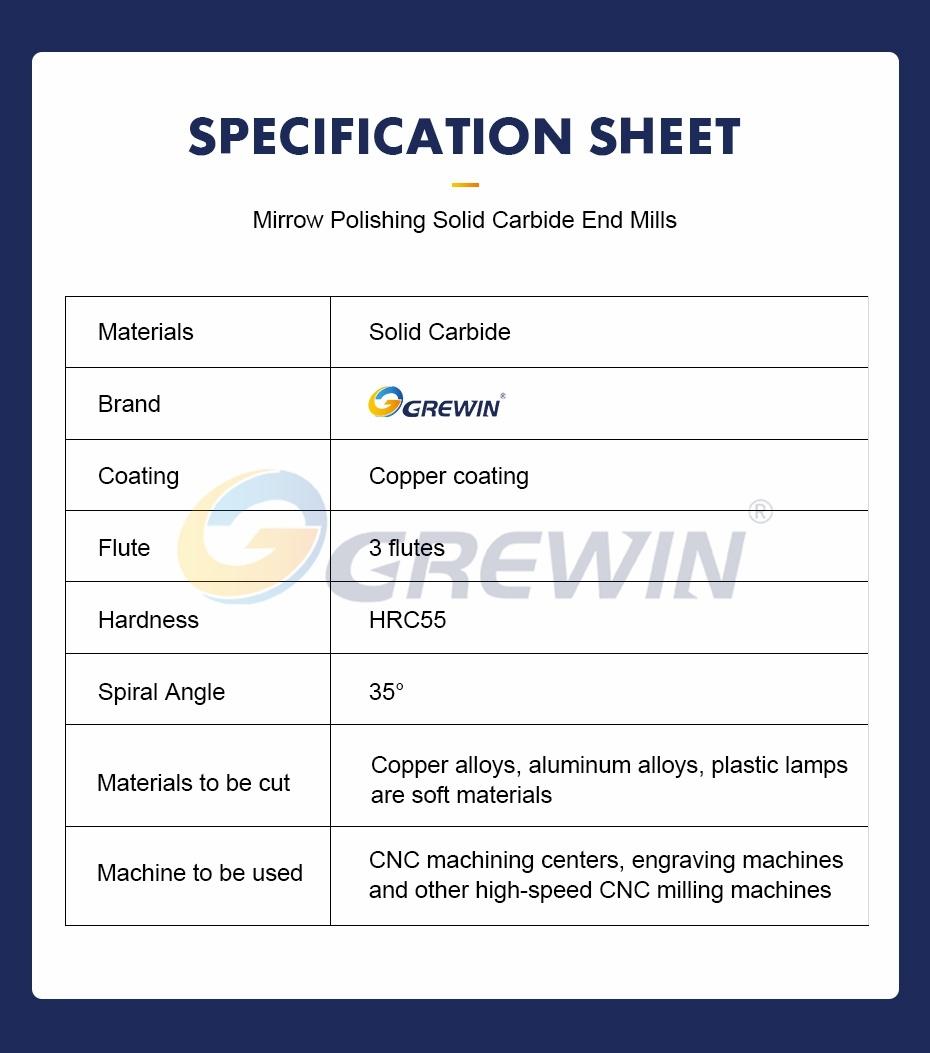

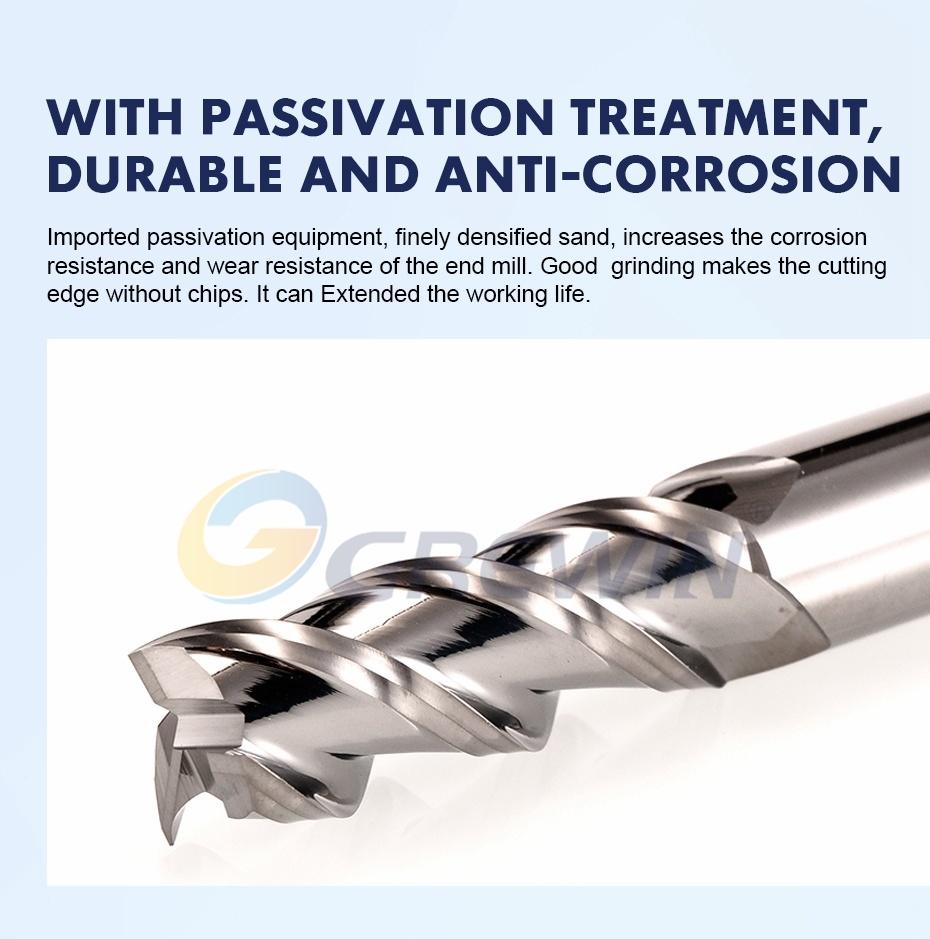

3 Flutes Flat End Mill
HRC choice: HRC38-45, HRC50-55
Without polishing with polishing
Materials to be cut: Aluminum

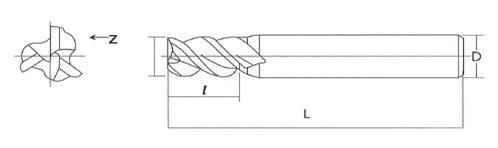

| Code No. | Diamter d | Cutting length l | Total length L | Shank D | Flutes Z |
| 3GW1-01003050 | 1 | 3 | 50 | 4 | 3 |
| 3GW1-01504050 | 1.5 | 4 | 50 | 4 | 3 |
| 3GW1-02050500 | 2 | 5 | 50 | 4 | 3 |
| 3GW1-02507050 | 2.5 | 7 | 50 | 4 | 3 |
| 3GW1-03008050 | 3 | 8 | 50 | 4 | 3 |
| 3GW1-04010050 | 4 | 10 | 50 | 4 | 3 |
| 3GW1-04015075 | 4 | 15 | 75 | 4 | 3 |
| 3GW1-04020100 | 4 | 20 | 100 | 4 | 3 |
| 3GW1-05013050 | 5 | 13 | 50 | 6 | 3 |
| 3GW1-06015050 | 6 | 15 | 50 | 6 | 3 |
| 3GW1-06020075 | 6 | 20 | 75 | 6 | 3 |
| 3GW1-06030100 | 6 | 30 | 100 | 6 | 3 |
| 3GW1-06020060 | 8 | 20 | 60 | 8 | 3 |
| 3GW1-08025075 | 8 | 25 | 75 | 8 | 3 |
| 3GW1-08035100 | 8 | 35 | 100 | 8 | 3 |
| 3GW1-010025075 | 10 | 25 | 75 | 10 | 3 |
| 3GW1-010040100 | 10 | 40 | 100 | 10 | 3 |
| 3GW1-012030075 | 12 | 30 | 75 | 12 | 3 |
| 3GW1-012040100 | 12 | 40 | 100 | 12 | 3 |
| 3GW1-014030080 | 14 | 30 | 80 | 14 | 3 |
| 3GW1-014100100 | 14 | 40 | 100 | 14 | 3 |
| 3GW1-016040100 | 16 | 40 | 100 | 16 | 3 |
| 3GW1-018040100 | 18 | 40 | 100 | 18 | 3 |
| 3GW1-020040100 | 20 | 40 | 100 | 20 | 3 |
| 3GW1-06040150 | 6 | 40 | 150 | 6 | 3 |
| 3GW1-08050150 | 8 | 50 | 150 | 8 | 3 |
| 3GW1-010050150 | 10 | 50 | 150 | 10 | 3 |
| 3GW1-012050150 | 12 | 50 | 150 | 12 | 3 |
| 3GW1-014060150 | 14 | 60 | 150 | 14 | 3 |
| 3GW1-016060150 | 16 | 60 | 150 | 16 | 3 |
| 3GW1-018060150 | 18 | 60 | 150 | 18 | 3 |
| 3GW1-020060150 | 20 | 60 | 150 | 20 | 3 |

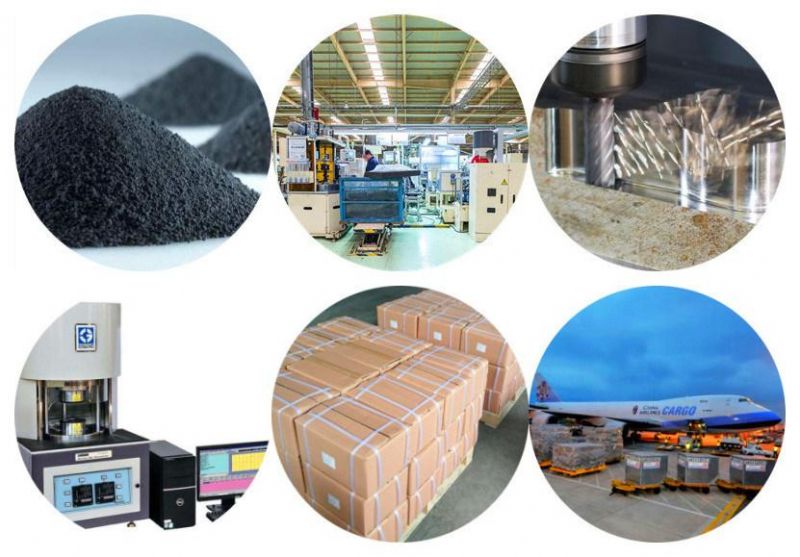

From material to your hand
