• Model NO.：BWZ-B1
• Machine Power：≤1500W
• Machine Size：≤1500W
• Machine Weight：320kg
• After-Sale Service：Engineer Speaking English Available
• Transport Package：Standard Export Package Which Can Protect Machine
• Specification：CE
• Trademark：BaoYuanTong
• Origin：Weifang, China
• HS Code：84798190
• Production Capacity：200sets,Month

Basic Info.

Model NO. BWZ-B1 Machine Power ≤1500W Machine Size ≤1500W Machine Weight 320kg After-Sale Service Engineer Speaking English Available Transport Package Standard Export Package Which Can Protect Machine Specification CE Trademark BaoYuanTong Origin Weifang, China HS Code 84798190 Production Capacity 200sets/Month

Product Description

BYTCNC High accurate CNC thick Aluminum coils Channel letter bending machine for 3d letter bender

  Application:
The application range of the Channel Letter Bending Machine is generally in the advertising industry. When the advertising company needs to do the luminous characters for the shops,it needs to use the channel letter bending machine to make the production. The channel letter bending machine can process many materials aluminum profiles, aluminum strip ) and does not damage the material. The processing precision is high and the speed is fast. The material thickness and tool adjustments are all adjusted by software, more convenient and faste

Whole machine feature:

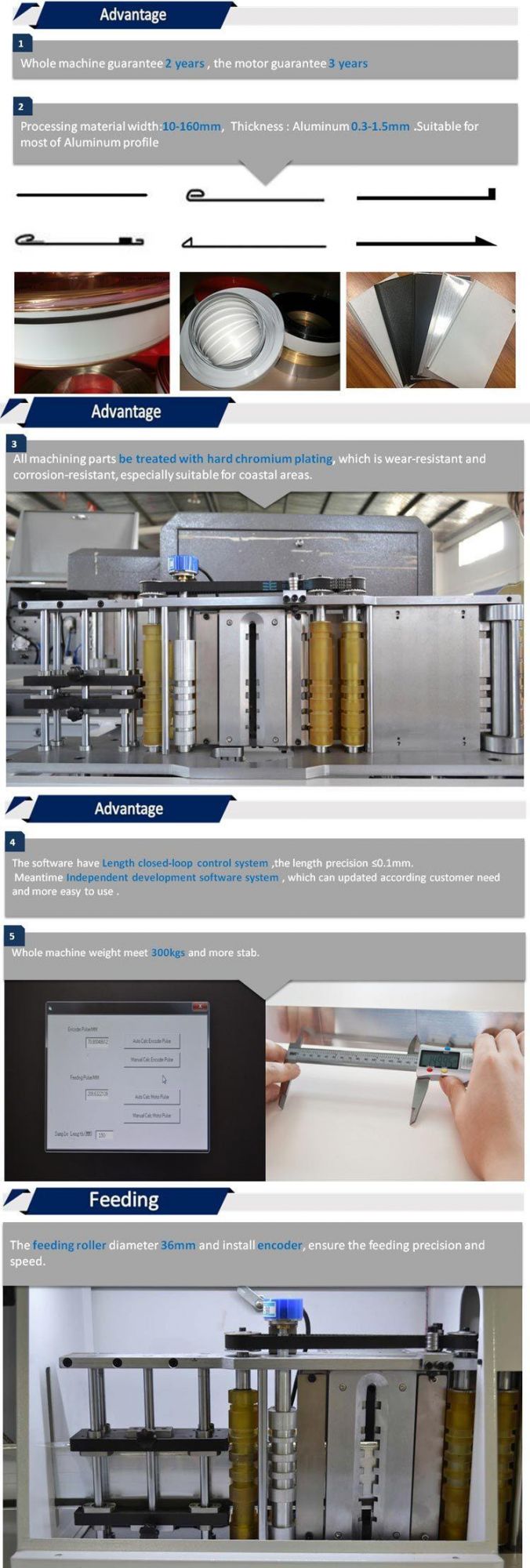

1.Whole machine guarantee 2 years , the motor guarantee 3 years
2. Processing material height 10-180mm,  Thickness : Aluminum 0.3-1.5mm,
Suitable for most of Aluminum profile
3.All machining parts be treated with hard chromium plating,which is wear-resistant and corrosion-resistant, especially suitable for coastal areas.
4.The motor and driver use the transformer with voltage digital display device to replace switching power,monitor the voltage situation and remind customer to do the corresponding treatment when the voltage is unstable .
5. The software have Length closed-loop control system ,the length precision ≤0.1mm.
    Meantime Independent development software system , which can updated according customer need and more easy to use .

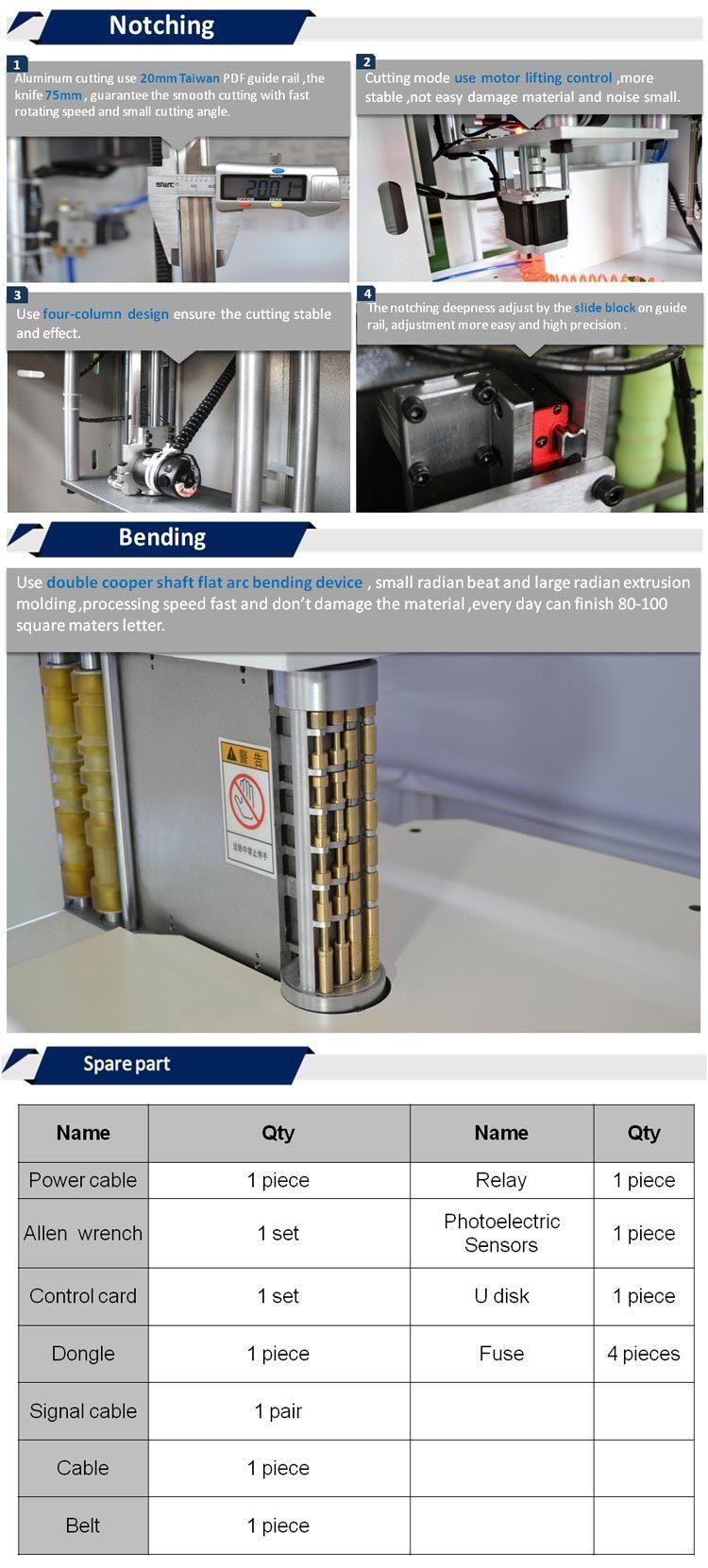

Feeding / Notching/Bending Characteristics:
Feeding :The feeding roller diameter 36mm and install encoder, ensure the feeding precision and speed.
Notching:1. Aluminum cutting use 20mm Taiwan PDF guide rail ,the knife 75mm , guarantee the smooth cutting with fast rotating speed and small cutting angle.
2. Cutting mode use motor lifting control ,more stable ,not easy damage material and noise small.
3.Use four-column design ensure the cutting stable and effect.
4. The notching deepness adjust by a key ,more easy and convenient .Otherwise you also can increase the configuration change to software adjustment.
Bending:Use double cooper shaft flat arc bending device , small radian beat and large radian extrusion molding ,processing speed fast and don't damage the material ,every day can finish 80-100 square maters letter.
Technical data:

Model	BWZ-B1
Function	Automatic feeding,slotting and bending
Applicable Material Alu=Aluminum	Flat Alu,Folding Alu,Channelume
Material Width	Flat Alu:≤180mm Folding Alu:≤160mm Channelume:70,90,110mm
Material Thickness	Aluminum:0.3~1.5mm
Bending Radius	7mm
Feeding	φ36mm feeding wheel+Guide material auxiliary+Encoder
Slotting System	Motor control
Bending	Coupled extrusion-Double copper shaft flat arc bender
Control System	ADT
Power	<1500W
Air Pressure	0.6MPa
File Format	Dxf, Ai,Plt
Working Voltage	220V/ 50-60HZ/1P
Net Weight(kgs)	270
Overall Size(mm)(L*W*H)	2100*800*1530
