• Model NO.：CutMaster4012
• Automatic Grade：Automatic
• Power Source：Electric
• Cutting Mode：Plasma Cutting
• Name：Gantry CNC Cutting Machine
• Application：Industrial Metal Cutting
• Cutting Thickness：1-45mm,6-200mm
• Cutting Speed：0-12000mm,Min
• Cutting Accuracy：±0.5mm
• Motor：Stepper Motor
• Torch Lifting Distance：150mm ( Electric Mode )
• Working Interface：Chinese and English (Other Languages Can Be Custo
• Transport Package：Wooden Box Package
• Specification：2200*4800*1650mm
• Trademark：seanior
• Origin：Shandong Province, China (Mainland)
• Production Capacity：200 One Month

Basic Info.

Model NO. CutMaster4012 Automatic Grade Automatic Power Source Electric Cutting Mode Plasma Cutting Name Gantry CNC Cutting Machine Application Industrial Metal Cutting Cutting Thickness 1-45mm/6-200mm Cutting Speed 0-12000mm/Min Cutting Accuracy ±0.5mm Motor Stepper Motor Torch Lifting Distance 150mm ( Electric Mode ) Working Interface Chinese and English (Other Languages Can Be Custo Transport Package Wooden Box Package Specification 2200*4800*1650mm Trademark seanior Origin Shandong Province, China (Mainland) Production Capacity 200 One Month

Product Description

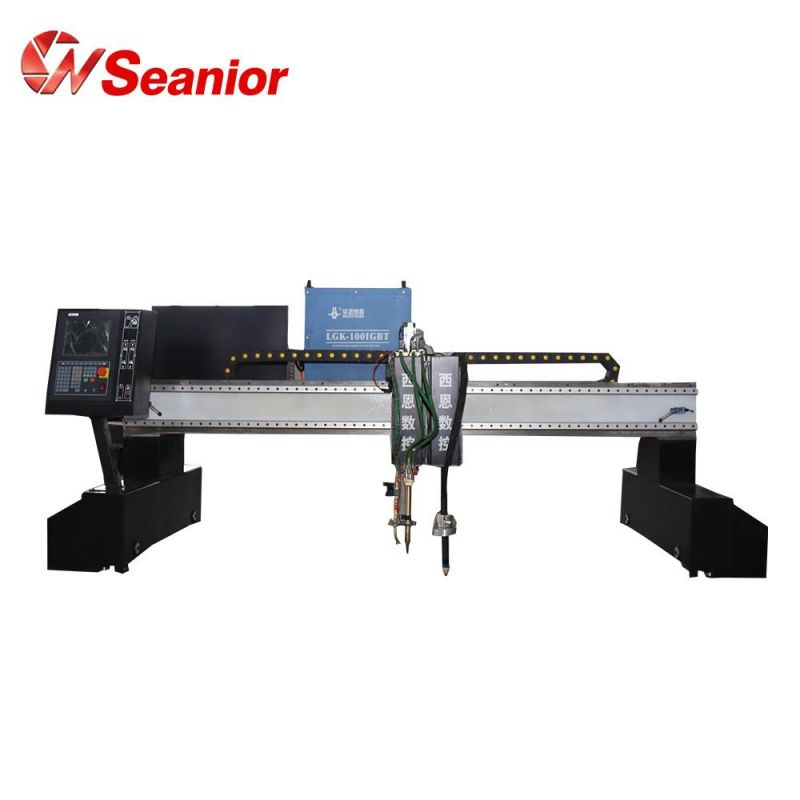

Top Quality Gantry CNC Plasma And Flame Cutters
POWERFUL PRODUCTIVITYINCREDIBLE STRENGTH AND FLEXIBILITYECONOMICAL & LONG WORK HOURS

Do you want to cut something great and improve your efficiency with CNC cutting machine?

Are you looking for the high quality plasma/flame metal cutting machine to cut your sheet metal or pipe and tube at best price?

Are you finding German or American suppliers' offer SO HIGH?

How about a person helps you to solve all the problems and leave you to sit back and relax?
 Main Features

1) Heavy-duty CNC gantry cutting machine with easy-to-use F2300B CNC control system.

2) High compliance digital drives provide a smooth cut edge with zero maintenance.

3) Large diameter drive wheels combined with high precision guiding systems offer you superior drive motion.

4) Rugged cross box beam with milled steel plate for high precision guiding system delivery lasting strength, durability and precision.

5) Fast flame cutting torch with height sensing lifer and auto-ignition device let you spend more time cutting and less time in setup.

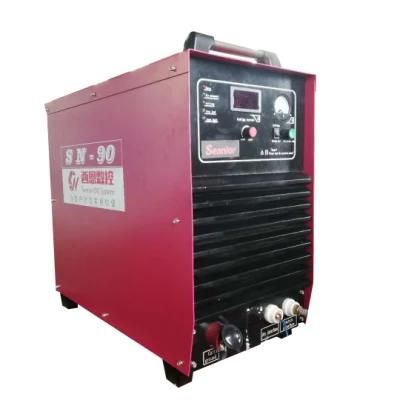

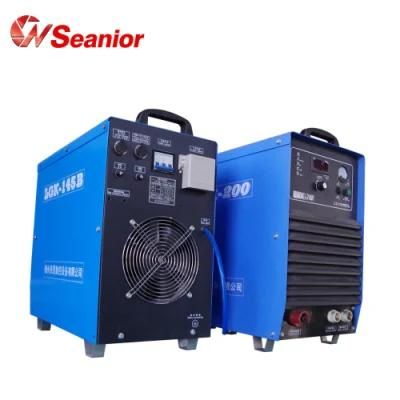

6) Up to 800 amp plasma depending on your choice.

7) Apply to metal cutting in ship building, construction tower, mechanical engineering, steel service and other heavy industries.

Product Parameter

Technical item	Technical parameters
Effective cutting width	2000mm - 5500mm
Effective cutting length	4000mm - 20000mm
Tailor-made dimension	Accept tailor-made order
Flame piercing thickness	6mm -80mm
Edge cutting thickness	6mm -200mm for flame cutting
Plasma cutting thickness	1-45mm for plasma cutting
Torch lifter vertical traveling distance	≤150mm
Cutting precision	±0.5mm
Cutting speed	100-12000mm/min for plasma cutting50-600mm/min for flame cutting process
Number of lifter	Double (standard), accept tailor-made order
Cutting process	Plasma cutting and flame cutting
Torch lifting device	flame capacitance adjustment / plasma arc pressure adjustment
duty cycle	24h
processing material	Mild steel , stainless steel and aluminum

Product Details

Gear rack : The rack and pinion combined with double cylinder axis guide rail deliver you high precision motion and high quality cutting edge, which will enhance your competitive power in your market place.

Electric cabinet : The enclosed control cabinet is easily accessible. The digital drives, low-cost replacement I/O modules and more reduce and limit your repaire and maintenance costs.

Floor mounted rails : Rugged floor mounted rails machined from 24kg/m crane rail for smooth motion required by today's high performance plasma and flame torches.

Heavy-duty end trucks : The heavy-duty end trucks can support the steel dual cross beam and offer you rugged gantry structure ready to carry the cutting processes while offering you excellent part quality.

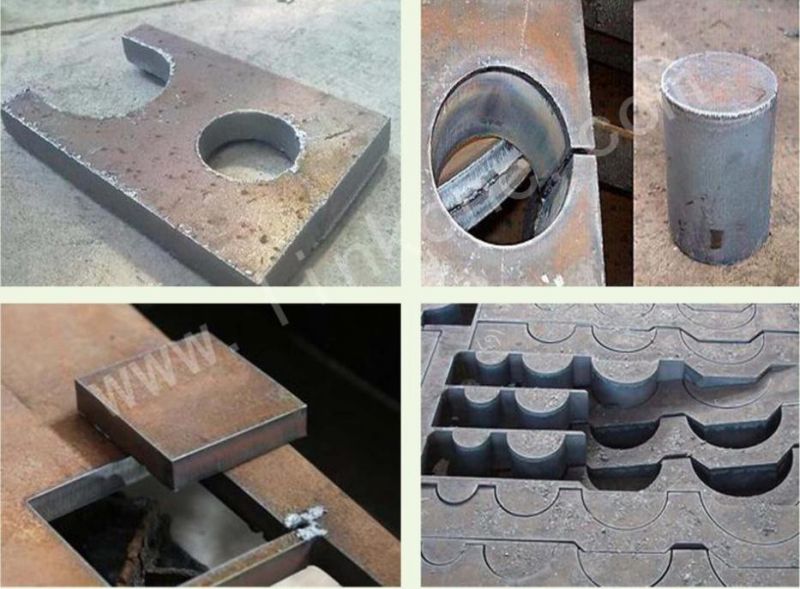

Cutting Samples

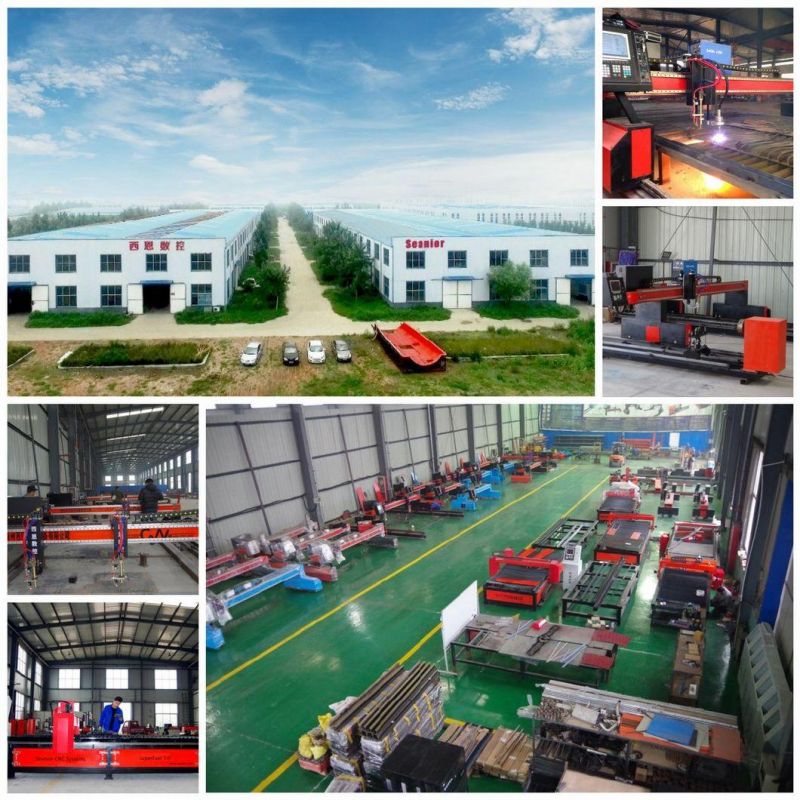

Seanior CNC Systems

Seanior CNC Systems manufactures and sells cutting machines, provide services for the metal-working industry, offering complete solutions and focus on customer-driven innovation.
Seanior Service

Why you Choose Seanior CNC Systems?

Our technical team is your excellent cutting performance guarantee and our perfect service plan solve all your problems.
1. 12 months warranty for the whole machine.

2. Technical support by phone, email 24/7

3. English version manual and operation tutorial video

4. Engineer available to service machinery overseas.
