• Model NO.：KM-81B
• Application：Insulator and Hydraulic Hose
• Color：blue
• Speical：Supper Thin Head
• Production：CNC Machine
• Transport Package：Standard Export Plywood Case
• Specification：insulator crimping machine
• Trademark：KANGMAI
• Origin：China Handan
• HS Code：8462919000
• Production Capacity：2000,Set

Basic Info.

Model NO. KM-81B Application Insulator and Hydraulic Hose Color blue Speical Supper Thin Head Production CNC Machine Transport Package Standard Export Plywood Case Specification insulator crimping machine Trademark KANGMAI Origin China Handan HS Code 8462919000 Production Capacity 2000/Set

Product Description

Our Electrical insulator supper thin  crimping machine// hydraulic hose crimping machine KM-814B has following good advantages:

1).Ultra thin body, max opening;
2).Operating system upgrade to computer control, easy and intelligence;
3).It is suitable for non-standard fitting;
4).With quick change tool.

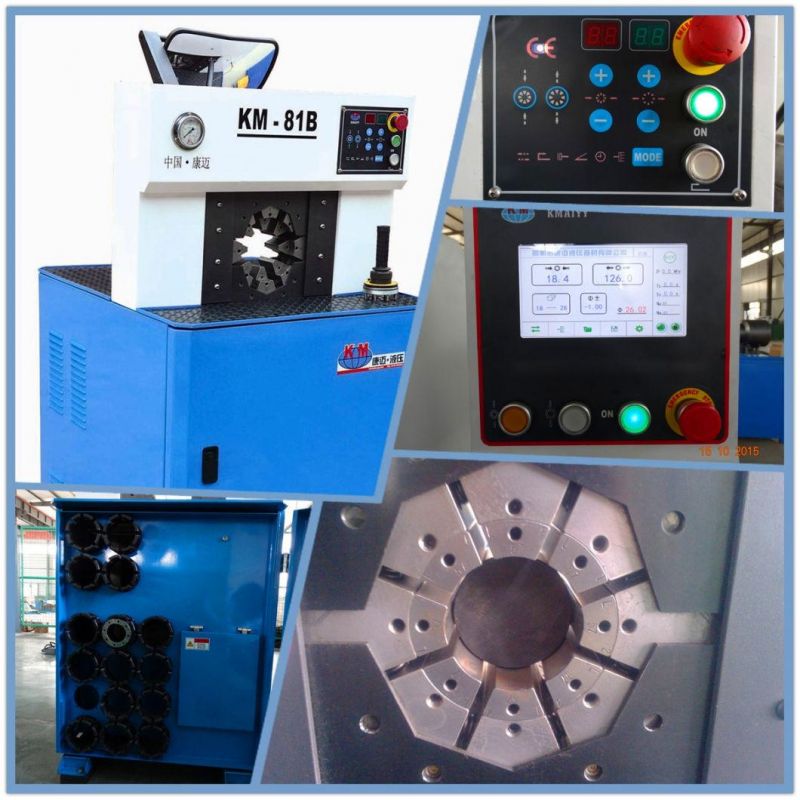

Technical Data Of Electrical insulator supper thin  crimping machine//Super-thin Hydraulic Hose Crimping Machine KM-81B

Model NO.	KM-81B (extra-thin type)
Crimp ranger	1/8 inch to 2inch 4SP
Standard voltage&motor:	380V/5.5kW
Displacement of plunger pump	36L/min
Crimper Force	3800KN
Opening without dies	φ157mm
Opening	above 62mm
Openging Time	within 3S
Closing Time	within 9S
Systematic Pressure	30Mpa
Volume Of Oil Tank	169L
Hydraulic Oil	Winter: YB-N32; Summer: YB-N46
Weight	760kg
Volume(L-W-H)	800×920×1520(mm)

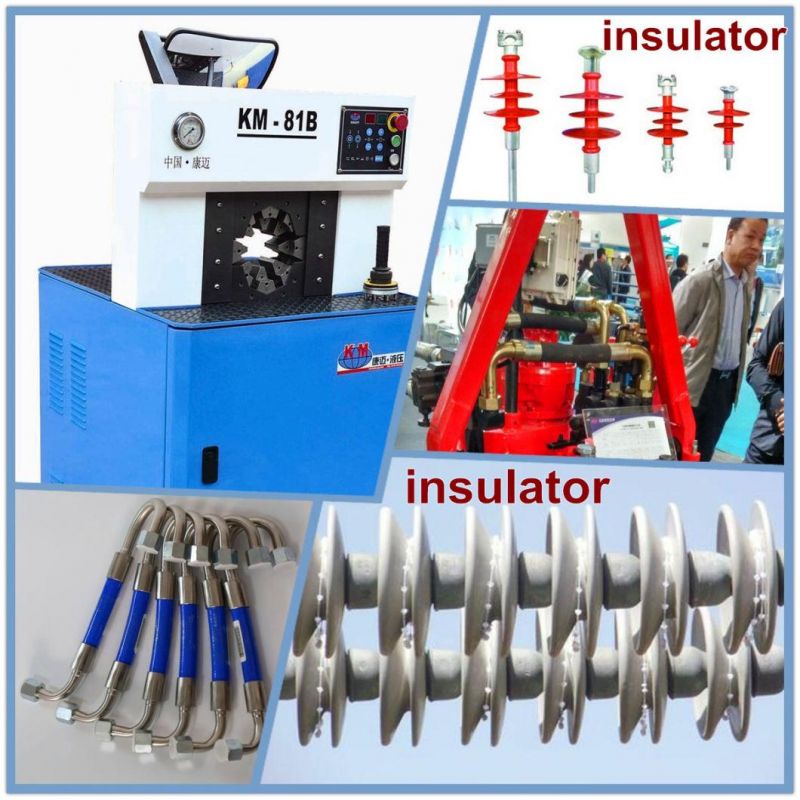

Applications of Electrical insulator supper thin  crimping machine// hydraulic hose crimping machine KM-81B:

1. Used for electrical insulator and arc ring

2. Good for crimping two eblow fitting hydraulic hose.



3.Suitable for high precision pressing of low and high pressure hose diameter ,starting from 1/4" to 2" hydraulic hose pipe.

4.  Used rubber hose to transmit hydraulic pressure as there working power.

5. Used in Building Construction, Petroleum Industry, Chemical Industry, Car and Motor Industry.


Electrical insulator supper thin  crimping machine  why not choose kangmai KM-81B?

(A) KM-81B machine head process by CNC machine, the roundness and taper is within 0.1mm.

(B)The machine die base and dies adopt special die steel and process by advanced craft, the hardness is above 55 HRC. The die hardness is enough so that the die life is very long and easy to crimping high pressure hydraulic hose, 4SP even 6SP.

 (C)The technical of machine head is forging or casting. Casting is cheap but has small hole on machine head. The piston will divide from casting machine head.



(E) We take part in PTC fair every year and clients always order on Fair
