• Model NO.：DP25-80
• Mesh Opening Scope：25-80mm
• Wire Diameter Scope：1.8-4mm
• Motor Power：9kw
• Output Capacity：120-- 180 Squaremeter,Hour.
• Control System：Japan Origin PLC Automatic Controller
• Electric System：Low-Voltage Electrical System From French Sch***De
• Transport Package：Wooden Pallet and Plastic Film in The Container
• Specification：customized
• Trademark：JIAKE
• Origin：Hebei, China
• HS Code：8463300000
• Production Capacity：120-- 180 Squaremeter,Hour.
• Package size per unit product：670.00cm * 143.00cm * 180.00cm
• Gross weight per unit product：3900.000kg

Basic Info.

Model NO. DP25-80 Mesh Opening Scope 25-80mm Wire Diameter Scope 1.8-4mm Motor Power 9kw Output Capacity 120-- 180 Squaremeter/Hour. Control System Japan Origin PLC Automatic Controller Electric System Low-Voltage Electrical System From French Sch***De Transport Package Wooden Pallet and Plastic Film in The Container Specification customized Trademark JIAKE Origin Hebei, China HS Code 8463300000 Production Capacity 120-- 180 Squaremeter/Hour.

Packaging & Delivery

Package size per unit product 670.00cm * 143.00cm * 180.00cm Gross weight per unit product 3900.000kg

Product Description

1. Description

1. The wire is taken in from the payoff stand and passed through the dies where the diamond size take place,different gap sized.
2. After passing the from the die the diamond pattern wire is automatically thrown on the winding shaft in the stitching process.
3. The mesh will automatically wound to form rolls when the desired length is produced.
4. Suitable wire to the machine:low carbon steel wire,galvanized steel wire,stainless steel wire,aluminum alloy wire,PVC coated wire

2.Advantages
1. Taiwan Delta Servo motor 5.5kw +Planetary Reducer (rate 1:3).
2. Japan Mitsubishi PLC origin + Touchable screen,only one person is needed to operate it.
3. Alarm device + Emergency button.
4. Single mold, double spiral.
5. 12-procedure processed Straightening wheels.
7. Mesh sides can be both twisted, knuckled.Or twist one side knuckle the other side.
8. Sch***der Low-Voltage electronics;
9. Customized voltage: 220V, 380V, 440V, etc.

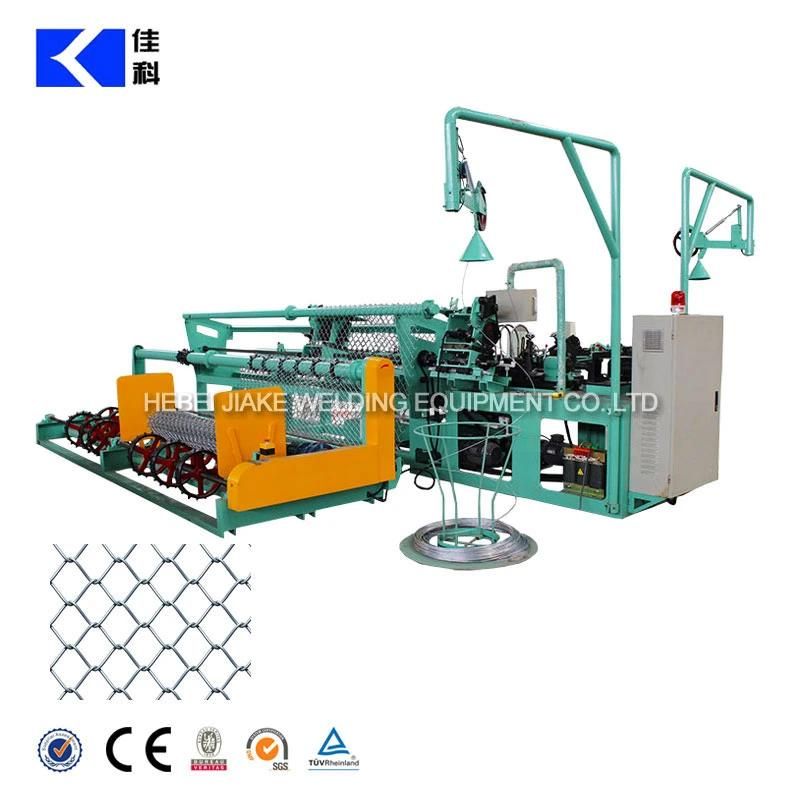

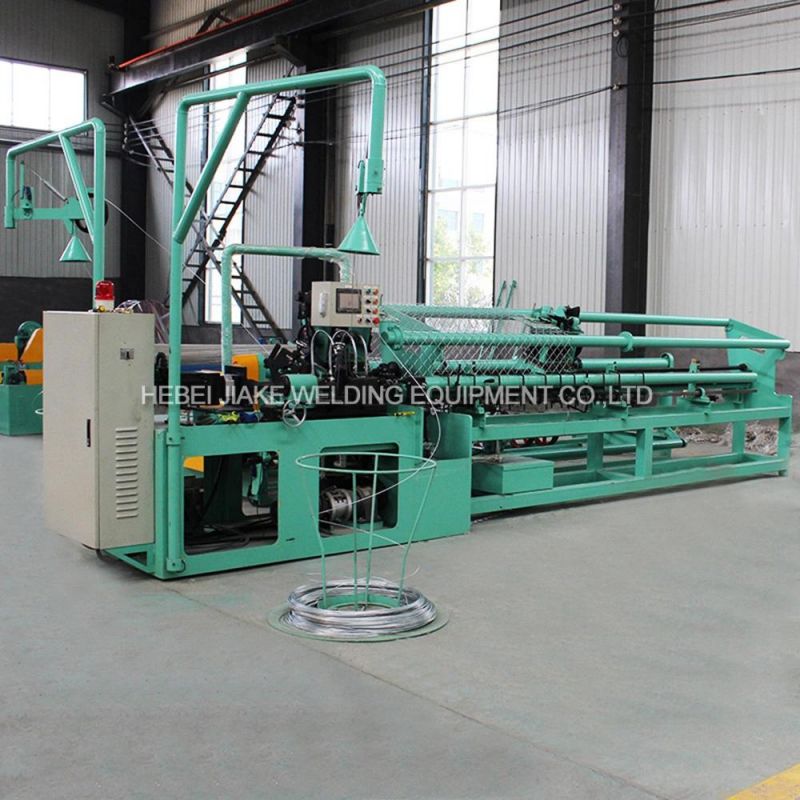

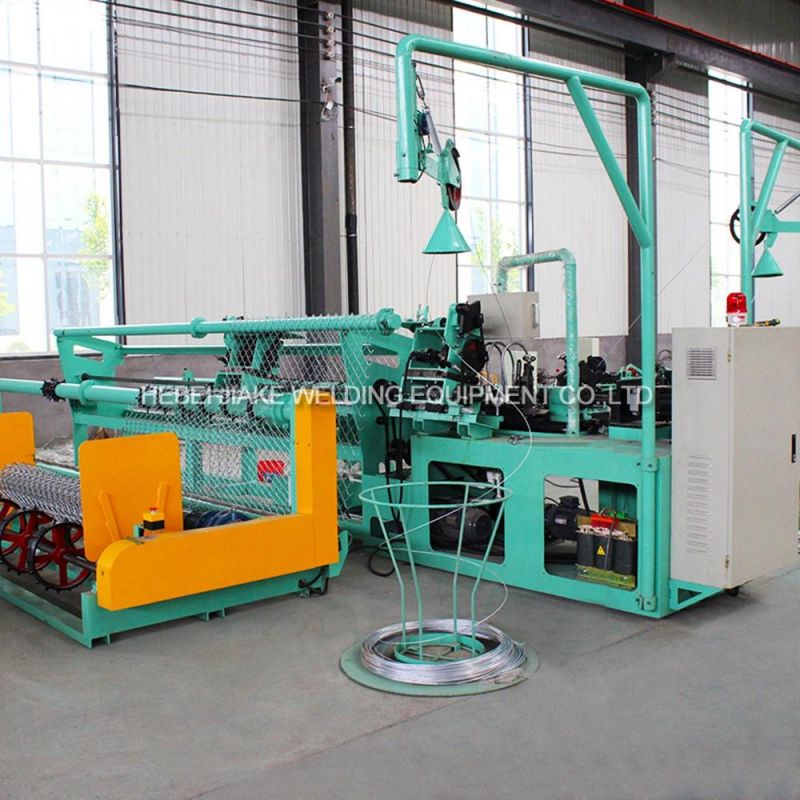

3.Machine pictures and parameter

Modal	DP25-80
Mesh width scope	2-4m
Max weaving length	20m
Mesh opening scope	25-80mm
Wire diameter scope	1.8-4mm
Motor Power	9 KW
Output capacity	120m²-- 180m²per hour.
Electric system	1.Japan Mitsubishi PLC origin 2.Servo motor 3.Low-voltage electrical system from French Sch***der 4.Electric & Machinery from Taiwan Teco Electronic 5.Clutch from Taiwan YA CO.,LTD
Control system	PLC automatic controller
Weight	3900kg
Dimension	Main machine: 6700*1430*1800mm

4.Commercial Terms

Payment Term	T/T.30% as advance, 70% balance before loading.
Delivery time	10 days after your advance payment.
Certification	CE and ISO 9001 Certificate
Warranty	One year since the machine is installed at the buyer's factory and within 18 months against B/L date
After sales service	Our engineer can do the installation and train the workers in your factory
