Semi-Auto Continuous Coating Lab Coating Machine for Lithium Ion Battery Electrode
XIAMEN TOB NEW ENERGY TECHNOLOGY CO., LTD.- After-sales Service：One Year Limited Warranty with Lifetime Support
- Warranty：1year
- Type：Continuous Coating
- Certification：CE
- Condition：New
- MOQ：1 Set
Base Info
- Model NO.：TOB-LBC-135
- Source Voltage：AC 220V,110V, 50Hz
- Power：6500W
- Coating Speed：1m,Min, Adjustable
- Dry Temperature：Rt-150ºC, Adjustable
- Oven Length：1.2m

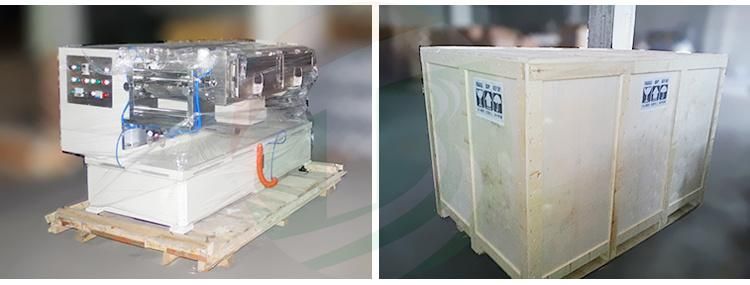

- Transport Package：Standard Export Packing
- Trademark：TOB
- Origin：Fujian, China
Description
Basic Info.
Model NO. TOB-LBC-135 Source Voltage AC 220V/110V, 50Hz Power 6500W Coating Speed 1m/Min, Adjustable Dry Temperature Rt-150ºC, Adjustable Oven Length 1.2m Transport Package Standard Export Packing Trademark TOB Origin Fujian, ChinaProduct Description

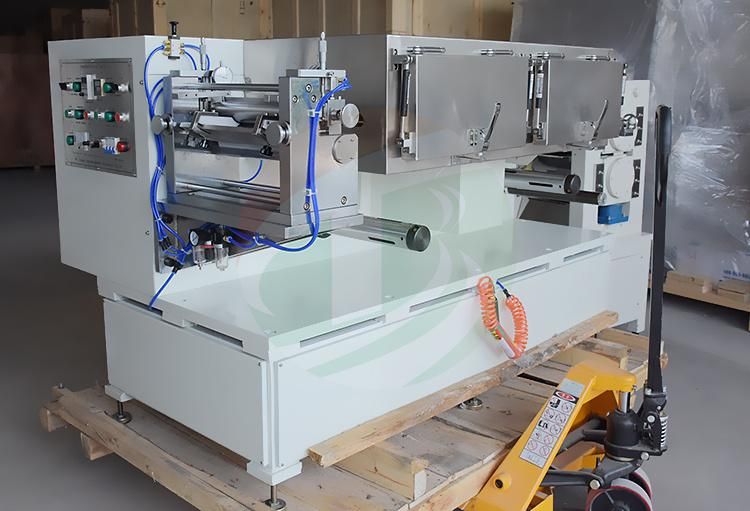

Semi-auto Continuous Coating Lab Coating Machine For Lithium ion Battery Electrode
SPECIFICATIONSThe lithium battery coating machine TOB-LBC-135 model coating machine is mainly used for Slurry drying process of lithium battery electrode coating. The battery coating machine adopts continuous coating mode, is mainly used for lithium battery lab research and pilot scale production line.
Main features
| Model | TOB-LBC-135 |
| Source voltage | AC 220V/110V, 50HZ |
| Power | 6500W |
| Warranty | One Year limited warranty with lifetime support |
| Max electrode width | 280mm |
| Coating speed | 1m/min, adjustable |
| Coating accuracy | ≤±0.003mm |
| Roller diameter | Φ100mm |
| Max coating roller diameter | Φ250mm |
| Control pressure | 5-50N, adjustable |
| Dry temperature | RT-150ºC, adjustable |
| Oven length | 1.2m |
| Air compression | 0.5-0.7MPa |
| Coating mode | Single face continuous coating |
| Application foil | Aluminum foil, Copper foil |
| Weight | About 1050kg |
| Dimension(L*W*H) | 1800*810*1300mm |

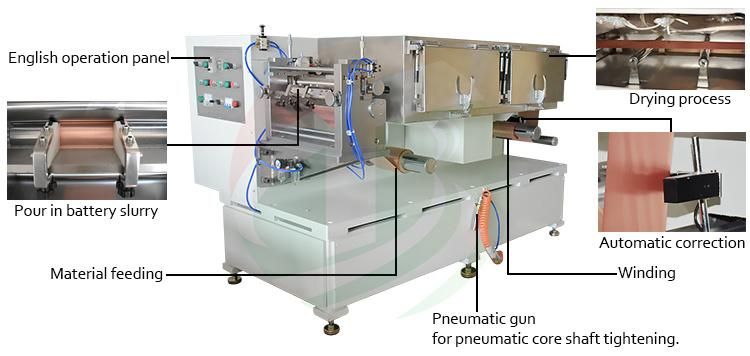

| Advantage | 1 Scraping system, parts processing precision, slurry contact part stainless steel structure, scraping thickness adjustable. 2 Main transmission adopts frequency control of motor speed, wide speed range speed constant and reliable for the speed control system, constant torque 3 Drying box adopts far infrared heating pipe, high heat efficiency, long service life 4 Using hot air circulation system, can make the temperature uniform, not easy to burn the pole piece 5 Temperature control adopts PID control system, high control accuracy, reliable work 6 The reeling adopts automatic correction system, pole piece coiling system |
