• Model NO.：TWK-VA
• Phase：Single Phase
• Power：1800W
• Voltage：220V,230V,240V
• Main Pipe Max. Od：219mm
• Max. Hole Dia.：114mm
• Output：280~410rpm
• G.W：17kgs
• Packing Size：60*20*48cm
• Transport Package：Free of Fumigation Wooden Case
• Specification：1′′-4′′ Holes
• Trademark：TUWEI
• Origin：China
• HS Code：8462490000
• Production Capacity：50, 000 PCS,Year

Basic Info.

Model NO. TWK-VA Phase Single Phase Power 1800W Voltage 220V/230V/240V Main Pipe Max. Od 219mm Max. Hole Dia. 114mm Output 280~410rpm G.W 17kgs Packing Size 60*20*48cm Transport Package Free of Fumigation Wooden Case Specification 1′′-4′′ Holes Trademark TUWEI Origin China HS Code 8462490000 Production Capacity 50, 000 PCS/Year

Product Description

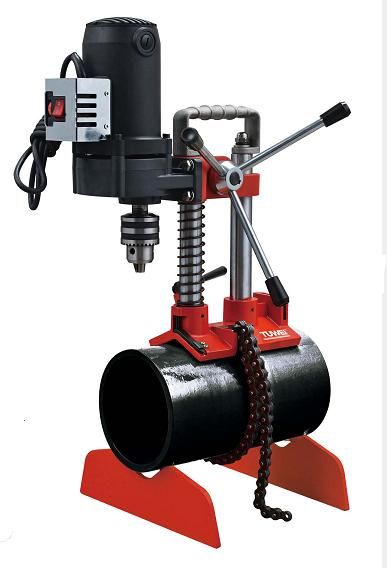

TWK-VA HOLE CUTTING MACHINE
This machine is designed for drilling holes on plastic pipe, plastic-lining steel pipes and steel pipes. The max steel pipe is 8inch and the max hole is 4inch
Simple detachable design, especially suitable for working on the corners of the job site.
Gradienter attached, pointer can indicate the drilling position which will be very efficient.


SpecificationsCapacity1"-4"( Φ25 -Φ114)steel pipeMax hole dia:114MMMax. wall thickness:10MMOutput RPM:280~410RPMG.W:17KGSPackaging size: 60X20X48(CM)

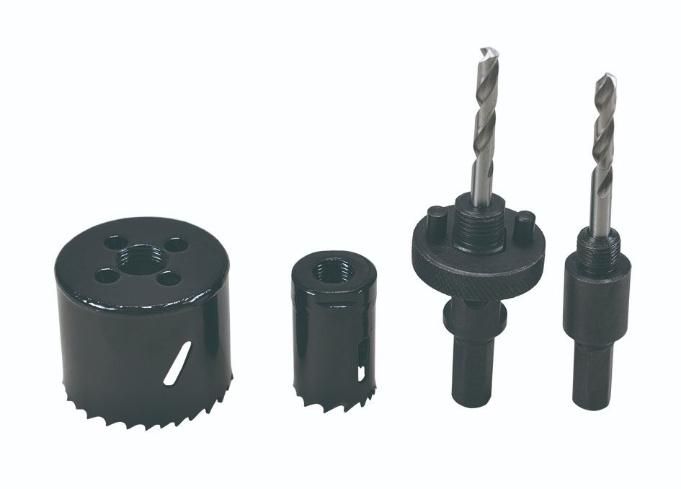

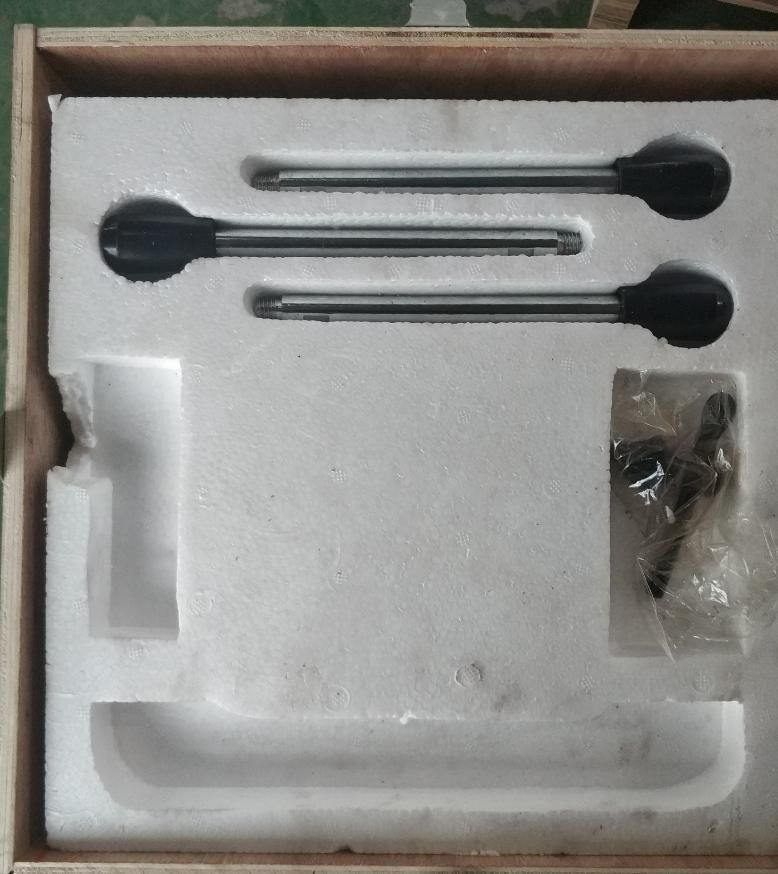

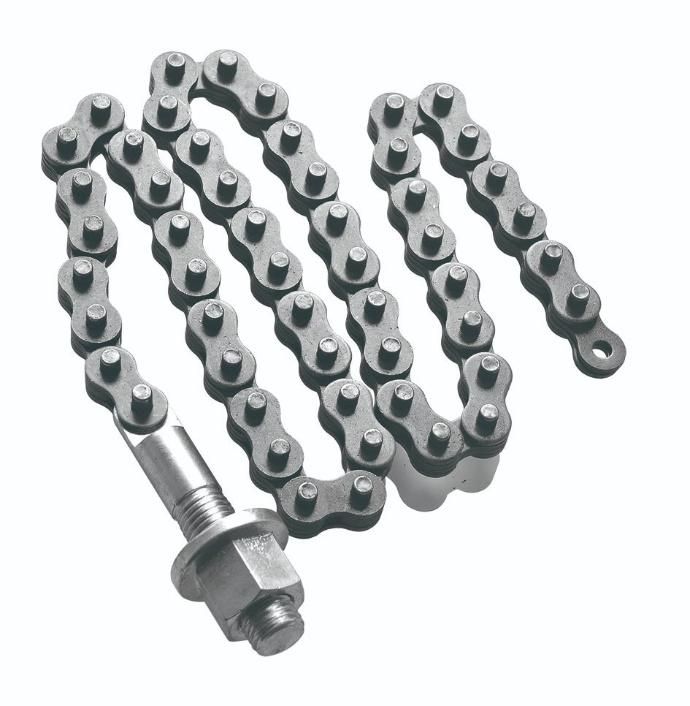

One machine will come with three handles, one key, one chain, one big center drill and one 52mm hole saw.

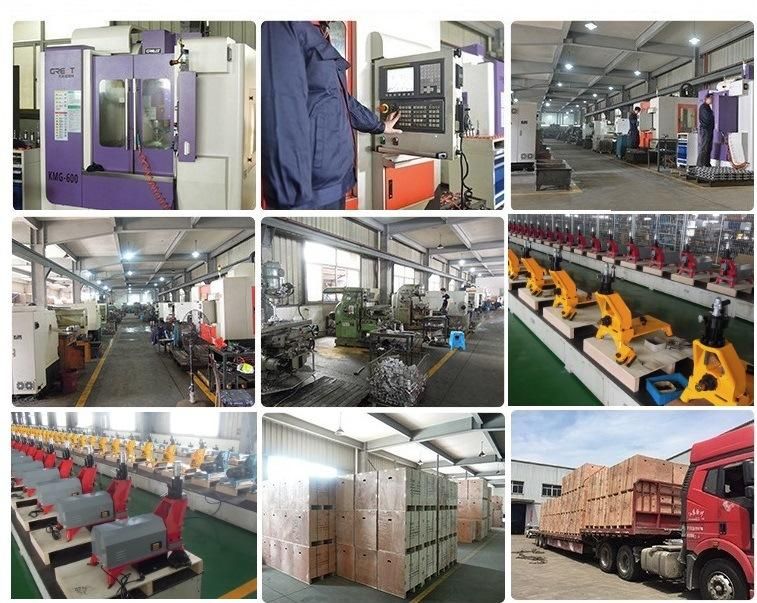

Company  Information
TUWEI is the leading manufacturer of pipe tools in china. Our major products are roll grooving machines,
pipe cutting machines, pipe threading machines, hole cutting machine.....In the past years, we have sent our
machines to many countries and get well reputations from all the customers. With the good reputations some
big brands come to us and start cooperation with us. For example the Victaulic, Rothenberger and Tyco-Grinnel.
