High Speed Square Pipe Roll Forming Machine Line

Zhangjiagang City Saibo Science & Technology Co., Ltd.
  • Type：Rolling Machine
  • Forging Forming Method：Roll Forming
  • Power Source：Electric
  • Feature：High Efficiency
  • Certification：ISO9001, CE
  • Warranty：12 Months

Base Info

  • Customized：Customized
  • Advantage：Use Widely
  • Condition：New
  • Name：Square Pipe Roll Forming Machine
  • Cutting System：Fly Saw Cutting
  • Transport Package：Sea Packing
  • Specification：CE SGS
  • Trademark：SAIBO
  • Origin：Jiangsu, China
  • HS Code：84552210
  • Production Capacity：300sets,Year

Description

Item NO Description Offered specificationCustomer require specification1.Square pipeAccording customer's product: 1.2Rolling thickness0.2-0.5mm up to 550mpa 1.3Control systemPLC  (Panasonic) as list in the note 1.4driveBy chain 1.5Roller stations16 stations 1.6Roller materialCR12 with finishing 1.7Shaft diameter45# high carbon steel  1.8Material of cuttingCr12Mov 1.9StructureWall panel 1.10Tolerance3m+-1.5mm 1.11Electric source380V, 50HZ,3 phase 1.12Color of the machineYellow and blue
Details of each composition:

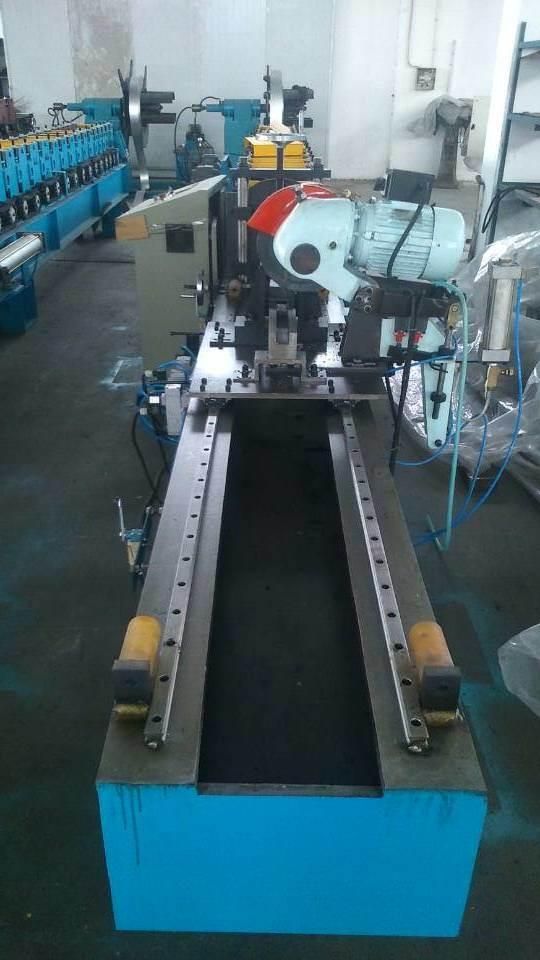

Cutting:
(1)   Machine adopt track flying saw
(2)   Cutting after forming: Cut the sheet after roll forming to required length
(3)   Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
(4)   Material of blade: CR12with heat finishing
(5)   Length measuring: Automatic length measuring
(6)   Tolerance of length: +/- 1.5mm

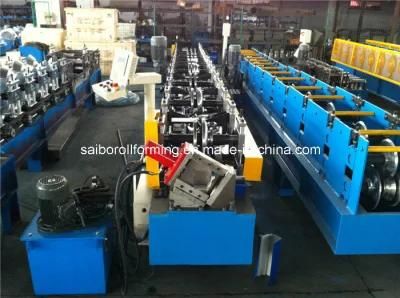

High Speed Square Pipe Roll Forming Machine Line

Un coiler
Width of feeding: 500mm
Capability: 1.5 Ton
Bound of expand &fight: 450mm-550mm
Mode of expand &fight: inner expand &fight by manual
Way of feeding: manual

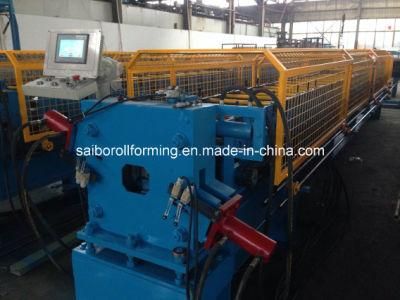

Control panel
(1) Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
(2) Automatic length measurement:
(3) Automatic quantity measurement
(4) Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
(5) Length inaccuracy can be amended easily.
(6) Control panel: Button-type switch and touch screen
(7) Unit of length: millimeter (switched on the control panel)
