• Model NO.：DL-0818
• Transport Package：Wooden Case. or According to Your Requirement.
• Specification：EXPORT STANDARD
• Trademark：DL
• Origin：China
• Production Capacity：100 PCS,Month

Basic Info.

Model NO. DL-0818 Transport Package Wooden Case. or According to Your Requirement. Specification EXPORT STANDARD Trademark DL Origin China Production Capacity 100 PCS/Month

Product Description

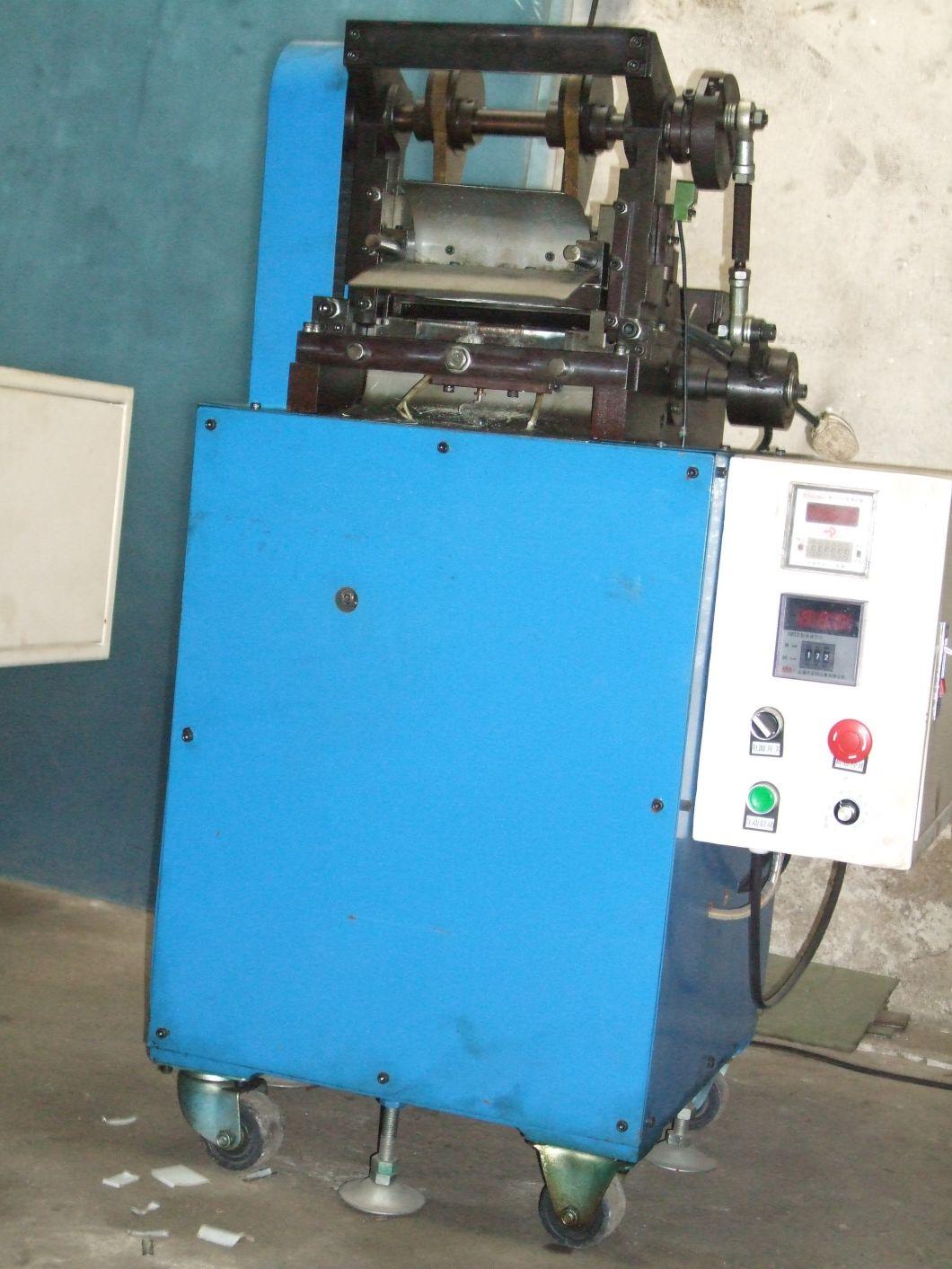

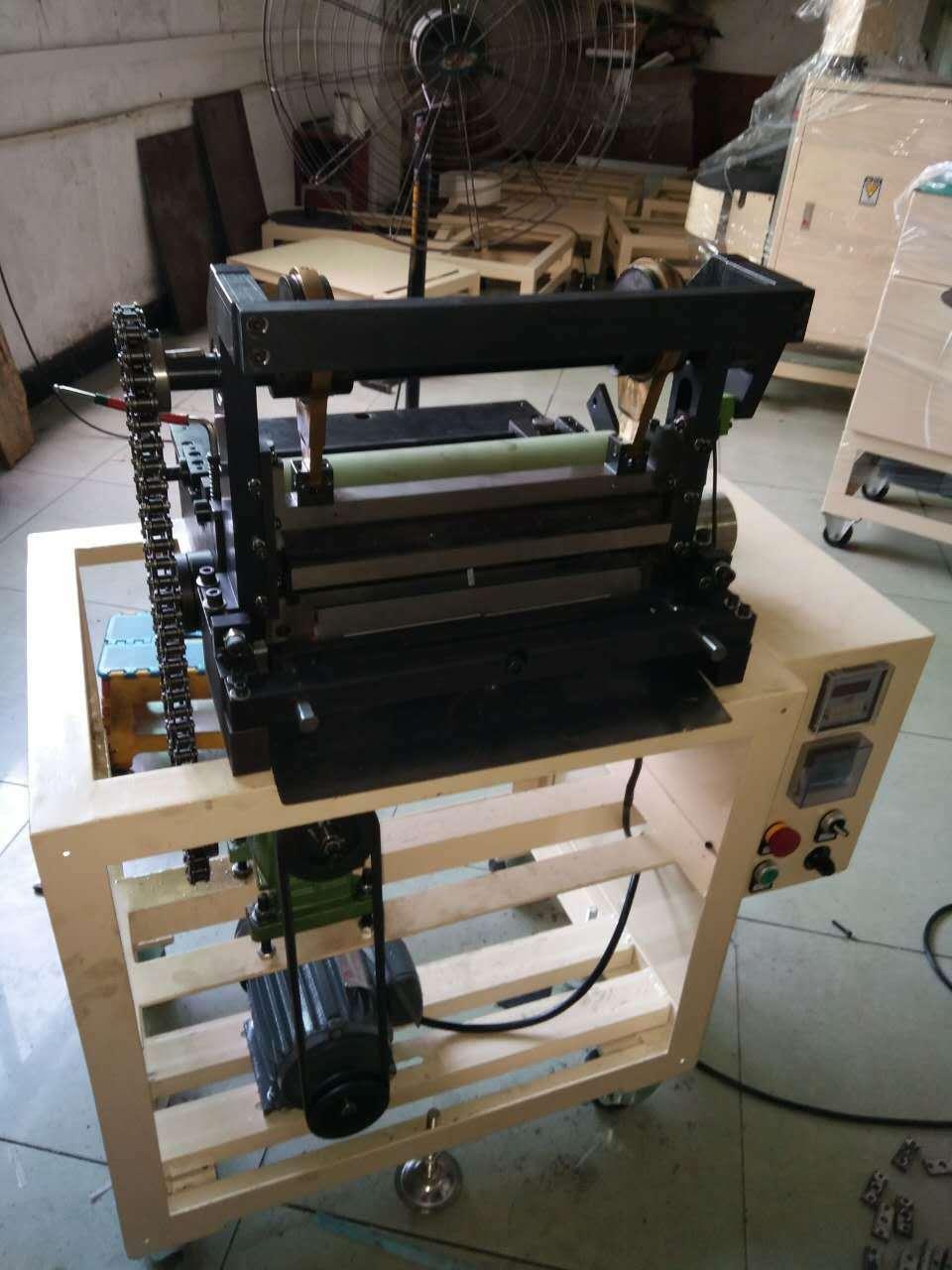

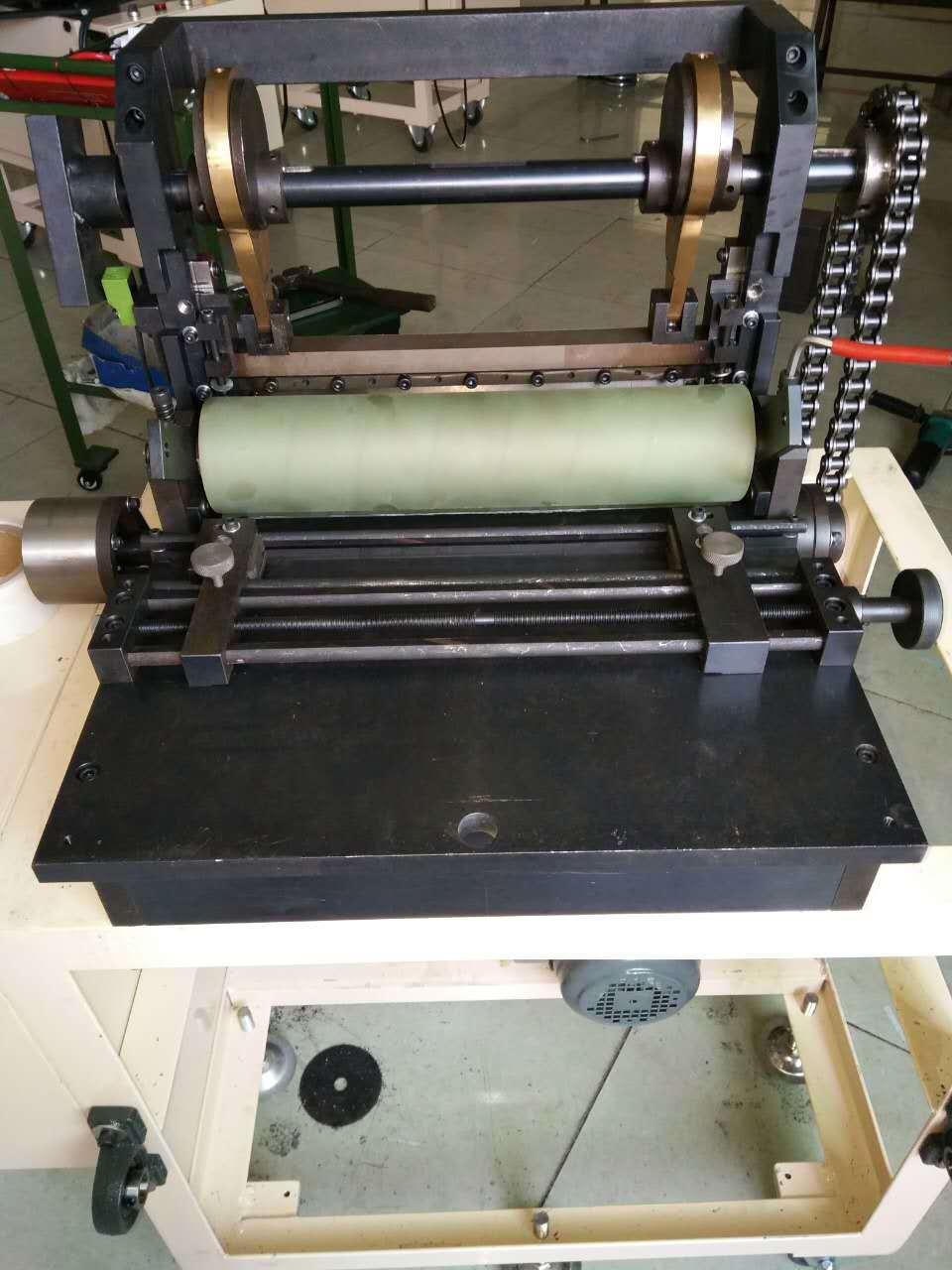

Insulation forming Machine Series

Adopting the mode of horizontal mechanical transmission and hot-rolled forming, it can automatically and continuously complete insulation paper transferring, forming and cutting. Preheating unit is set before the forming of insulating paper to regulate the preheating temperature according to the forming requirements. It can be used for insulation paper coil stock with different thickness and width through the mold replacement, and can satisfy the slot insulation demand when artificially inserting wire in small and medium-sized motors.

Feeding Length 20-130mm
Feeding Accuracy ± 0.5mm
Forming Angle 60° -120°
Roll Width 9-16mm
Material Thickness 0.18-0.3mm
Power Source 380V/50Hz
Power 750W
Tact Time 0.4s/sheet
Weight 700kg
Dimension(L× W× H) 904× 592× 1475mm
