• Model NO.：EMC-200M
• Transport Package：Wooden Box
• Specification：720*410*810mm
• Trademark：Greatech
• Origin：China
• HS Code：8456401000
• Production Capacity：2000sets,Year

Basic Info.

Model NO. EMC-200M Transport Package Wooden Box Specification 720*410*810mm Trademark Greatech Origin China HS Code 8456401000 Production Capacity 2000sets/Year

Product Description

EMC-200M

EMC-200M is a high quality water mist plasma power source for CNC cutting which is upgraded based on EMC-200 with both dry and water mist cutting function.
With water mist plasma cutting, the cutting smoke and noise can be obviously reduced, the cutting quality can be dramatically improved and the working parts color will not be changed after cutting, this is especially good for high quality cutting job of stainless steel, aluminum materials etc.



Technical Parameters

Input Voltage	V	3x380(50Hz) +/- 10%
Input Power	KVA	40
Cutting Current	A	200
Duty Circle	-	100%
Cutting Thickness	mm	20
Pierce Thickness	mm	35
Quality Cutting	mm	40
Max. Cutting	mm	45
Working Gas	-	Air/N2
Gas Volume	L/min	150
Working Gas Pressure	MPa	0.45
Cooling Method	-	Water Cooling
Weight of Machine	kg	90
Size of Machine	cm	72x41x81

Cutting Torch HC-2501



[HC2501 part name and code]

Cutting Method	Current (A)	Electrode	Nozzle	Protective Cap	Water Tube	Copper Sleeve	Diffuser	Copper Press Cap	Retaining Cap
Water Mist	60-100 100-150 150-200	251020	252010 252015 252020	253120	254020	255120	256020	257020	258020

 Cutting Parameters

Cutting Material	Cutting Thickness (mm)	Pierce Height (mm)	Cutting Height (mm)	Cutting Current (A)	Cutting Speed (mm/min)
Carbon steel	3	4	3	60	2900
Carbon steel	25	8	6	200	500
Carbon steel	30	Edge Cutting	6	200	400
Stainless steel	3	4	3	60	1500
Stainless steel	20	7	5	200	700
Stainless steel	25	Edge Cutting	6	200	480
Aluminum	3	4	3	60	2300
Aluminum	20	7	5	200	950
Aluminum	25	Edge Cutting	6	200	500

Company ProfileChangzhou Greatech Co.,Ltd. established in 2013.
GREATECH focuses on welding & cutting, it has a professional team with more than 15 years of experience in this industry. The product of GREATECH covers various welding materials, welding machines, welding parts, plasma power sources, cutting machines and related hardware and tools.

GREATECH has its own advanced technology. Our Plasma cutting machine EMC-130 is one of the biggest air cooling plasma cutting power source in the world. Its maximum cutting current is 130A (100% duty circle), it can work 24 hours continuously, the maximum pierce thickness reaches 25mm, and quality pierce thickness 20mm.

Our CNC Plasma Water Mist Cutting power source, EMC-200M etc, with self-developed water mist cutting system and plasma cutting torch, have excellent performance in stainless steel and aluminum plate cutting, especially in aluminum plate cutting, our machine is one of the best in the world.

Our Wecut Brand MIG, TIG, Plasma torch and spare parts as well as other welding & cutting related products, as a big variety and stable quality, has very good sales in overseas

GREATECH focuses on welding and cutting, however, GREATECH is more than just welding & cutting.

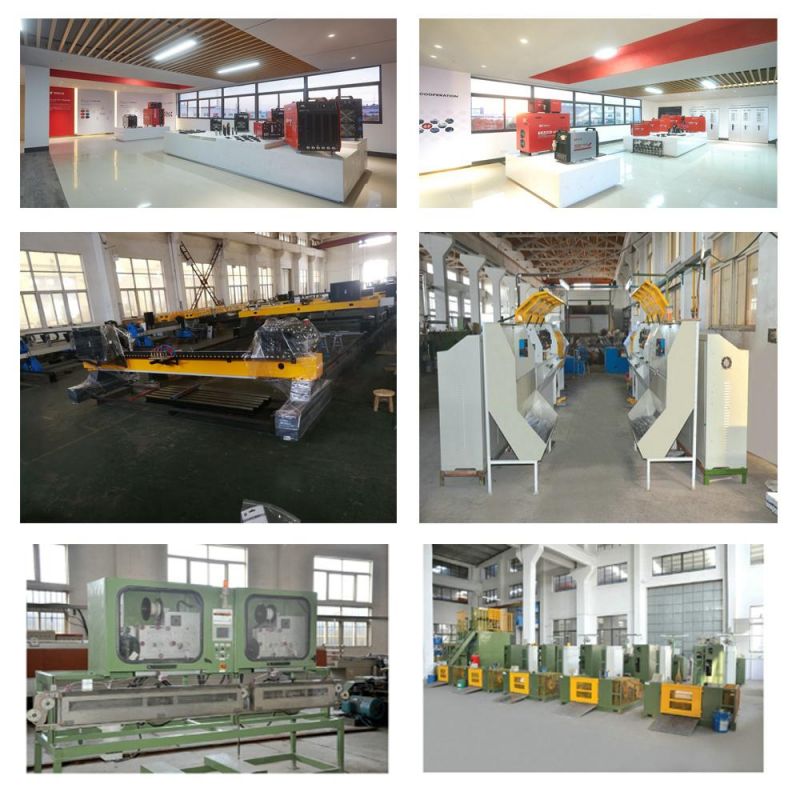

 Factory Show



Packing&Delivery



Company Exhibitions

FAQ
 Q1: Can I get a samples to check the quality?
A:Sure,we can supply samples. For regular goods, the sample cost is different from the amount
you want.For our new products, there's a MOQ of the samples.

Q2: Can I put my logo on the boxes/cartons?
A: Yes, this can be made according to your requirements, but you should send us the trademark
authorization letter.

Q3: How can you guarantee your products quality ?
A: Our each torch must pass the following tests before packing: Insulation resistance test,
High voltage test,Air/Water flow test, Air/Water seal test.
If there are defective items, we usually credit to our customer or replace in the next shipment.

Q4: What's the order procedure?
A: Firstly, we discuss the details together by e-mail or TM. Then we issue you a PI for your
confirmation or Trade Assurance Order Payment Link. You will be requested to do the pre-paid full
payment before we go into the production. After we get the payment, we start to process the order.
It usually takes 5-15days if we don't have the items in stock.
