• Model NO.：Glazed Tile Roll Forming Machine
• Feature：Automation
• Certification：ISO9001, CE
• Warranty：12 Months
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Coil Thickness：0.5-0.6mm
• Main Power：5.5kw
• Diameter of Shaft for Rollers：72mm
• Voltage：380V,50Hz,3phase
• Roller Grinder Milling：Cr12 Mould Steel with Quench Treatment
• Control System：Mitsubishi PLC
• Transport Package：40gp
• Specification：CE SGS BV
• Trademark：Zhongyuan
• Origin：Hangzhou
• HS Code：84552210
• Production Capacity：10sets,Month
• Package size per unit product：830.00cm * 2015.00cm * 160.00cm
• Gross weight per unit product：10000.000kg

Overview Our Advantages



1. Designed by 15 years experienced R&D members with lifetime seivices

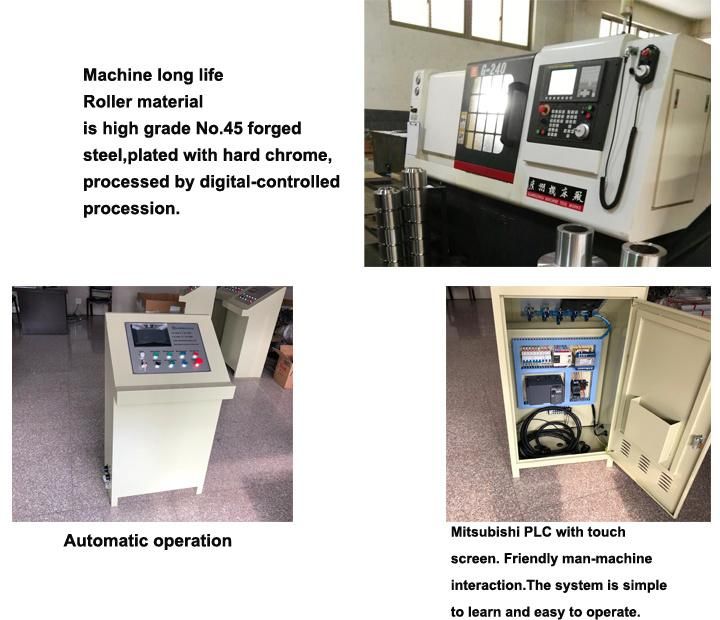

2. Introduced Mitsubishi PLC with touch screen to machine controll system.
3. Need only one worker (minimum) to operate
4. Roller cover with 0.05mm chrome, ensure lifetime>10years
5. Cr12 mould steel cutter with quenched treatment. Blade with heat treatment.
6. Product cut-to-length.
7. 72mm diameter solid steel shaft







 Product Parameters



ItemSpecificationMaterialTypeColor steel sheetThickness(mm)0. 5 -0. 6Yield strength(mpa)235 -345Roller material45#Chrome steelForming speed(m/min)About 1500-2000mm/min or 4-5m/min. For optionStep distanceAdjustable according to requirement (>=250mm)Speed adjusting modeAC FrequencyRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mold steel Length measurement EncoderControl mode Mitsubishi  PLCOperating modeButton +  Mitsubishi  Touch screenMain motor power(kw)5.5KW    (Depend on final design)Hydraulic station power 5.5K W   (Depend on final design)Total power(kw)11KWUncoiler's loading capacityMax. Capacity: 5000kgs
(can be increased to be 10T)Machine`s sizeAbout 8.7*2.04*1.6m  (Depend on final design)Machine weightAbout 8500kgs
Components of machine:Decoiler1set   Feeding & guiding device1setMain roll forming machine1setPressing device1setHydraulic cutting system1setControlling system1setRun out table 1set
Process flow:
Decoiler -- Feeding & Guiding -- Roll Forming-- Pressing--Hydraulic Cutting - Product to Run Out Table
Packaging & ShippingHot Product



Company Profile



Our Clients



FAQ



1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A:  1) We record the testing video for your reference. Or,
    2) We welcome your visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).

Get Free:
Provide profile drawing & design technical support FOR FREE!
