• Model NO.：FF-S-Cyclone
• Application：Hardware Spraying Equipment, Wood Spraying Equipme
• Voltage：220V,380V
• Power(W)：9kw
• Weight：600kg
• Fan Motor：9kw
• Heating Power：Natural Gas,Oil,Electric
• Entrance and Exit Size：Reference Workpiece Size and Weight
• Filter：16PCS
• Small Cyclone Tube：16PCS
• Transport Package：Wooden Case
• Specification：CE ISO
• Trademark：FF
• Origin：Zhejiang Hangzhou
• HS Code：8417809090
• Production Capacity：100sets,Years

Basic Info.

Model NO. FF-S-Cyclone Application Hardware Spraying Equipment, Wood Spraying Equipme Voltage 220V/380V Power(W) 9kw Weight 600kg Fan Motor 9kw Heating Power Natural Gas/Oil/Electric Entrance and Exit Size Reference Workpiece Size and Weight Filter 16PCS Small Cyclone Tube 16PCS Transport Package Wooden Case Specification CE ISO Trademark FF Origin Zhejiang Hangzhou HS Code 8417809090 Production Capacity 100sets/Years

Product Description

HIGH PRODUCTION POWDER COLLECTION BOOTH

Often used in conveyorized powder application systems, FF High Production Powder Collection Booths are designed to increase your productivity, product quality and profitability. Modular designs engineered for optimum airflow and maximum transfer efficiency make these booths ideal for any high production powder coating application.

The Automatic Powder Paint Booth with Multi Cyclone Recycling, is almost 98 % powder utilization. Work with automatic reciprocator and auto spray gun, it achieves a high level powder recycling and working efficiency.
work dimmension :6000 x W 1200 x H 3000mm





Technical parameters

Model	COLO-S-Cyclone
Booth Type	Multi-Cyclone
Operator dimensions	800width x 2000 height x 6000 depth
Weight	4000kgs
Power supply	Electric
Nominal power	15KW
Voltage	380V
Frequency	50-60Hz
Filters	Polyester
Filters count	16pcs
Filters hang type	easy for change
Filter cleaning system	Pneumatic
cyclone	16pcs,Efficient automatic separation
Rotation wing self-cleaning cartridge filter unit	1set
fliud hopper	1set
Warranty	12 months

Characters:
1. Quick color change.
2. Maximum recovery efficiency with cyclone recycling
3 Simple structure, easy for clean and disassemble
4 PLC control for Highly reliable running
5 Durability.

Details Instruction
This Automatic Powder Paint Booth adapts double powder recycling system

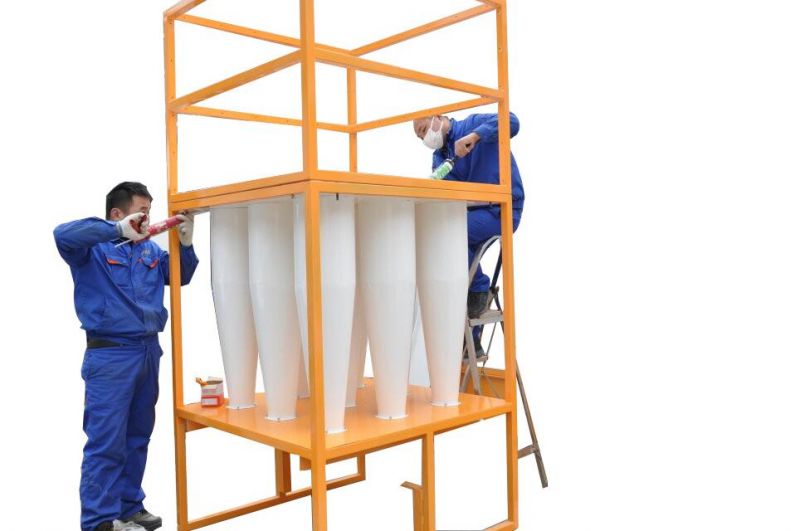

1. Muti-cyclone system to recycle most poweders into the bottom type, the collected powder could be used again

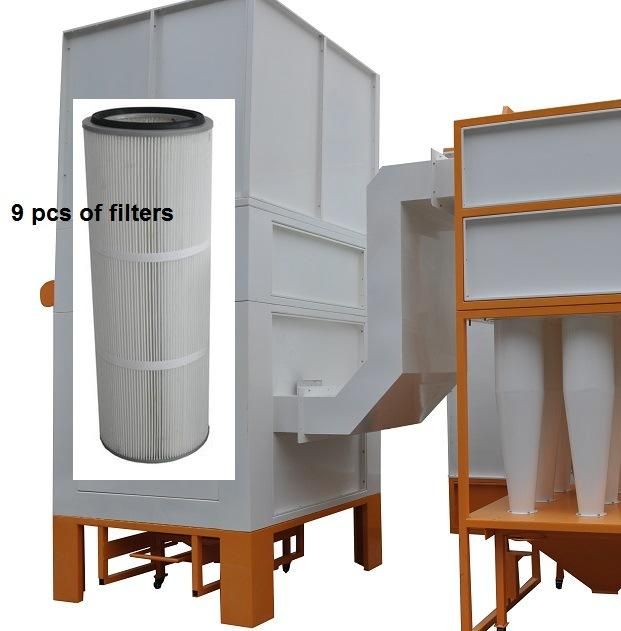

2. Cartridge filters system is to recycle waste powder which could not be used next time.

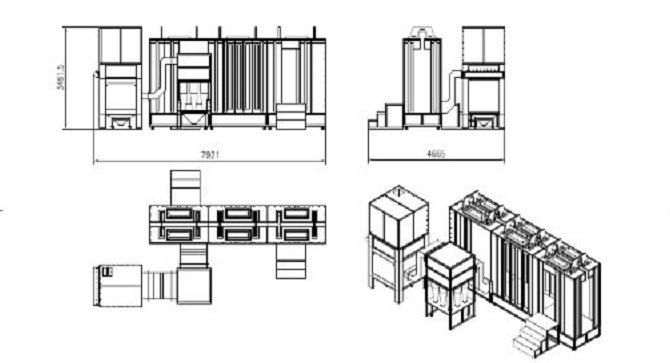

Drawing:
We have professional and experienced technical department to provide design.

About Us
HANGZHOU FEIFU IMPORT & EXPORT COMPANY LTD is a leading company in China in the electrostatic powder coating systems industry. We are an innovator of powder coating equipment, and export into more than 90 Countries including the US, Mexico, Peru, Colombia, Russia, Poland, UK, Germany, Vietnam, Thailand, Korea, Malaysia, Egypt, Morocco along with many others. What we can provide is the excellent powder coating solutions.


If you want to know more detail information,please contact me!
