• Model NO.：Q35Y-20
• Hydraulic Gear Pump：World Famous Athos
• Max Cutting Thickness：16mm
• Max Dia of Punching：25mm
• Machine Weigth：1900kg
• Transport Package：Base Framed by Channel Steel and Plastic Bag
• Specification：1 Unit
• Trademark：ZDMT
• Origin：China(Mainland)
• HS Code：84624900
• Production Capacity：100units,Month

Basic Info.

Model NO. Q35Y-20 Hydraulic Gear Pump World Famous Athos Max Cutting Thickness 16mm Max Dia of Punching 25mm Machine Weigth 1900kg Transport Package Base Framed by Channel Steel and Plastic Bag Specification 1 Unit Trademark ZDMT Origin China(Mainland) HS Code 84624900 Production Capacity 100units/Month

Product Description

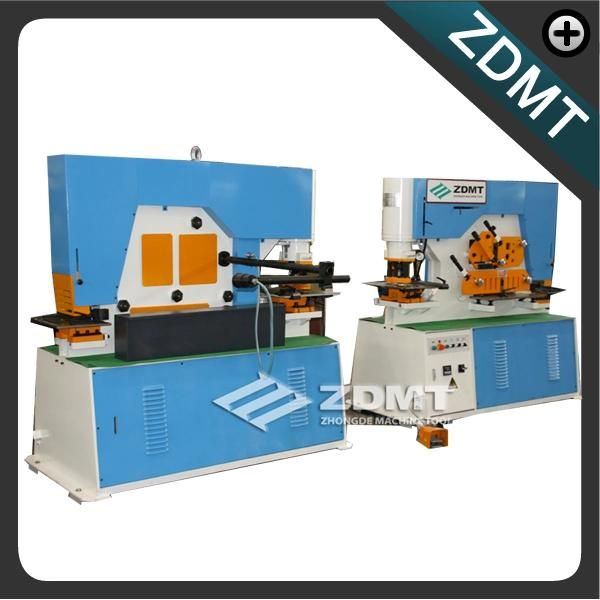

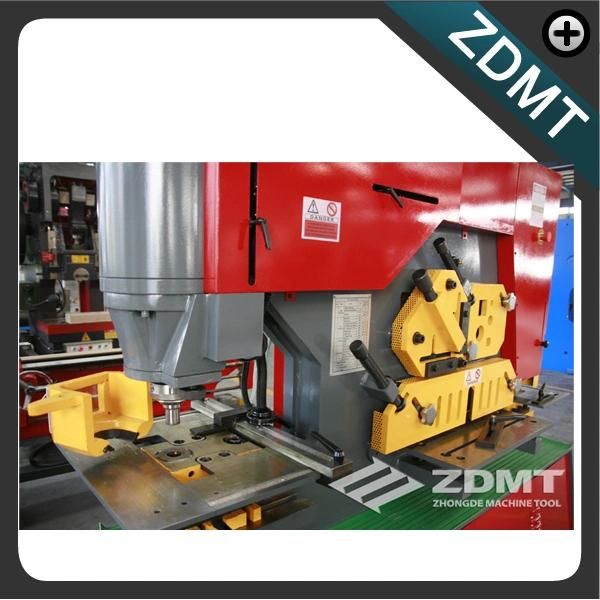

                                     Q35Y-16 ( 60T ) Hydraulic Ironworkers machine

2. Basic Parameters of Machine

Model	Q35Y-16
Working Pressure(KN)	60
Max Cutting Thickness(mm)	16
Max Cutting Length(mm)	600
Tensile Strength of Sheet Metal(N/mm2)	≤450
Shear Angle(deg)	7
Stroke of Ram(mm)	80
Stroke Times(cycles/min)	6
Depth of Throat(mm)	300
Max dia of punching (mm)	25
Main Motor(KW)	4
Length of Machine (mm)	1650
Width of Machine (mm)	800
Height of Machine (mm)	1780
Weight of Machine (Kg)	1900

Types of profiled steel for shearing:

Type   Size ( mm )	Q35Y-16
Round steel	45
Square steel	40×40
90° shearing of equal-angle steel	120×120×12
45° shearing of equal-angle steel	70×70×8
90° Shearing of T-bar	140×70×12
H beam steel	127×74×5
Channel steel	126×53×5.5
